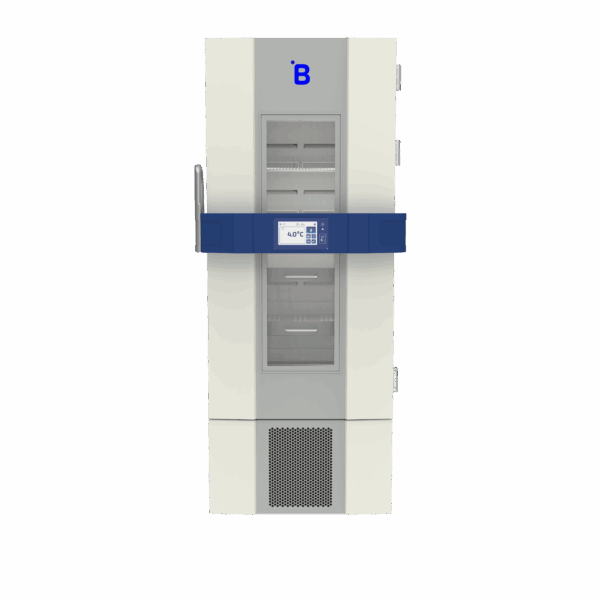

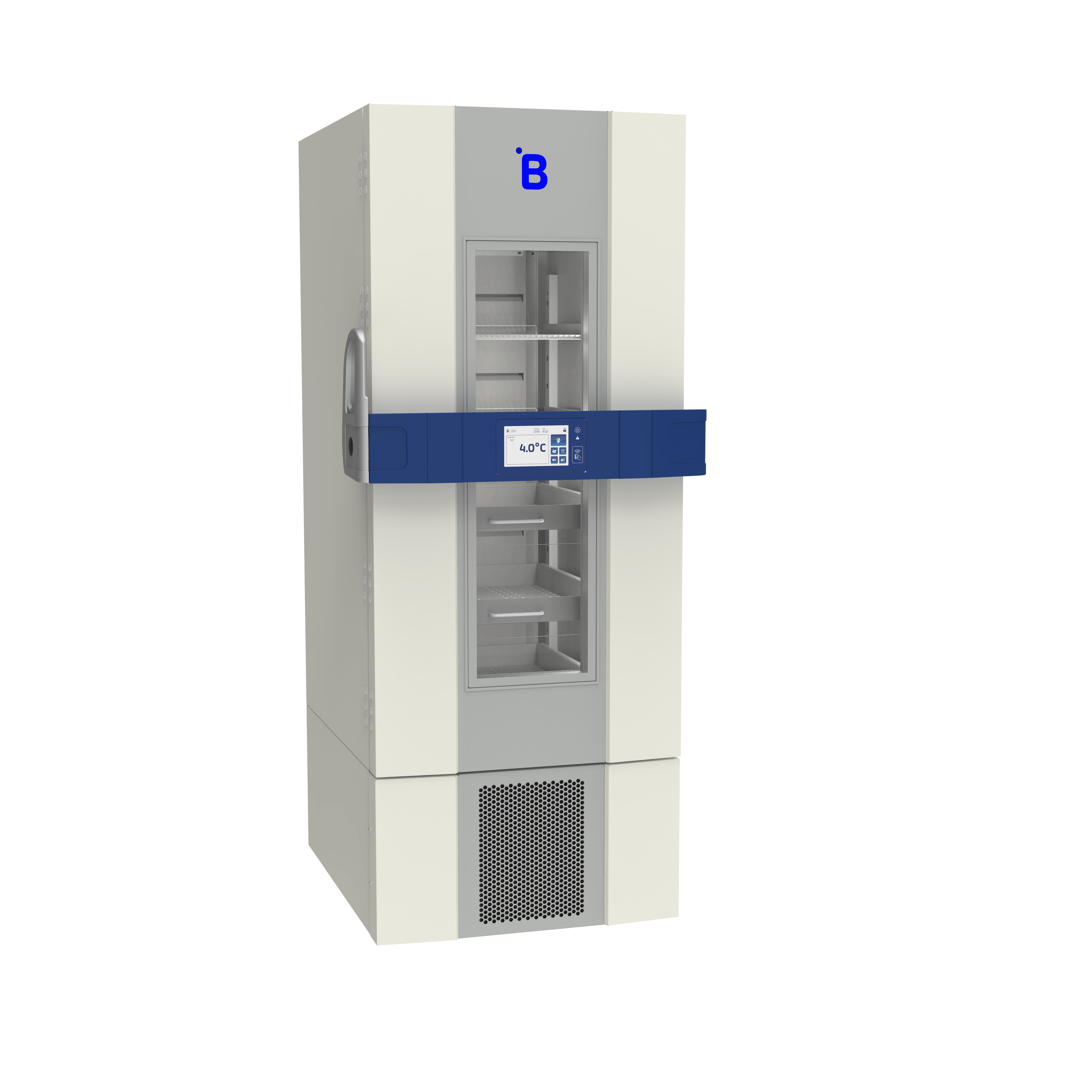

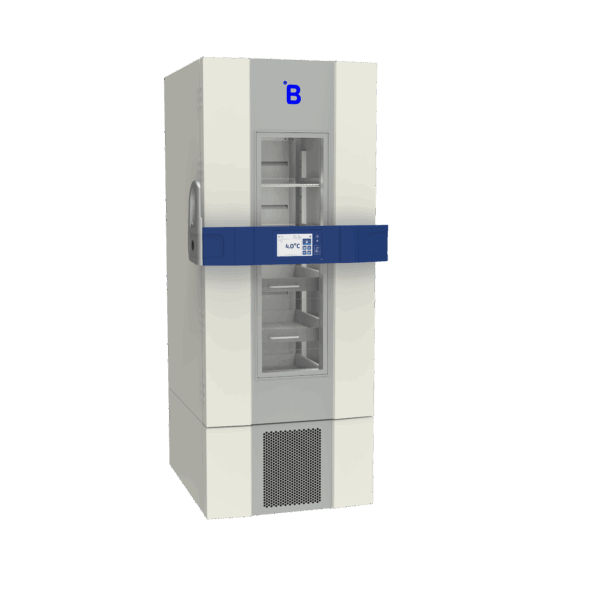

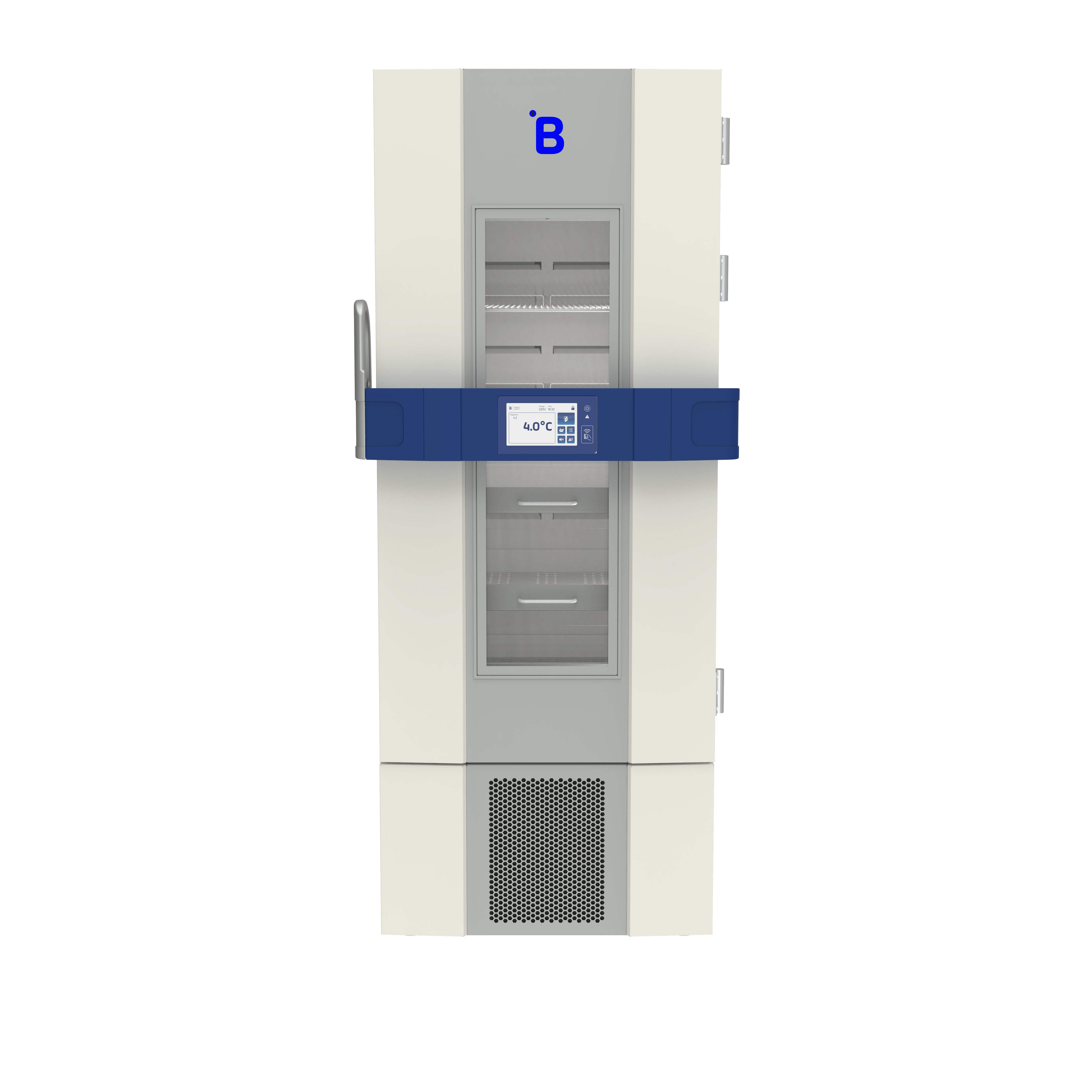

Blood Bank Refrigerator B501
Blood Bank Refrigerator with 634 L | 22.39 cu ft gross volume.
- Set Temperature: +4°C
- Climate class (ambient temperature range): +10°C to +43°C
- Alarm limits: +2.5 °C | +5.5 °C
- External dimensions (HxWxD): 1988 x 845 x 1039 mm | 78.27 x 33.27 x 40.91 in
- Refrigerant Type: Natural R600a
Reliability

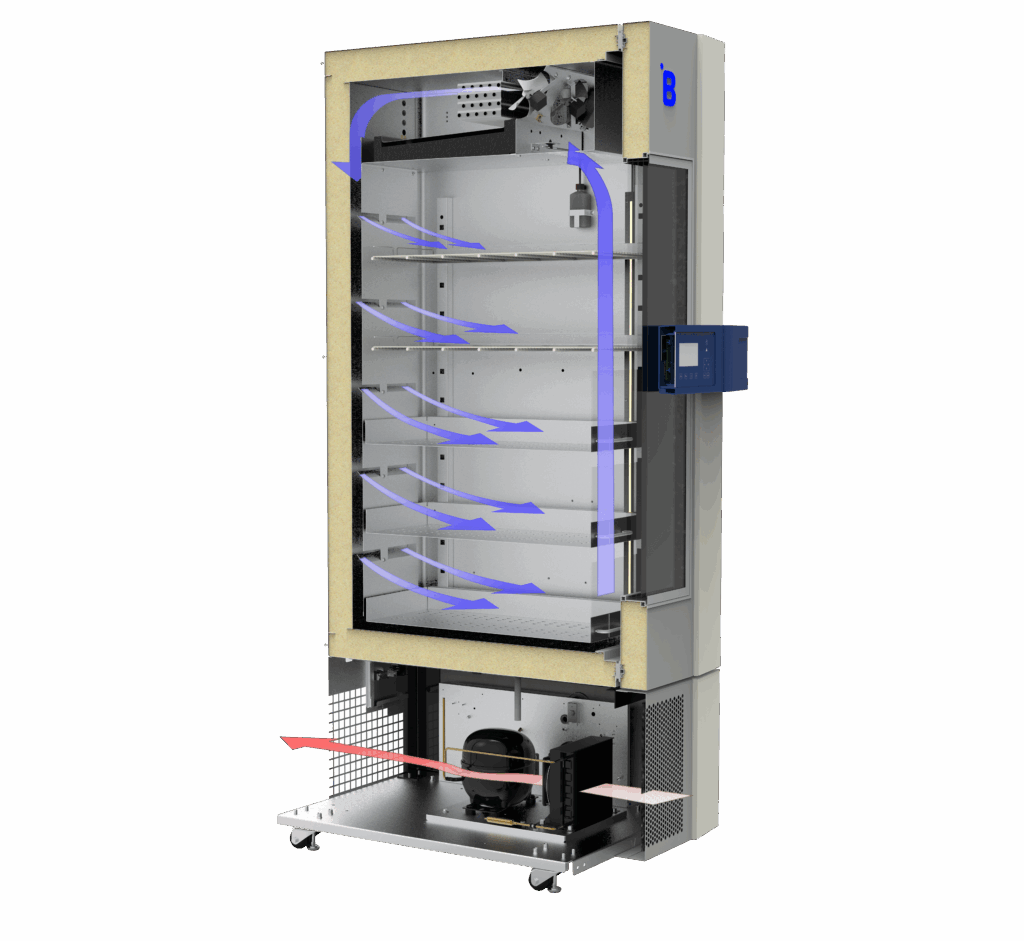

- Controlled air cooling system for uniform and stable temperature distribution
- Fast temperature recovery even in case of frequent door openings
- Safety thermostat preventing temperature below freezing
- Extended autonomy in case of power failure
- Audio-visual alarm system with remote transmission via SMS or email
- °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving
Efficiency
- Natural refrigerant of high cooling efficiency in conformity with US SNAP and EU F-Gas regulations
- High-performing compressor for greater energy efficiency
- High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam providing high thermal insulation and storage capacity
- Sealed gaskets and 5-layer glass window minimizing cold air loss
- Interior automatic LED lighting for lower energy consumption
Convenience

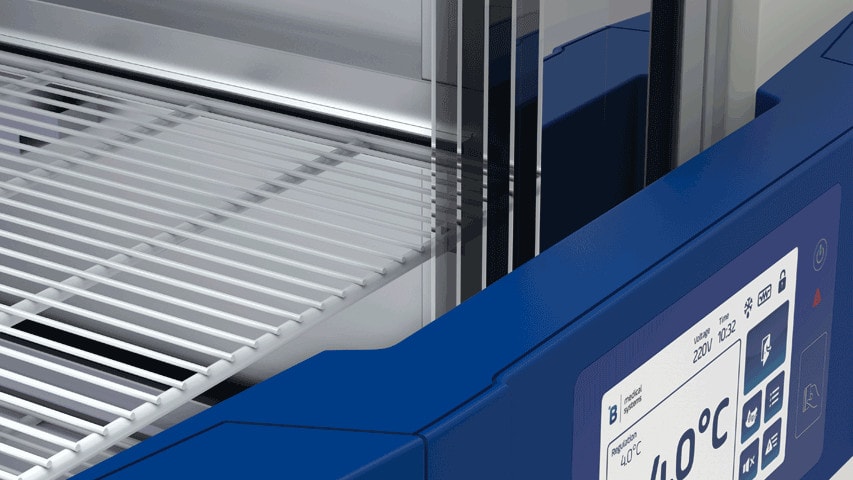

- Easy access to parameters on a 7” touchscreen with temperature display
- Password protected/NFC card based door locking mechanism
- USB port and SD card slot for easy export of data
- Antibacterial coating for easy hygiene control
- Low-noise appliance
- Low heat emission
- Organic glass window for better visibility of the refrigerated content

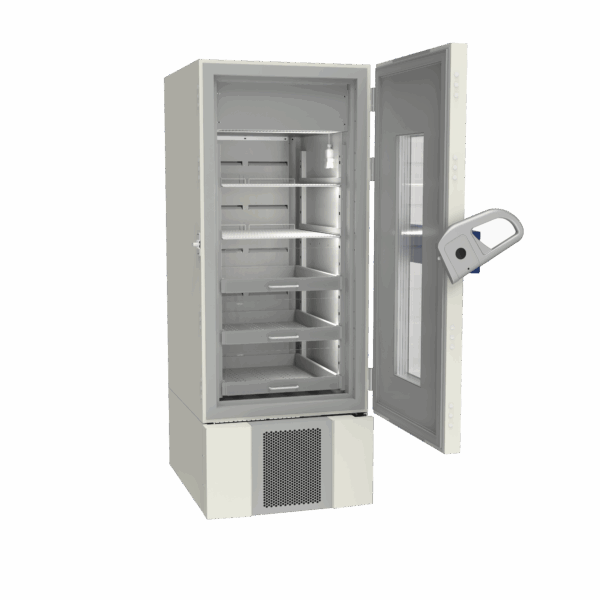

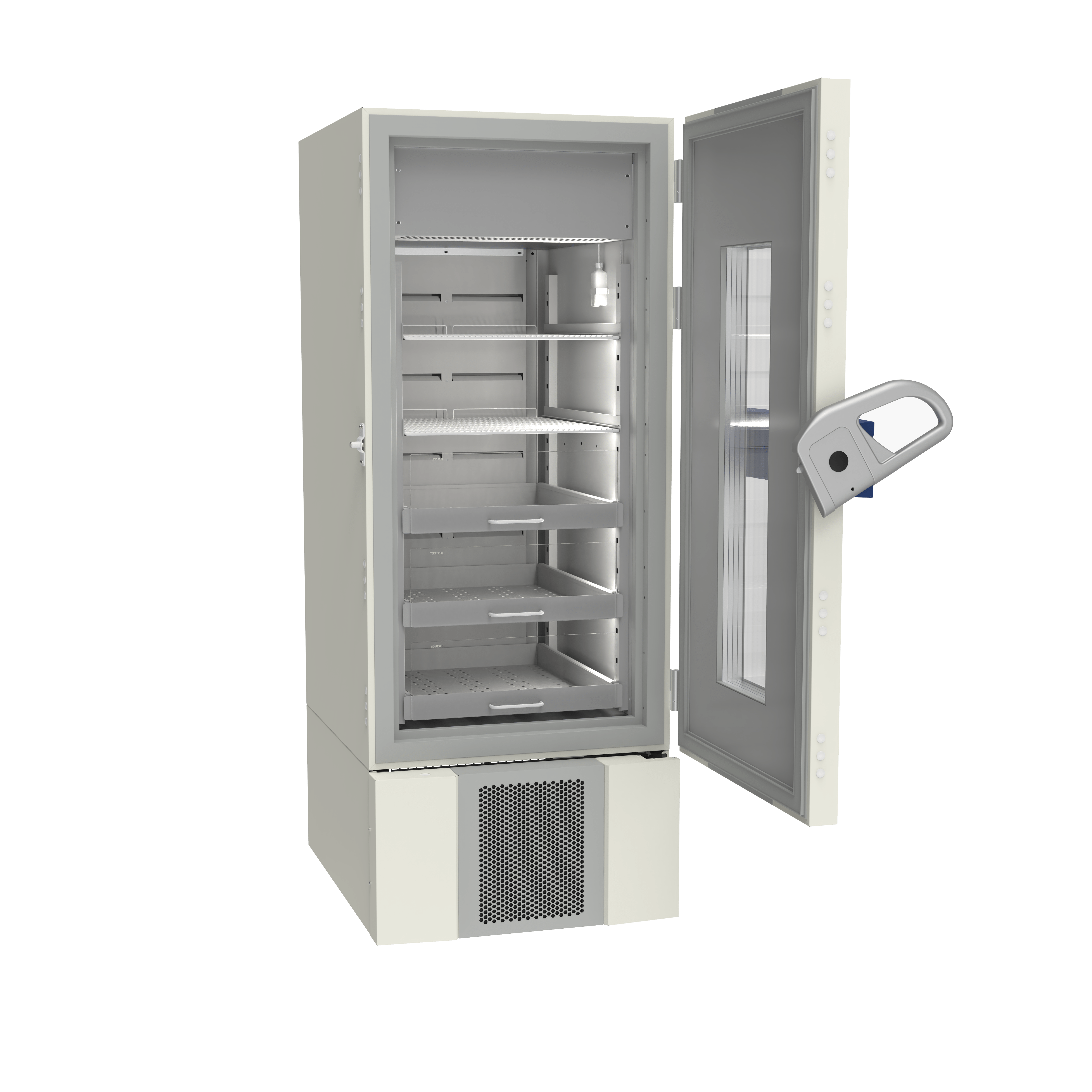

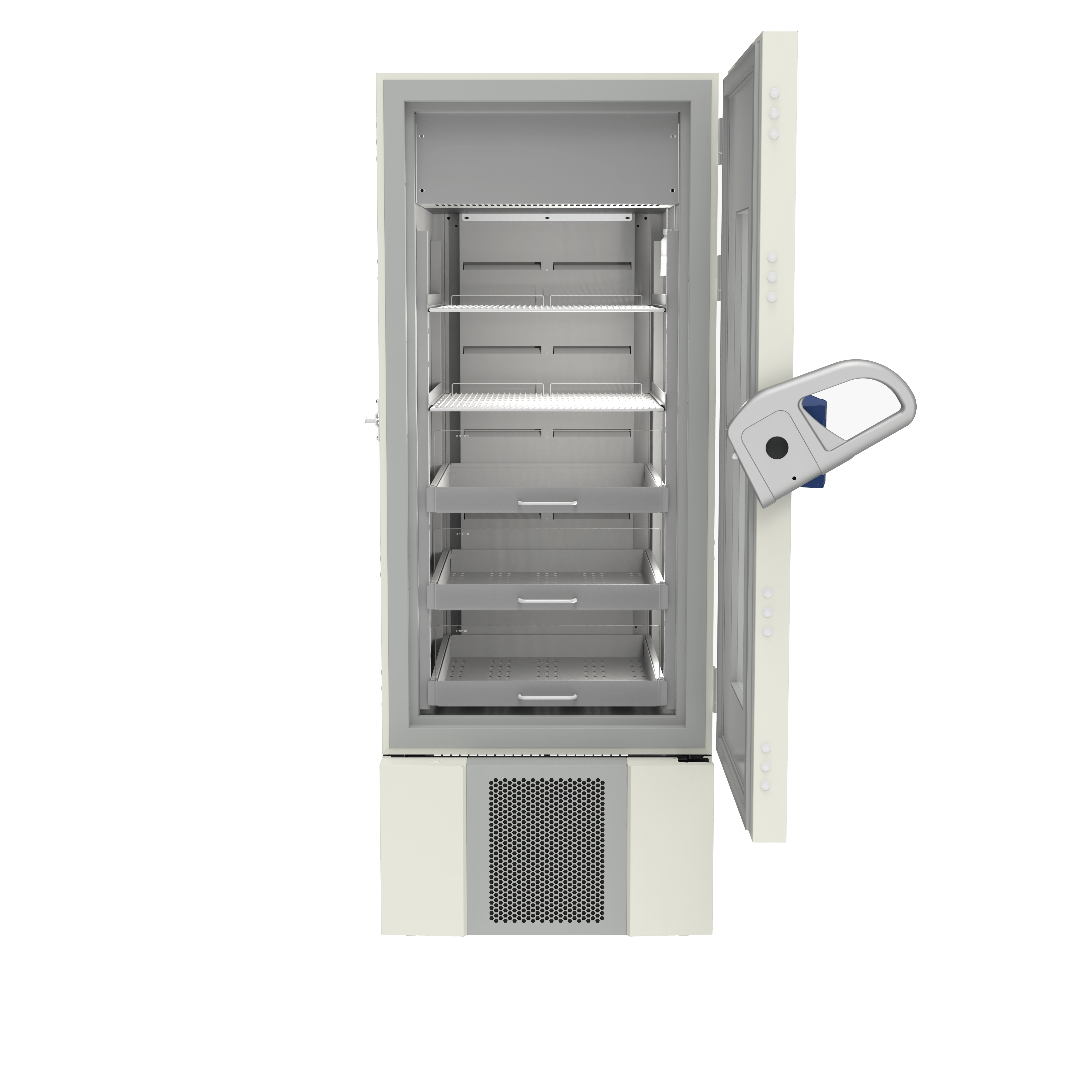

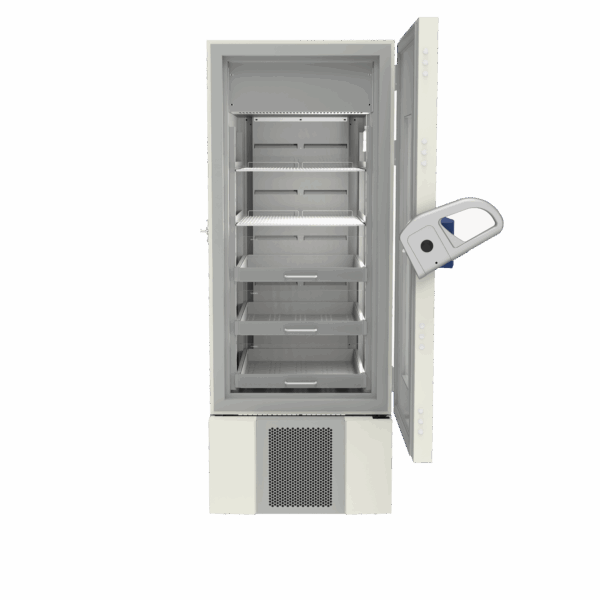

- Modular interior equipment
- Easy access to the lower drawers
| Gross volume | 634 L | 22.39 cu ft |
|---|---|
| Blood bag capacity (450 ml) | 360 |
| Blood bag capacity (350 ml) | 500 |
| Set Temperature | +4°C |
| Alarm limits | +2.5 °C | +5.5 °C |
| Climate class (ambient temperature range) | +10°C to +43°C |
| Certifications | cCSAus | EU MDR Class IIa | ISO 14664-1 | Class 4 | SCoPE | US FDA Class II |
| Cooling technology | Forced air cooling system |
| External dimensions (HxWxD) | 1988 x 845 x 1039 mm | 78.27 x 33.27 x 40.91 in |
| Internal dimensions (HxWxD) | 1173 x 593 x 743 mm | 46.18 x 23.35 x 29.25 in |
| Net weight | 228 kg | 502.65 lb |
| Frequency | 50-60 Hz |
| Supply voltage | 220-240V |
| Energy consumption | 1.5 kWh/24h |
| Noise level | 47 dB (50 Hz) | 51 dB (60 Hz) |
| Refrigerant Type | Natural R600a |
| Heat emission | 35 Kcal/h |
| Materials | Stainless steel |
| Display | 7" touchscreen screen |
| Remote monitoring | °B Connected software |
| Hold over time | 2.8 h (+4°C to +10°C) |
| Defrosting technique | Natural |
| Access control | Password or badge |
| Data export | SD card | USB port |
| Product Type | Blood Bank Refrigerator |
