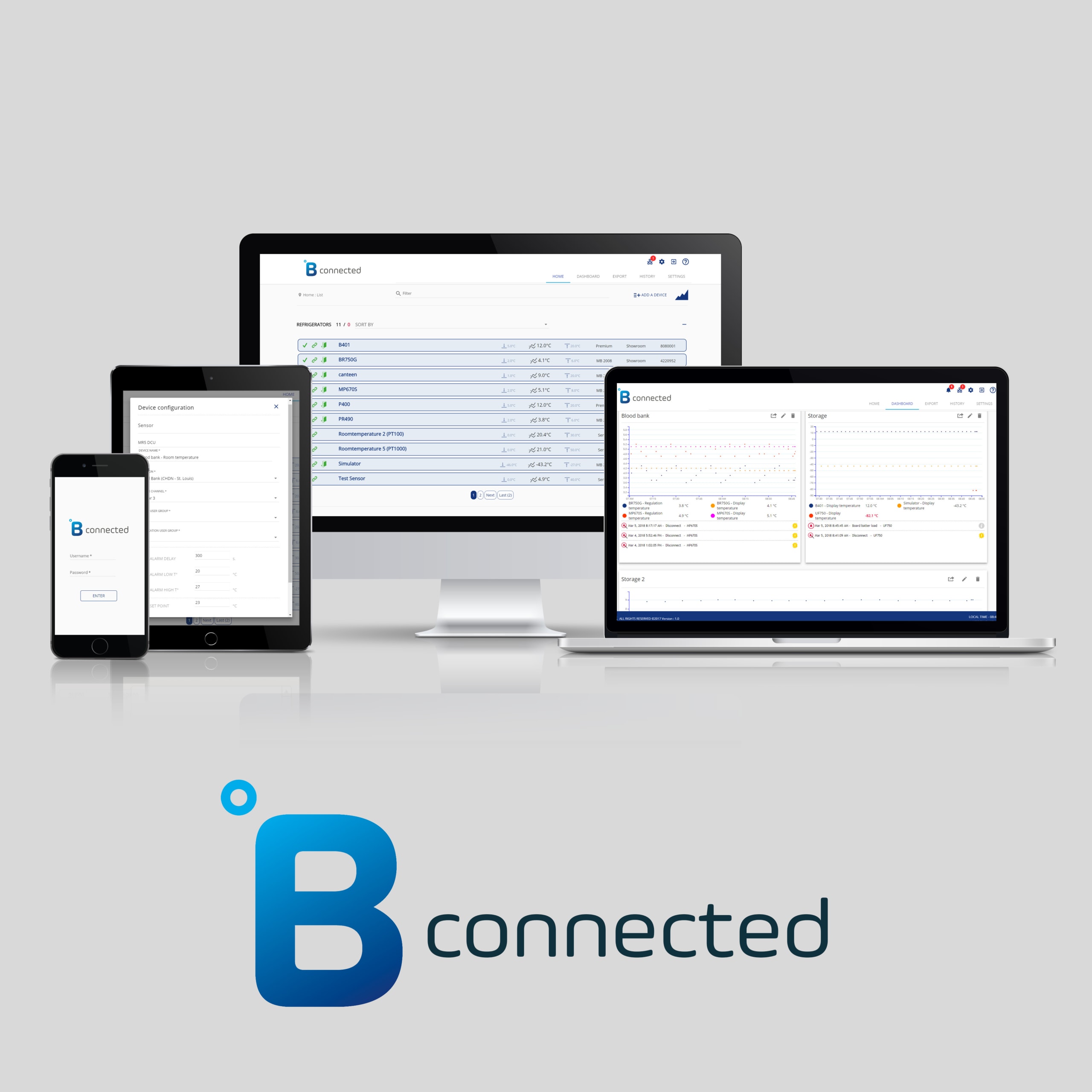

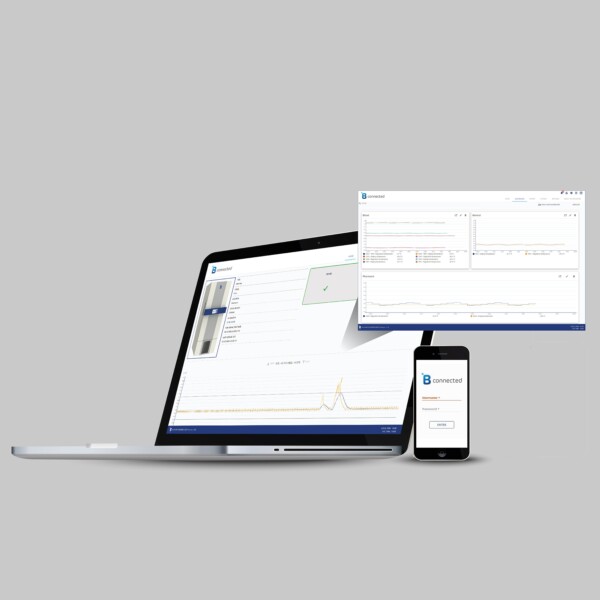

°B Connected – Monitoring Software
Universal software for the monitoring of refrigeration devices, including the acquisition, recording and visualization of temperature data.
- Unique monitoring software for the full range of Blood Management Solutions and Medical Refrigeration products
- Web-based interfaces for computers and mobile devices
- Modern design for simple and intuitive use
- Graphic display of temperature curves
- Integrated event and activity history of appliances’ components
- Data recording on centralized database for long-term archiving
- Easy setting of specific alarm, via email or SMS alerts
- Generation of reports compiling crucial data and activities
- Temperature and detailed device data export for third-party software
- Important cost advantage compared to a traditional circular chart recorder and its spare parts
- REST API to access raw data directly from the database in read-only mode
Key benefits:
- Unique interface for the monitoring of the full range of refrigeration devices
- Centralized database providing data access to entire customer network

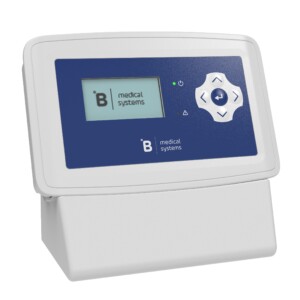

DCU | DATA COMMUNICATION UNIT
Hardware module monitoring all operating conditions and passing them through to a central database – via local network.- Interface connection of B Medical Systems appliances to an existing network
- Graphical user interface displaying temperature and configurating devices and alarms easily
- Direct connection to Ethernet and serial bus RS485
- Digital in/out (programmable and customer-specific use)
- Recording and storing appliance-relevant data
- Integrated USB port allowing to export archived data
- The DCU combined with the °B Connected software replaces the paper temperature recorder
- All data are recorded and save in the internal storage of the DCU and backed up in °B Connected data base if connected
- Several additional self-sufficient temperature sensors (up to 4 PT1000) may be connected
- Humidity sensor input (4-20 mA)
KEY BENEFITS:
- Central system collecting relevant temperature data of the appliances and their respective operating conditions
- A number of connection abilities allowing flexible upgrades for individual projects
