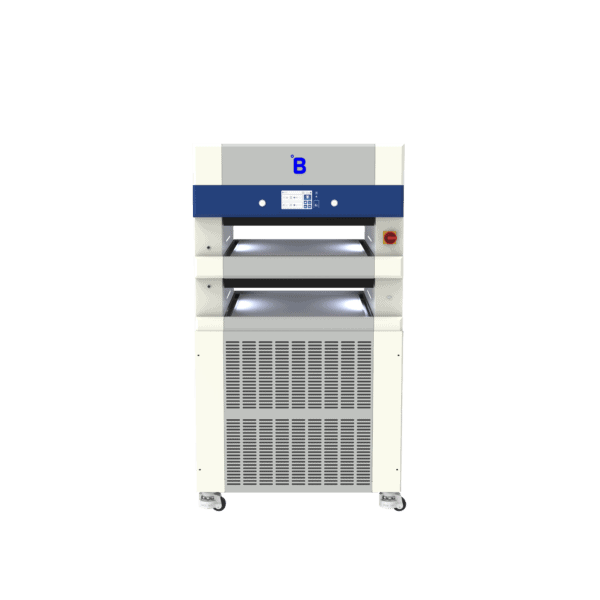

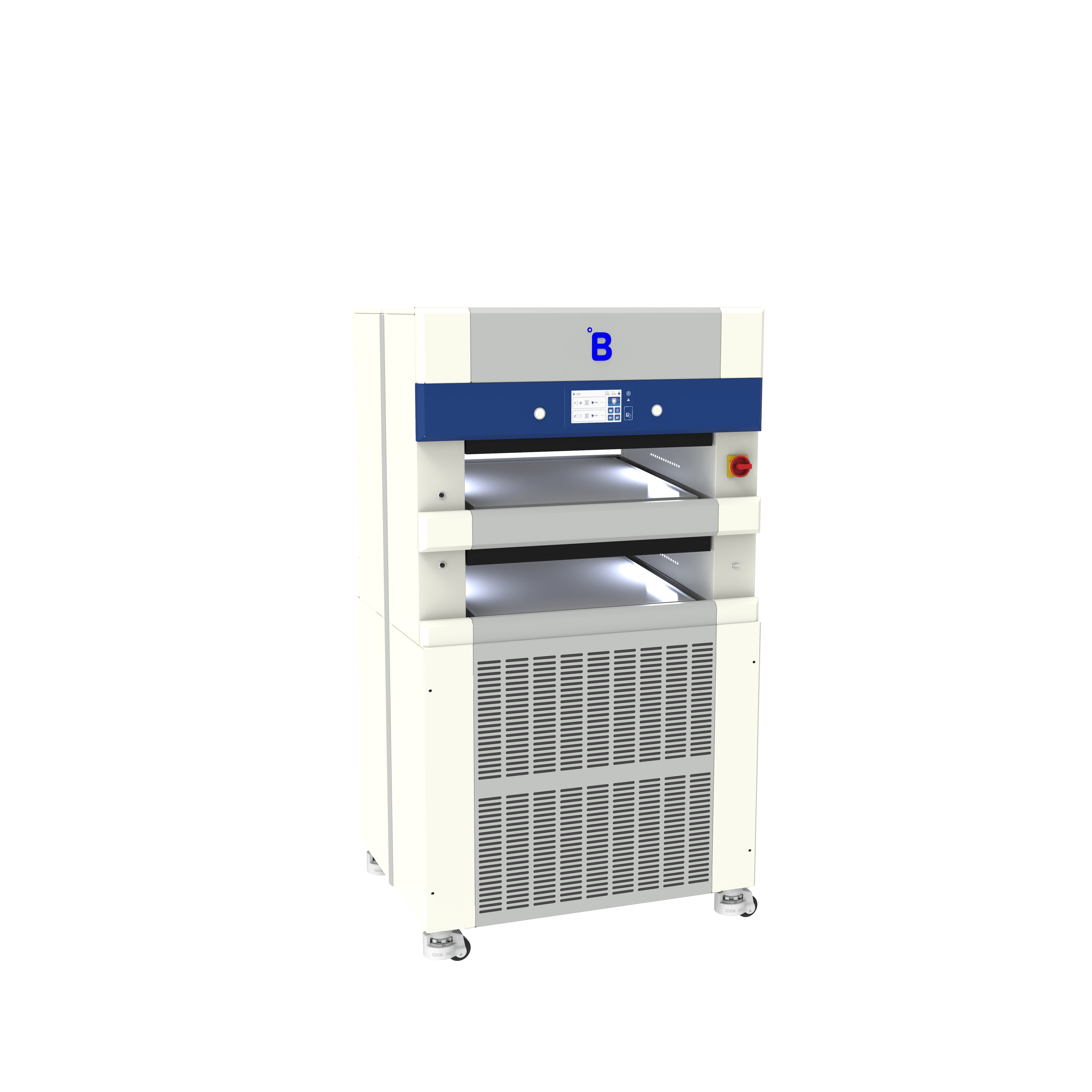

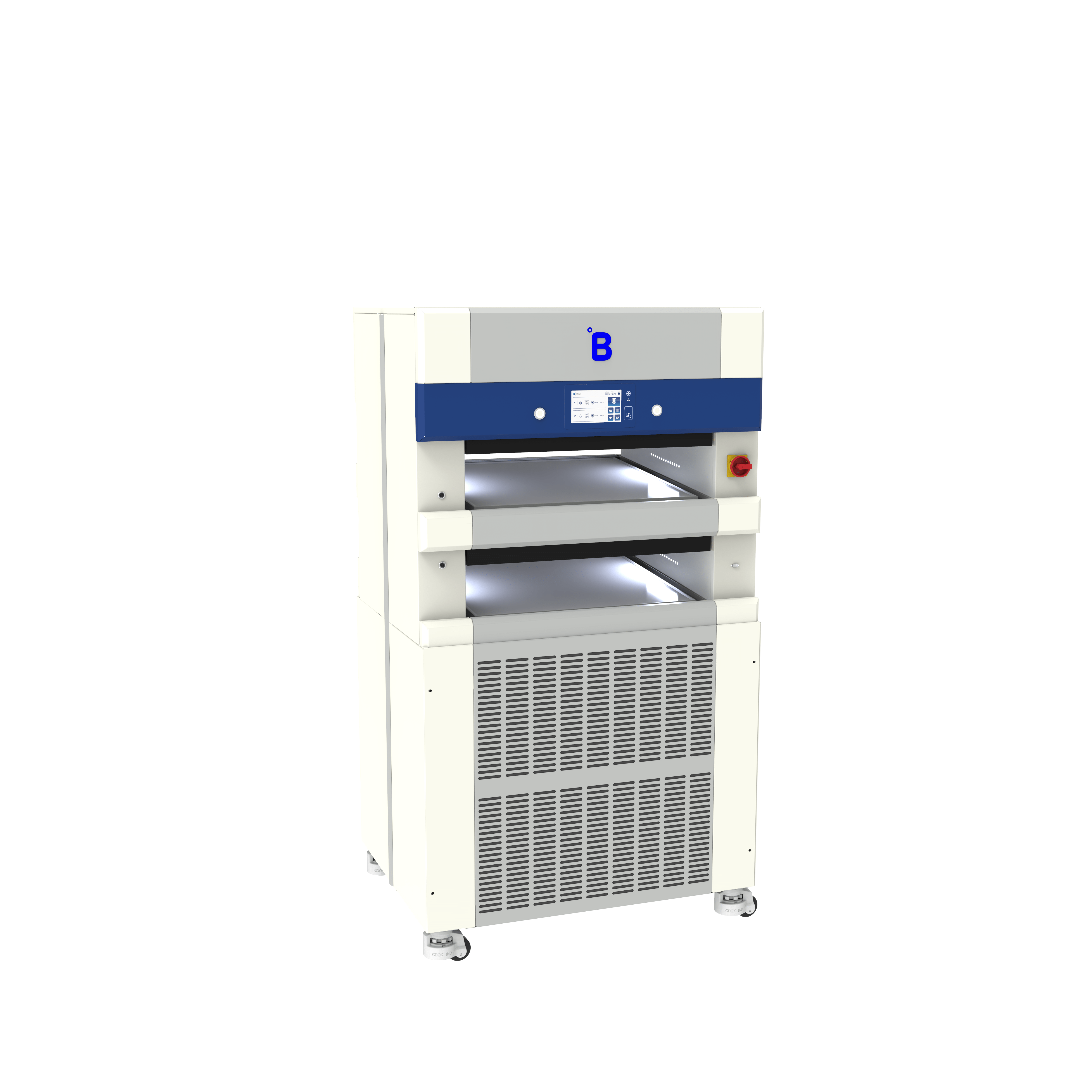

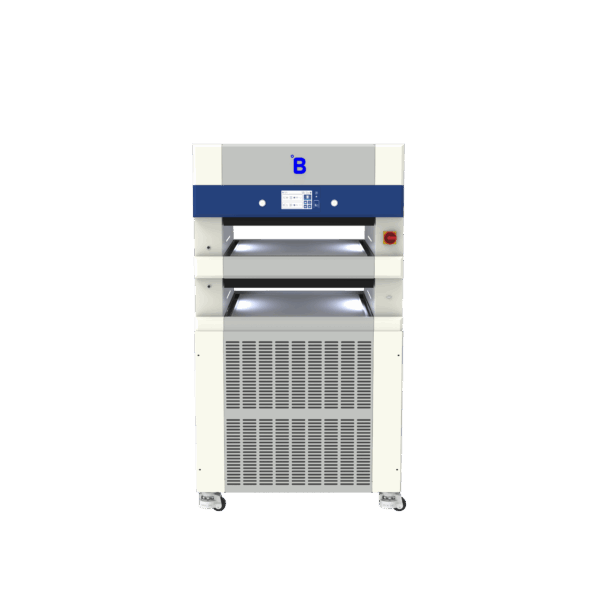

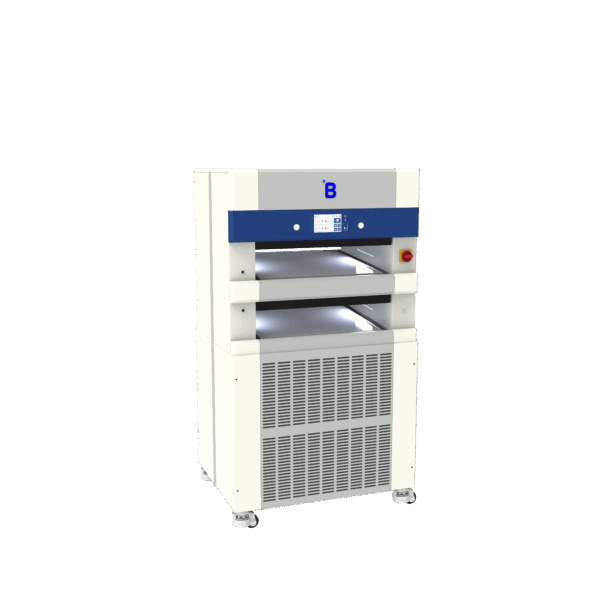

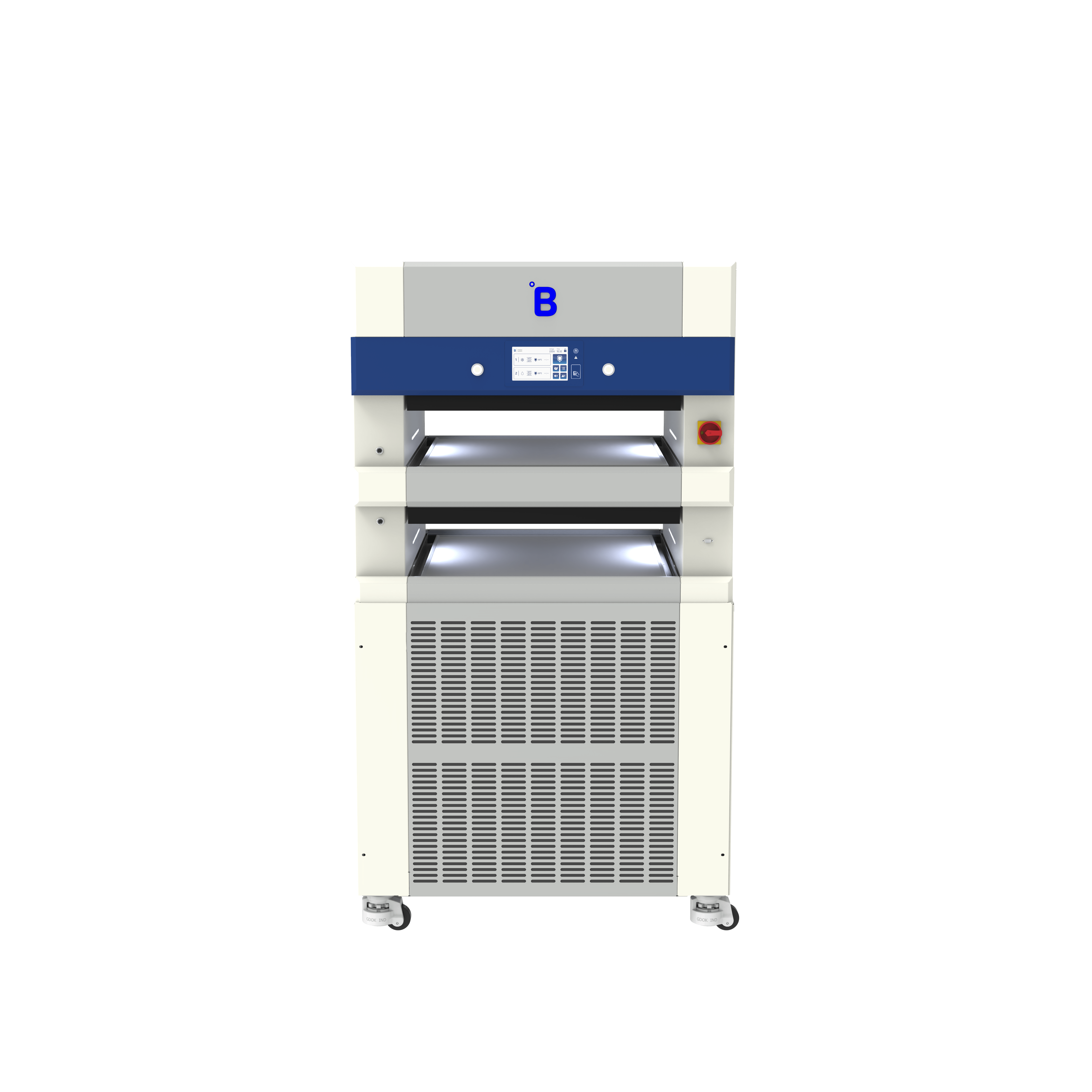

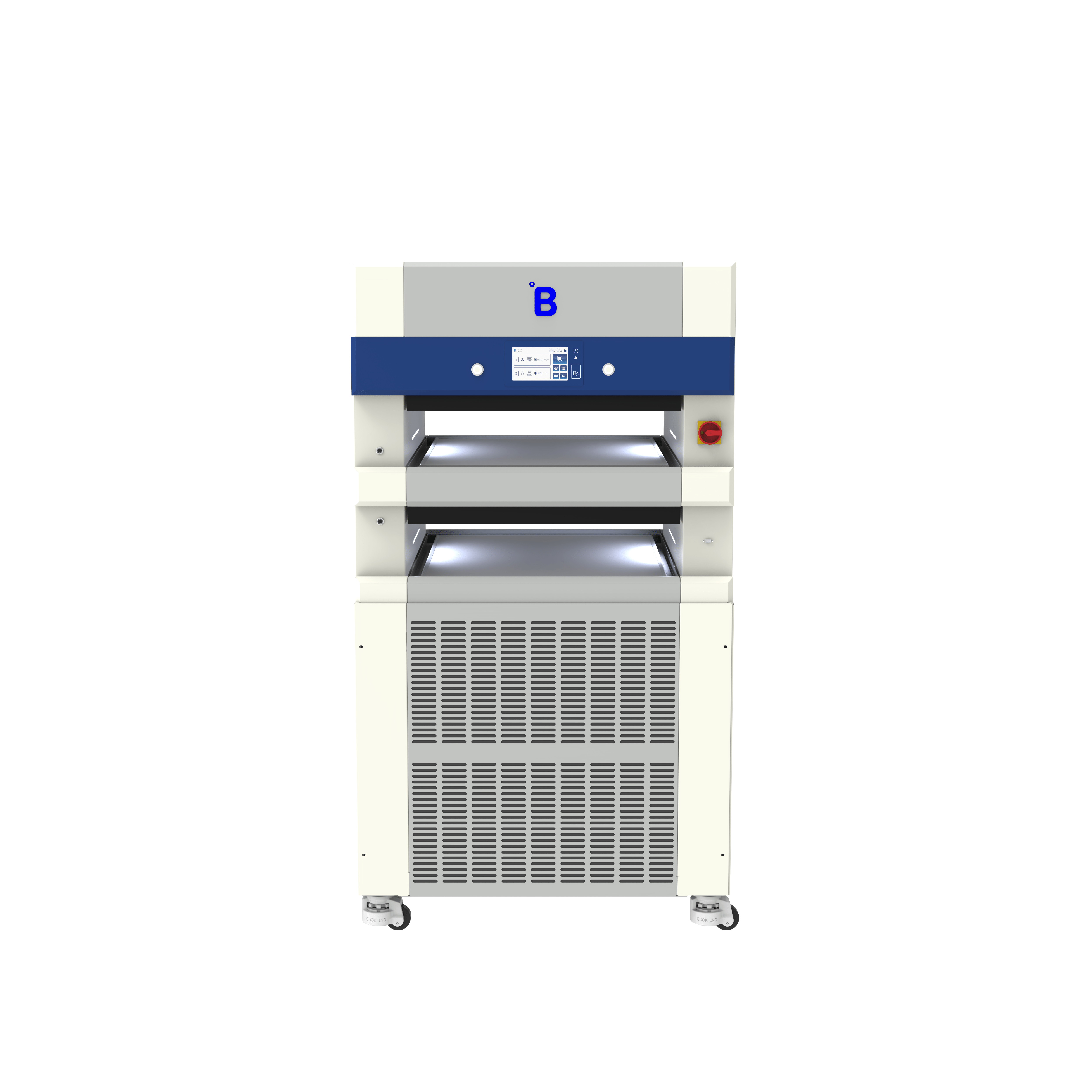

Plasma Contact Shock Freezer CSF61

Plasma Contact Shock Freezer

  • Set Temperature: - 50°C
  • Climate class (ambient temperature range): +10°C to +32°C
  • External dimensions (HxWxD): 1910 x 1080 x 830 mm | 75.20 x 42.52 x 32.68 in
  • Refrigerant Type: R449a

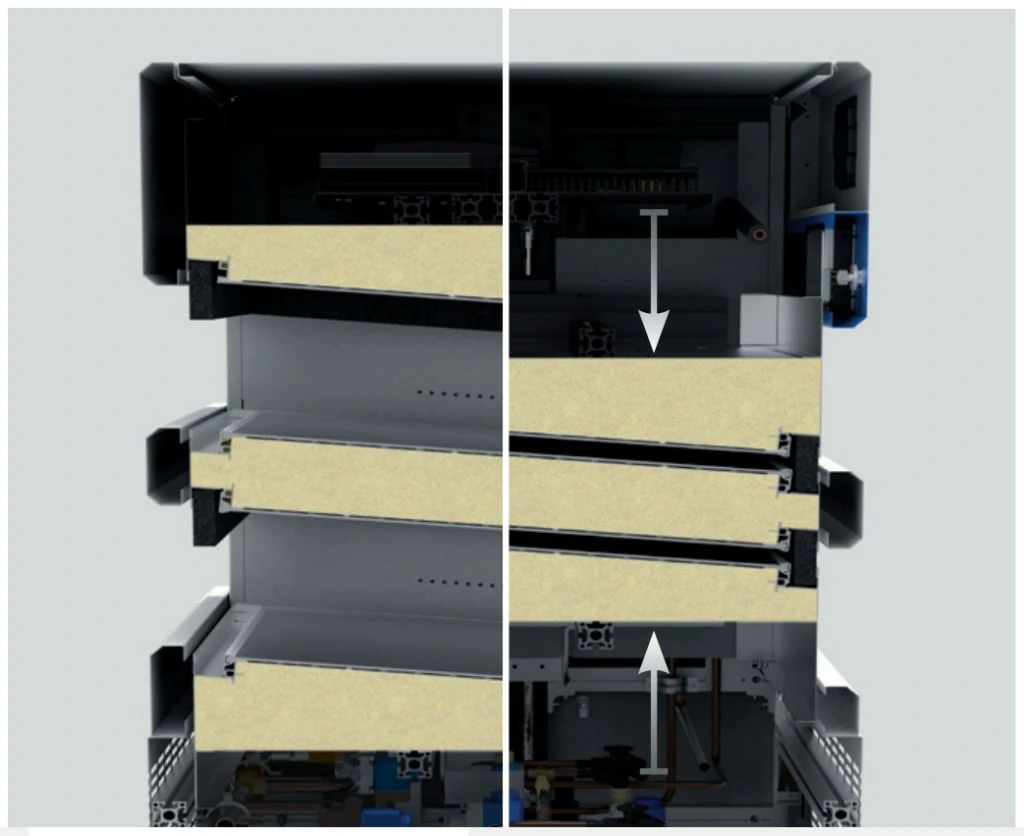

Innovative freezing technology

  • Two cooling plates inclined at 5° for a superfast freezing cycle
  • Two levels that operate independently, allowing simultaneous freezing and defrosting as necessary
  • Linear actuators that self-adjust to apply the proper force against your plasma bags
  • No exposure to extremely low temperatures, avoiding the crazing of the bags
  • Homogeneous cooling of bags despite the presence of air bubbles or uneven filling

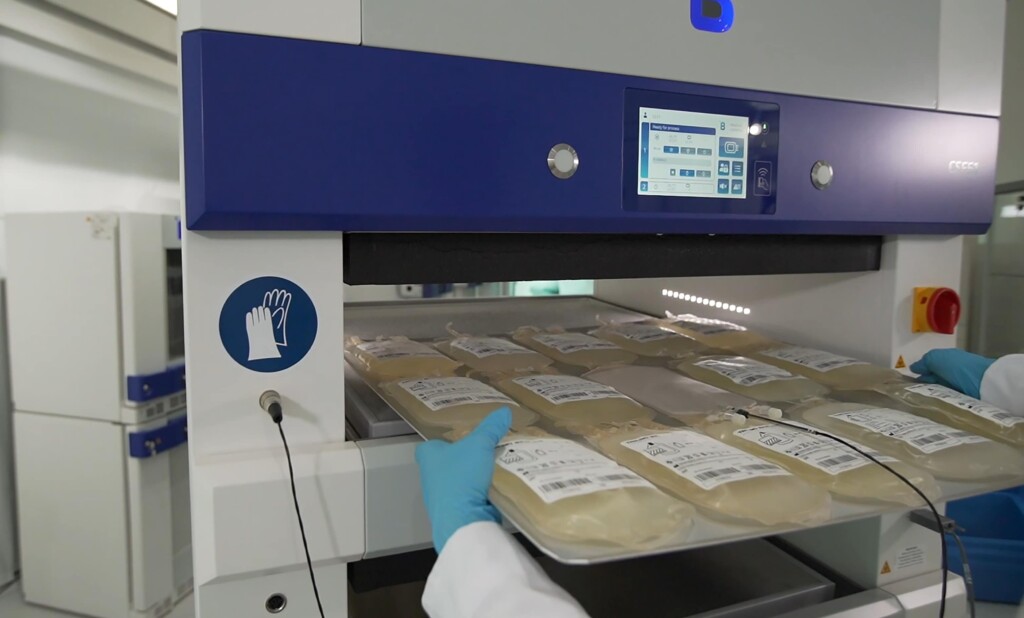

High-performance cooling system

  • Dual-stage compressors
  • Multiple injection valves
  • Inclined freezing plates
  • Eco mode
  • Low environmental impact refrigerant

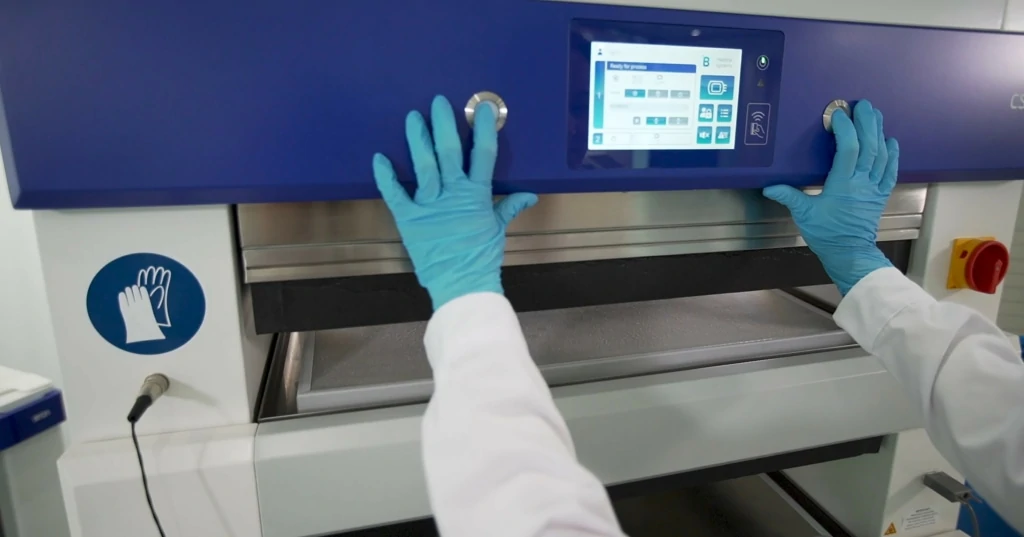

Integrated monitoring solution for complete traceability

  • °B Connected universal software for remote monitoring, recording, and long-term archiving
  • Electronic reports through °B Connected compliant with FDA 21 CFR Part 11
  • 7” color touchscreen display at eye level with access to all functions
  • Bar code scanner
  • Batch management
  • Advanced audio-visual alarm system with remote transmission
  • USB port and SD card slot for easy export of data
Plasma bag capacity (250 ml)

30 (single layer); 60 (double layer)

Plasma bag capacity (850 ml)

20 (single layer)

Set Temperature

– 50°C

Freezing time to -30°C (250 ml)

26 min

Freezing time to -30°C (850 ml)

45 min

Operating temp. (pre-cooling)

-40 °C

Operating temp. (ECO)

-43 °C

Climate class (ambient temperature range)

+10°C to +32°C

Certifications

EU MDR Class IIa | SCoPE | US FDA Class II

Cooling technology

Plates conduction

External dimensions (HxWxD)

1910 x 1080 x 830 mm | 75.20 x 42.52 x 32.68 in

Net weight

600 kg | 1322.77 lb

Frequency

50-60 Hz

Supply voltage

380-400V

Energy consumption

0.7 kWh/24h

Noise level

73 dB

Refrigerant Type

R449a

Display

7" touchscreen screen

Remote monitoring

°B Connected software

Access control

Password or badge

Data export

SD card | USB port

Product Type

Plasma Contact Shock Freezer
