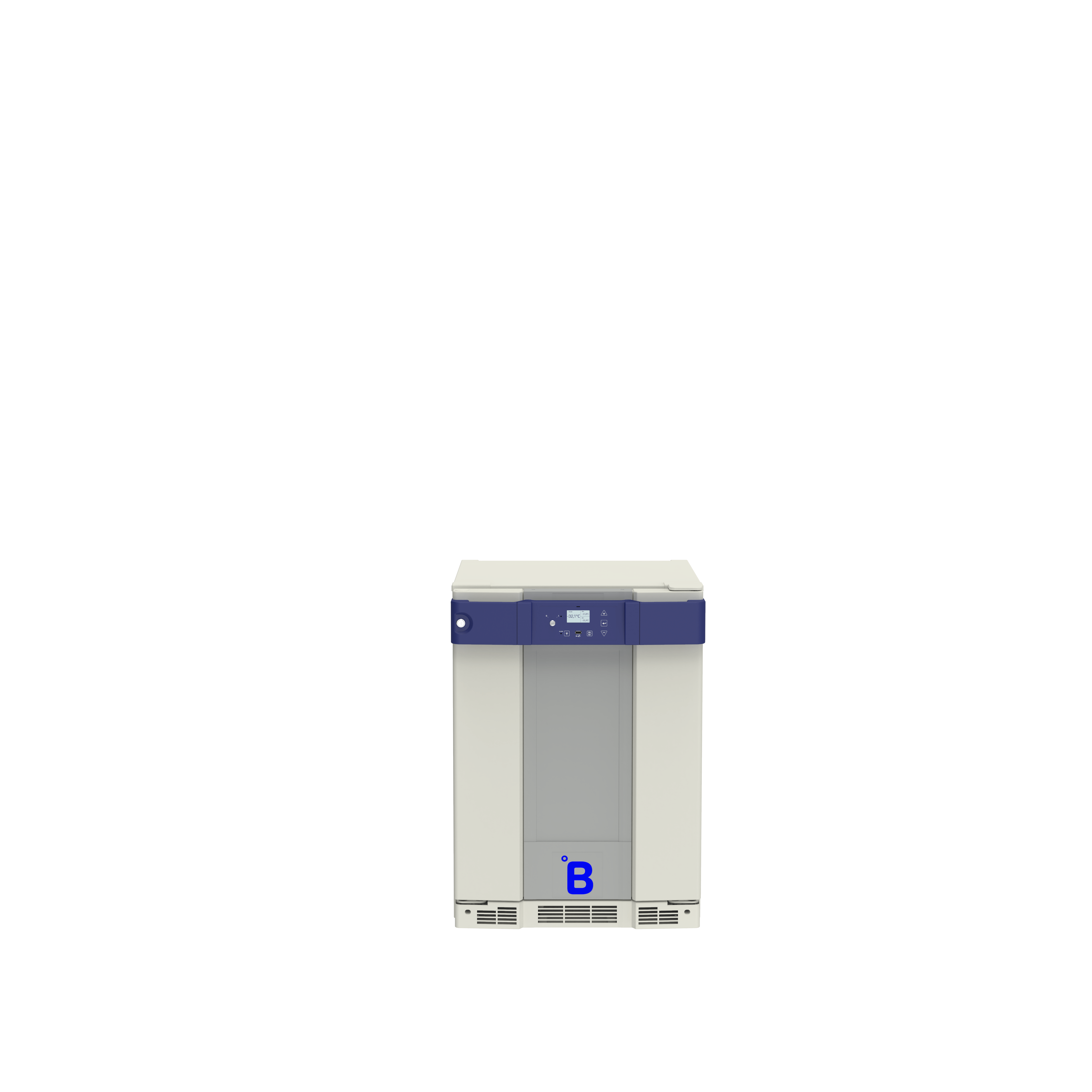

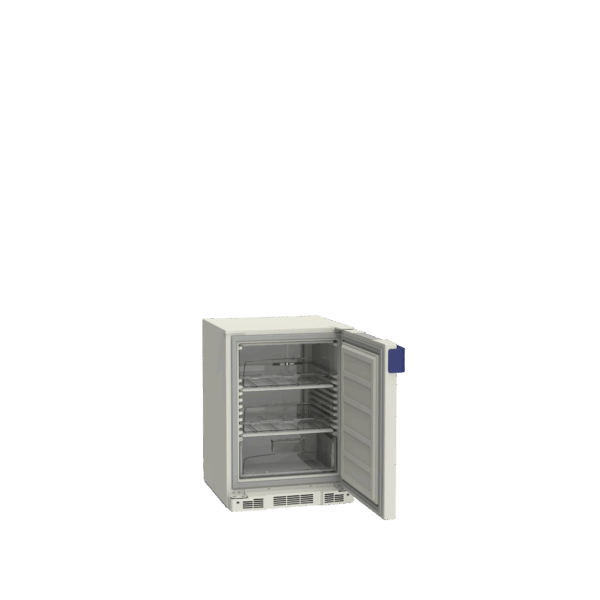

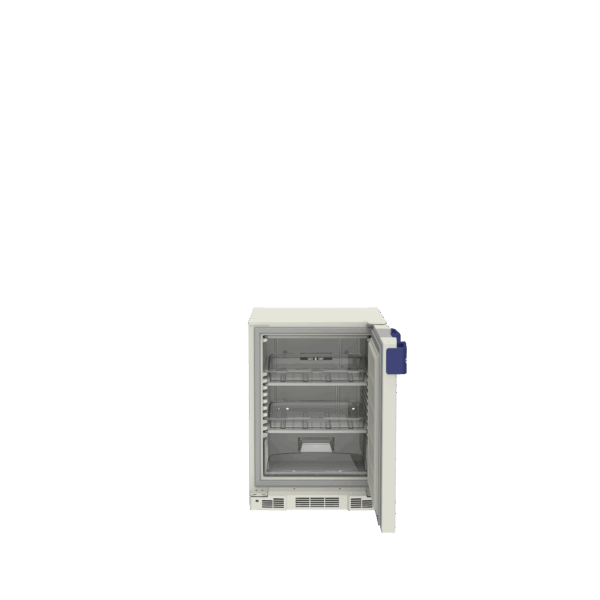

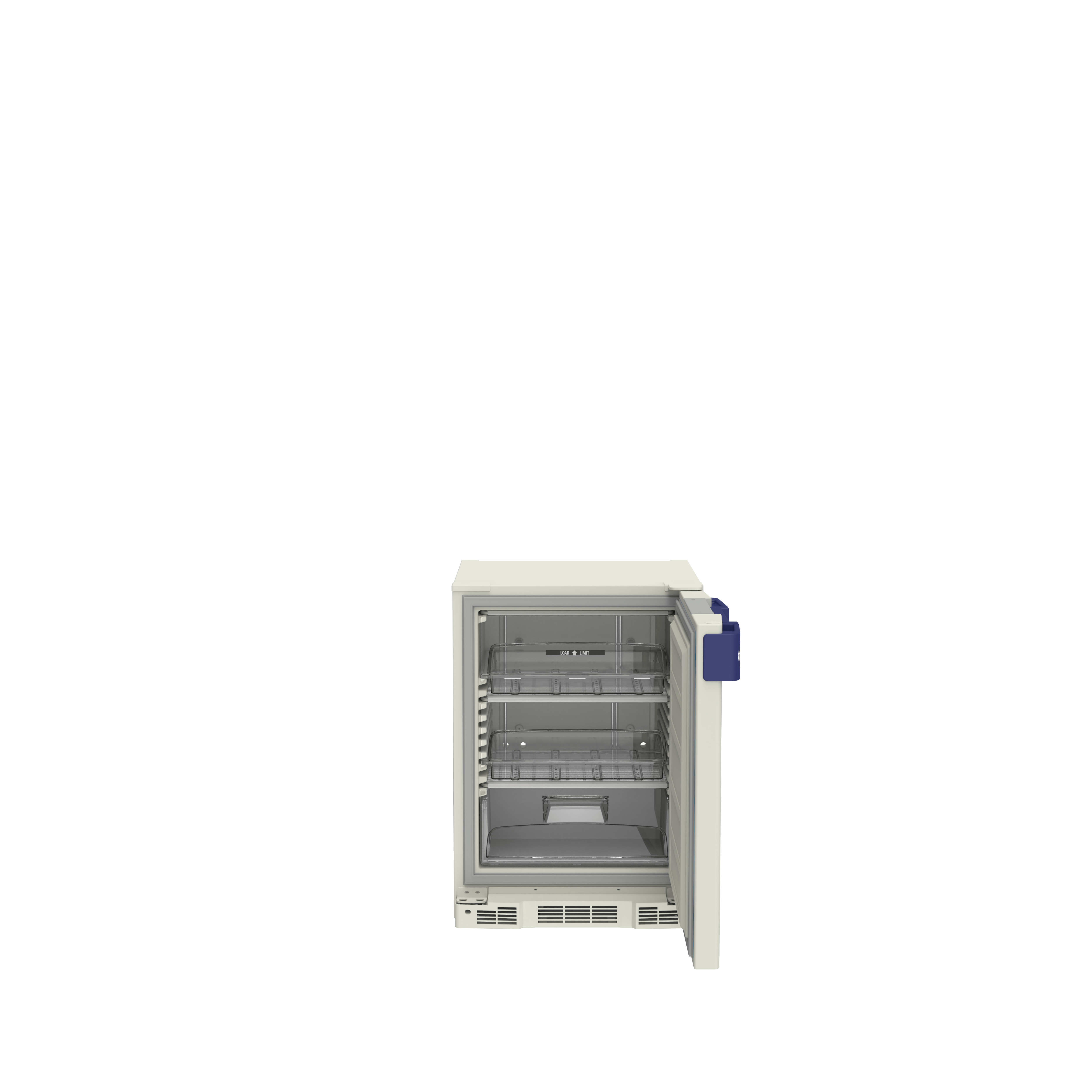

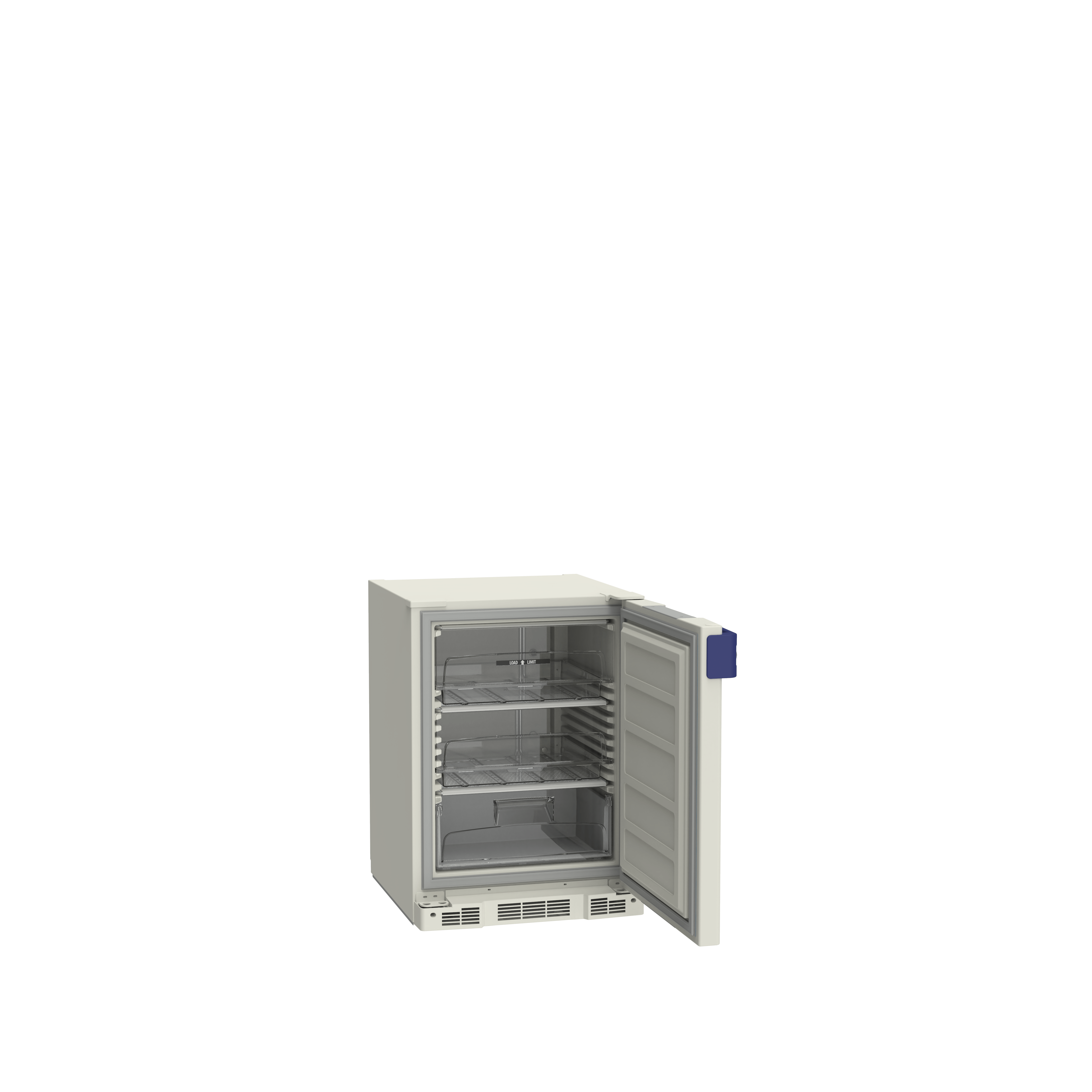

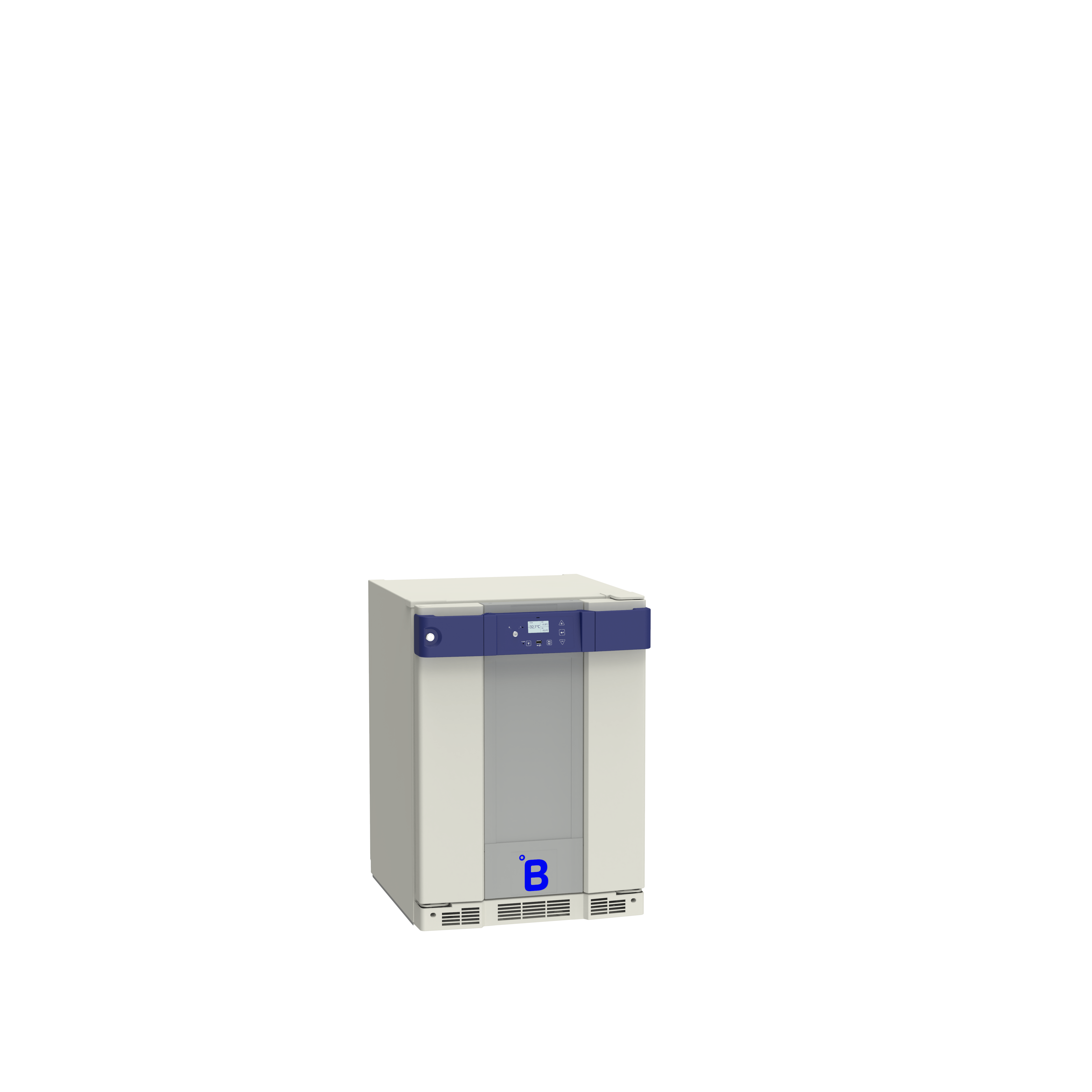

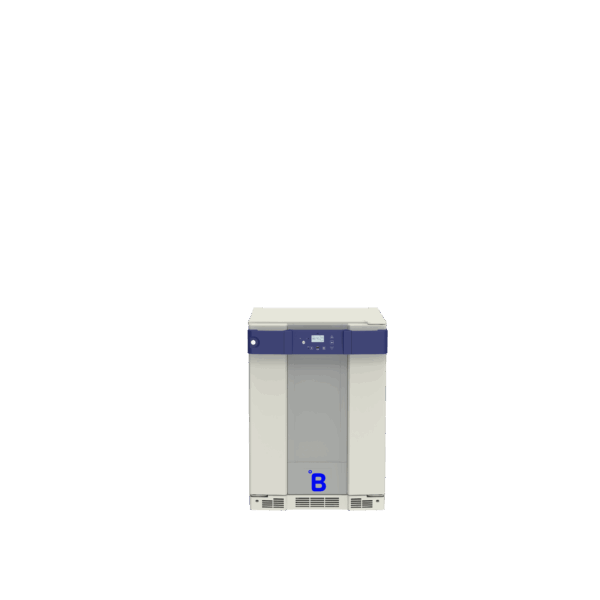

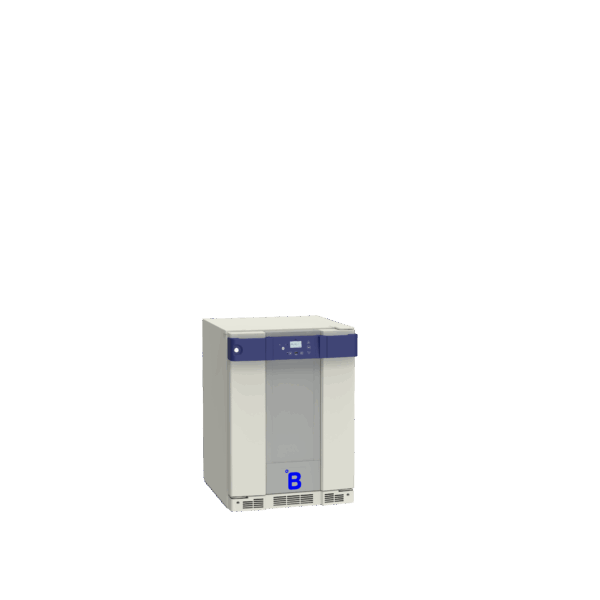

Plasma Storage Freezer F131
Plasma Storage Freezer with 121 L | 4.27 cu ft gross volume.
- Set Temperature: - 32°C
- Climate class (ambient temperature range): +10°C to +32°C
- Alarm limits: - 27°C | - 37°C
- External dimensions (HxWxD): 830 x 595 x 695 mm | 32.68 x 23.43 x 27.36 in
- Refrigerant Type: Natural R290
Accurate temperature control and 24/7 monitoring
- Stable temperature distribution
- Fast temperature recovery even in case of frequent door openings
- Extended autonomy in case of power failure
- Audio-visual alarm system with remote transmission via SMS or email
- °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving in combination with a Data Communication Unit
Energy-efficient and eco-friendly performance
- High cooling efficiency through natural refrigerants in conformity with US SNAP and EU F-Gas regulations
- Polypropylene cabinets injected with polyurethane foam providing strong thermal insulation
- Sealed gaskets minimizing cold air loss
- One-piece cabinet manufactured with the unique technique of rotational moulding
Ergonomic design
- USB port for easy export of data
- Electronics with easily accessible temperature display in the door handle
- No sharp edges for easy hygiene control
- Gasket heater minimizing condensation
- Optimized storage capacity
- Lifetime warranty corrosion-free cabinet
| Gross volume | 121 L | 4.27 cu ft |
|---|---|
| Blood bag capacity (350 ml) | 84 |
| Set Temperature | – 32°C |
| Alarm limits | – 27°C | – 37°C |
| Climate class (ambient temperature range) | +10°C to +32°C |
| Certifications | cCSAus | EU MDR Class IIa | ISO 14644-1 | Class 6 | SCoPE | US FDA Class II |
| Cooling technology | Static cooling |
| External dimensions (HxWxD) | 830 x 595 x 695 mm | 32.68 x 23.43 x 27.36 in |
| Internal dimensions (HxWxD) | 630 x 475 x 470 mm | 24.80 x 18.70 x 18.50 in |
| Net weight | 60 kg | 132.28 lb |
| Frequency | 50-60 Hz |
| Supply voltage | 220-240V |
| Energy consumption | 2.8 kWh/24h (50Hz) | 2.9 kWh/24h (60Hz) |
| Noise level | 45 dB (50 Hz) | 47 dB(60 Hz) |
| Refrigerant Type | Natural R290 |
| Heat emission | 100 Kcal/h |
| Materials | Polypropylene/aluminum |
| Display | Digital display |
| Remote monitoring | Optional °B Connected software via data communication unit |
| Hold over time | 1.6 h (-32°C to -23°C) |
| Defrosting technique | Manual |
| Access control | Lock with 2 keys |
| Data export | USB port |
| Product Type | Plasma Storage Freezer |
