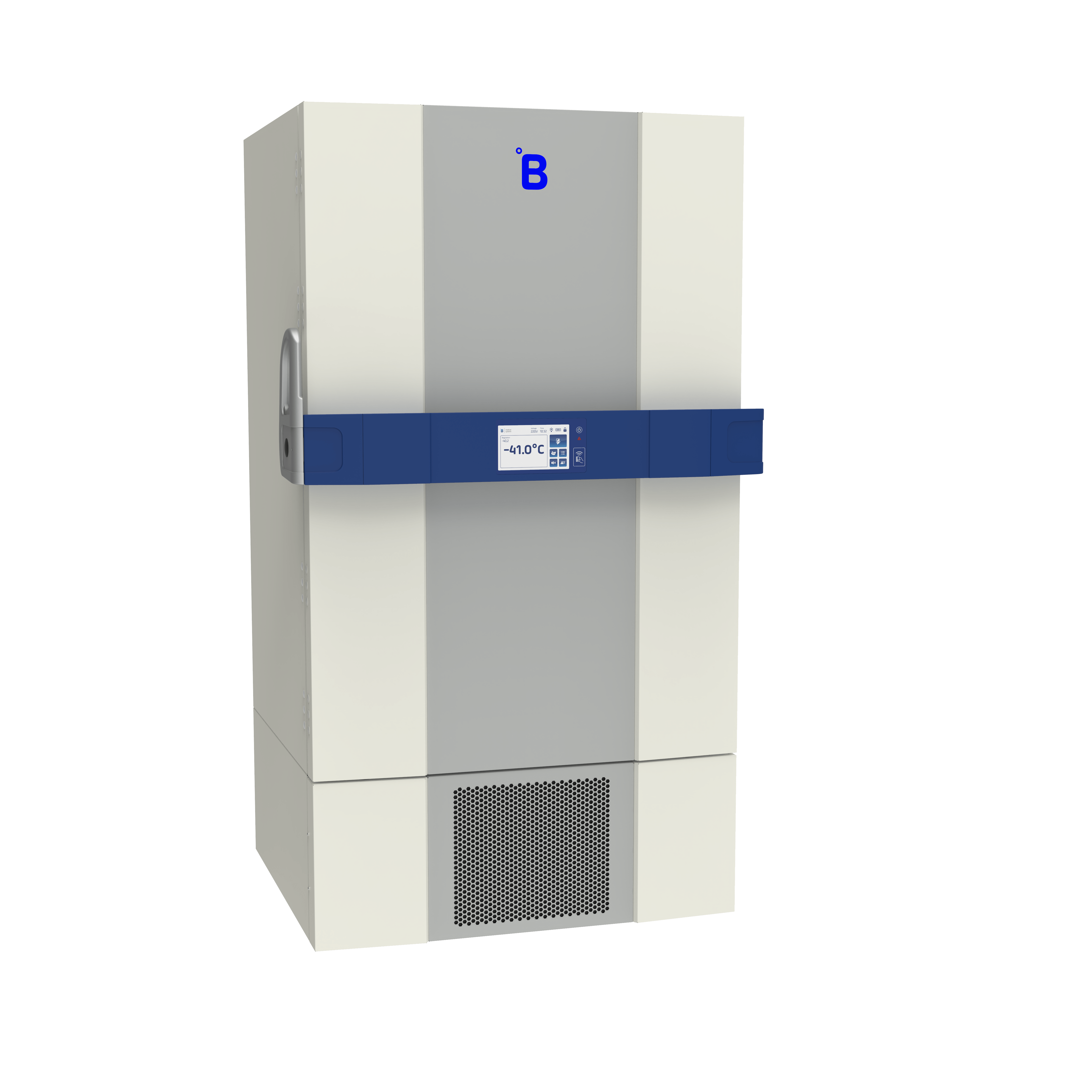

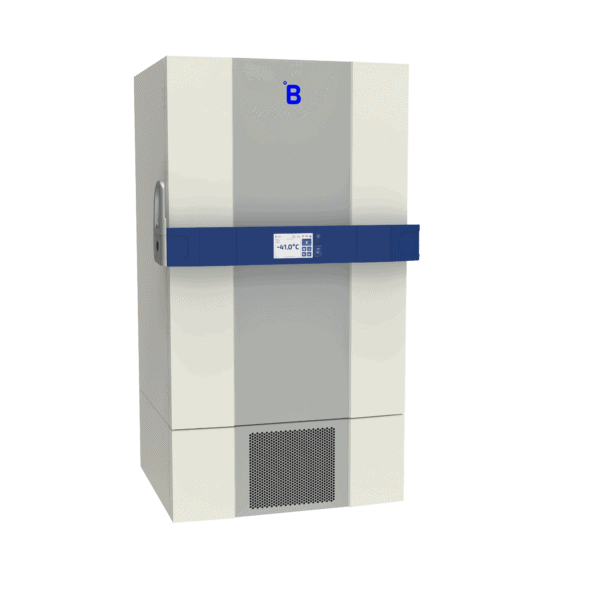

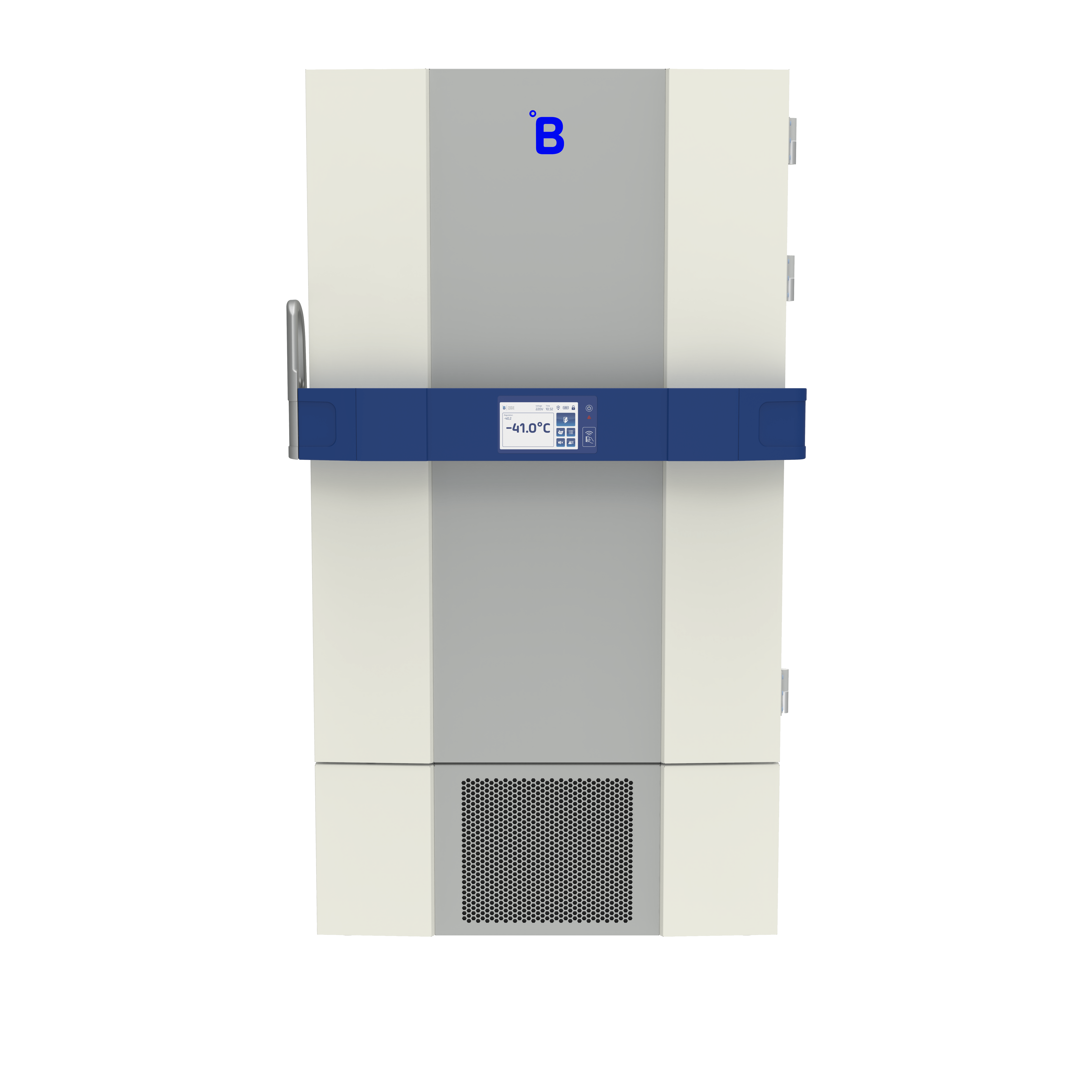

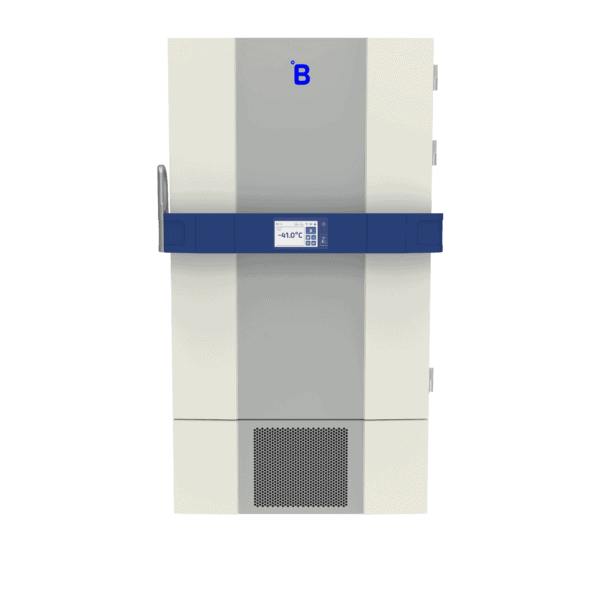

Plasma Storage Freezer F901
Plasma Storage Freezer with 768 L | 27.12 cu ft storage capacity
- Set Temperature: -41°C
- Climate class (ambient temperature range): +10°C to +43°C
- Alarm limits: - 32°C | - 46°C
- External dimensions (HxWxD): 1988 x 1139 x 1039 mm | 78.27 x 44.84 x 40.91 in
- Refrigerant type: Natural R290
Accurate temperature control and 24/7 monitoring

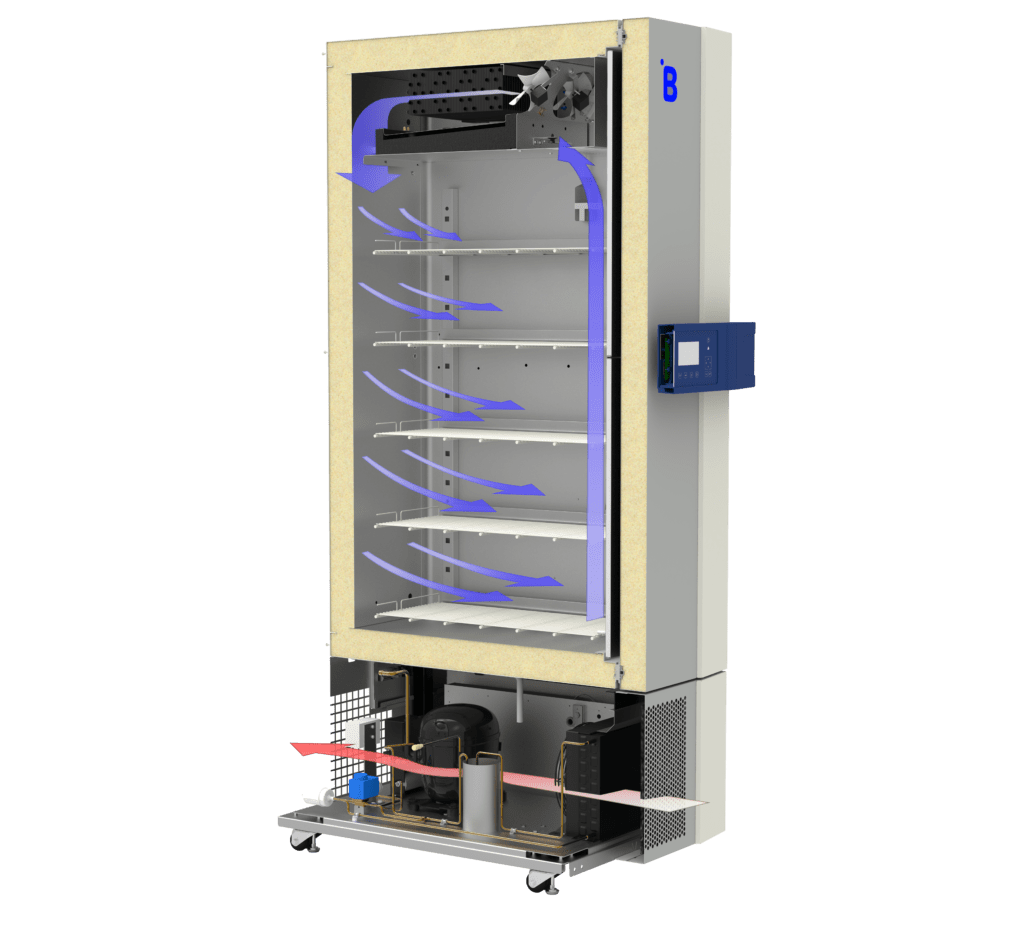

- Controlled air cooling system for uniform and stable temperature distribution
- Fast temperature recovery even in case of frequent door openings
- Smart automatic defrosting technology enabling stable temperature during the defrost cycle
- Automatic switch-off of the evaporator fans at each door opening to reduce heat transfer
- Extended autonomy in case of power failure
- Audio-visual alarm system with remote transmission via SMS or email
- °B Connected universal software for remote monitoring, reporting, and long-term archiving
Energy-efficient and eco-friendly performance
- High cooling efficiency through natural refrigerants in conformity with US SNAP and EU F-Gas regulations
- Insulated inner doors, sealed gaskets, enhanced frame for minimized cold air loss and heat conduction
- Frost prevention reducing pressure on the compressor

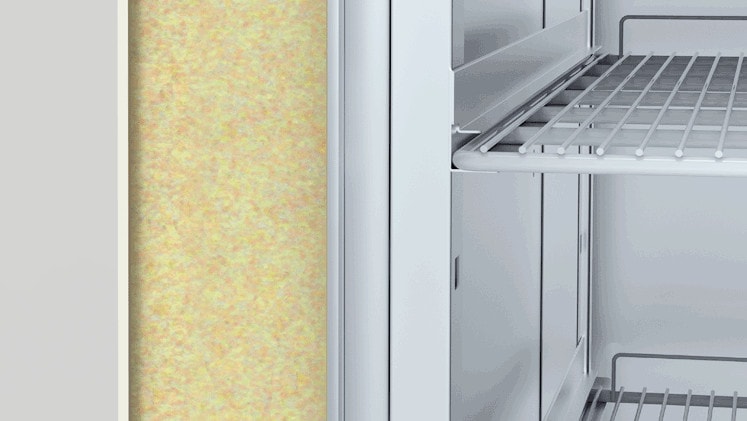

- High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam providing high thermal insulation and storage capacity
Ergonomic design

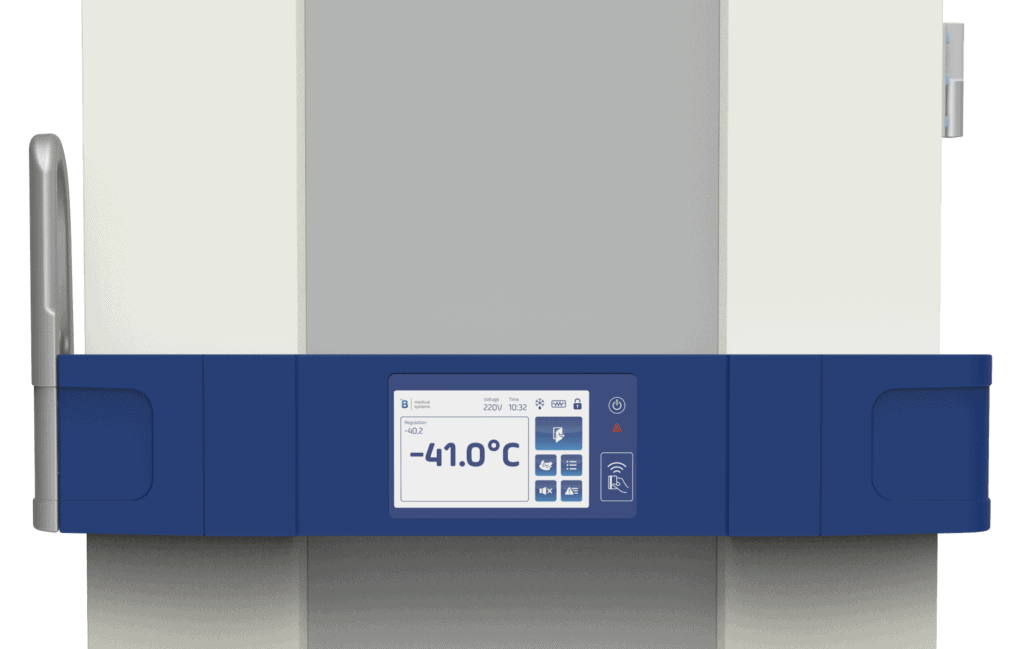

- 7” touchscreen with temperature display easily accessible in the door handle
- Minimal ice formation allowing easy deicing
- Password protected/NFC card based door locking mechanism
- USB port and SD card slot for easy export of data
- Set point of -41°C

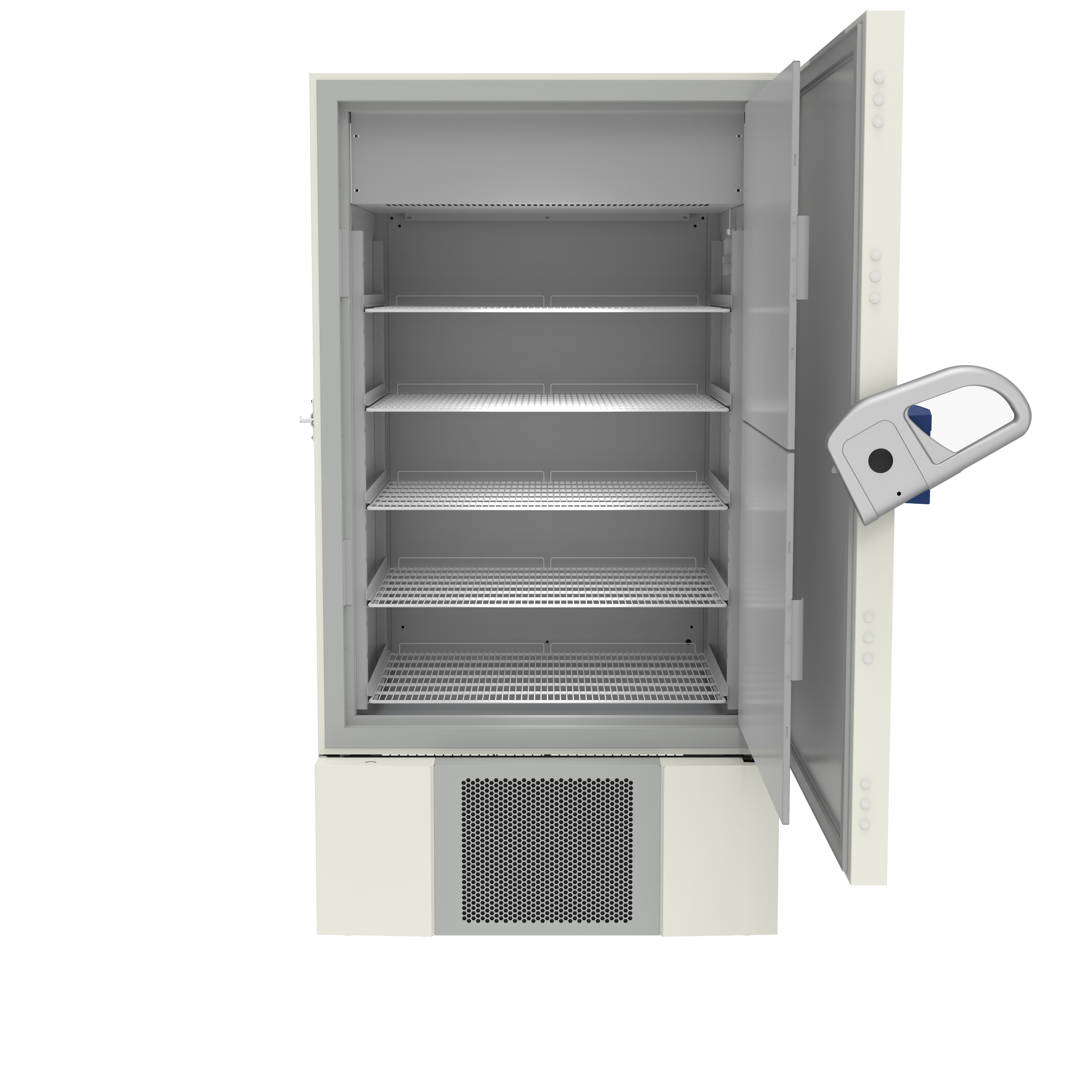

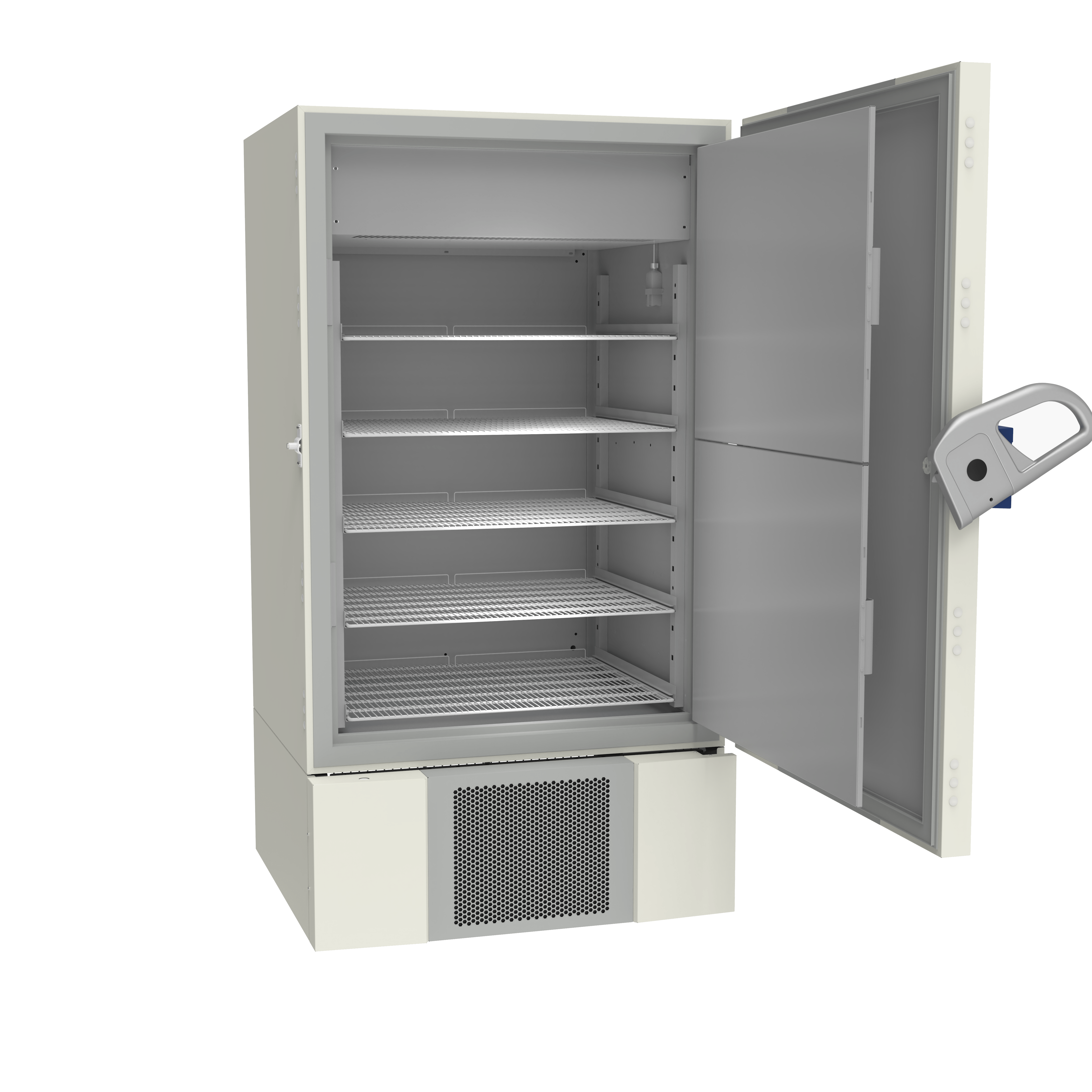

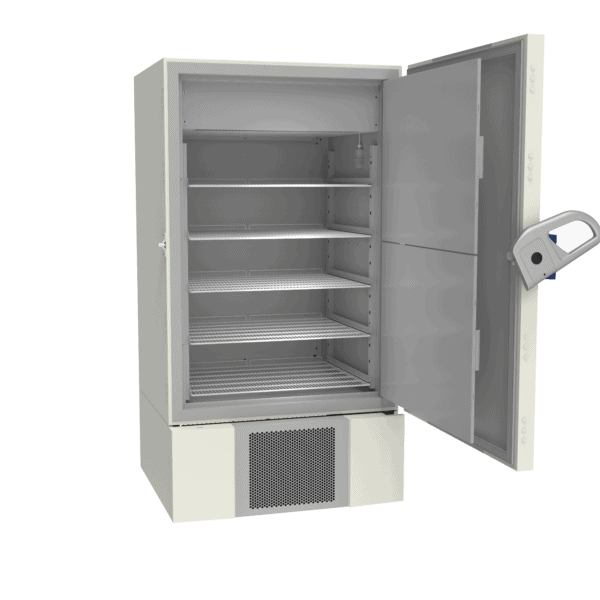

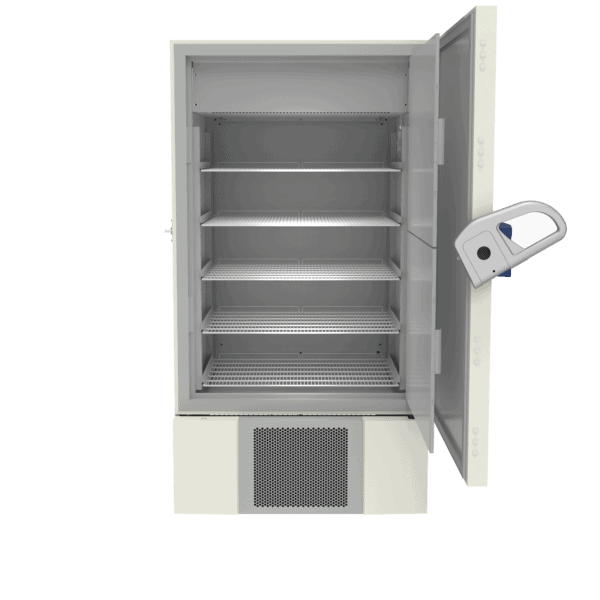

- Modular interior equipment
- Easy access to the lower drawers
- High-quality stainless steel and other materials for an extended life span
| Gross volume | 949 L | 33.51 cu ft |
|---|---|
| Storage Capacity | 768 L | 27.12 cu ft |
| Blood bag capacity (350 ml) | 690 |
| Set Temperature | -41°C |
| Temperature range | -41°C to -32°C |
| Alarm limits | – 32°C | – 46°C |
| Climate class (ambient temperature range) | +10°C to +43°C |
| Certifications | cCSAus | EU MDR Class IIa | ISO 14644-1 | Class 4 | SCoPE | US FDA Class II |
| Cooling technology | Forced air cooling system |
| External dimensions (HxWxD) | 1988 x 1139 x 1039 mm | 78.27 x 44.84 x 40.91 in |
| Internal dimensions (HxWxD) | 1173 x 887 x 738 mm | 46.18 x 34.92 x 29.05 in |
| Net weight | 346 kg | 762.80 lb |
| Frequency | 50 Hz |
| Supply voltage | 230V |
| Energy consumption | 6.8 kWh/24h |
| Refrigerant type | Natural R290 |
| Heat emission | 244 Kcal/h |
| Materials | Stainless steel |
| Display | 7" touchscreen screen |
| Remote monitoring | °B Connected software |
| Hold over time | 5.7 h (-41°C to -10°C) |
| Defrosting technique | Automatic (hot gas) |
| Access control | Password or badge |
| Data export | SD card | USB port |
| Product type | Plasma Storage Freezer |
