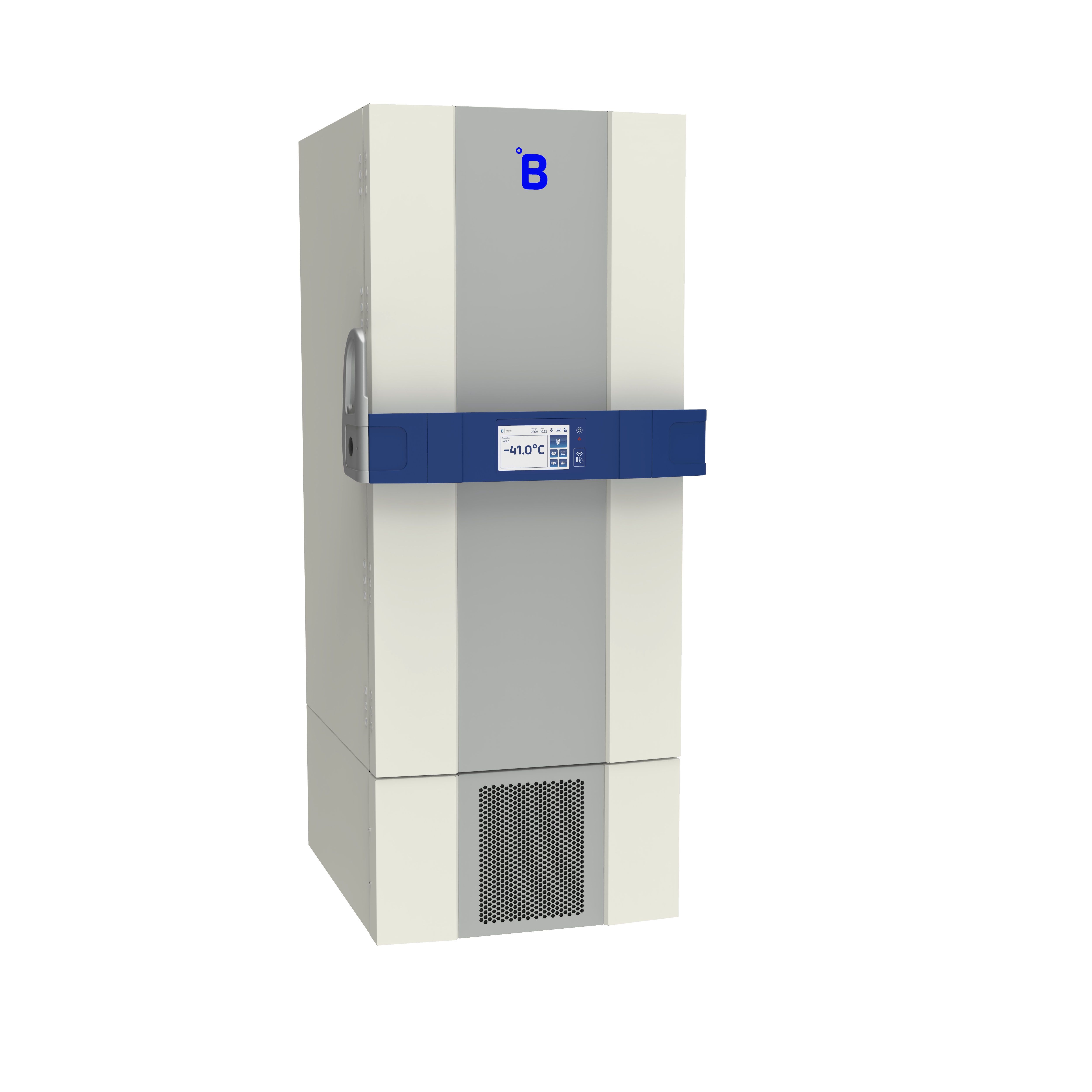

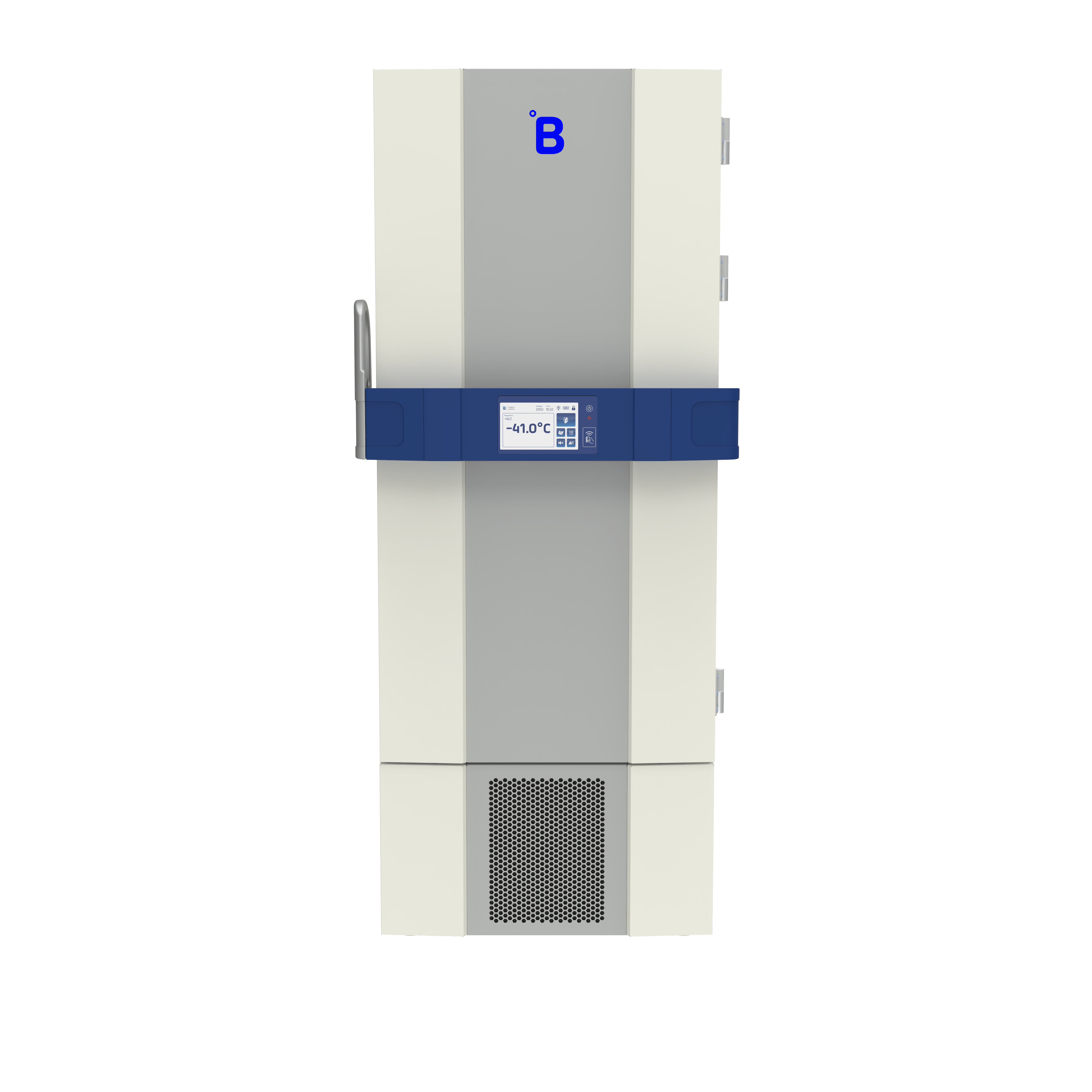

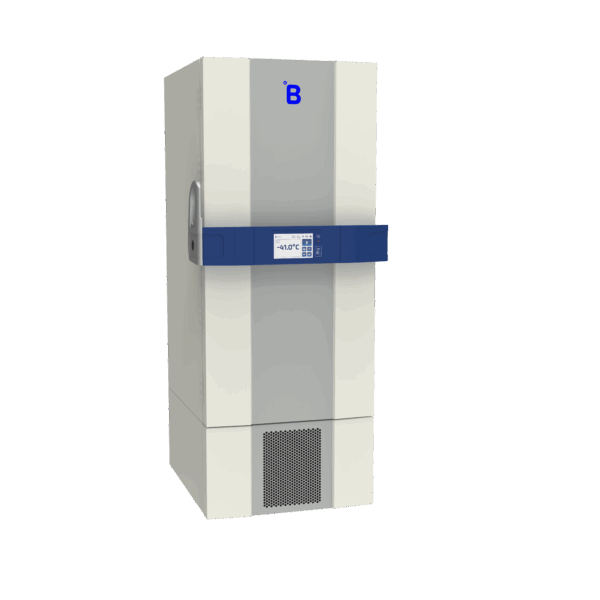

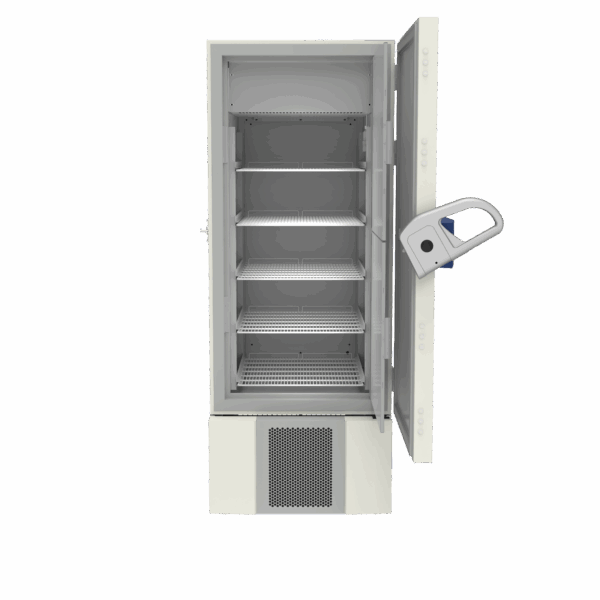

Plasma Storage Freezer F501

Plasma Storage Freezer with 634 L | 22.39 cu ft gross volume.

  • Set Temperature: - 41°C
  • Climate class (ambient temperature range): +10°C to +43°C
  • Alarm limits: - 32°C | - 46°C
  • External dimensions (HxWxD): 1988 x 845 x 1039 mm | 78.27 x 33.27 x 40.91 in
  • Refrigerant Type: Natural R290

Accurate temperature control and 24/7 monitoring

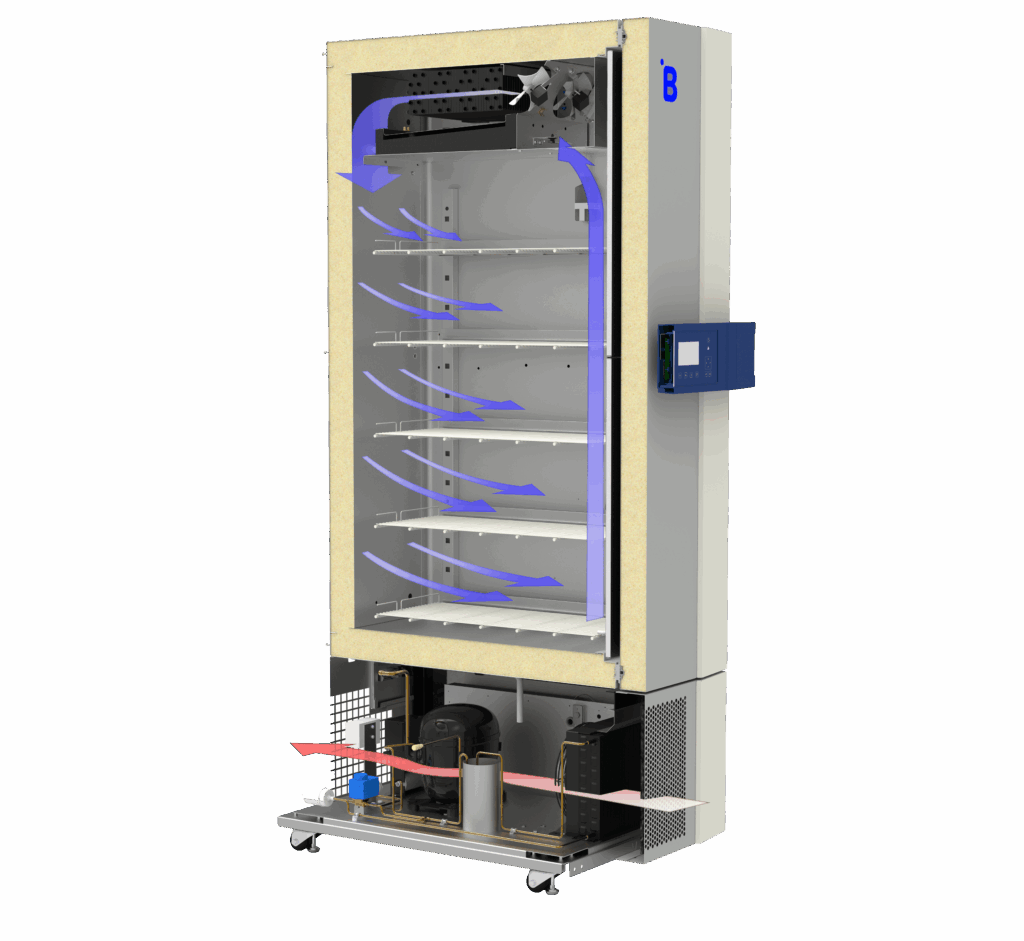

  • Controlled air cooling system for uniform and stable temperature distribution
  • Fast temperature recovery even in case of frequent door openings
  • Smart automatic defrosting technology enabling stable temperature during the defrost cycle
  • Automatic switch-off of the evaporator fans at each door opening to reduce heat transfer
  • Extended autonomy in case of power failure
  • Audio-visual alarm system with remote transmission via SMS or email
  • °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving

Energy-efficient and eco-friendly performance

  • High cooling efficiency through natural refrigerants in conformity with US SNAP and EU F-Gas regulations
  • Insulated inner doors, sealed gaskets, enhanced frame for minimized cold air loss and heat conduction
  • Frost prevention reducing pressure on the compressor

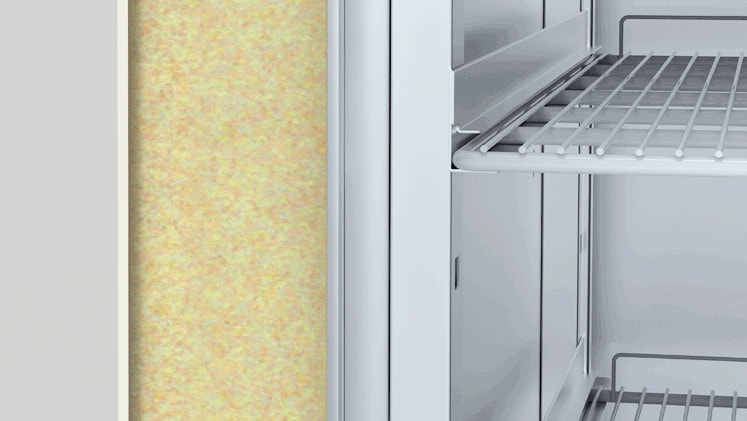

  • High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam providing high thermal insulation and storage capacity

Ergonomic design

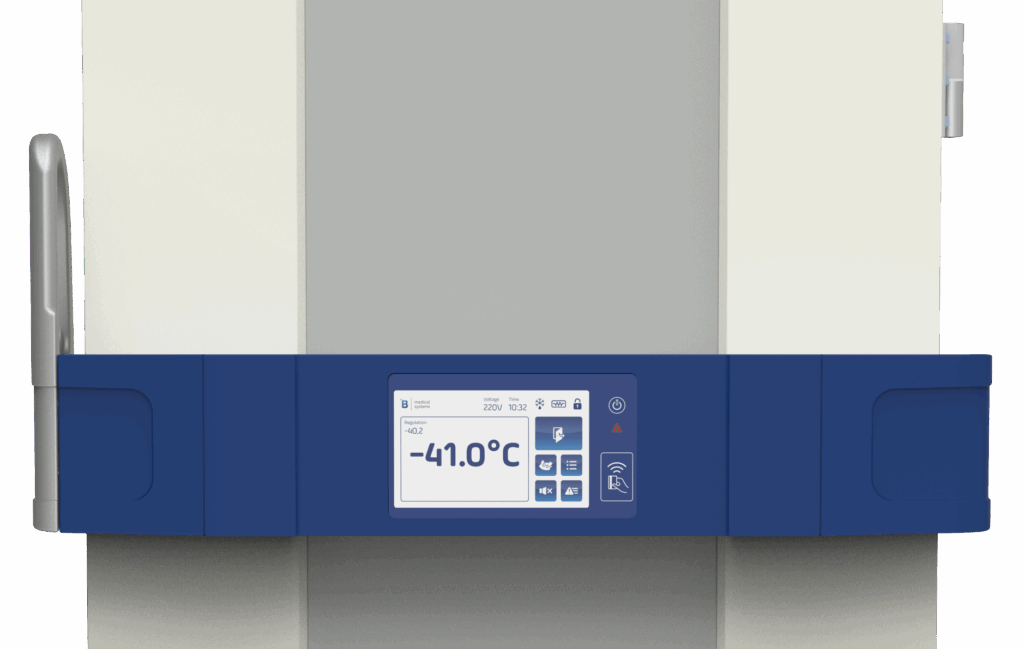

  • 7” touchscreen with temperature display easily accessible in the door handle
  • Minimal ice formation allowing easy deicing
  • Password protected/NFC card based door locking mechanism
  • USB port and SD card slot for easy export of data
  • Set point of -41°C

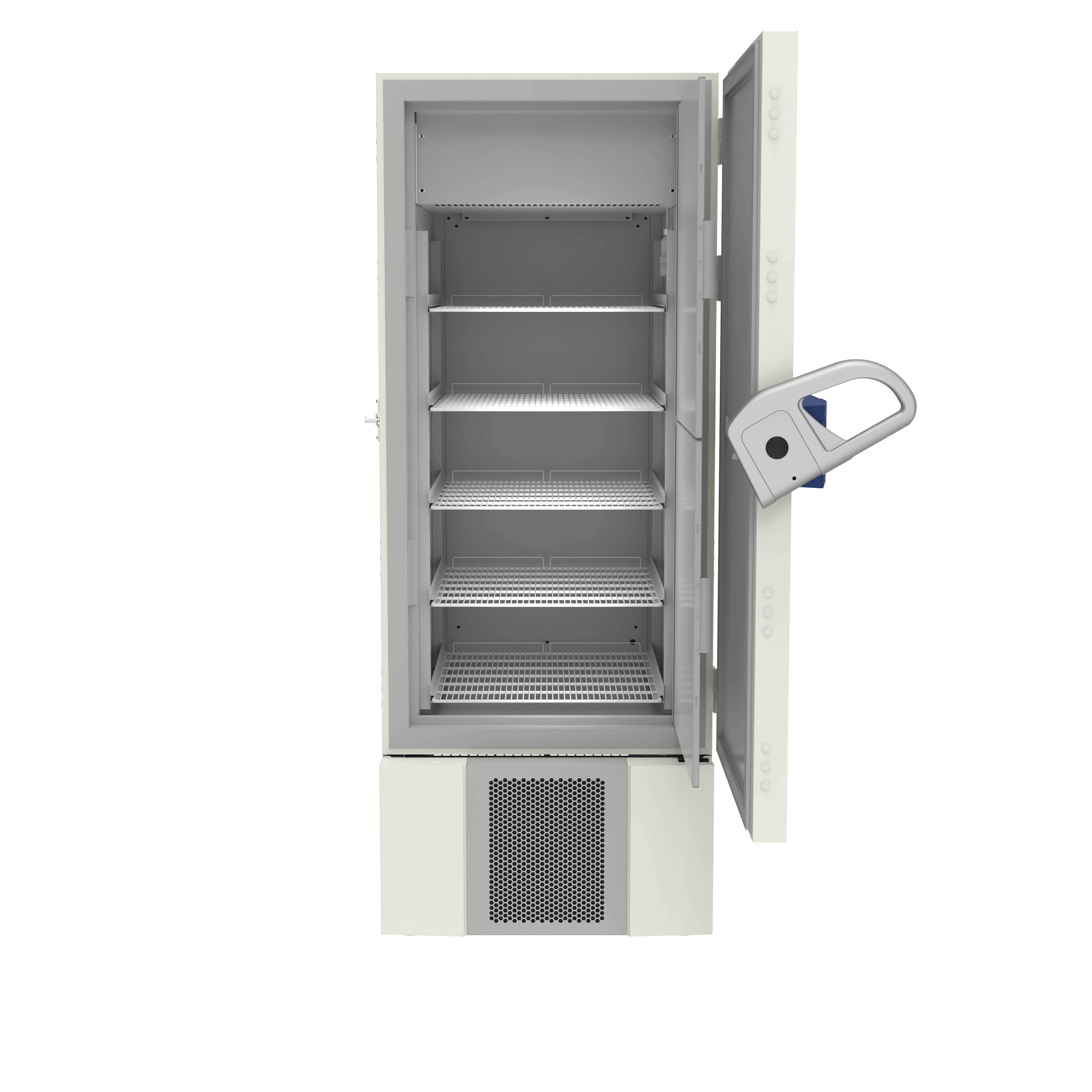

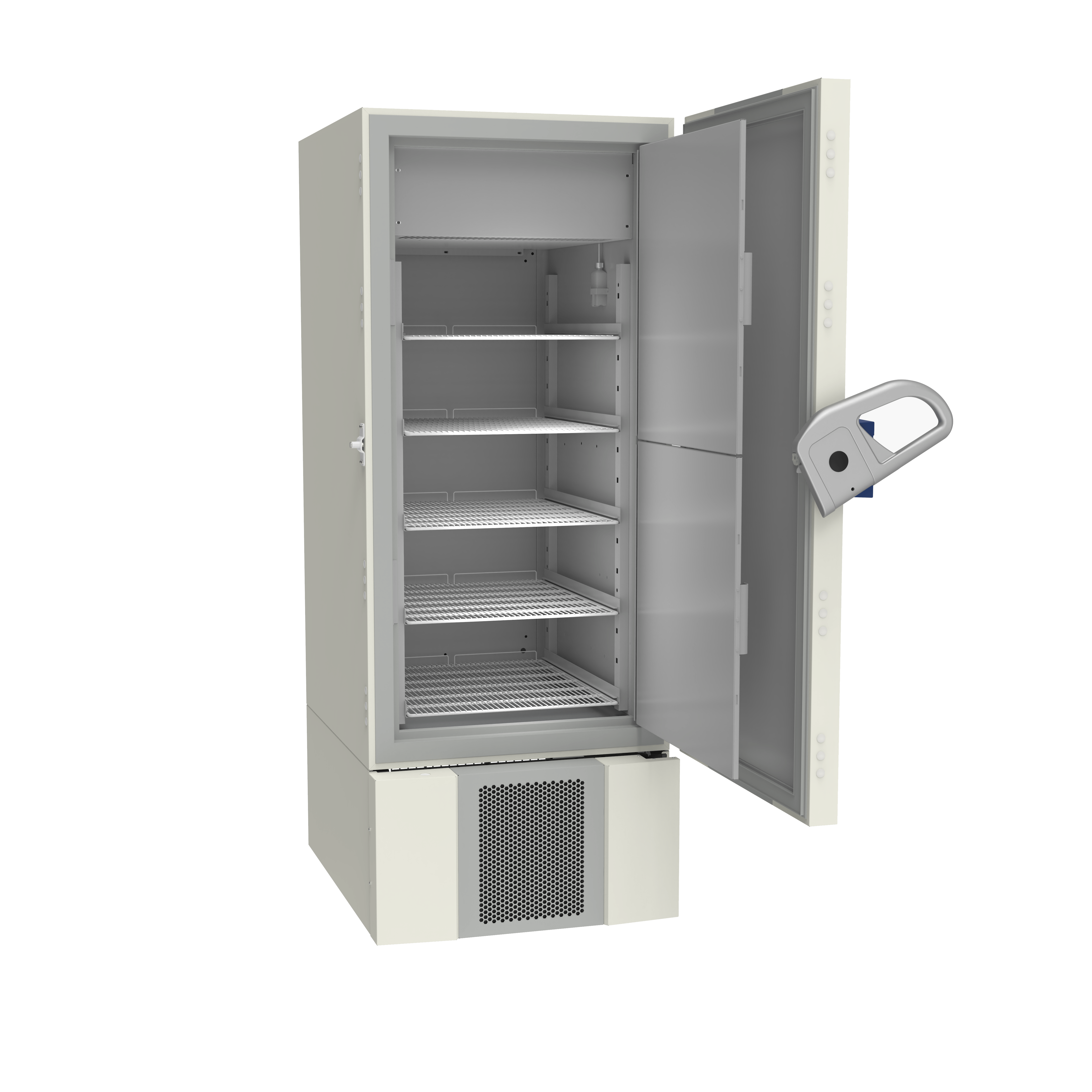

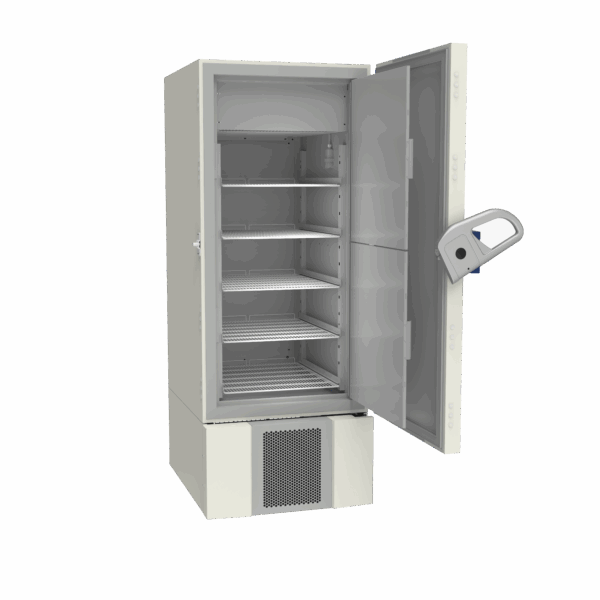

  • Modular interior equipment
  • Easy access to the lower drawers
  • High-quality stainless steel and other materials for an extended life span
  • The innovative door lock system, designed for ease of use and security, features a door handle that upon the closing of the door will automatically slide into the closing latch of the cabinet and, after 30 seconds, will also lock itself automatically
Gross volume

634 L | 22.39 cu ft

Blood bag capacity (350 ml)

460

Set Temperature

– 41°C

Setting range

-41°C to -32°C

Alarm limits

– 32°C | – 46°C

Climate class (ambient temperature range)

+10°C to +43°C

Certifications

cCSAus | EU MDR Class IIa | ISO 14664-1 | Class 4 | SCoPE | US FDA Class II

Cooling technology

Forced air cooling system

External dimensions (HxWxD)

1988 x 845 x 1039 mm | 78.27 x 33.27 x 40.91 in

Internal dimensions (HxWxD)

1173 x 593 x 743 mm | 46.18 x 23.35 x 29.25 in

Net weight

301 kg | 663.59 lb

Frequency

50 Hz

Supply voltage

230V

Energy consumption

6.6 kWh/24h

Noise level

44 dB

Refrigerant Type

Natural R290

Heat emission

236 Kcal/h

Materials

Stainless steel

Inner doors

2 (4 as option)

Display

7" touchscreen screen

Remote monitoring

°B Connected software

Hold over time

5.5 h (-41°C to -10°C)

Defrosting technique

Automatic (hot gas)

Access control

Password or badge

Data export

SD card | USB port

Product Type

Plasma Storage Freezer
