GT Mini – Temperature Monitoring System – Data Logger
The GT Mini is a reliable temperature monitoring system and data logger for your medical cold chain, ensuring the safety and efficacy of temperature-sensitive specimens during transport and storage, with accurate monitoring and exportable temperature reports to track your valuable medical cargo throughout its journey.
Key Features
- Temperature Monitoring with high precision covering a wide range of
temperature. - Data Accessibility through Mobile and Web Portal.
- Customizable Settings for temperature thresholds, data collection frequency etc. to match your requirements.
- Exportable Temperature Reports in XLS and PDF formats.
Access last 50 records via mobile app
Access to data history via web portal
Data stored on GT Mini for 30 days

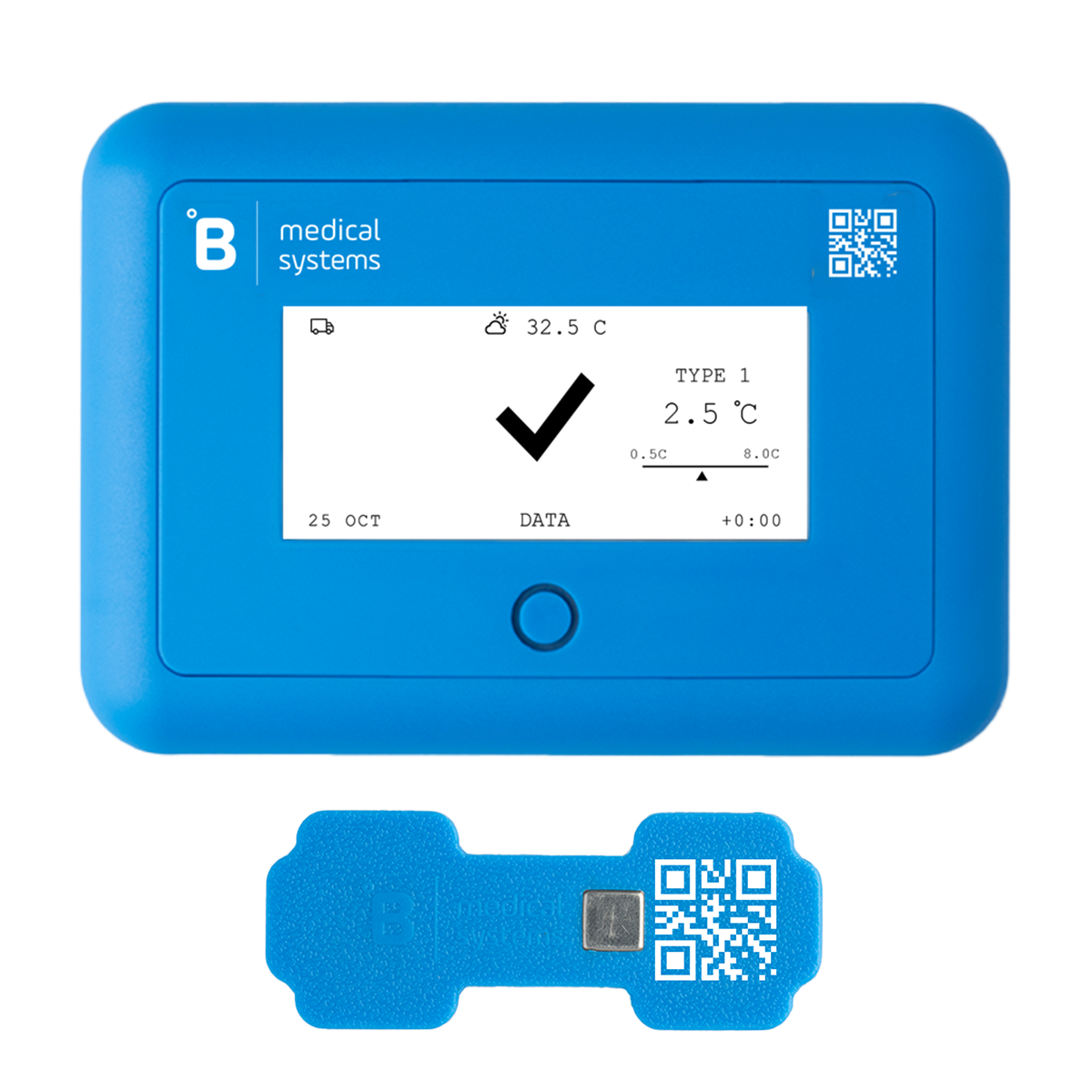

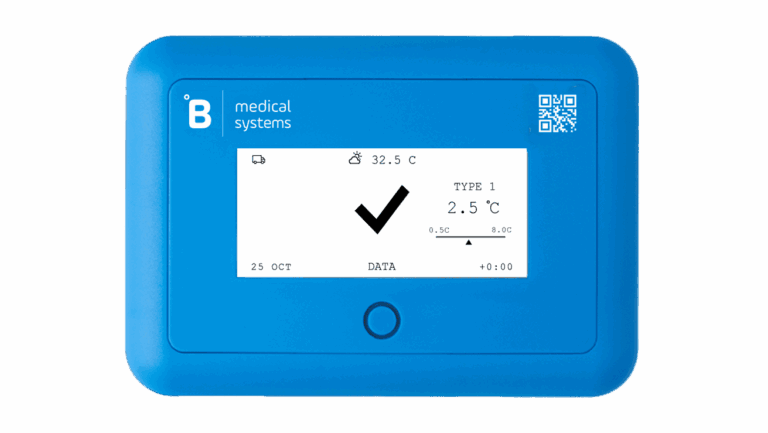

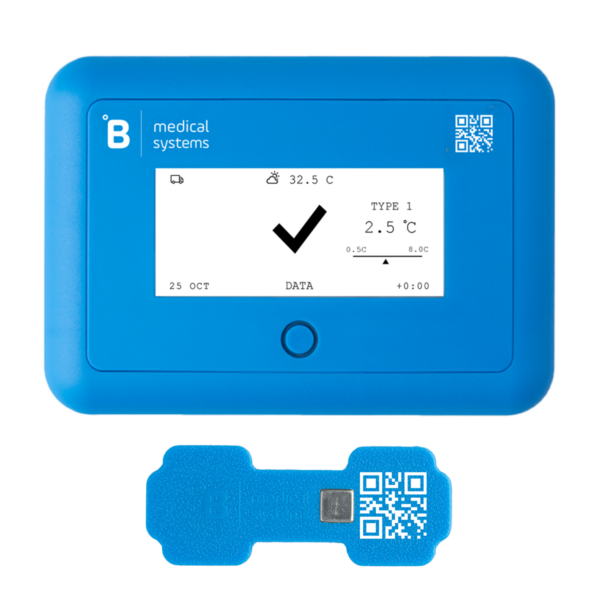

GT Mini
Installed on the medical deviceOperating temperature range: -10°C to +60°C

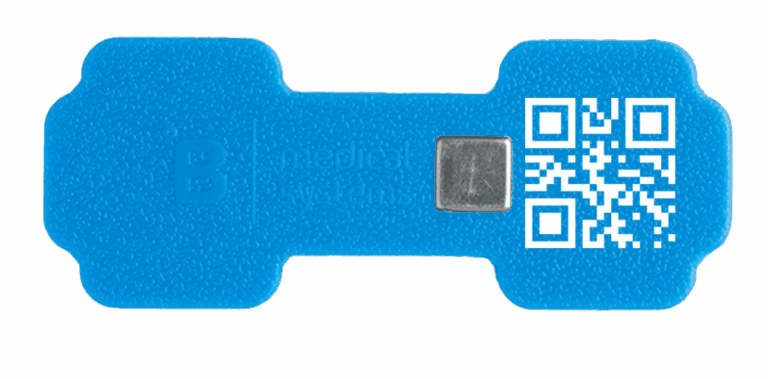

TempSense 810
Placed inside the medical device
Operating temperature range: -20°C to +65°C

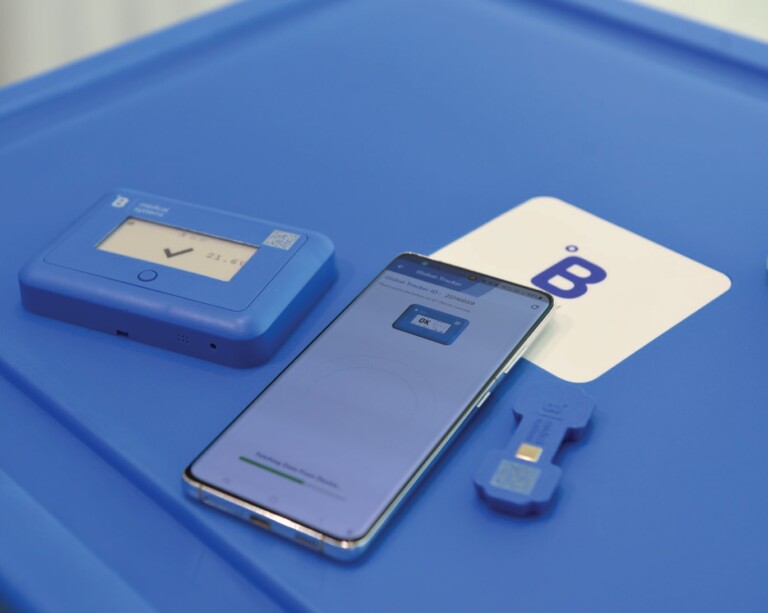

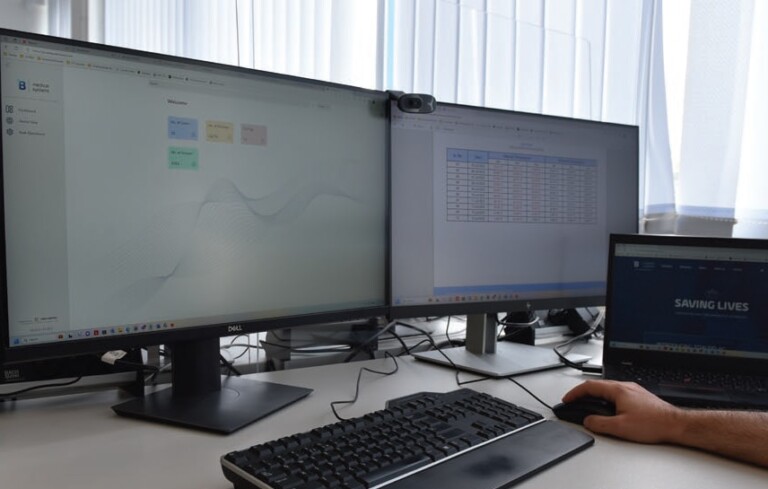

GT Mini Mobile App and Web Portal
Web-based dashboard and mobile application to access and manage all the data collected from your GT Mini and TempSense 810.
Here's what you can do:
- Temperature Data Access

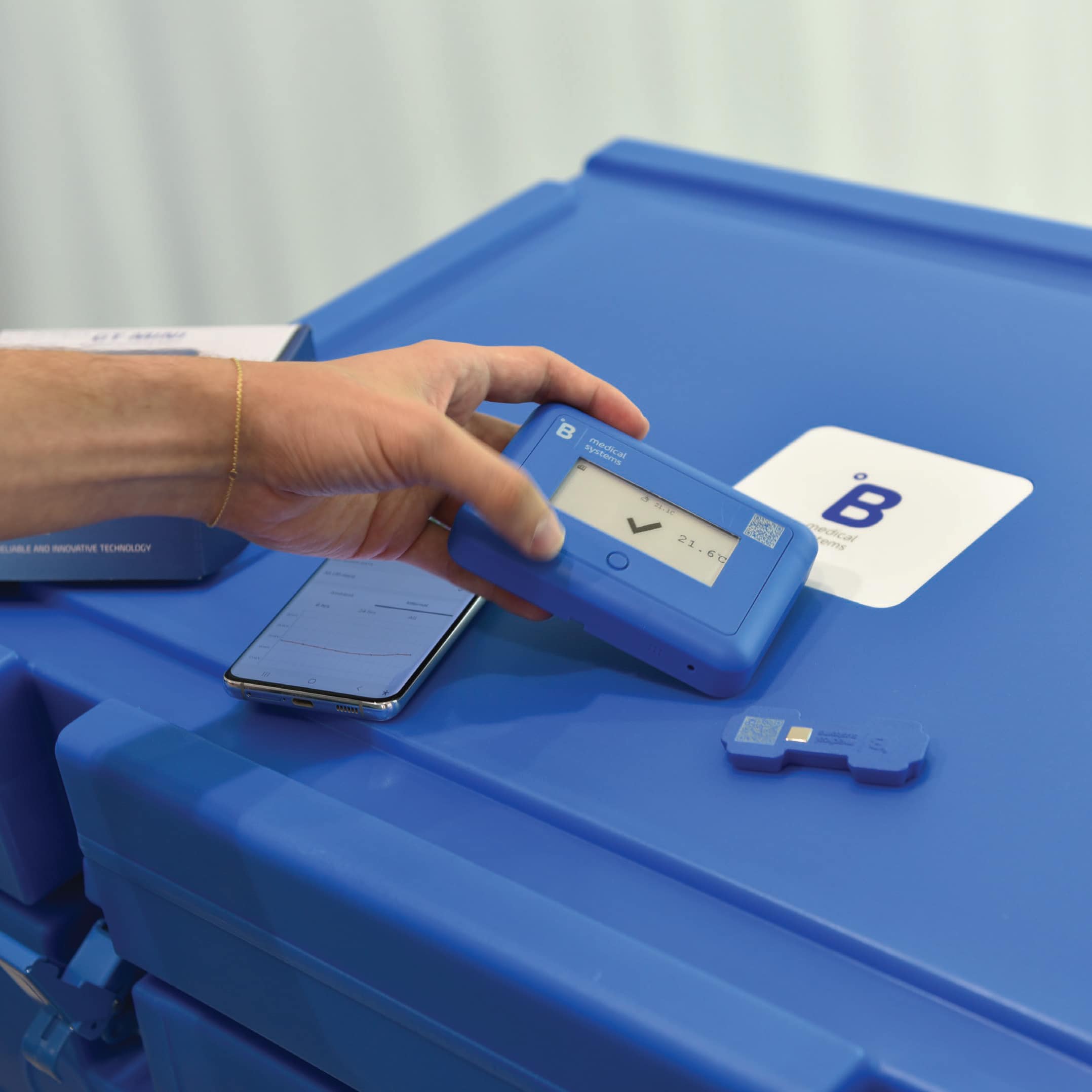

Simply scan the QR code on your GT Mini to instantly view temperature data and its reports. - Customizable Settings
Configure temperature thresholds, data collection frequency, and buzzer repeat intervals according to your specific requirements. - Export Reports
Export temperature reports in both XLS and PDF formats for further analysis and compliance purposes.
3 Configuration Modes via Mobile App
30-Day Mode
Suitable for stationary or long-delivery transports, collecting data at extended intervals with access for up to 30 days.
Trip Mode
This mode is suitable for quick transports or small sample transfers with specific point-to-point journeys.
Warehouse Mode
A battery saver mode which ensures the longevity of the battery when the device is not in use.
2 Types of User Access on Web Portal
Admin
Manage the units and viewers.
Viewer
Access or export information.
| GT Mini - Operating temperature | -10°C to +60°C |
|---|---|
| GT Mini - Temperature sensor type | Digital |
| GT Mini - Temperature sensor accuracy | ±0.1°C (maximum) from -20°C to +50°C | ±0.15°C (maximum) from -40°C to +70°C |
| GT Mini - Screen type | E-ink display |
| GT Mini - Buzzer volume | 75 dB |
| GT Mini - Connectivity technology | Bluetooth Low Energy (BLE) |
| GT Mini - Battery pack capacity | 4000 mAh |
| GT Mini - Waterproofing protection | IP65 |
| TempSense 810 - Operating temperature | -20°C to +65°C |
| TempSense 810 - Temperature sensor type | Digital |
| TempSense 810 - Temperature sensor accuracy | ±0.1°C (maximum) from -20°C to +50°C | ±0.15°C (maximum) from -40°C to +70°C |
| TempSense 810 - Battery cells | 2 |
| TempSense 810 - Battery capacity per cell | 345 mAh |
| TempSense 810 - Waterproofing protection | IP67 |
| Product Type | Monitoring System |
