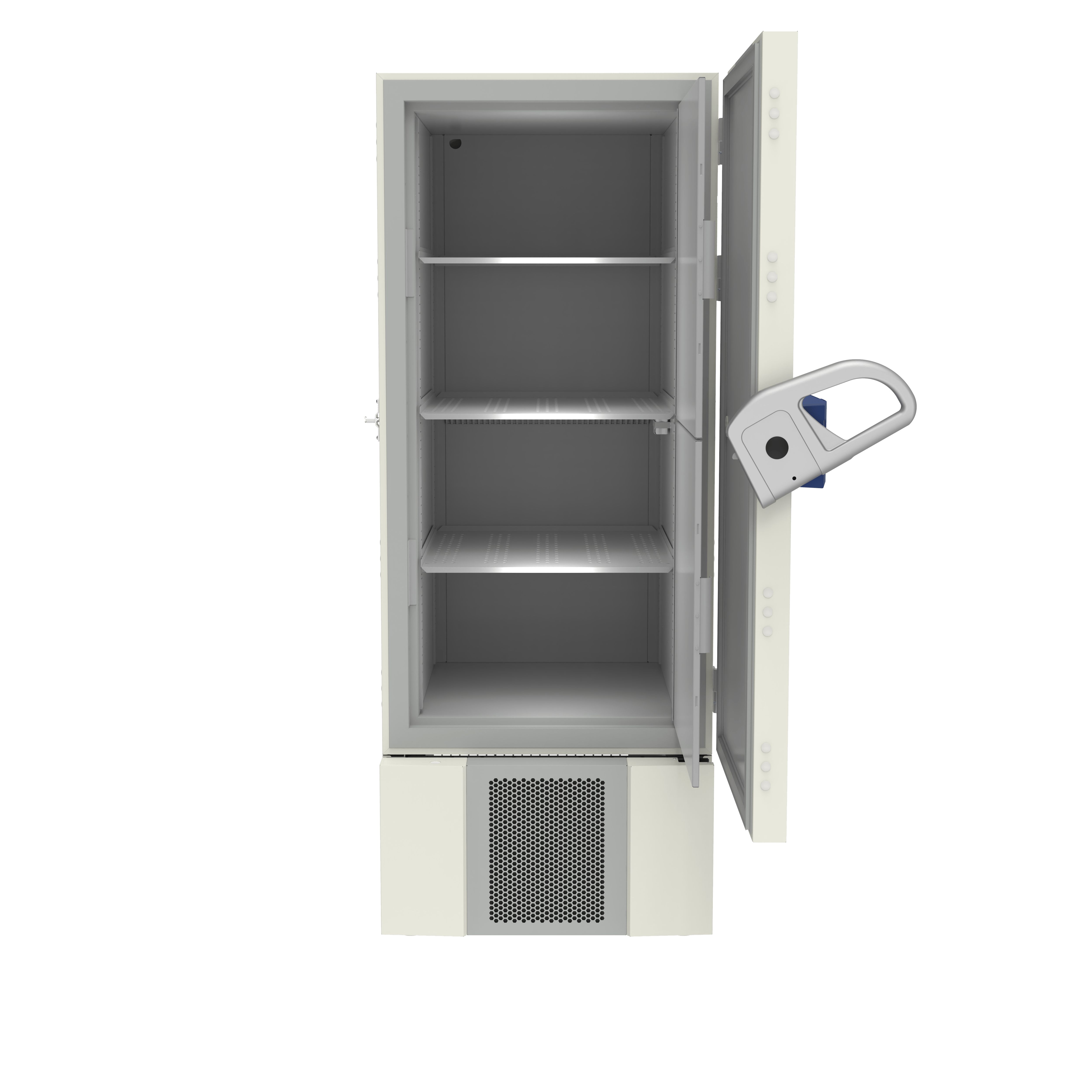

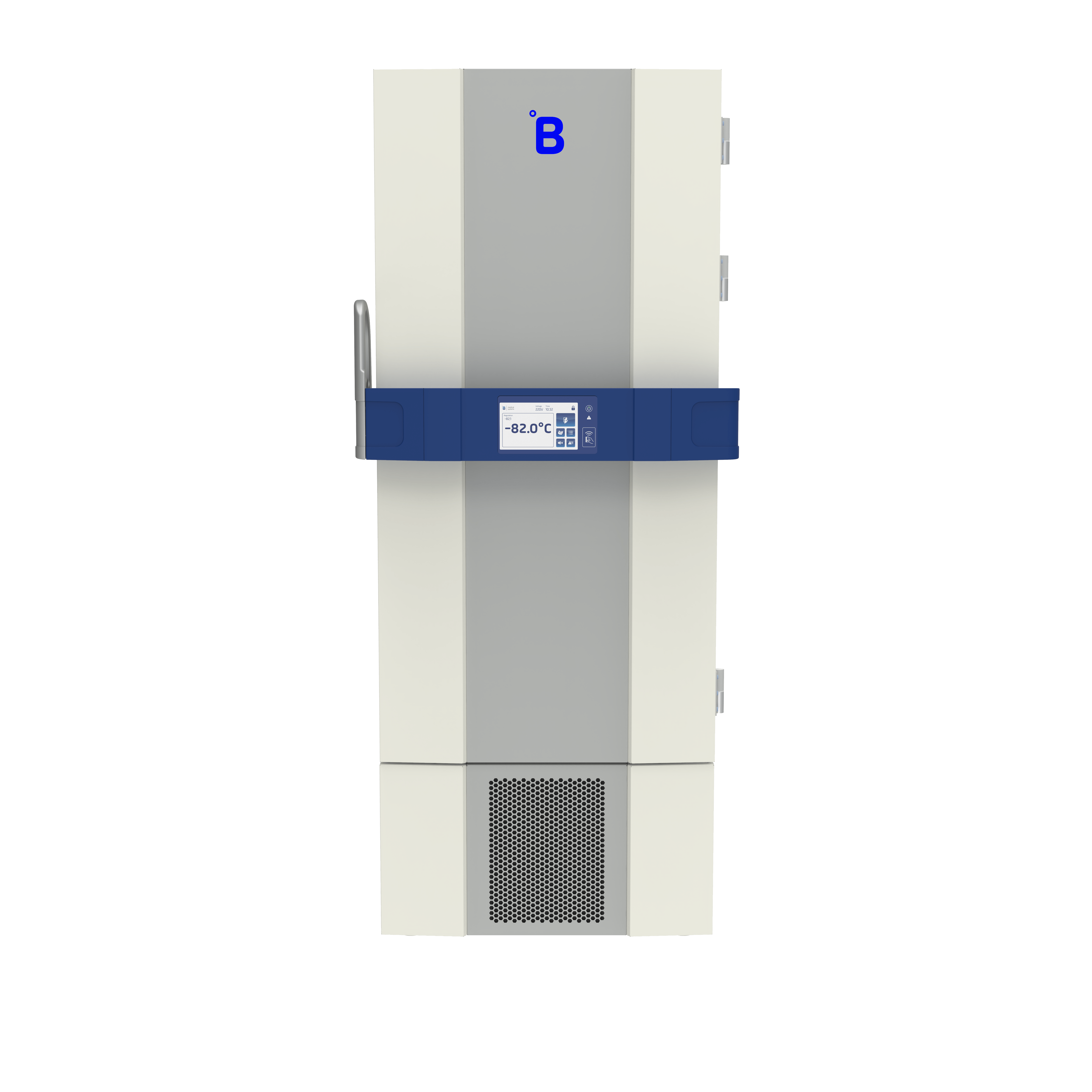

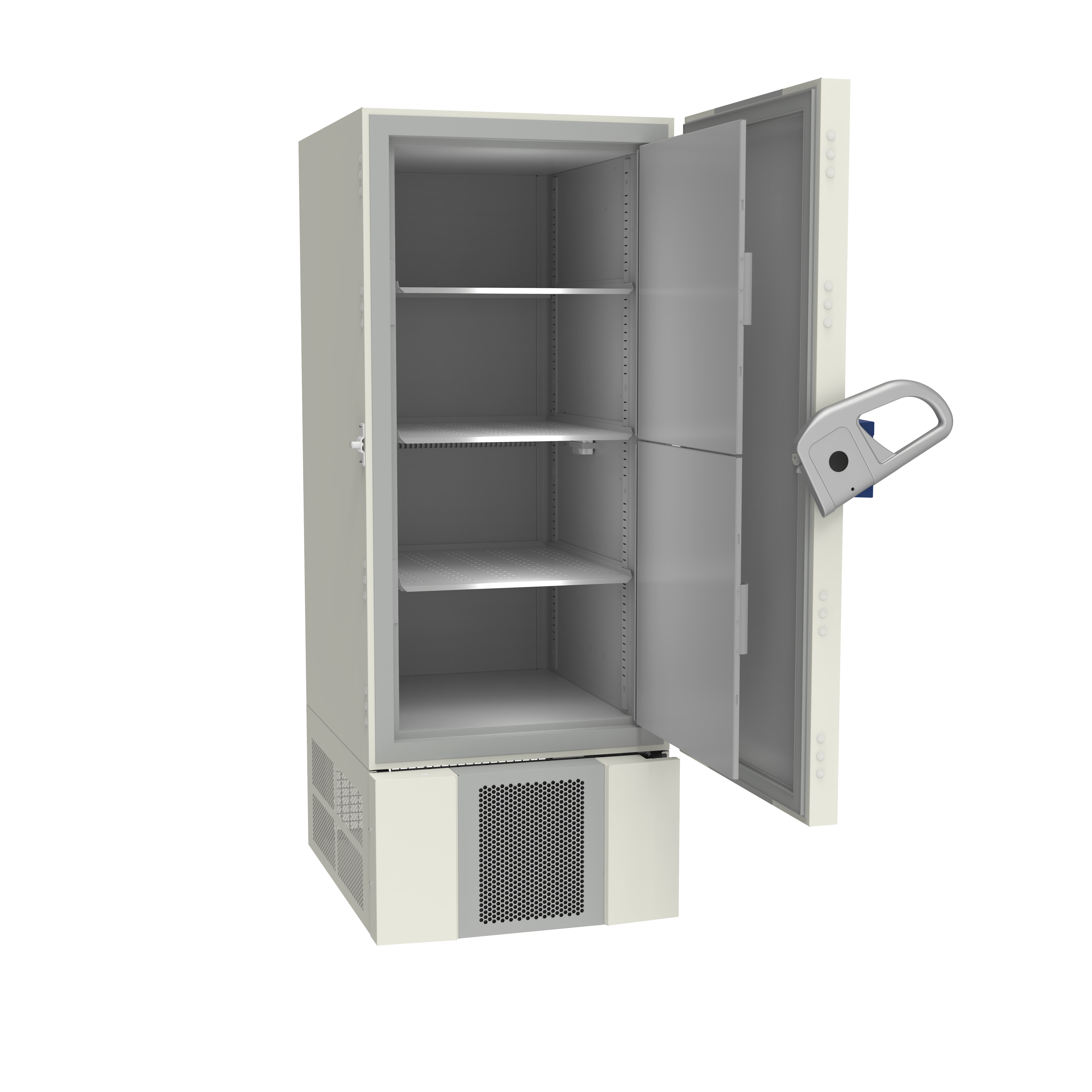

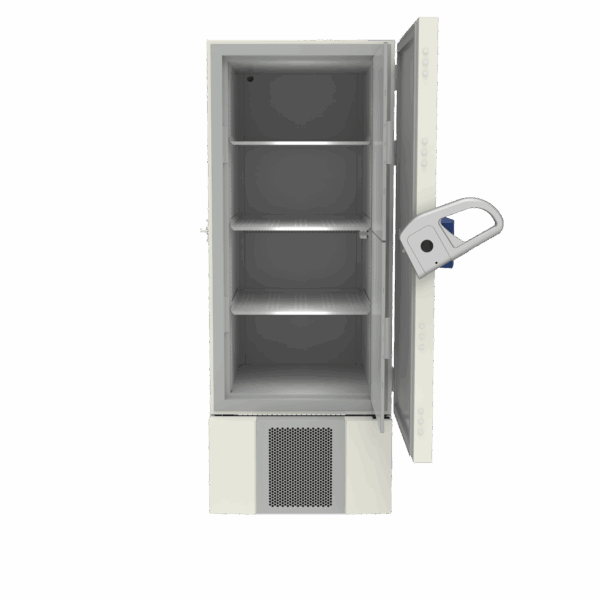

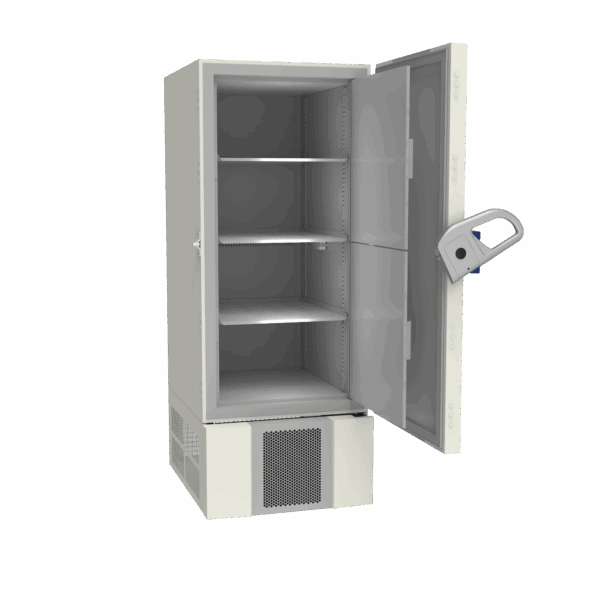

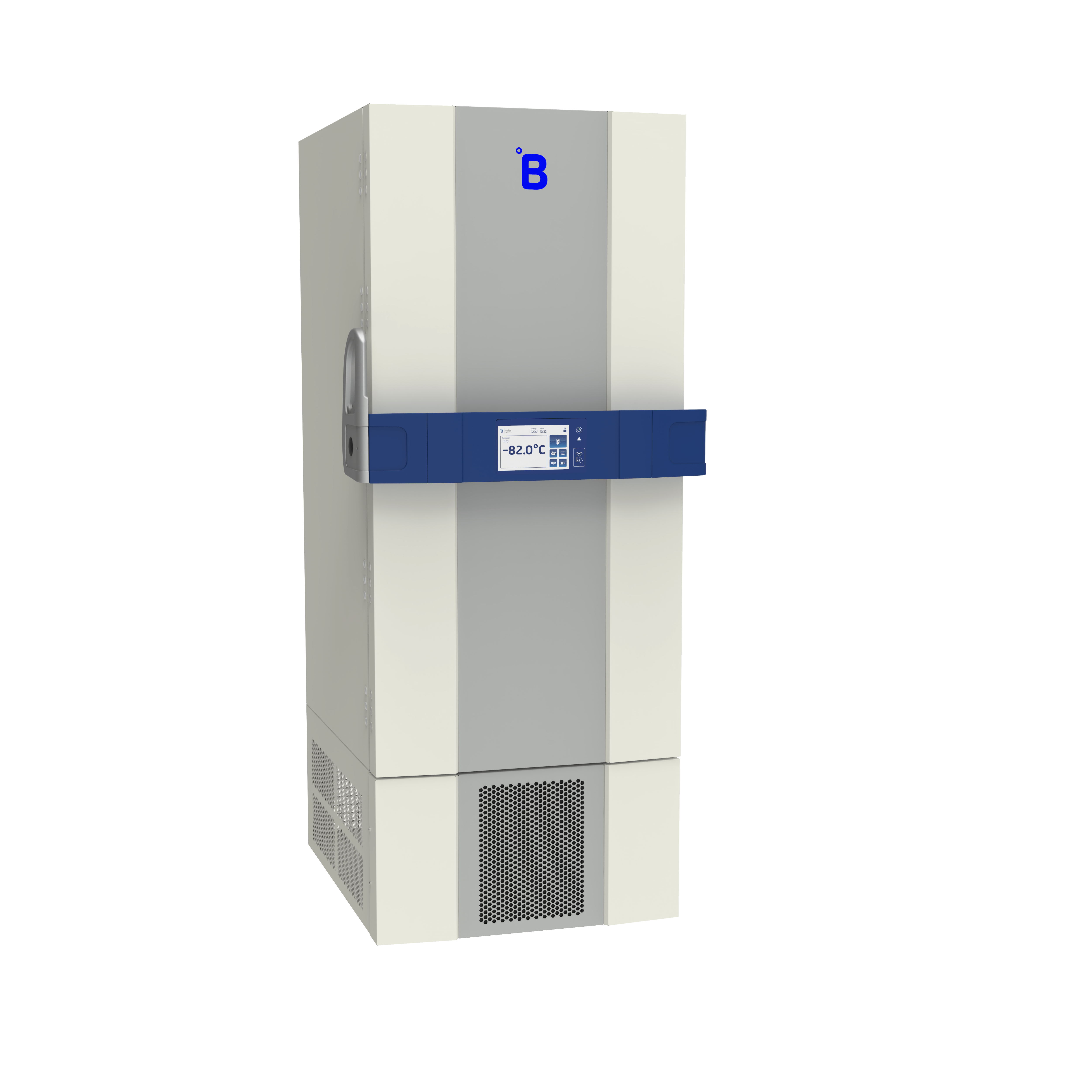

Ultra-Low Freezer U501

Ultra-Low Freezer with 634 L | 22.39 cu ft gross volume.

  • Set Temperature: - 82°C
  • Climate class (ambient temperature range): +10°C to +43°C
  • Alarm limits: - 87°C | - 77°C
  • External dimensions (HxWxD): 1988 x 845 x 1039 mm | 78.27 x 33.27 x 40.91 in
  • Refrigerant Type: Natural R290 / R170

Reliability

  • Adjustable set point from -86°C to -20°C
  • Uniform and stable temperature distribution
  • Fast temperature recovery after door opening
  • Extended holdover time in case of power failure and optional CO2 backup
  • Audio-visual alarm system with remote transmission via SMS or email
  • Coalescing oil separator reducing the oil blockage problems and risk of compressor failure
  • °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving

Efficiency

  • Natural refrigerants with high cooling efficiency in conformity with US SNAP and EU F-Gas regulations
  • Insulated inner doors, sealed gaskets, enhanced frame for minimized cold air loss and frost build-up
  • High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam providing high thermal insulation and storage capacity

Convenience

  • 7” touchscreen with temperature display easily accessible in the bar
  • Password protected/NFC card based door locking mechanism
  • USB port and SD card slot for easy export of data
  • Antibacterial coating for easy hygiene control
  • Modular interior equipment
  • Easy access to all levels
  • High-quality stainless steel and other materials for an extended life span
  • The innovative door lock system, designed for ease of use and security, features a door handle that upon the closing of the door will automatically slide into the closing latch of the cabinet and, after 30 seconds, will also lock itself automatically
Gross volume

634 L | 22.39 cu ft

Cryoboxes capacity

460

2ml Vials Storage Capacity

46000

Set Temperature

– 82°C

Temperature range

-86°C to -20°C

Alarm limits

– 87°C | – 77°C

Climate class (ambient temperature range)

+10°C to +43°C

Certifications

cCSAus | EU MDR Class IIa | ISO 14644-1 | Class 5 | US FDA Class II

Cooling technology

Static cooling

External dimensions (HxWxD)

1988 x 845 x 1039 mm | 78.27 x 33.27 x 40.91 in

Internal dimensions (HxWxD)

1375 x 593 x 738 mm | 54.13 x 23.35 x 29.05 in

Net weight

276 kg | 608.48 lb

Frequency

50 Hz

Supply voltage

230V

Energy consumption

11.3 kWh/24h

Noise level

52 dB

Refrigerant Type

Natural R290 / R170

Heat emission

404 Kcal/h

Materials

Stainless steel

Inner doors

2 (4 as option)

Display

7" touchscreen screen

Remote monitoring

°B Connected software | RTMD included

Hold over time

2.7 h (-80°C to -60°C)

Defrosting technique

Manual

Access control

Password or badge

Data export

SD card | USB port

Product Type

Ultra-Low Freezer
