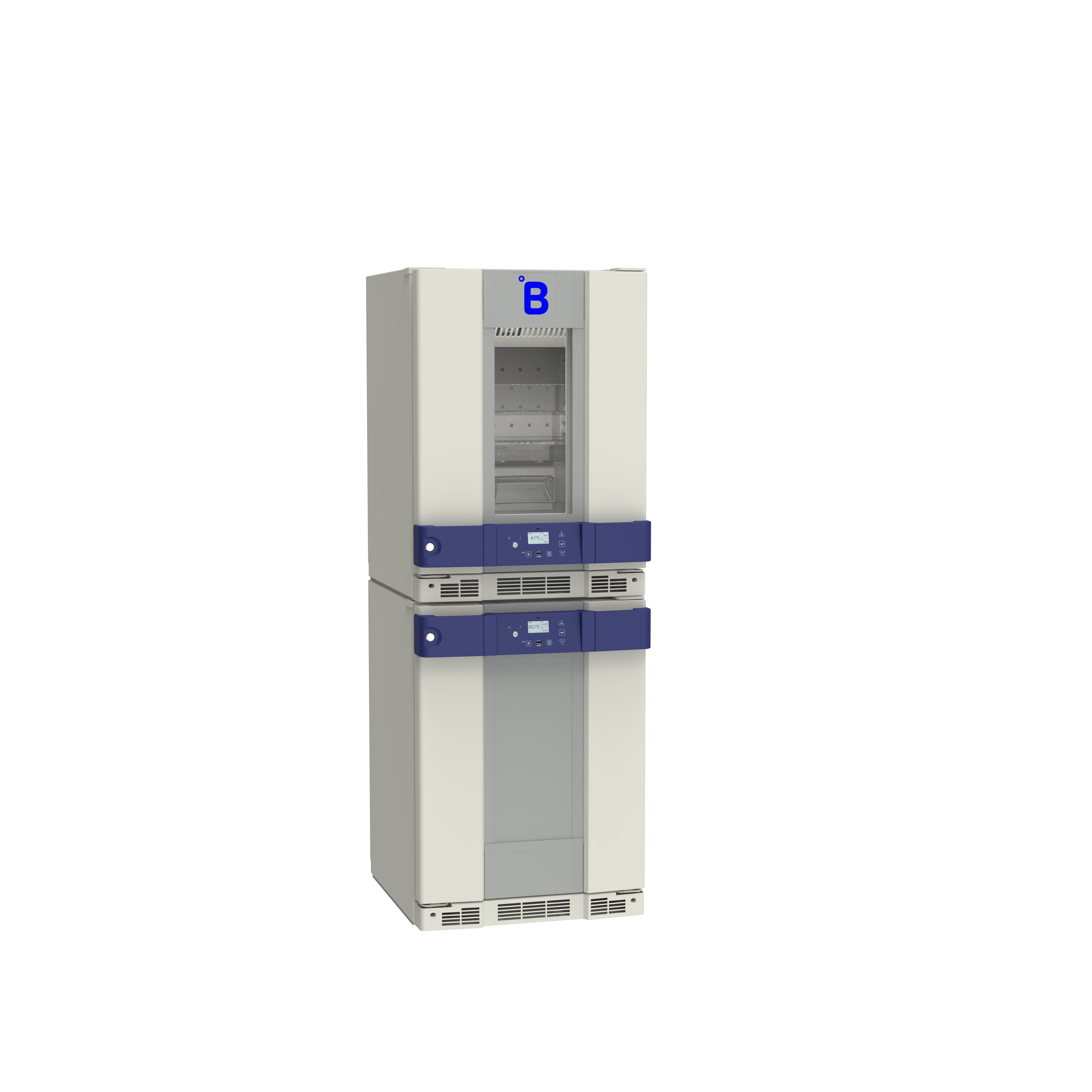

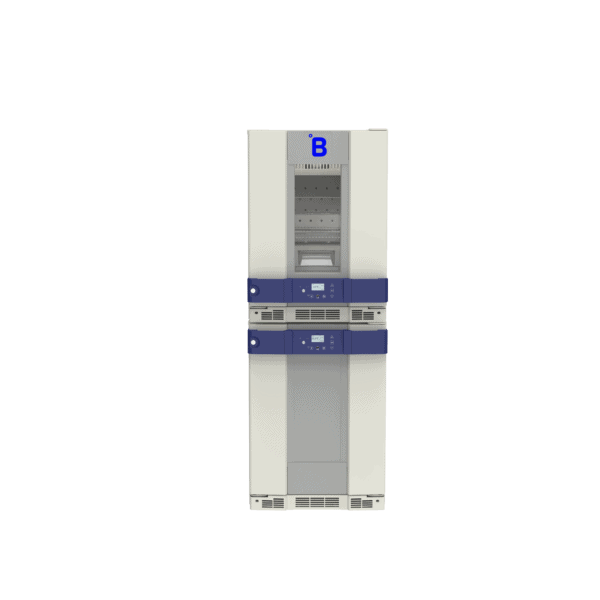

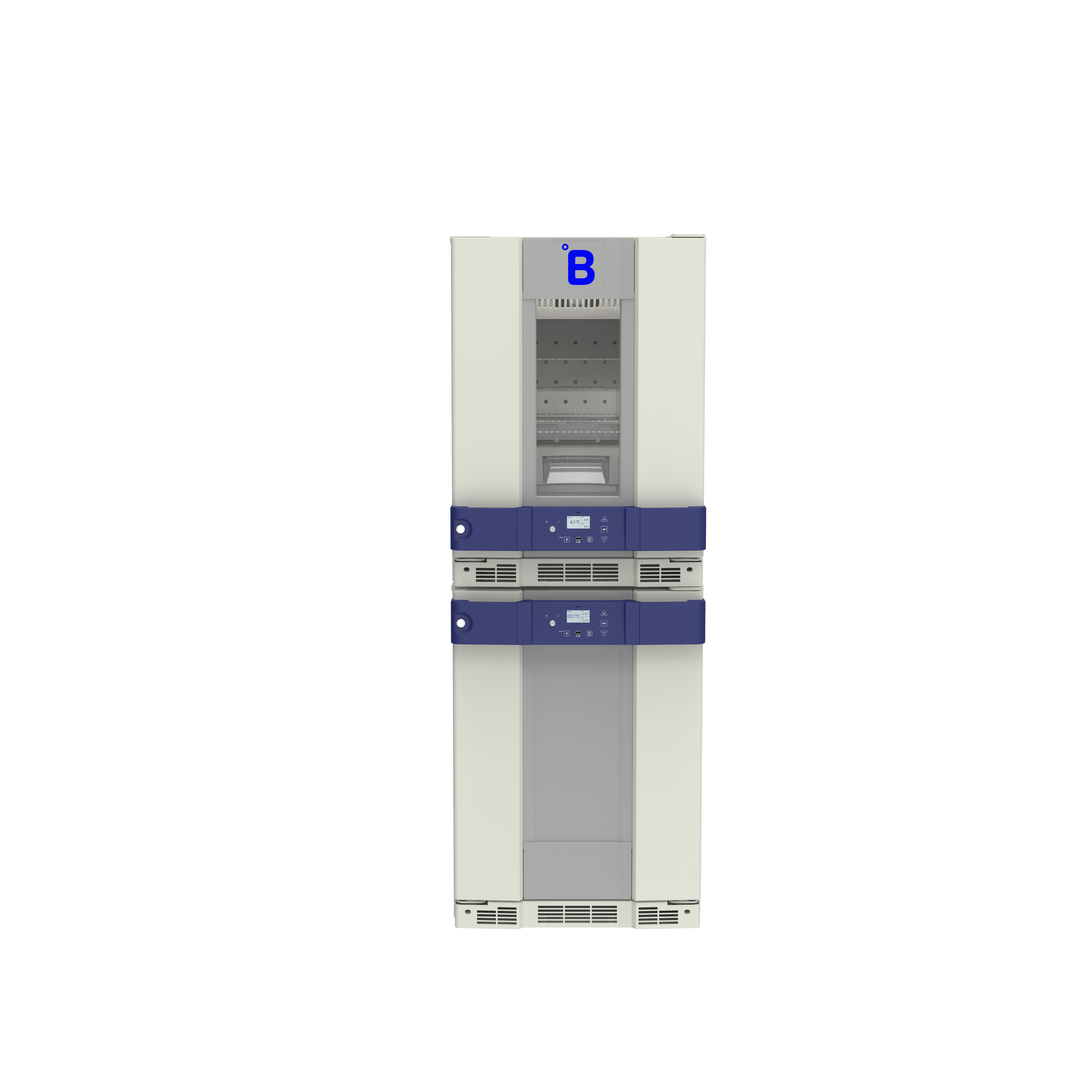

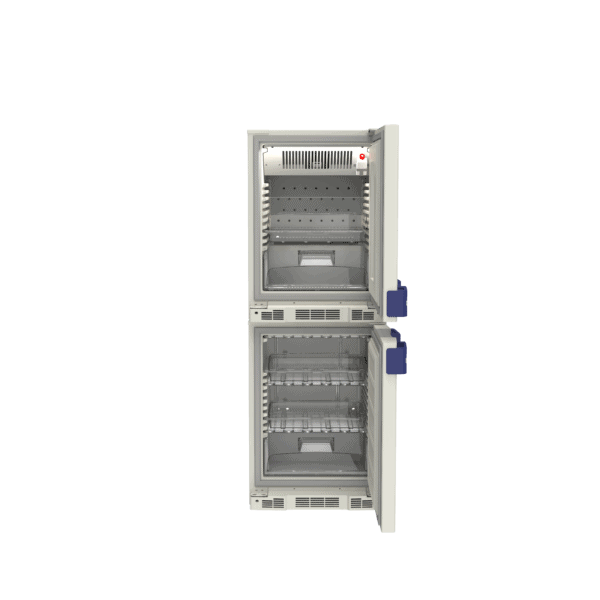

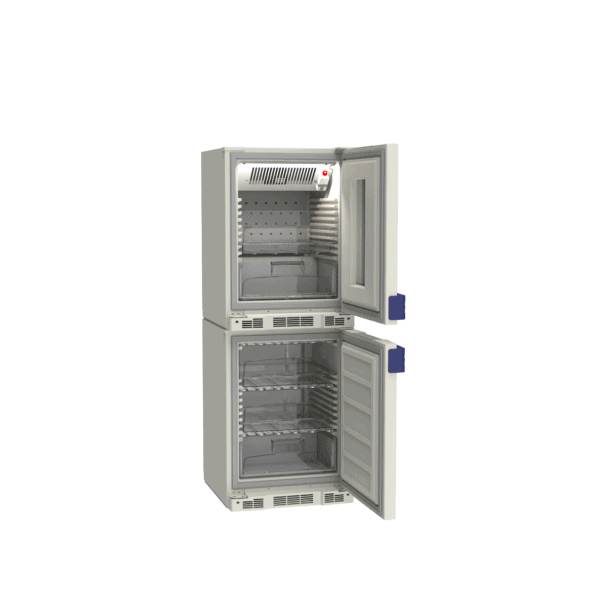

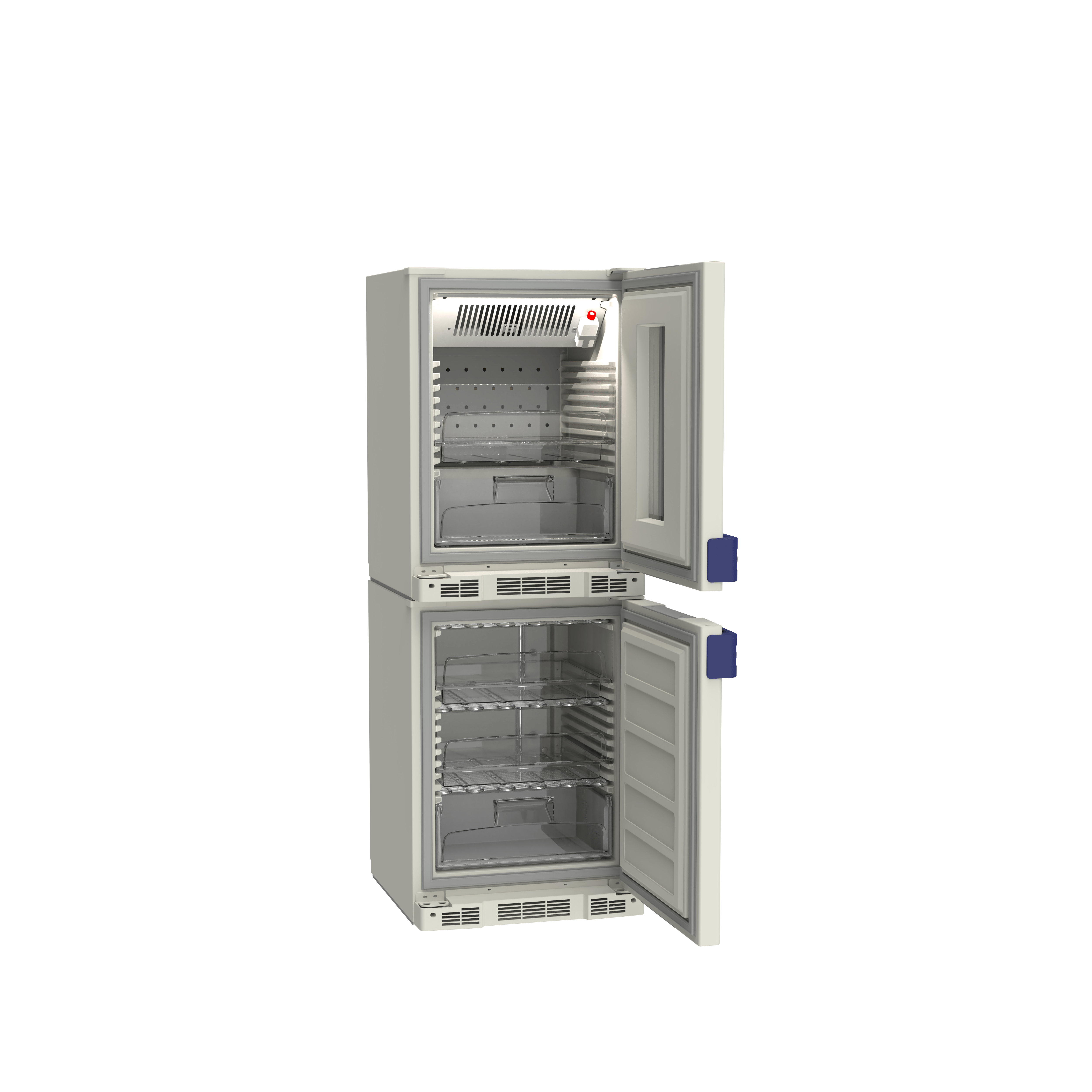

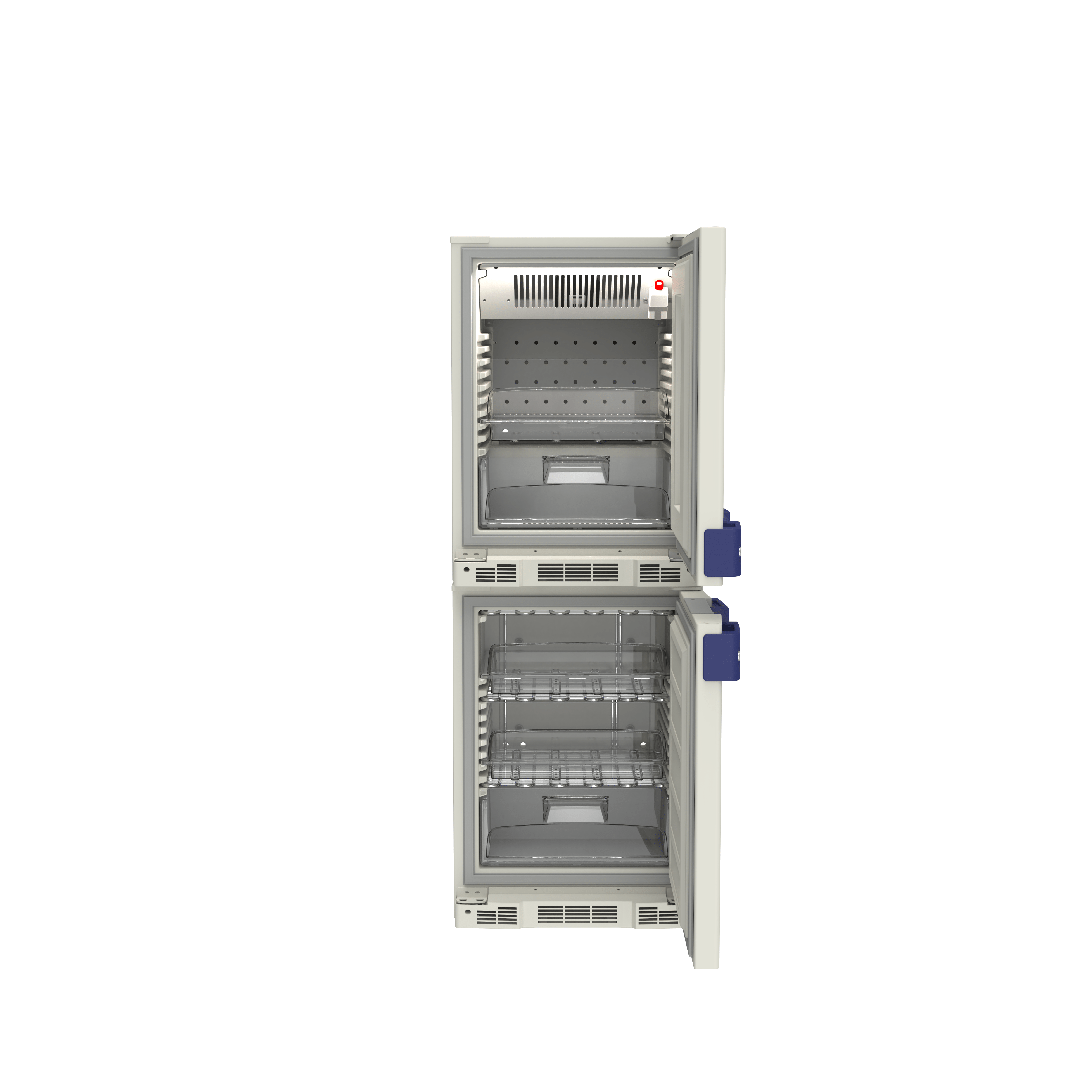

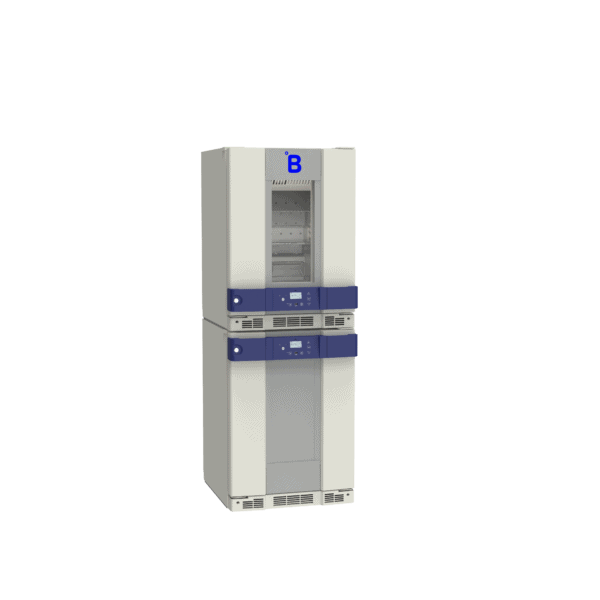

Combined Blood Bank Refrigerator and Plasma Freezer BF261

Combined Blood Bank Refrigerator and Plasma Freezer with 106 L x 2 | 3.74 cu ft x 2 storage capacity

  • Set Temperature: +4°C | -32°C
  • Climate class (ambient temperature range): +10°C to +32°C
  • Alarm limits: R: +2°C | +6°C | F: -37°C | -27°C
  • External dimensions (HxWxD): 1650 x 595 x 695 mm | 64.96 x 23.43 x 27.36 in
  • Refrigerant Type: Natural R290/R600a

Reliability

  • Uniform and stable temperature distribution
  • Fast temperature recovery even in case of frequent door openings
  • Safety thermostat preventing temperature below freezing in the refrigerator compartment
  • Extended autonomy in case of power failure
  • Audio-visual alarm system with remote transmission via SMS or email
  • °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving in combination with a Data Communication Unit

Efficiency

  • Natural refrigerants with high cooling efficiency in conformity with US SNAP and EU F-Gas regulations
  • Polypropylene cabinets injected with polyurethane foam providing strong thermal insulation
  • Sealed gaskets and 4-layer glass window (in the refrigerator compartment) minimizing cold air loss
  • Interior automatic LED lighting for lower energy consumption
  • One-piece cabinets manufactured with the unique technique of rotational moulding

Convenience

  • Smooth cleanable surfaces
  • Low-noise appliance
  • Low heat emission
  • Organic glass window for better visibility of the refrigerated content
  • Modular interior equipment
  • Easy export of data on USB
  • Electronics with easily accessible temperature display
  • Gasket heater minimizing condensation
  • Lifetime warranty corrosion-free cabinet
Gross volume

121 L x 2 | 4.27 cu ft x 2

Storage Capacity

106 L x 2 | 3.74 cu ft x 2

Blood bag capacity (450 ml)

51 (R) + 64 (F)

Blood bag capacity (350 ml)

84 (R) + 84 (F)

Set Temperature

+4°C | -32°C

Alarm limits

R: +2°C | +6°C | F: -37°C | -27°C

Climate class (ambient temperature range)

+10°C to +32°C

Certifications

cCSAus | EU MDR Class IIa | GMP B | ISO 6 | SCoPE | US FDA Class II

Cooling technology

F: Static cooling | R: Forced air cooling system

External dimensions (HxWxD)

1650 x 595 x 695 mm | 64.96 x 23.43 x 27.36 in

Internal dimensions (HxWxD)

630 x 475 x 470 mm x 2 | 24.80 x 18.70 x 18.50 in x 2

Net weight

118 kg | 260.15 lb

Frequency

50-60 Hz

Supply voltage

220-240V

Energy consumption

2.9 kWh/24h (60 Hz) | F: 2.8 kWh/24h (50 Hz) | R: 1.1 kWh/24h

Noise level

36 dB (60 Hz) | 47 dB (60 Hz) | F: 45 dB (50 Hz) | R: 35 dB (50 Hz)

Refrigerant Type

Natural R290/R600a

Heat emission

F: 100 Kcal/h | R: 39 Kcal/h

Materials

Polypropylene/aluminum

Display

Digital display

Remote monitoring

Optional °B Connected software via data communication unit

Hold over time

F: 1.6 h (-32°C to -23°C) | R: 1.7 h (+4°C to +10°C)

Defrosting technique

R: Natural; F: Manual

Access control

Lock with 2 keys

Data export

USB port

Product Type

Combined Blood Bank Refrigerator and Plasma Freezer
