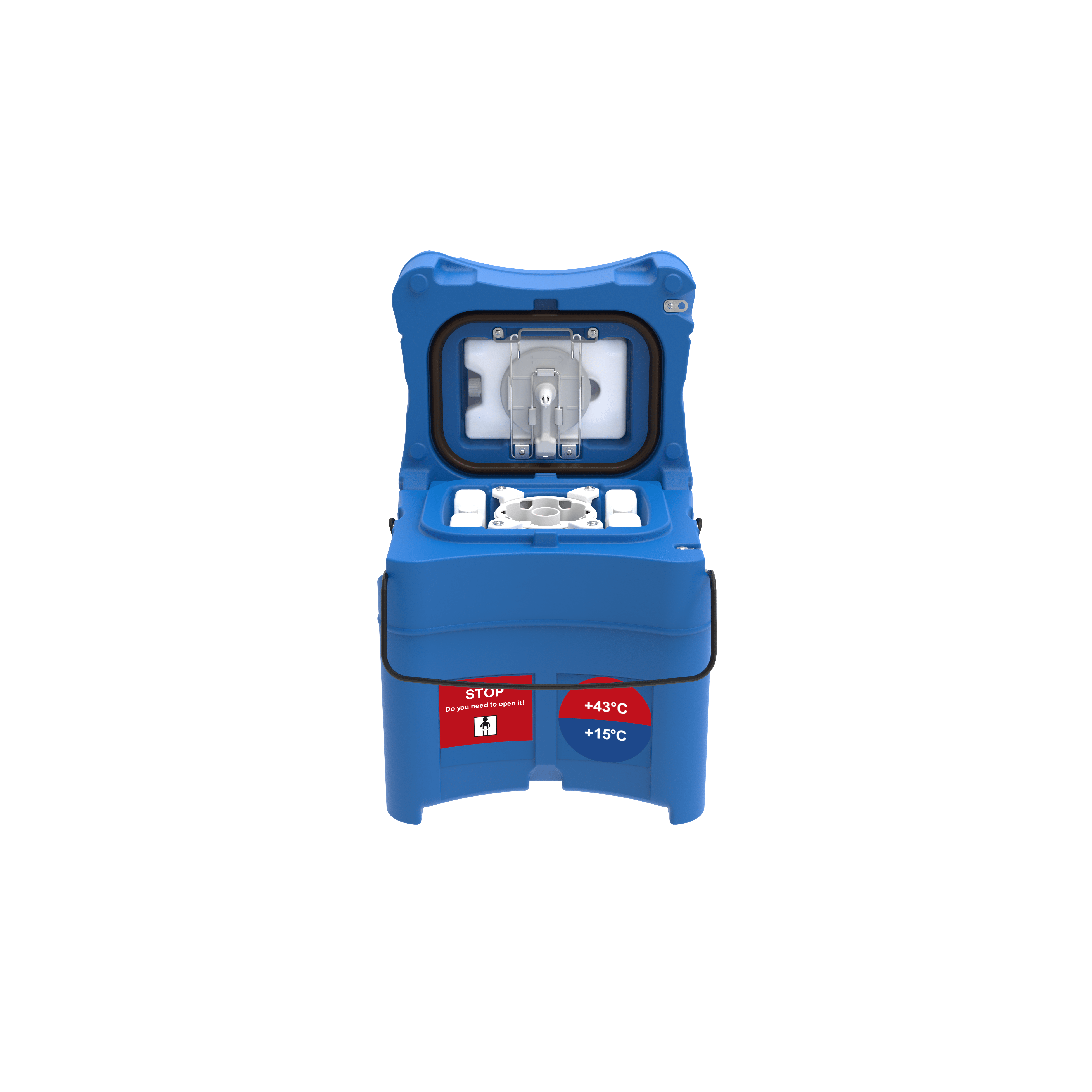

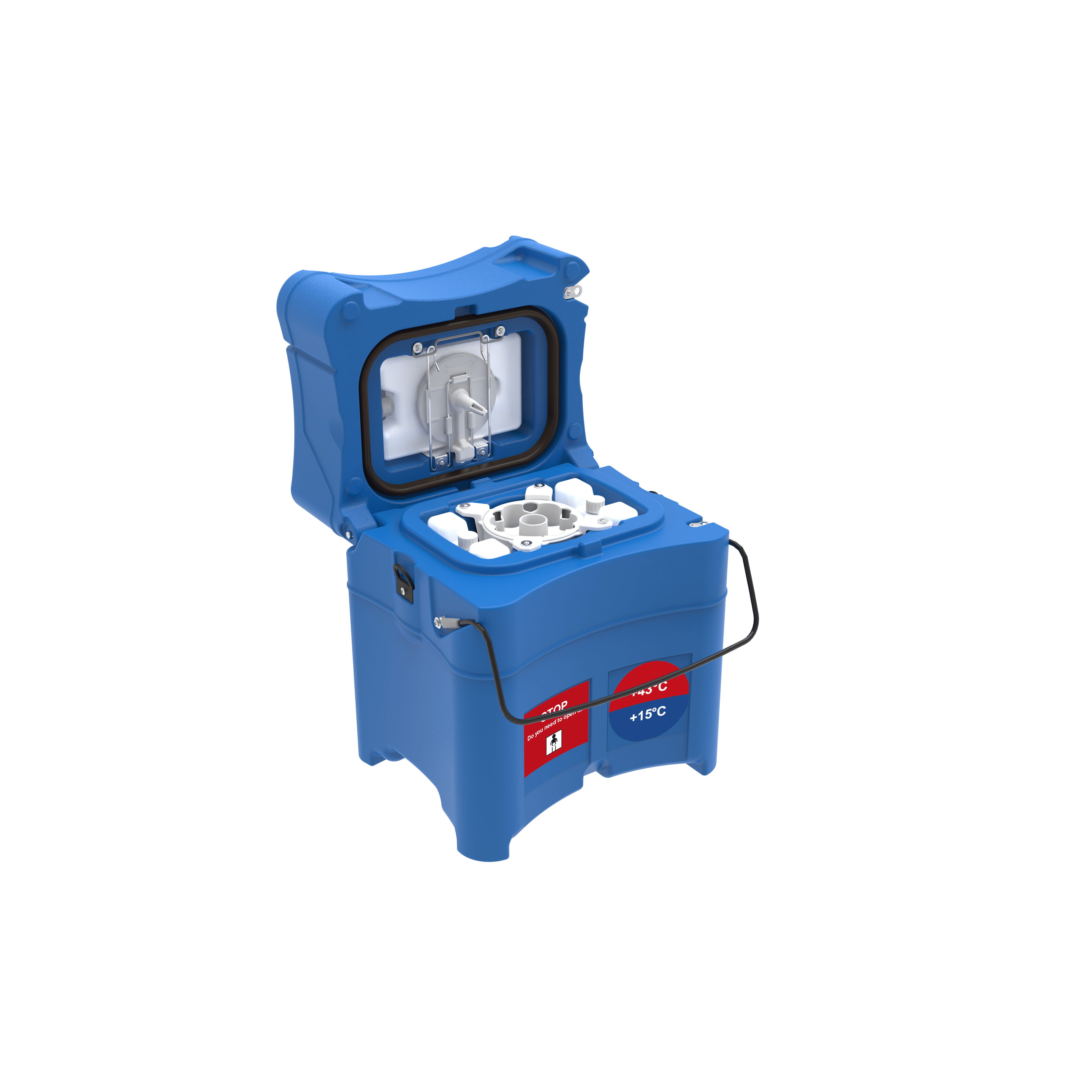

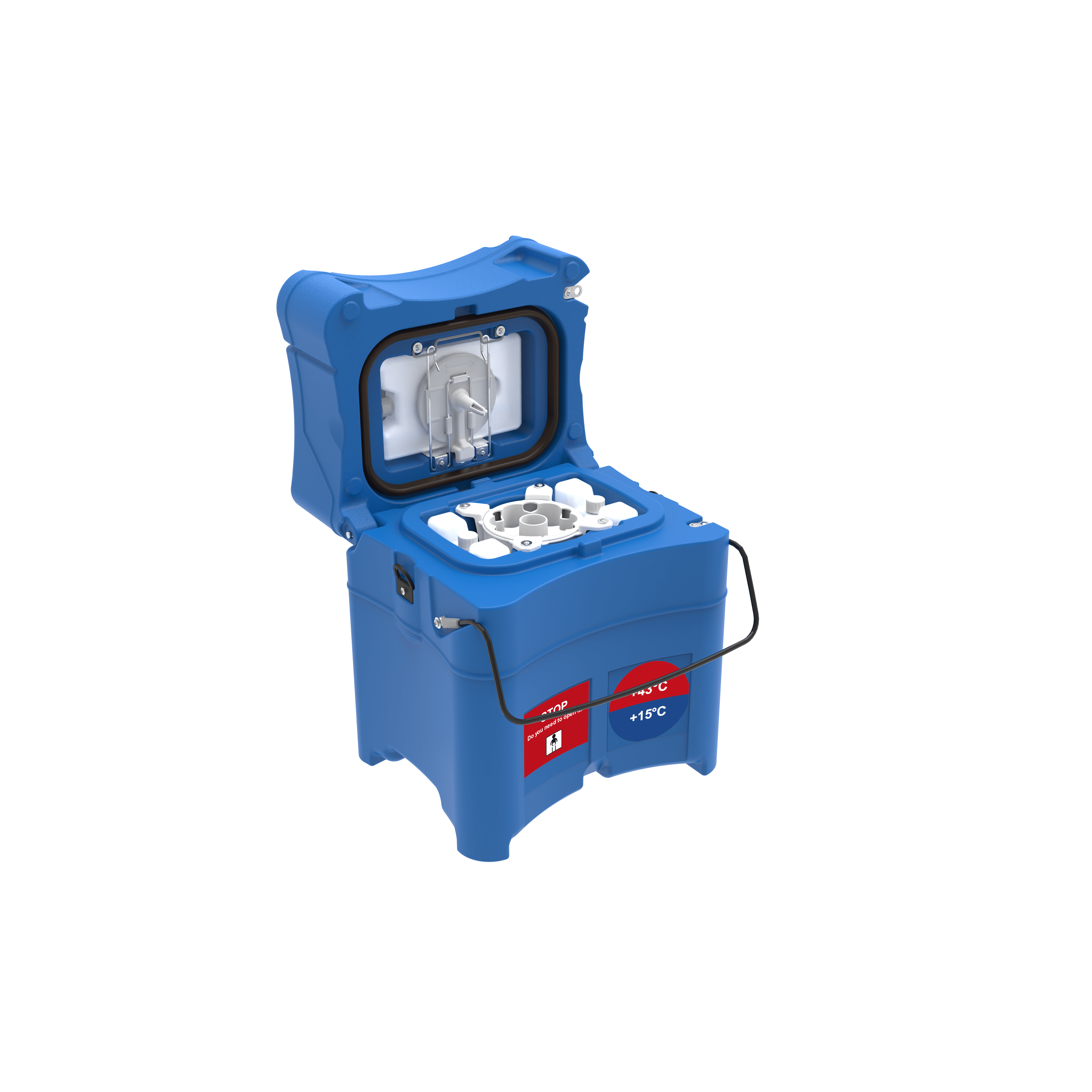

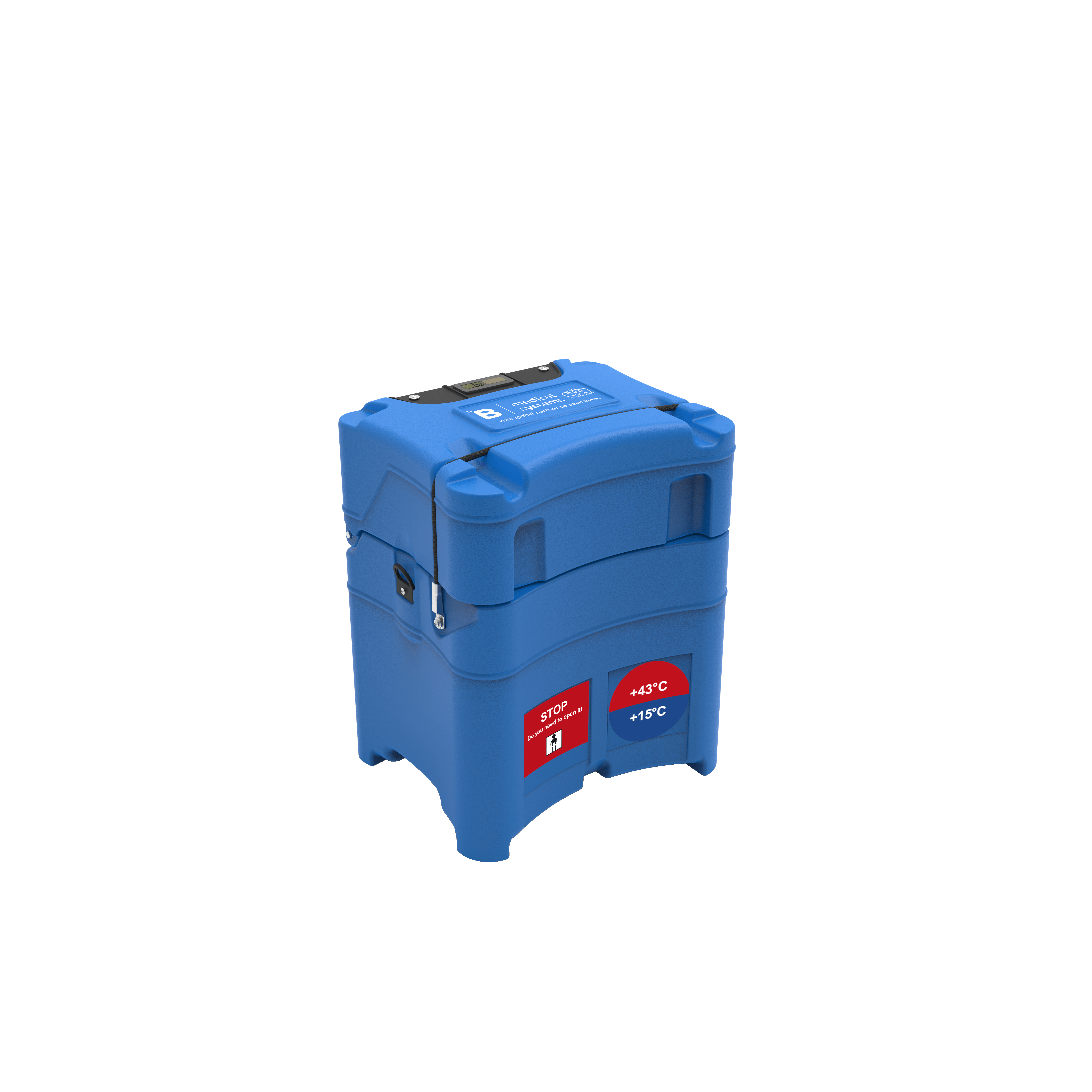

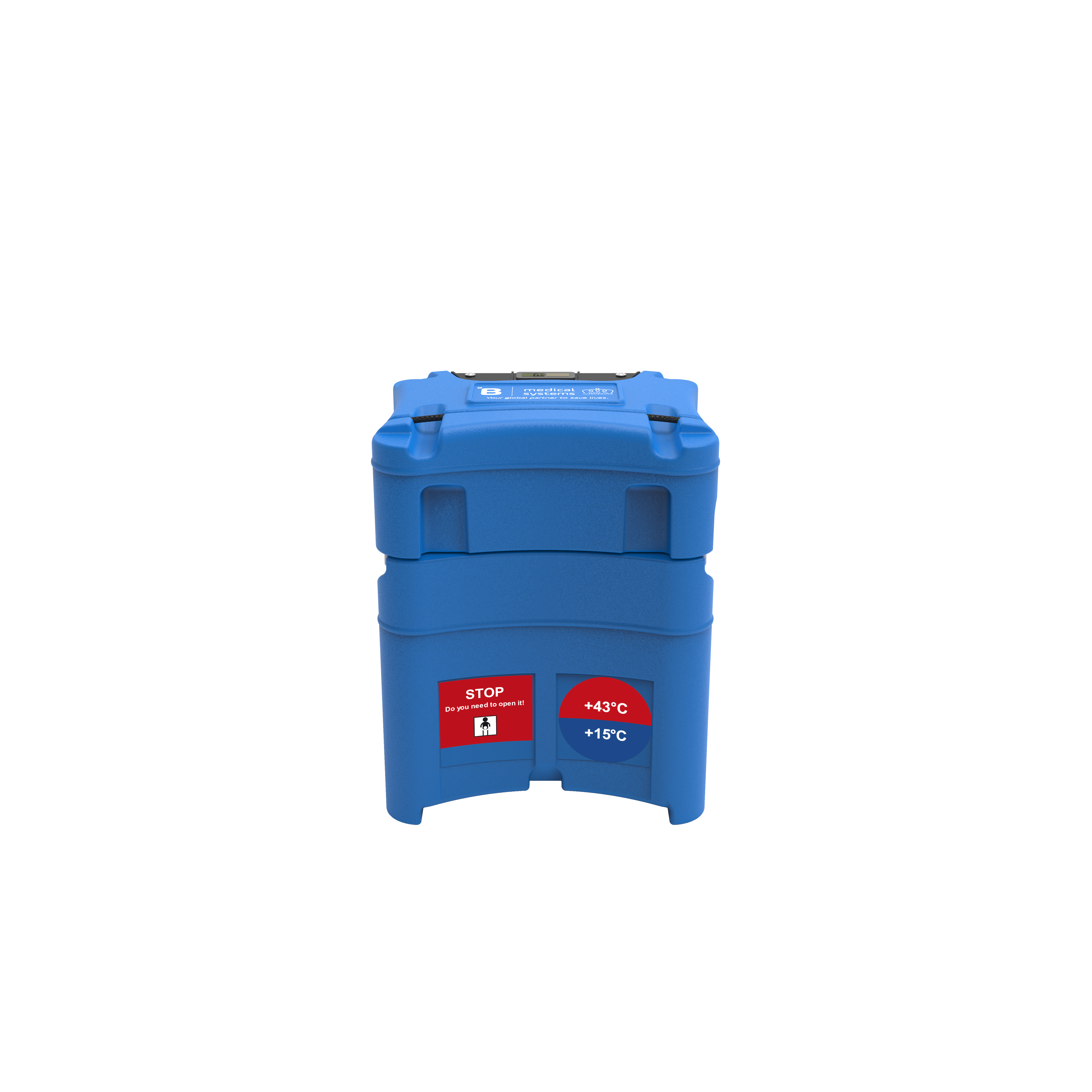

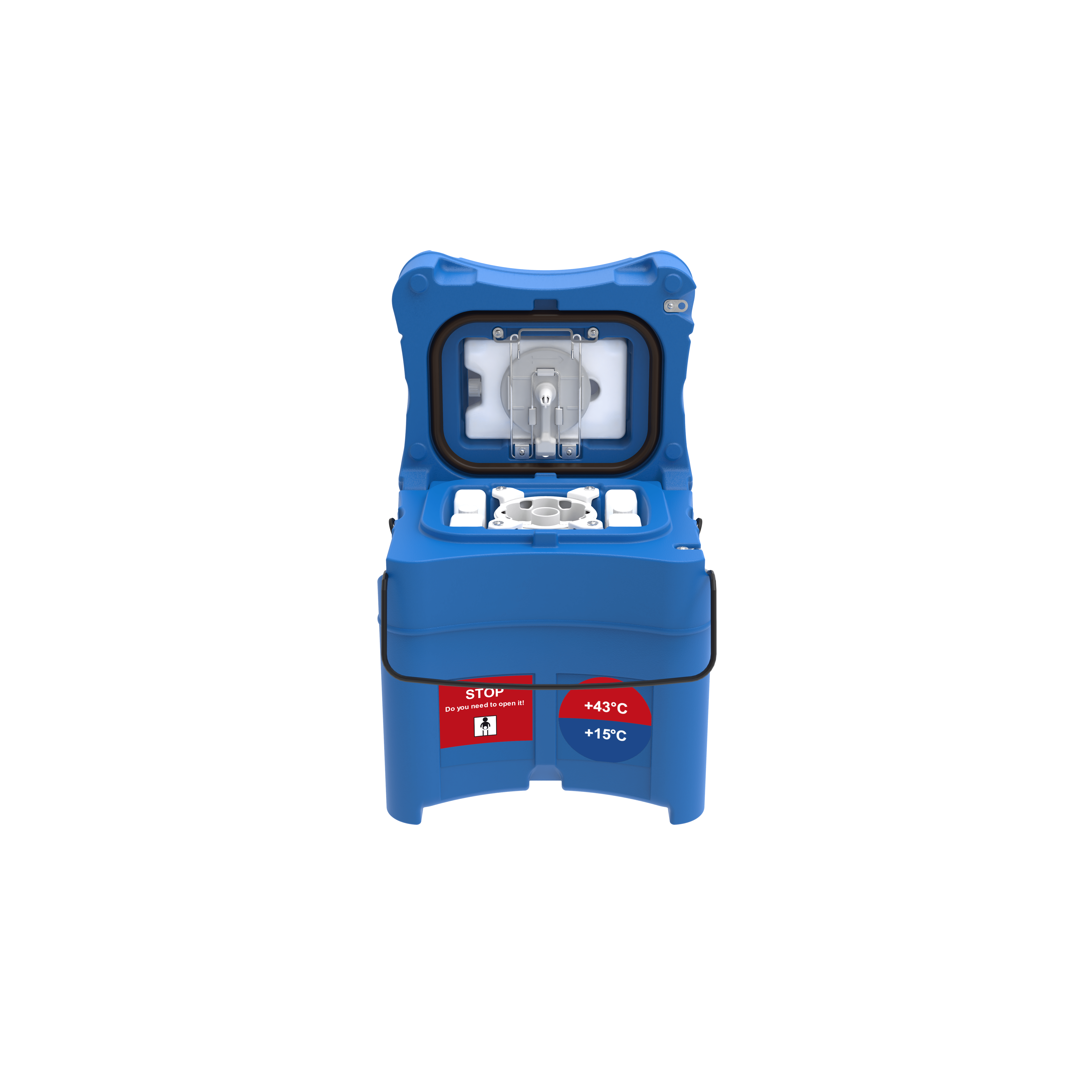

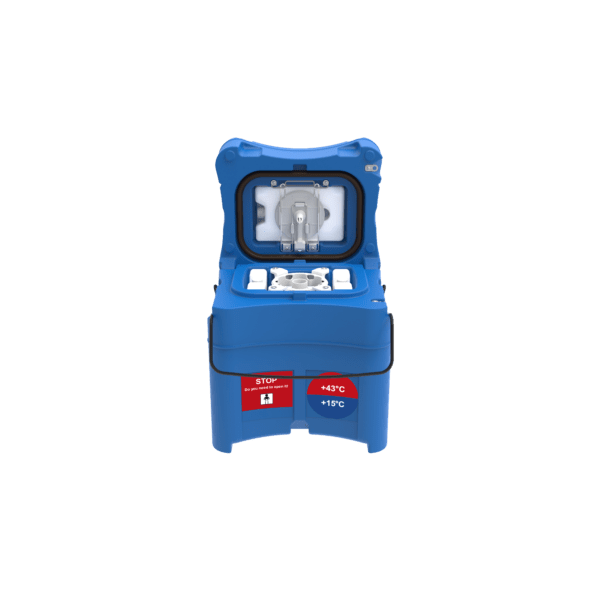

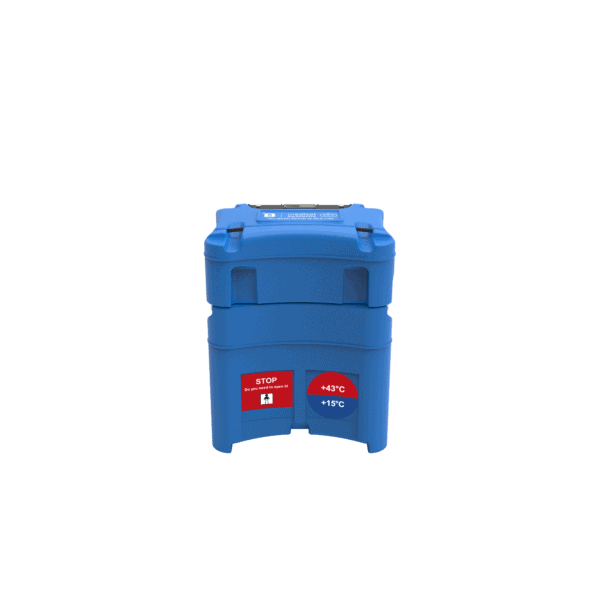

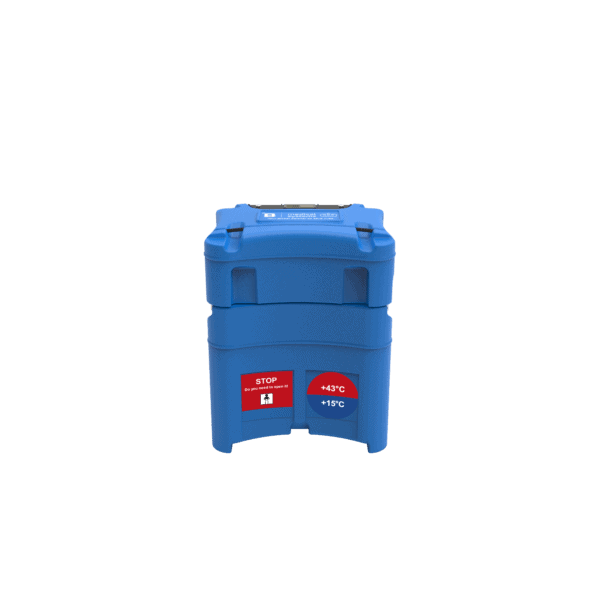

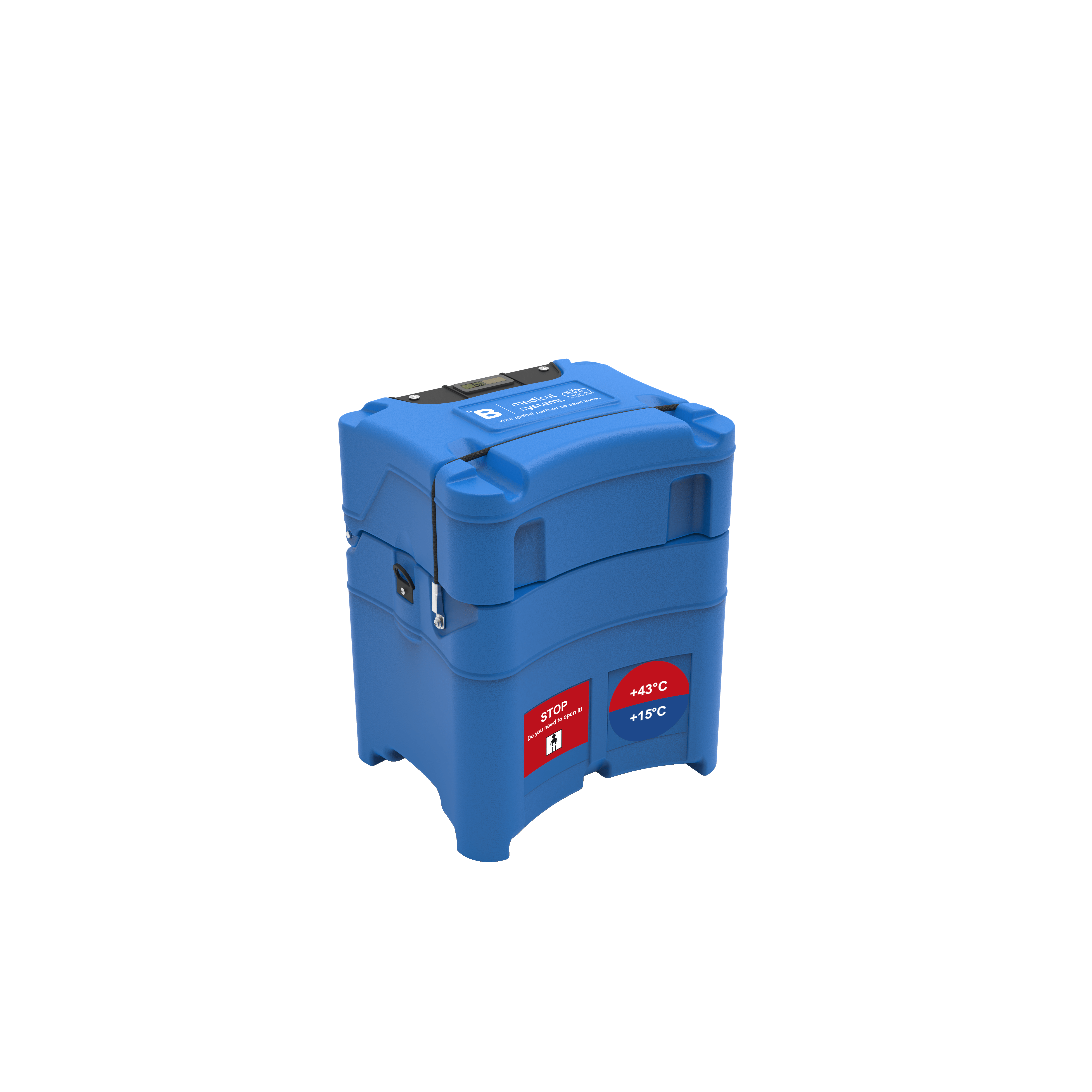

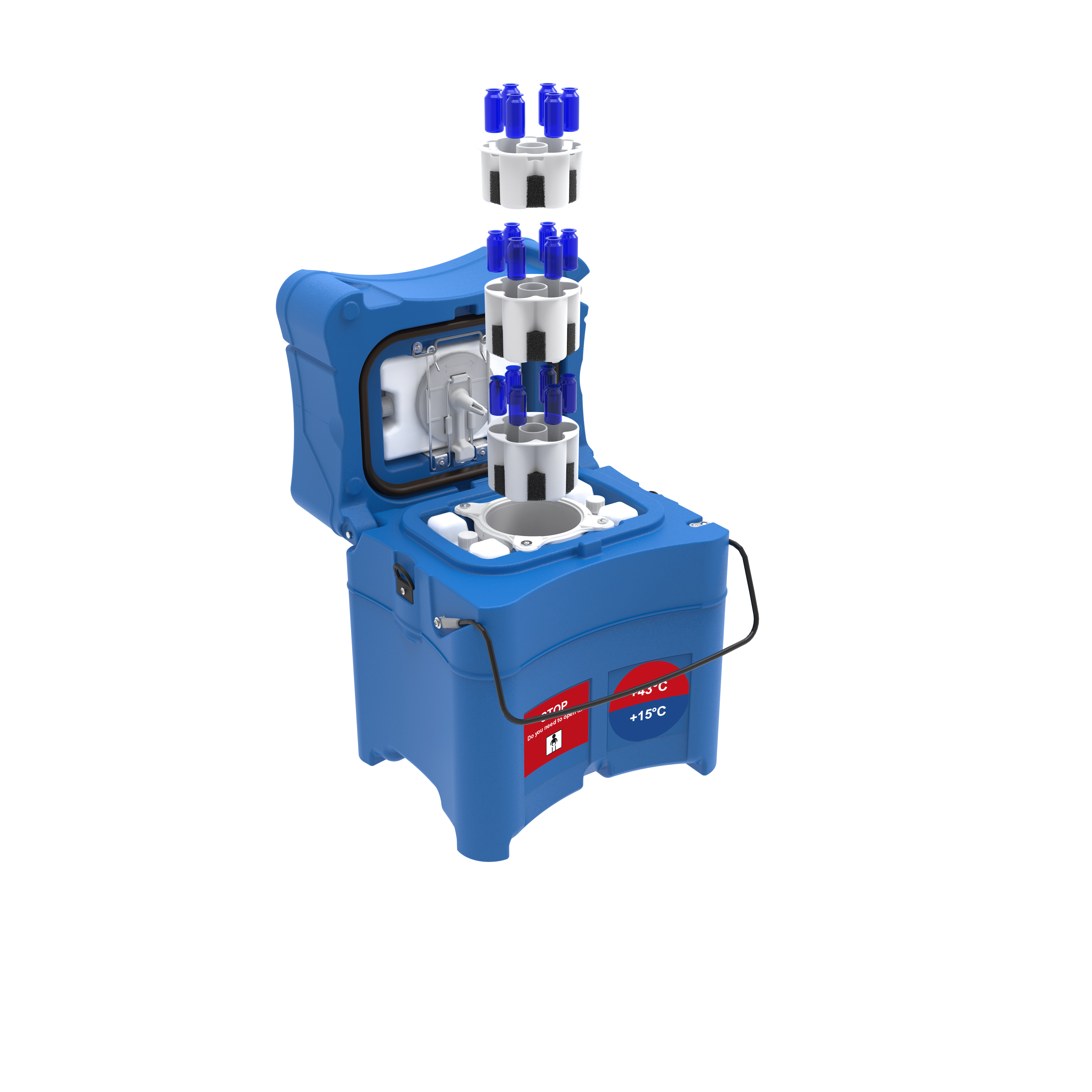

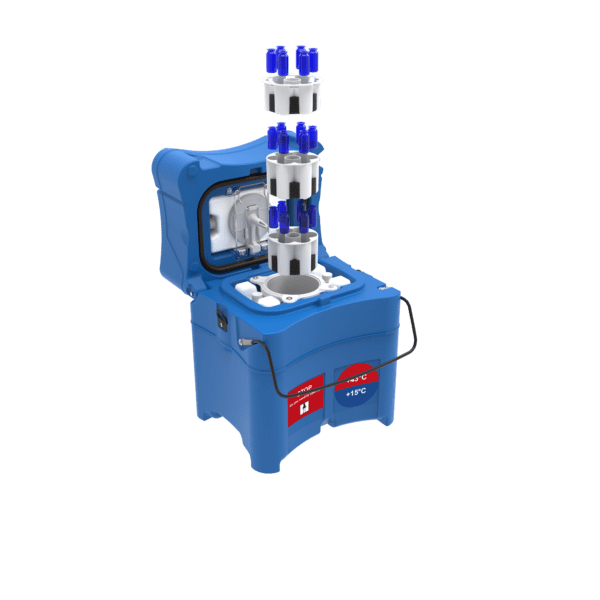

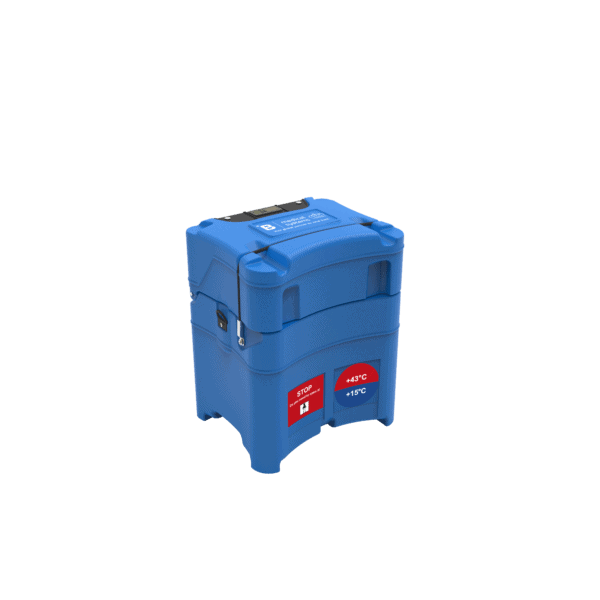

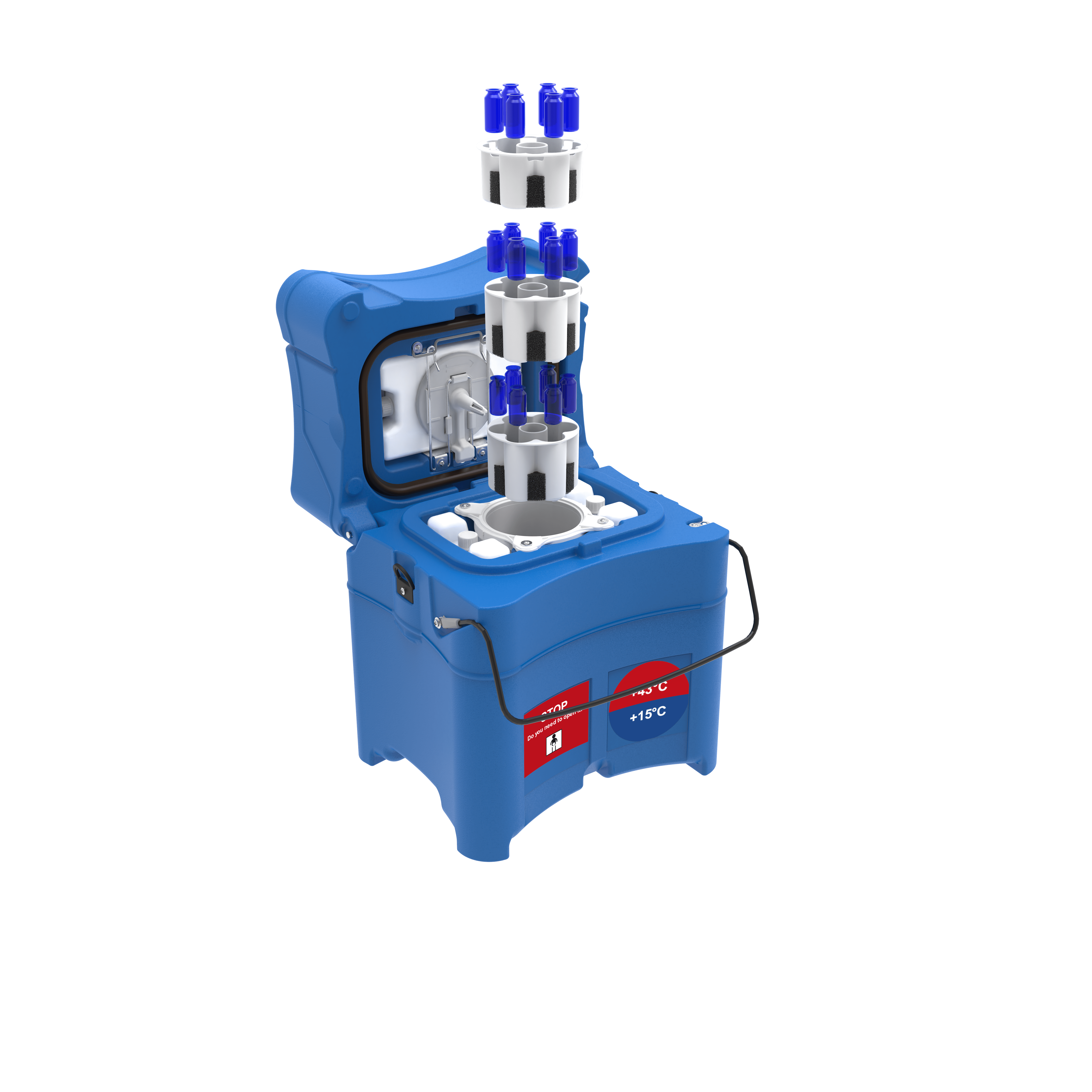

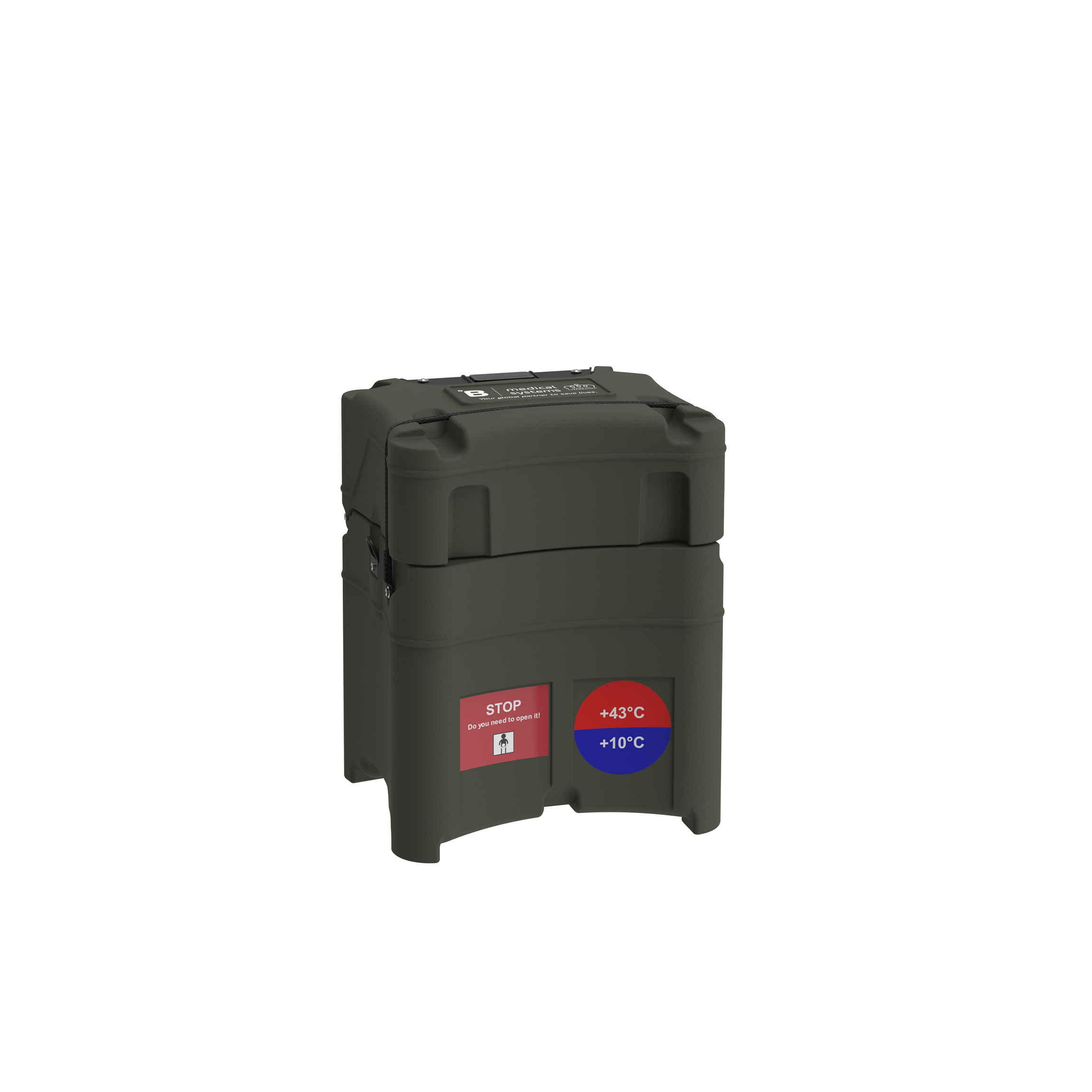

Vaccine Transport Box RCW1 Freeze Free
- Gross volume: 6.5 L

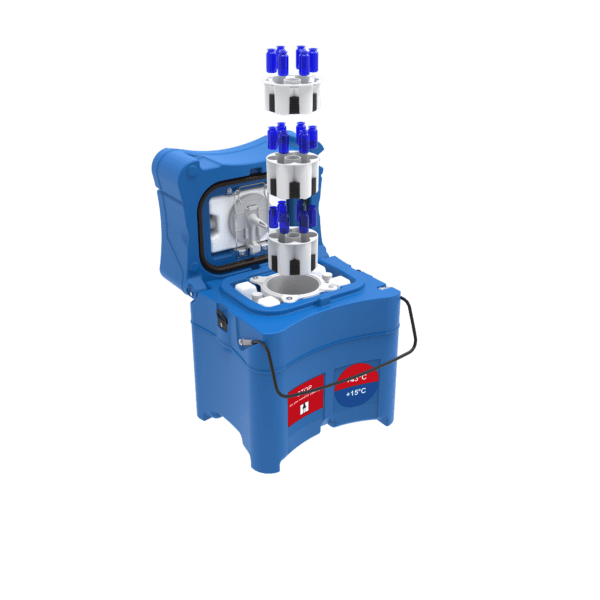

- Vaccine storage capacity: 1.04 L | 0.04 cu ft
- Certifications: WHO PQS E004/059
- External dimensions (HxWxD): 430 x 347 x 281 mm | 16.93 x 13.66 x 11.06 in
Reliable protection
- B Medical Systems’ Freeze-Free technology uses advanced thermal management design to create a protective layer between cooling elements and vaccines, thereby maintaining uniform intended temperature ranges without the risk of freezing
- High shock resistance
- Prolonged cold life for lengthy temperature-control transports
- Eco-friendly insulation for optimum protection against temperature excursions
- Optional temperature data logger for full traceability
User-friendly design
- Adjustable strap for easy carrying
- Integrated solar thermometer
- Certifications for all transportation means (road, rail, sea, air)
- Easy cleaning with conventional disinfectants
- Stackable
- Ideal for last mile outreach sessions
Long-term durability
- Robustness proven in drop and stacking tests
- Lifetime warranty on corrosion
- High-quality indestructible polyethylene
Operational readiness
✔ Available in Green (RAL 6031)
Capable of ensuring reliable thermal protection in demanding operational environments, its durable, corrosion-resistant construction, multi-modal transport certification, and compatibility with temperature monitoring systems make it well suited for specialized logistics chains, field medical units, and mission-critical deployments.
| Gross volume | 6.5 L |
|---|---|
| Vaccine storage capacity | 1.04 L | 0.04 cu ft |
| Certifications | WHO PQS E004/059 |
| External dimensions (HxWxD) | 430 x 347 x 281 mm | 16.93 x 13.66 x 11.06 in |
| Internal dimensions (HxWxD) | 208 x 139 x 223 mm | 8.19 x 5.47 x 8.78 in |
| Net weight | 4.8 kg | 8.8 lb |
| Shipping weight | 7 kg |
| Materials | Polyethylene |
| Remote monitoring | Not remote | via Solar Thermometer |
| Cold life at +43°C | 32h06 min up to 10°C |
| Freeze protection level | Grade A |
| WHO PQS code | E004/059 |
| Colour | Blue (RAL 5015) | Green (RAL 6031) |
| Product type | Vaccine Transport Box |
