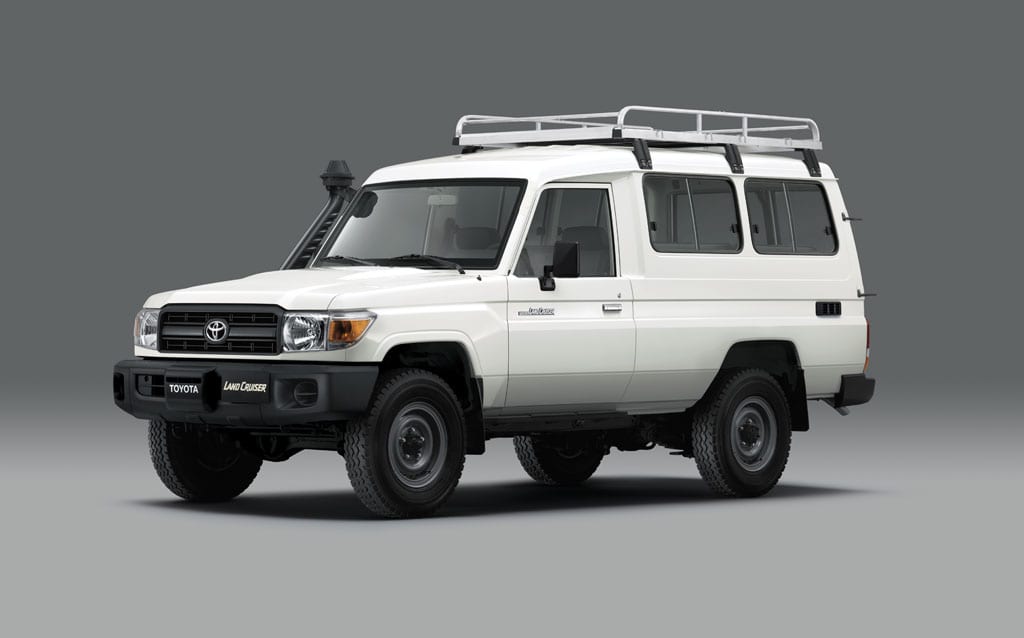

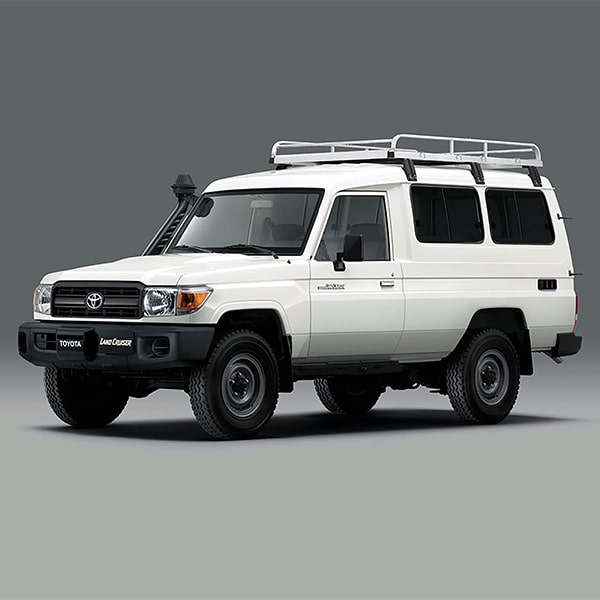

Refrigerated Vaccine Transport Vehicle
Vaccine Cold Chain
- Set Temperature: +5°C
- Vaccine storage capacity: 13.98 cu ft | 396 l
- Certifications: WHO PQS E002/001 I EU MDD Class I
- Climate class (ambient temperature range): 0°C to +50°C
Resistance to harsh environment
- Simple structure of the vehicle ensures extra protection for the vaccines through its robustness
- Designed to operate in a wide range of environmental conditions (0°C to 50°C)

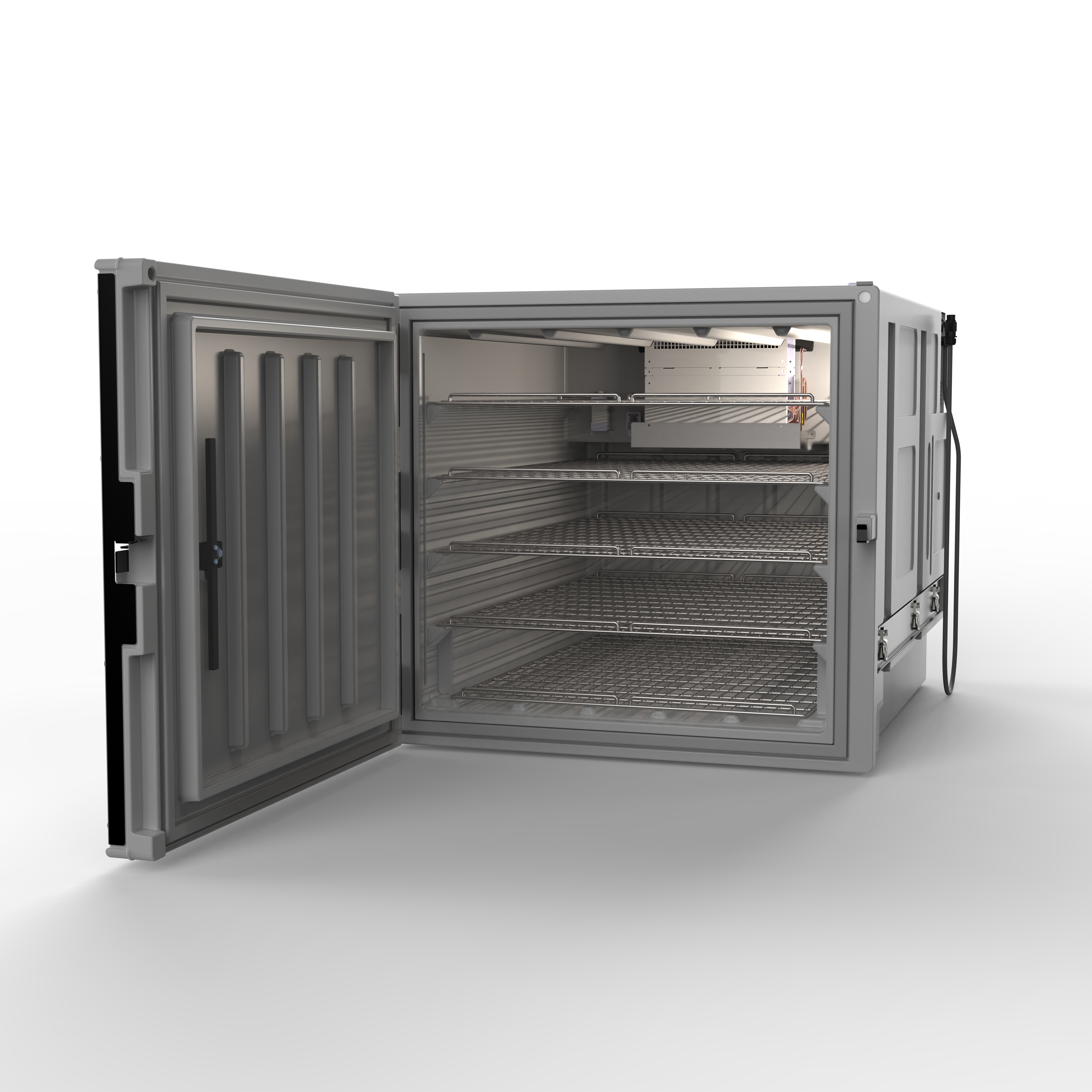

- Rotomoulded refrigerator body construction: rust free and extremely robust
- Certified ECE R80 74/408/EWG (crash test)
- Ability to travel through hostile and narrow road networks
Efficiency
- Able to maintain the cold chain until the last mile of the national cold chain
- 2 integrated rechargeable batteries (offering 16 hours of autonomy)
- Digital temperature control for accurate temperature setting and monitoring
- Polypropylene foam insulation guarantees the highest possible hold over time
- Integrated Remote Temperature Monitoring Device (RTMD) with free communication
Convenience
- Roof rack enables loading of non-vaccine items and dry supplies
- 230V AC & 12V DC connection – providing flexible power supply alternatives for operations

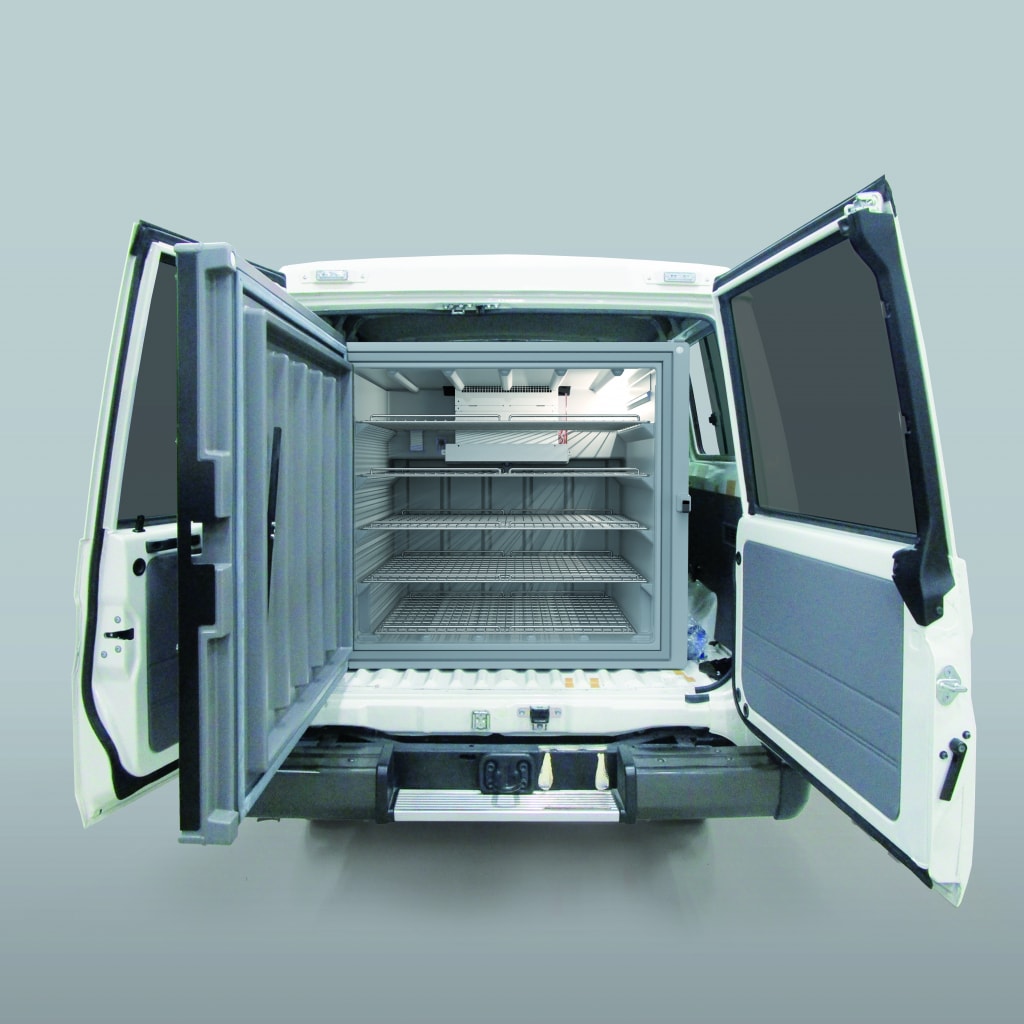

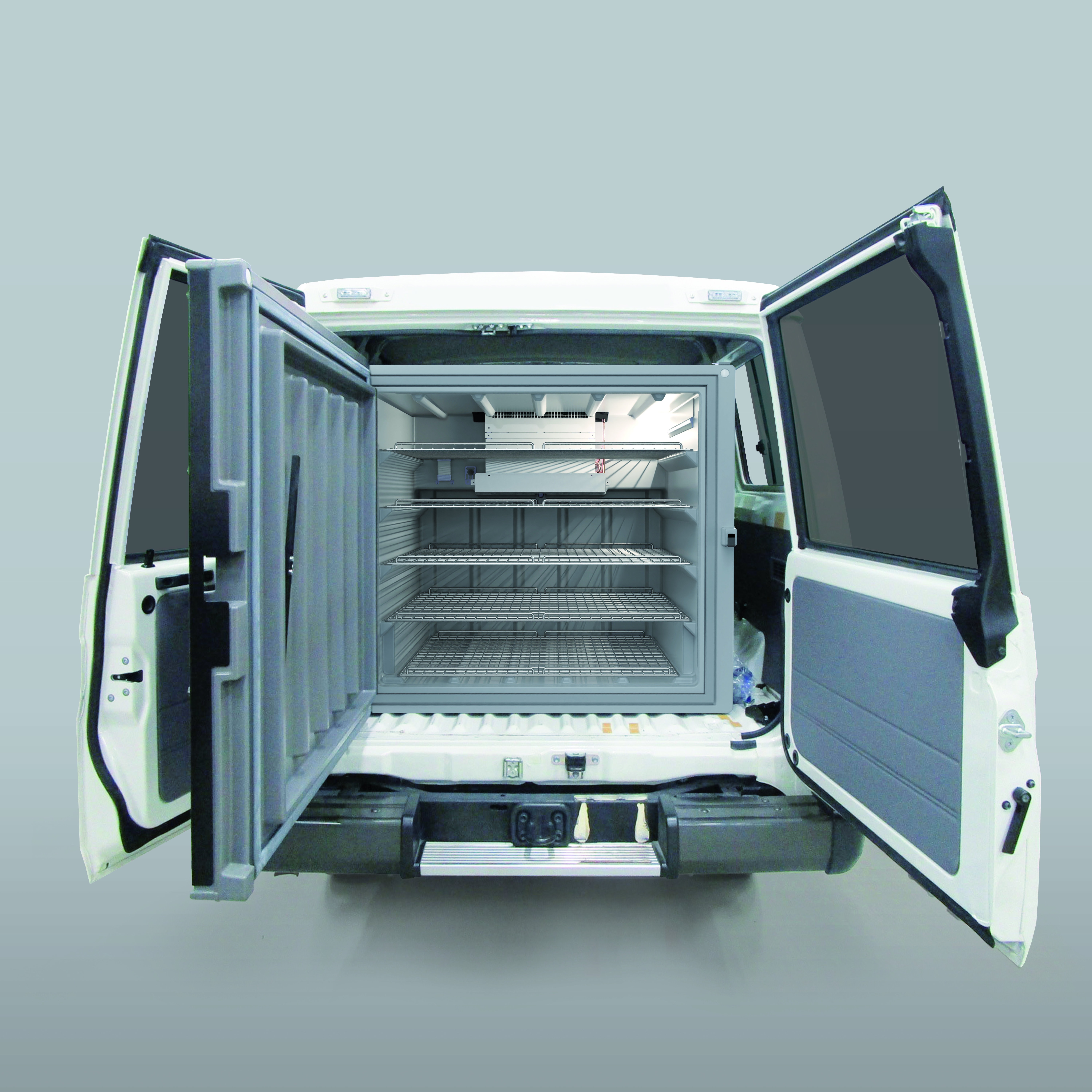

- Designed with shelves to provide safe storage for the vaccines
- Integrated heating functions for operations during winter conditions and cold countries
| Vaccine storage capacity | 13.98 cu ft | 396 l |
|---|---|
| Set Temperature | +5°C |
| Climate class (ambient temperature range) | 0°C to +50°C |
| External dimensions (HxWxD) | 1000 x 1100 x 1400 mm | 39.97 x 43.31 x 55.12 in |
| Internal dimensions (HxWxD) | 830 x 888 x 1228 mm | 32.68 x 34.96 x 48.35 in |
| Refrigerant Type | R134a |
| Supply voltage | DC I 12V ; AC I 220-240 V – 50/60 Hz |
| Energy consumption | 6.5 kWh/24h |
| Materials | Polypropylene (Refrigerator) |
| WHO PQS Code | E002/001 |
| Certifications | WHO PQS E002/001 I EU MDD Class I |
| Defrosting technique | Automatic |
