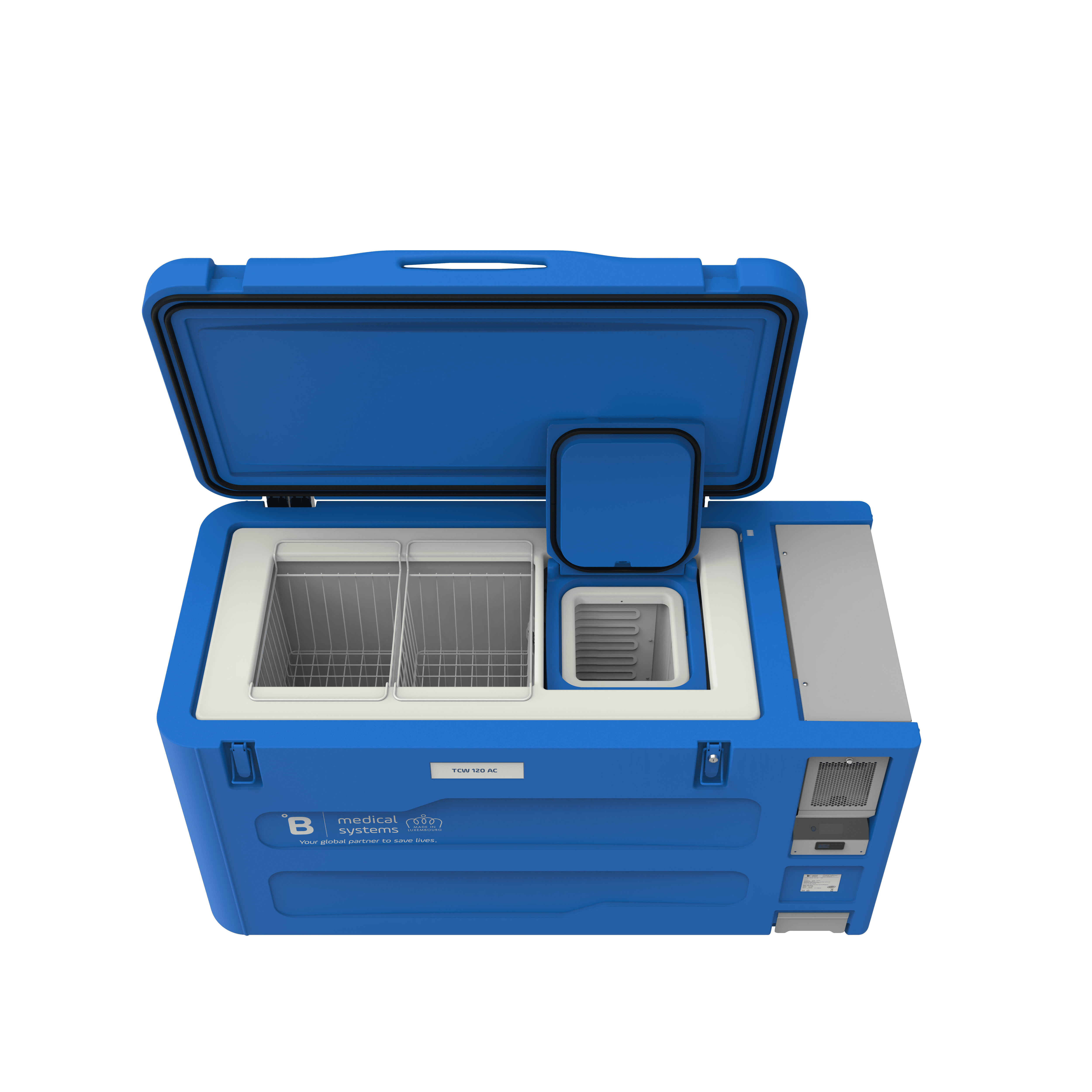

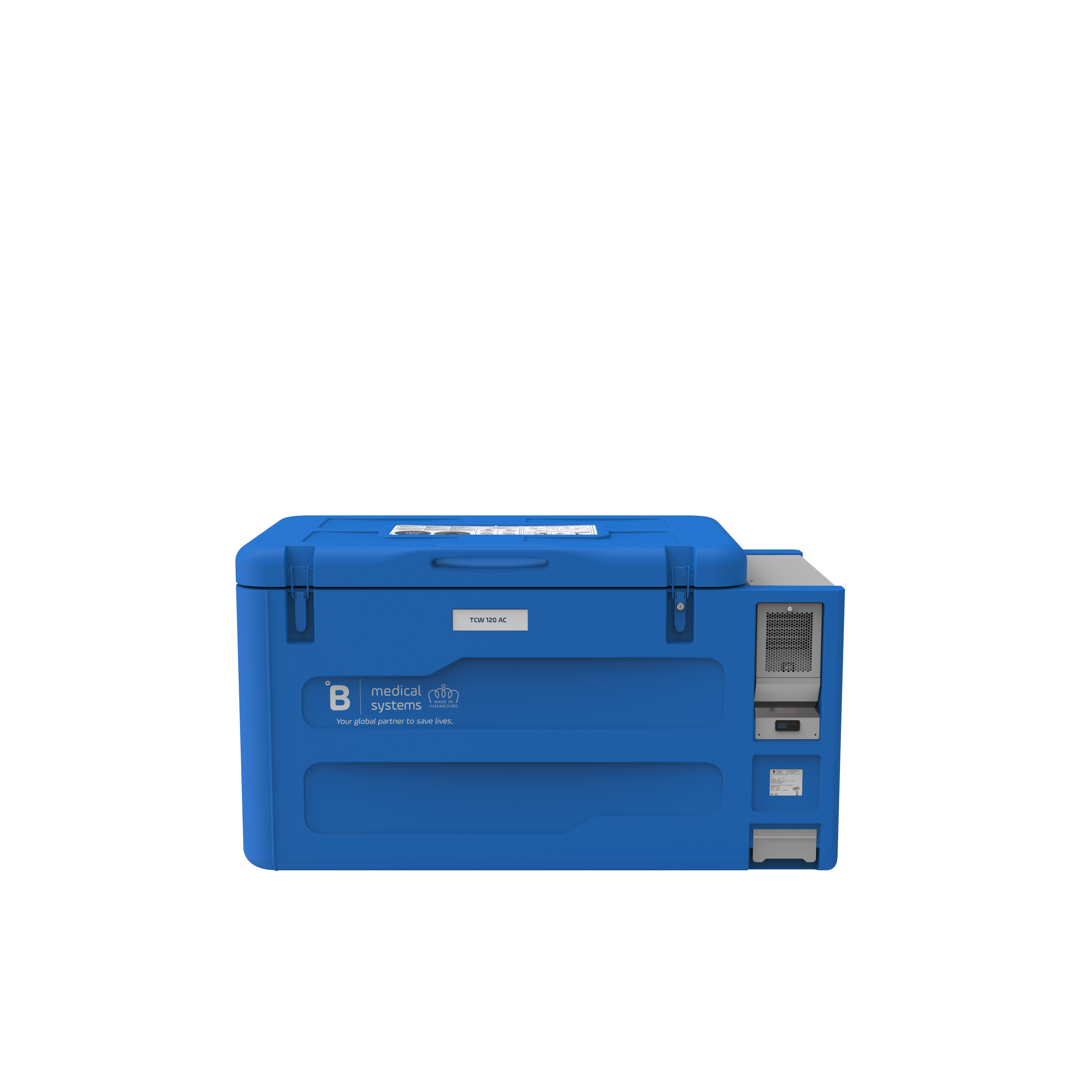

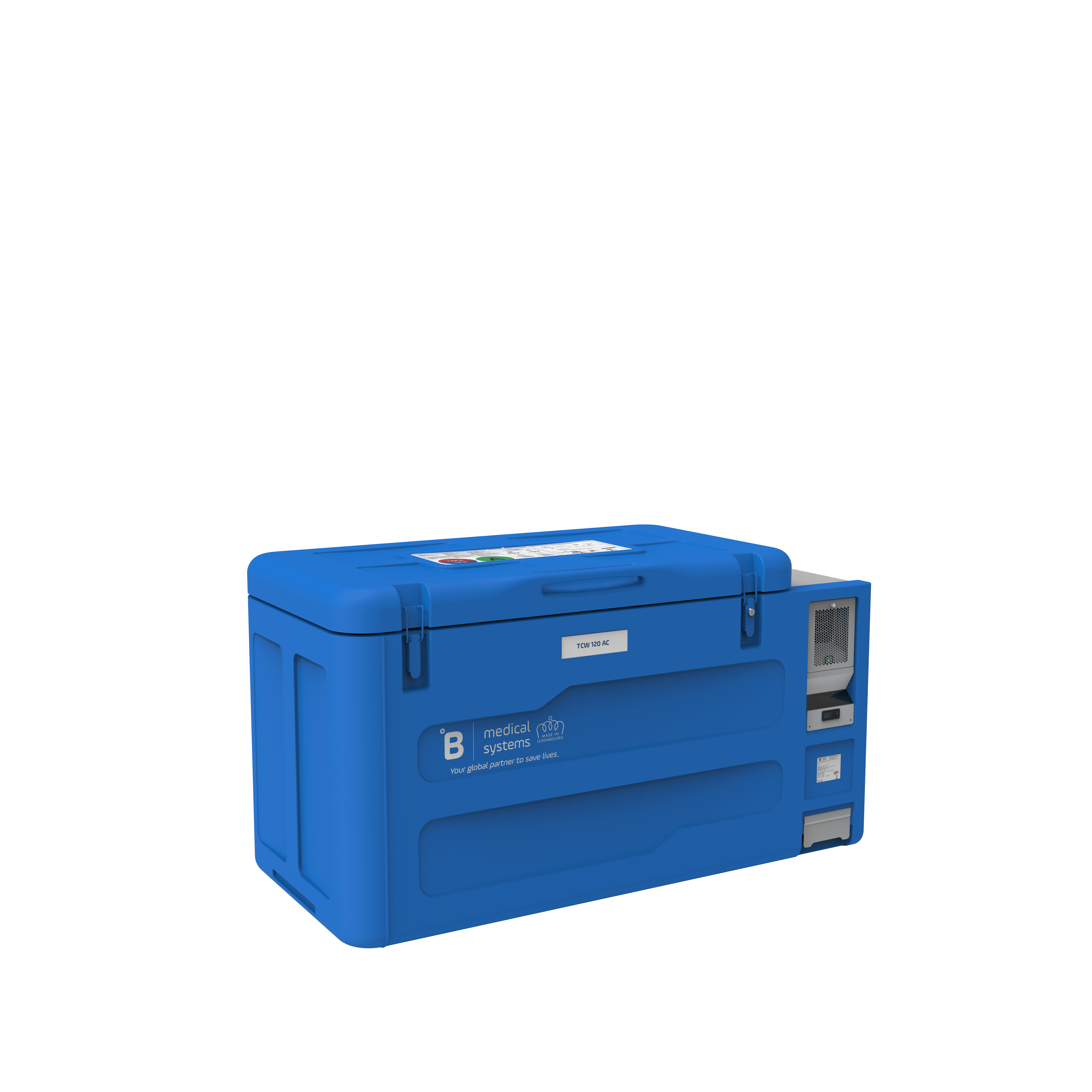

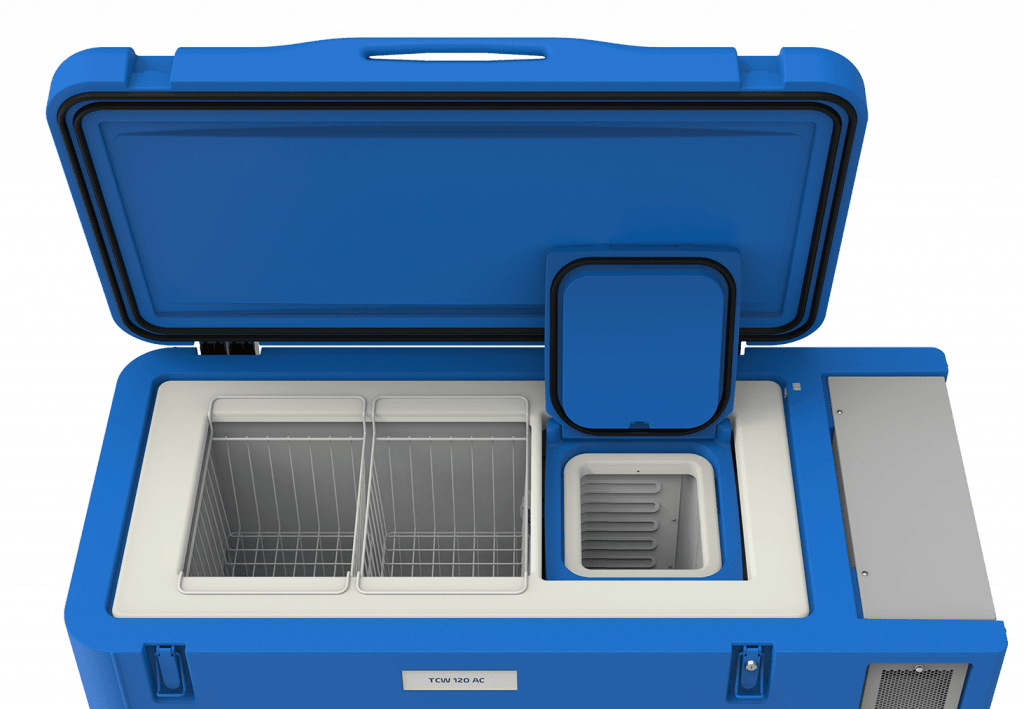

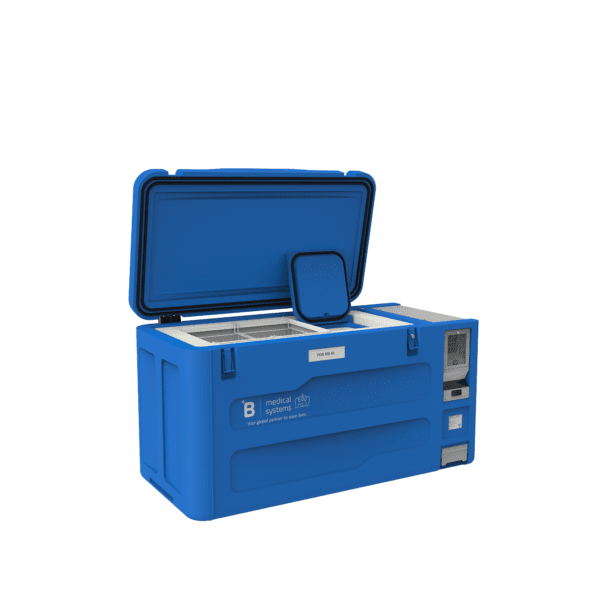

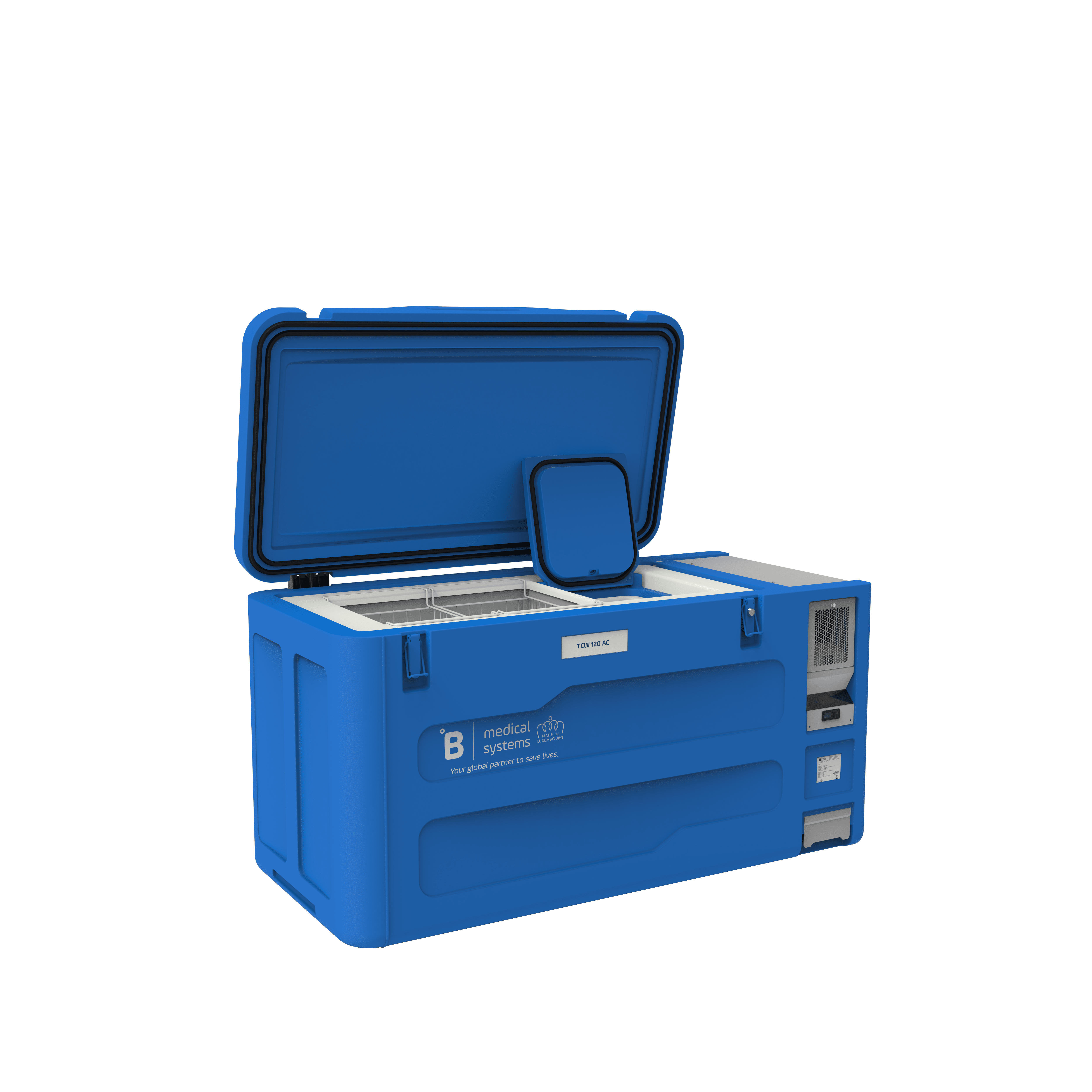

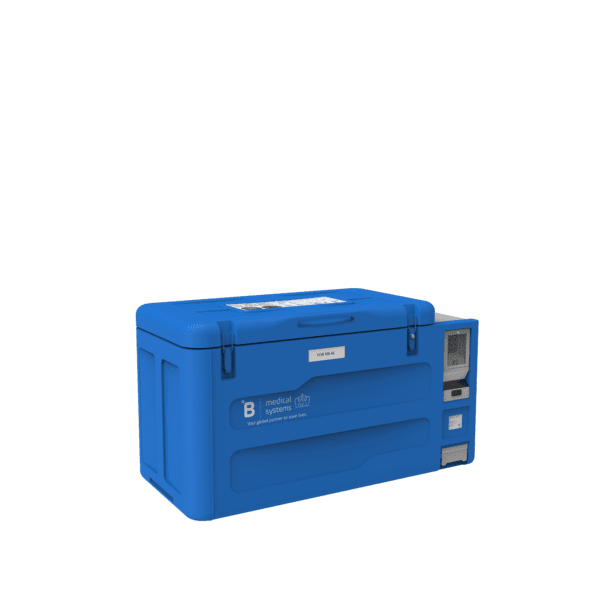

Vaccine Refrigerator / Ice-pack Freezer TCW120AC

Vaccine Refrigerator & Ice-pack Freezer with 153L (refrigerator) | 28L (freezer) gross volume.

  • Set Temperature: +5°C (Refrigerator) | -20°C (Freezer)
  • Vaccine storage capacity: 120 L
  • Certifications: EU MDR Class I | IEC 61000-3-2 / 61000-3-3 | WHO PQS 003/123
  • Freeze protection: Grade A
  • Climate class (ambient temperature range): Hot zone (+43°C)
  • Energy source: AC

Innovative technology

  • Fully integrated automatic voltage stabilization solution (for any voltage in between 90-290 V) and a protective relay
  • 5 years international warranty for all parts and labour
  • Green technology: very low power consumption and environmentally friendly refrigerant (R600a)

Resistance to harsh environment

  • Designed to operate in tropical conditions
  • Rotomoulded body construction: rust free and extremely robust
  • Humidity control: no condensation issues in the fridge

Safety and traceability

  • Strong insulation
  • Silicone gaskets and lockable clasps: tight closing and restricted access
  • Audio-visual alarm system with remote transmission
  • Remote temperature monitoring solution, comprising a data logger and a digital platform
  • Integrated Remote Temperature Monitoring Device (RTMD), offering real-time worldwide remote monitoring, data access over WEB and GPS position
Gross volume

153L (refrigerator) | 28L (freezer)

Vaccine storage capacity

120 L

Set Temperature

+5°C (Refrigerator) | -20°C (Freezer)

Climate class (ambient temperature range)

Hot zone (+43°C)

Certifications

EU MDR Class I | IEC 61000-3-2 / 61000-3-3 | WHO PQS 003/123

External dimensions (HxWxD)

910 x 1620 x 790 mm

Net weight

139 Kg

Shipping weight

188 KG

Frequency

50-60 Hz

Supply voltage

110-240V AC

Refrigerant Type

Natural R600a

Materials

Polyethylene

Remote monitoring

RTMD included

Cool down

192h at 43°C

Hold over time

73h54min at +43°C

Energy cons. 24h stable

1.55kWh/24h at 43°C

Energy source

AC

Freeze protection

Grade A

WHO PQS Code

E003/123

Product Type

Vaccine Refrigerator & Ice-pack Freezer
