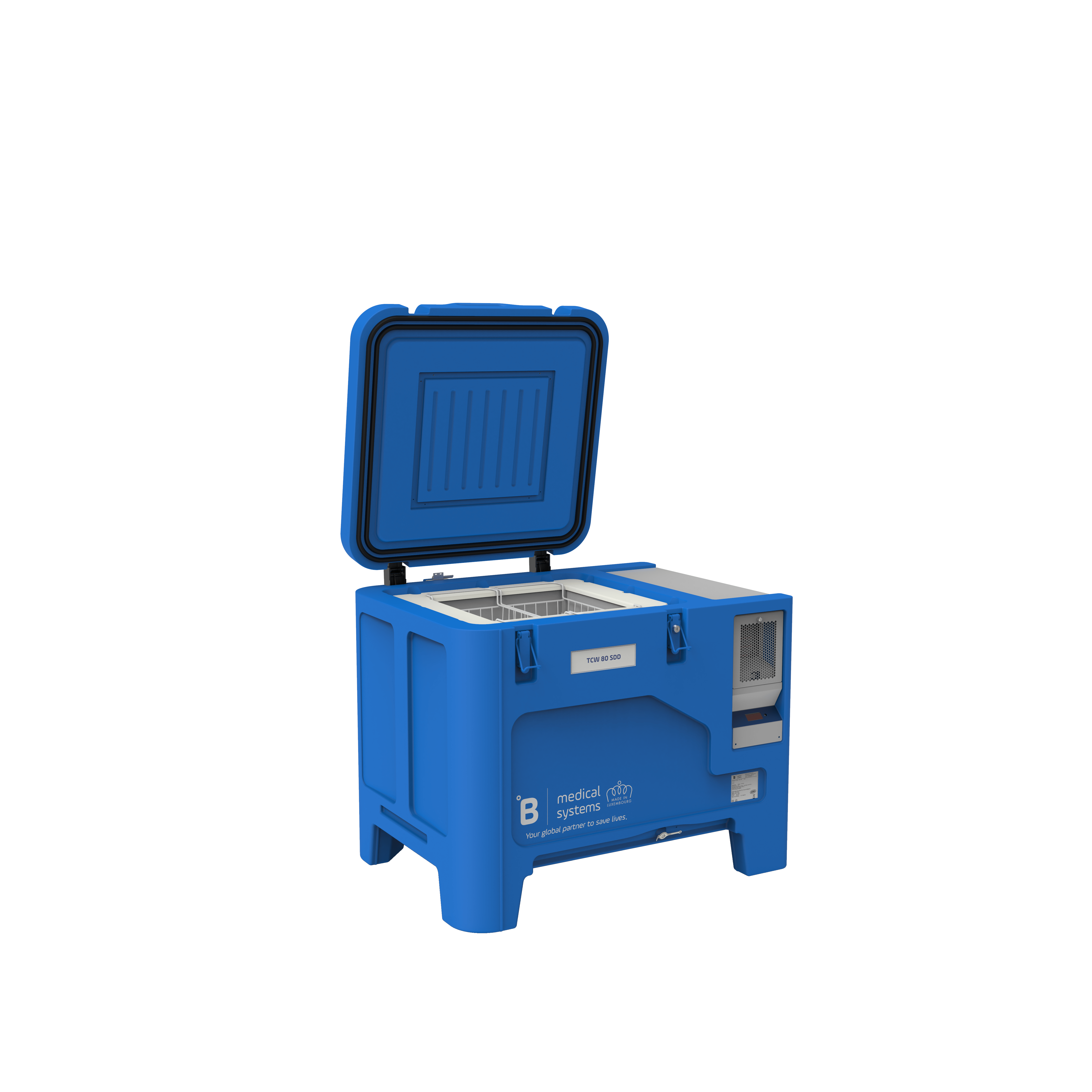

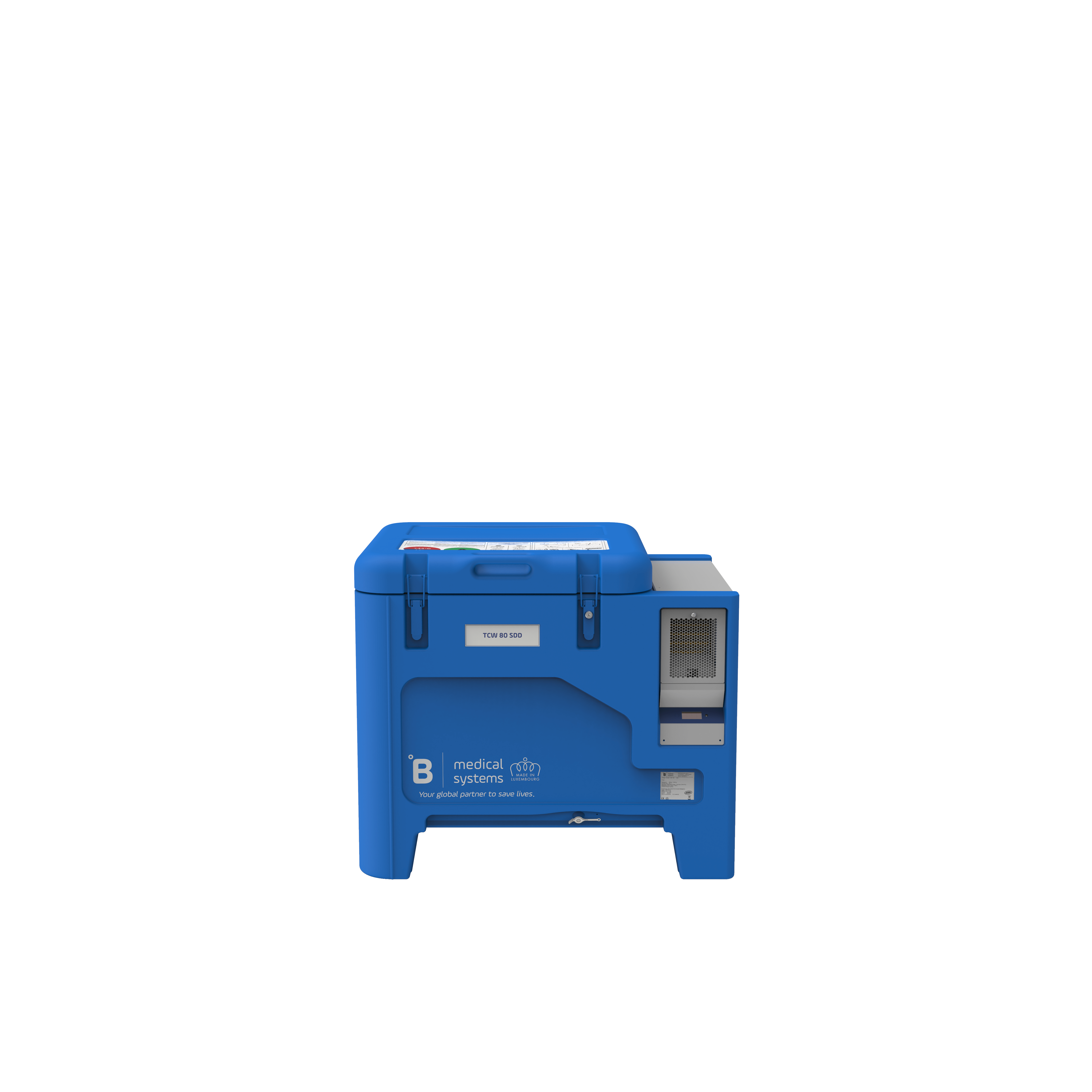

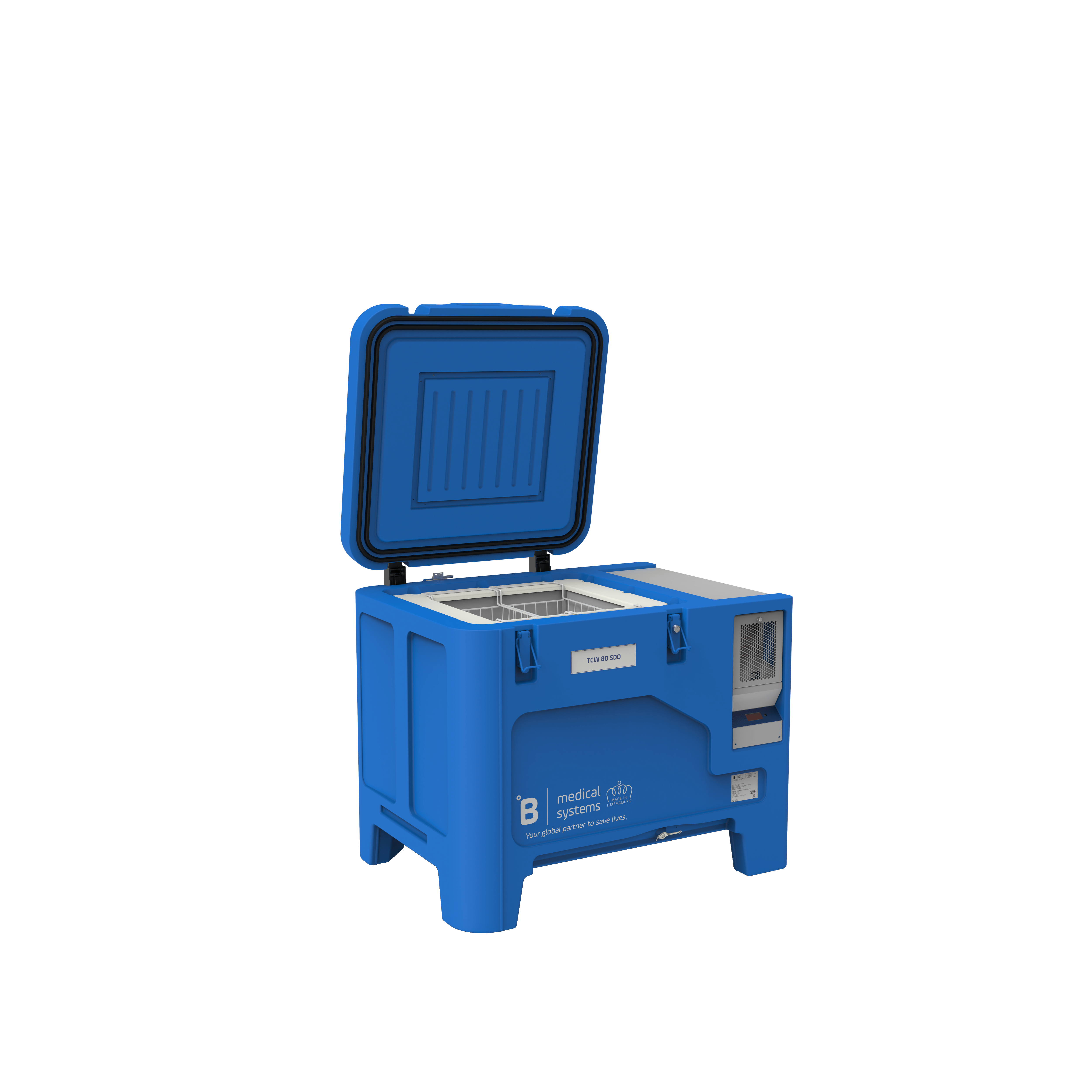

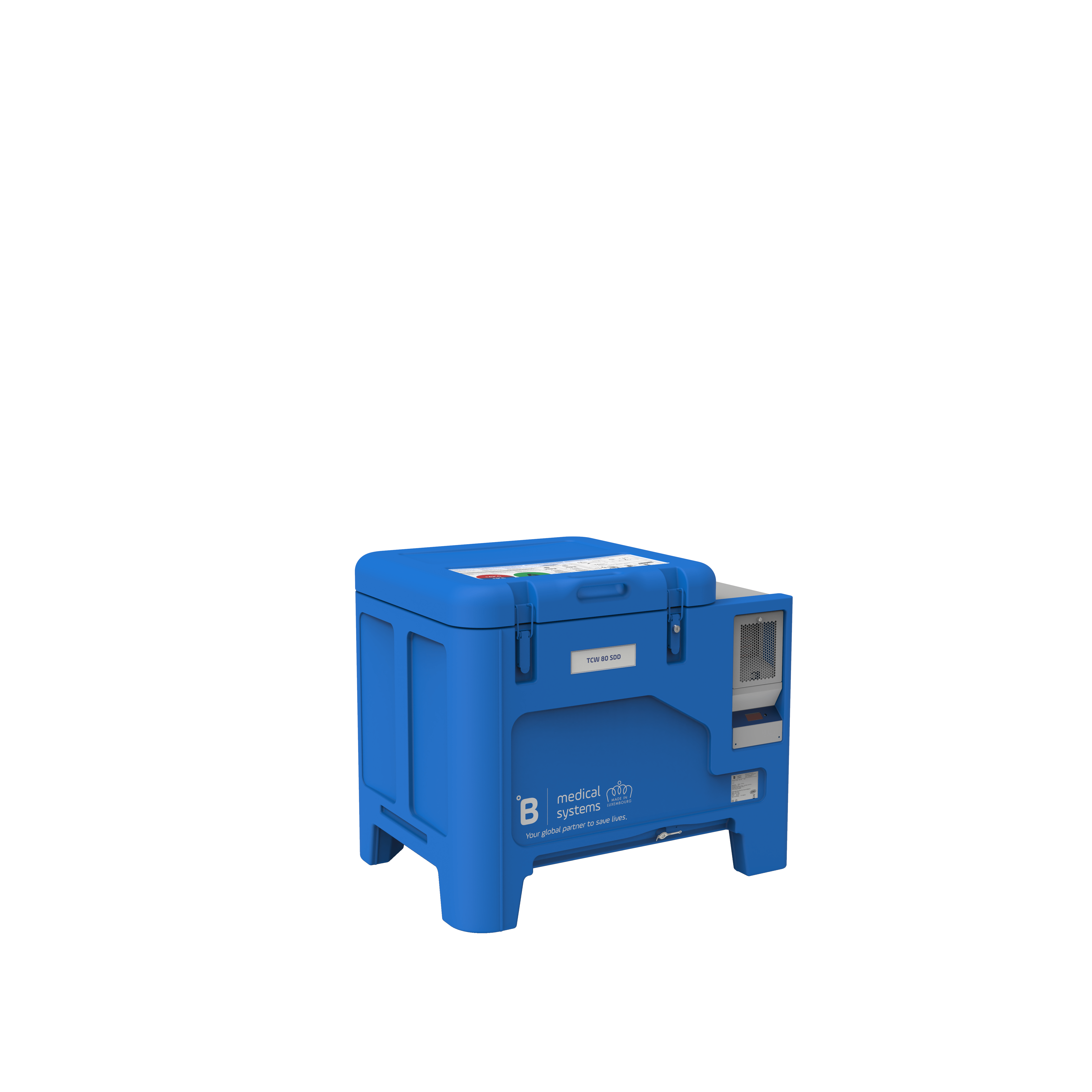

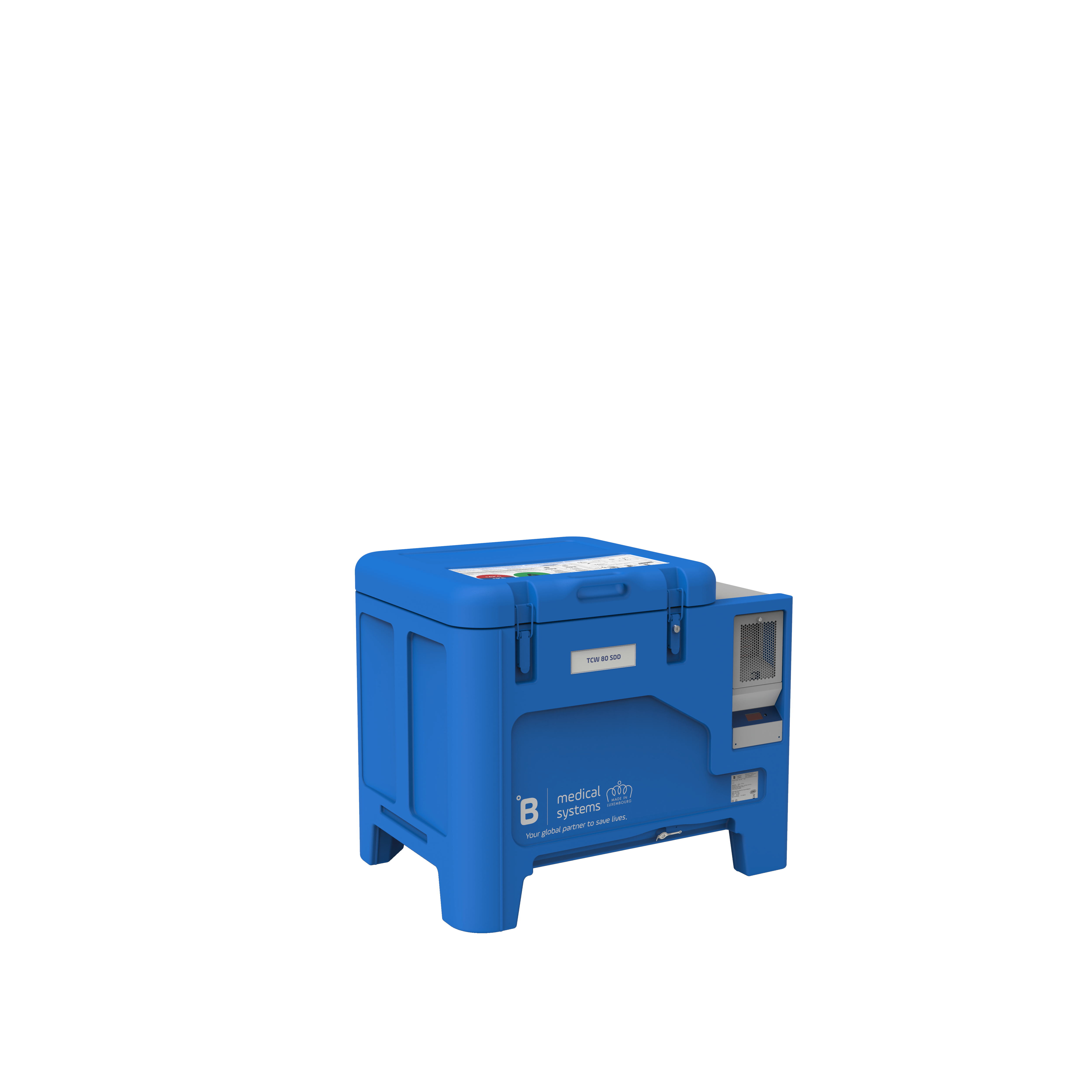

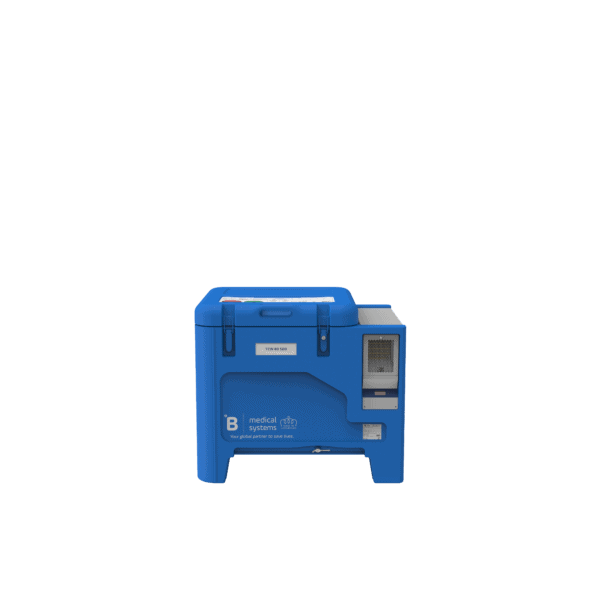

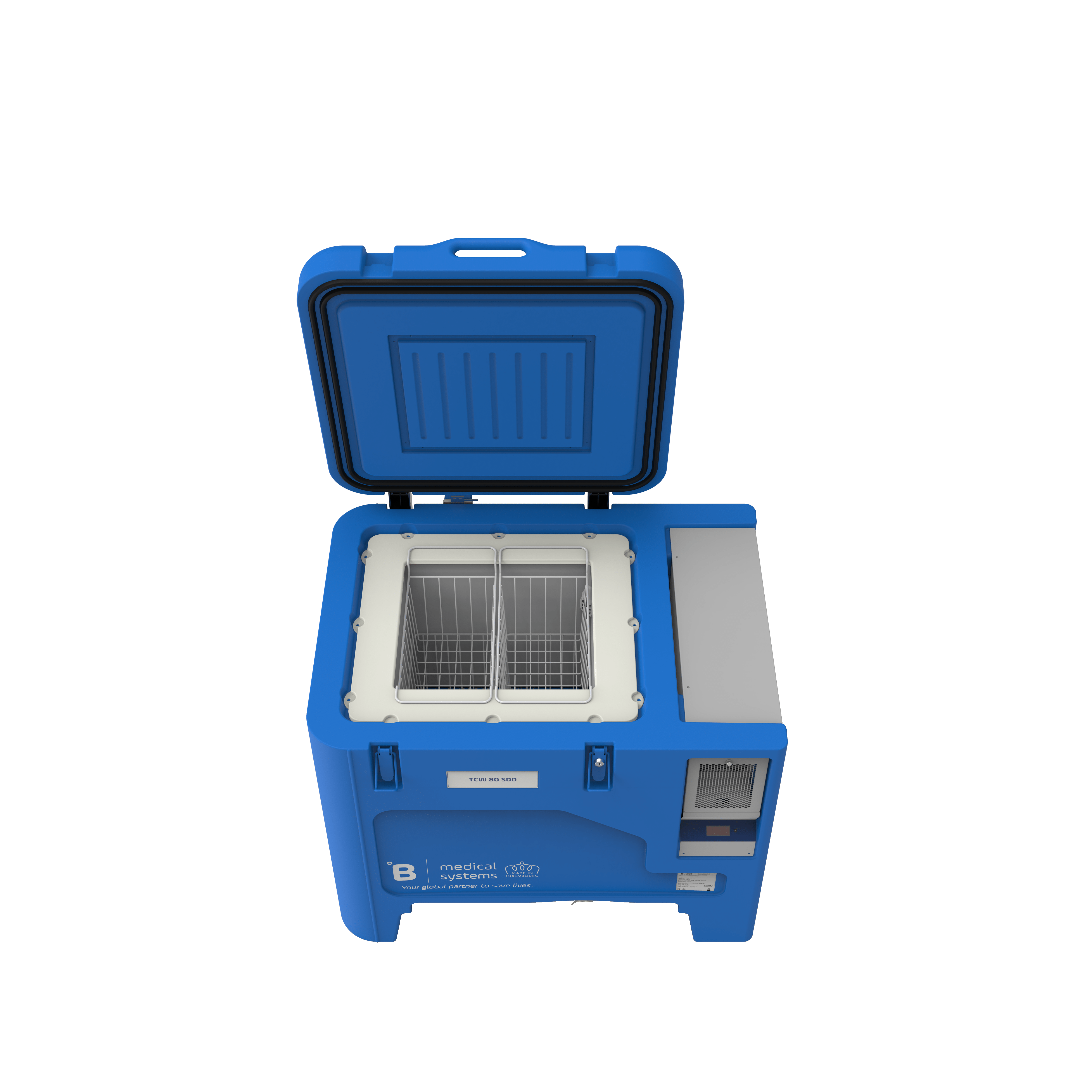

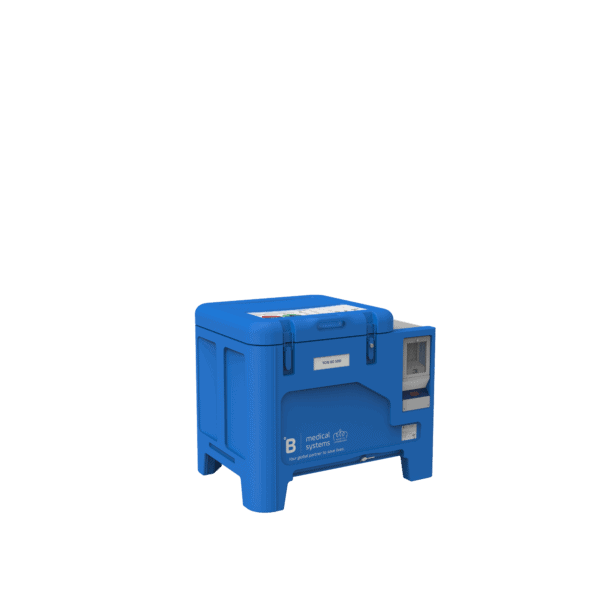

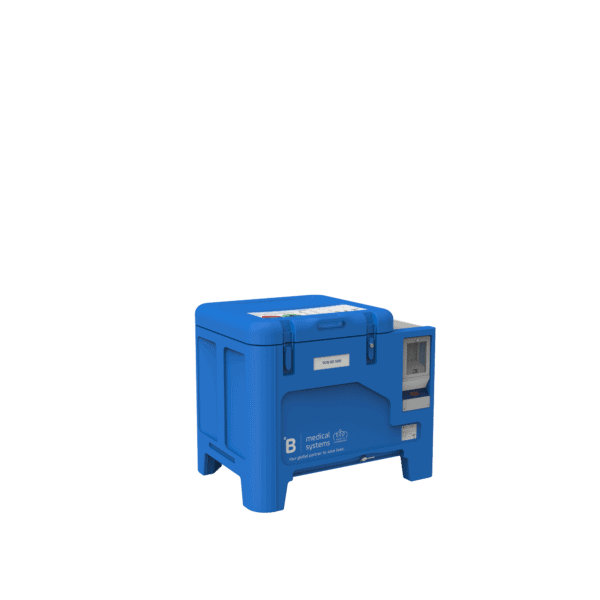

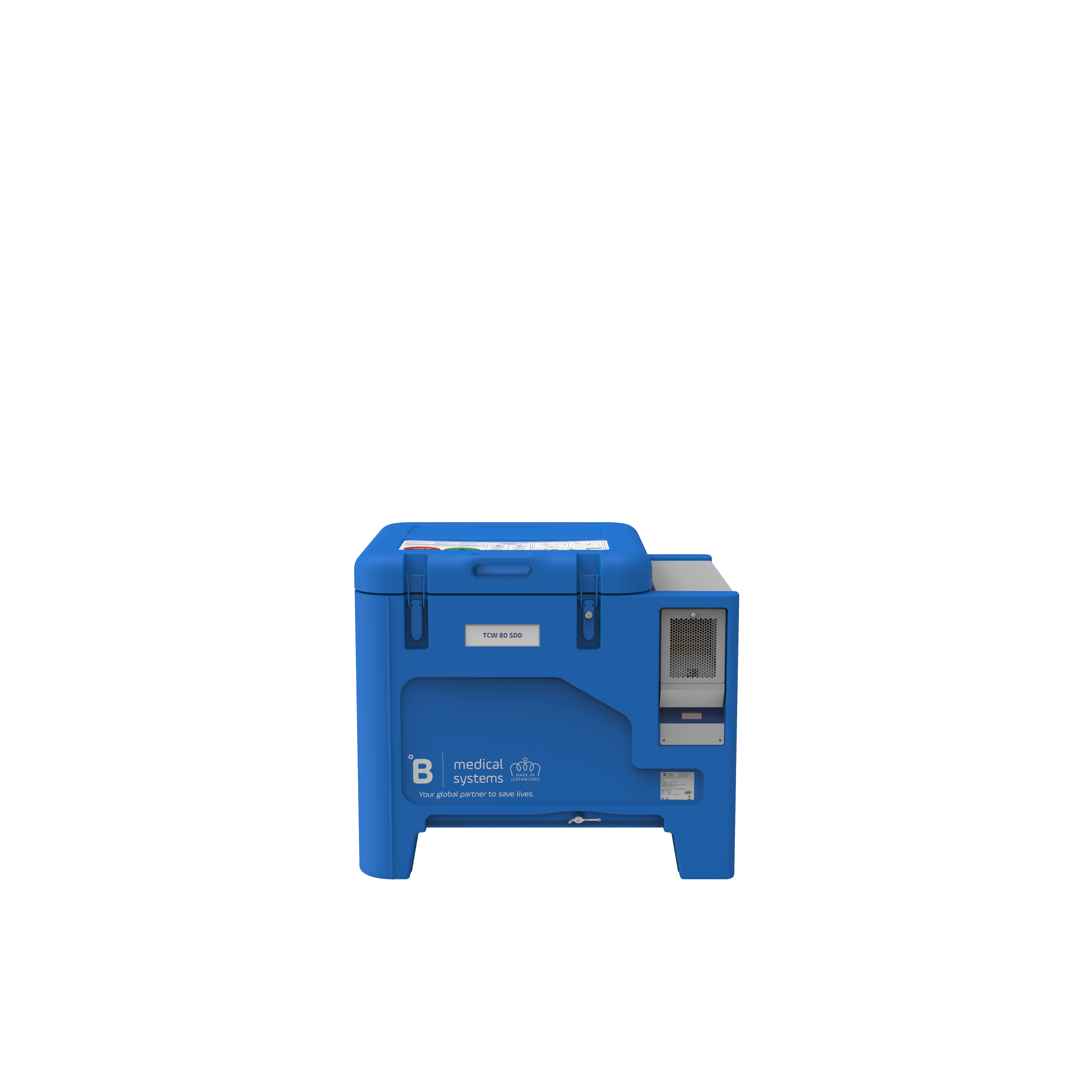

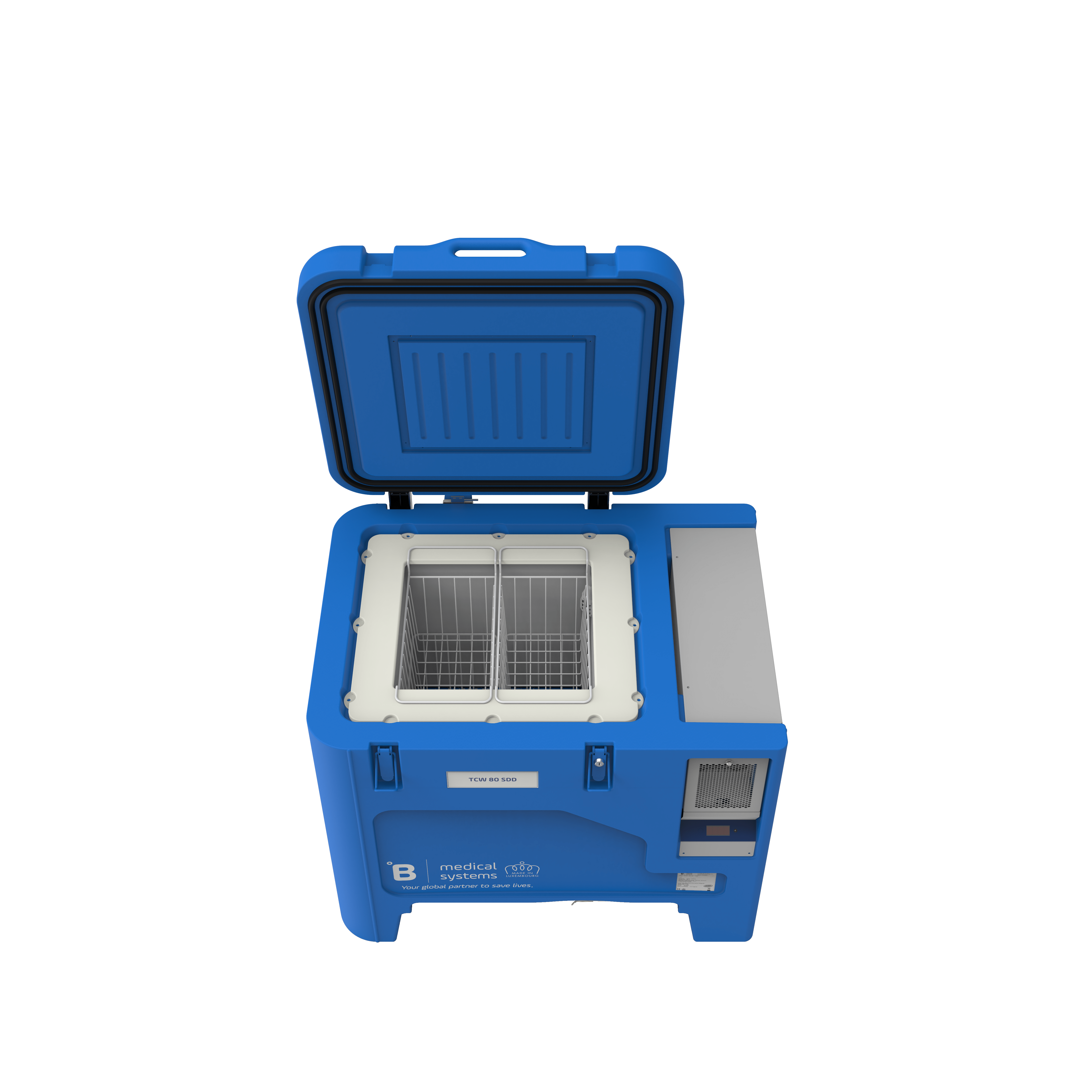

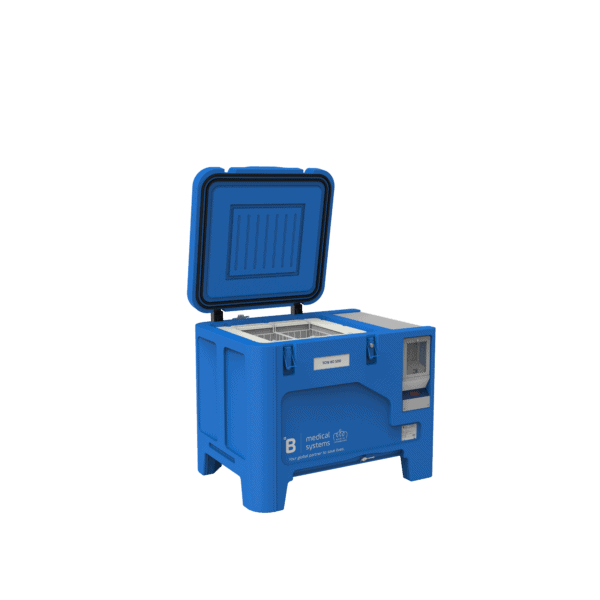

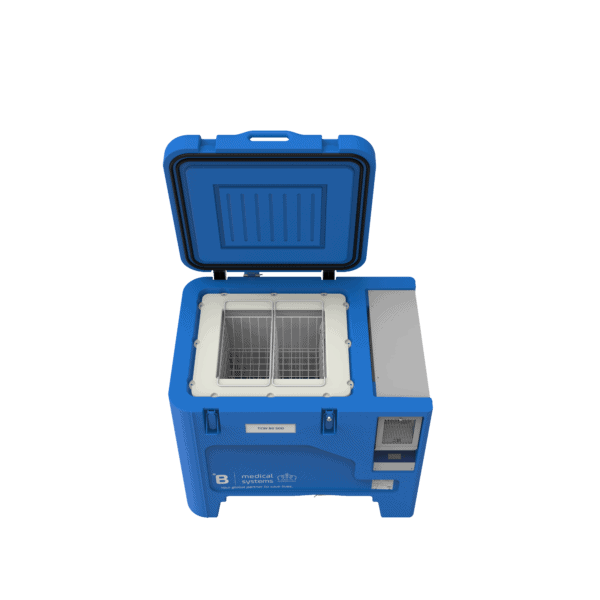

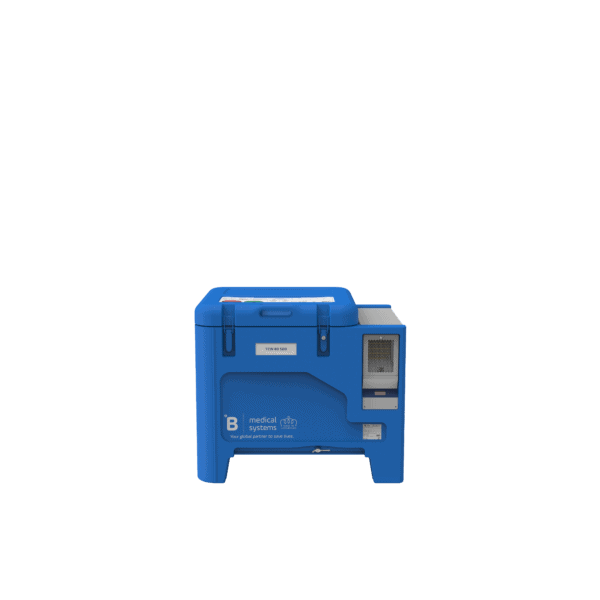

Solar Direct Drive Vaccine Refrigerator TCW80SDD

Solar Direct Drive Vaccine Refrigerator with 82.5 L | 2.91 cu ft gross volume.

  • Set Temperature: +5°C
  • Vaccine storage capacity: 80.5 L
  • Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS 003/121
  • Freeze protection: Grade A
  • Climate class (ambient temperature range): Hot zone (+43°C)
  • Energy source: Solar; DC

Resistance to harsh environment

  • Designed to operate in tropical conditions (32°C to 43°C depending on the model)
  • Rotomoulded body construction: rust free and extremely robust
  • Humidity control: no condensation issues in the fridge
  • Best-in-class warranty: 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion

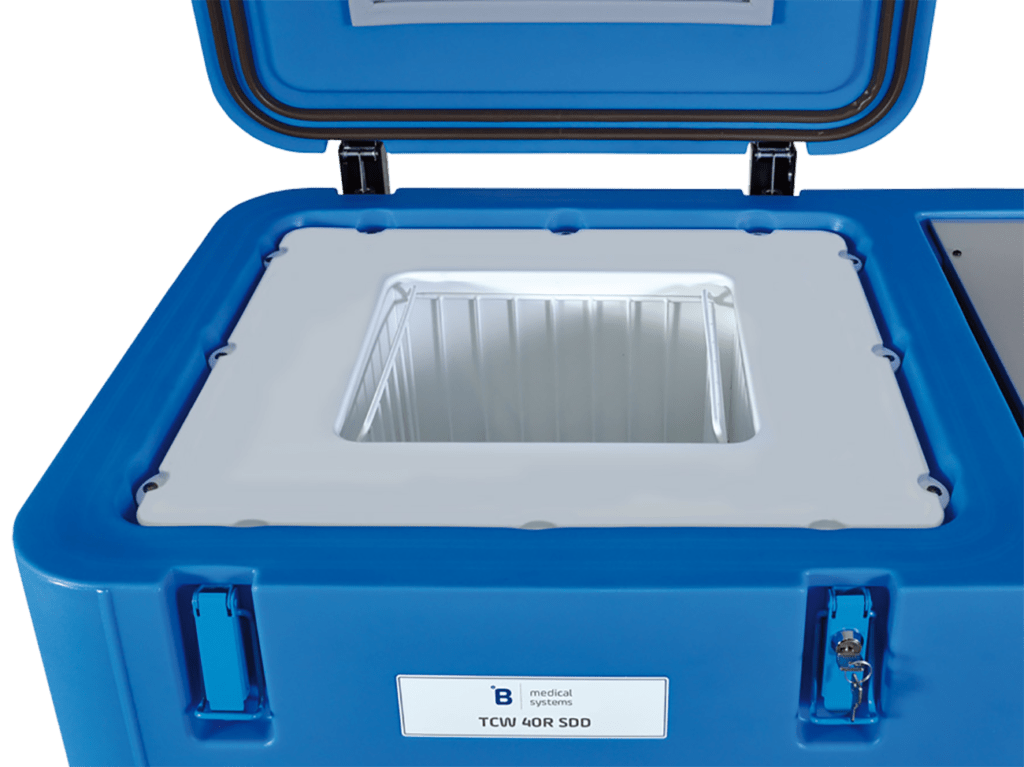

Ergonomic Design

  • Door gaskets are easily replaceable and washable
  • “Plug and play” installation of the solar generators
  • No battery, no regulator: easy maintenance and no hidden costs
  • External temperature display and real-time visualization on the web

Safety and traceability

  • Strong insulation: extended holdover time in the event of minimal or no sunlight
  • Silicone gaskets and lockable clasps: tight closing and restricted access
  • Audio-visual alarm system with remote transmission
  • Remote temperature monitoring solution, comprising a data logger and a digital platform
Gross volume

82.5 L | 2.91 cu ft

Vaccine storage capacity

80.5 L

Set Temperature

+5°C

Climate class (ambient temperature range)

Hot zone (+43°C)

Certifications

EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS 003/121

External dimensions (HxWxD)

890 x 1023 x 778 mm

Net weight

87 kg

Shipping weight

112 kg

Supply voltage

25V DC

Refrigerant Type

Natural R600a

Materials

Polyethylene

Remote monitoring

RTMD included

Autonomy

72h 21min

Cool down

192h

Energy cons. 24h stable

0.60 kWh/24h at 43°C

Energy source

Solar; DC

Freeze protection

Grade A

WHO PQS Code

E003/121

Product Type

Solar Direct Drive Vaccine Refrigerator
