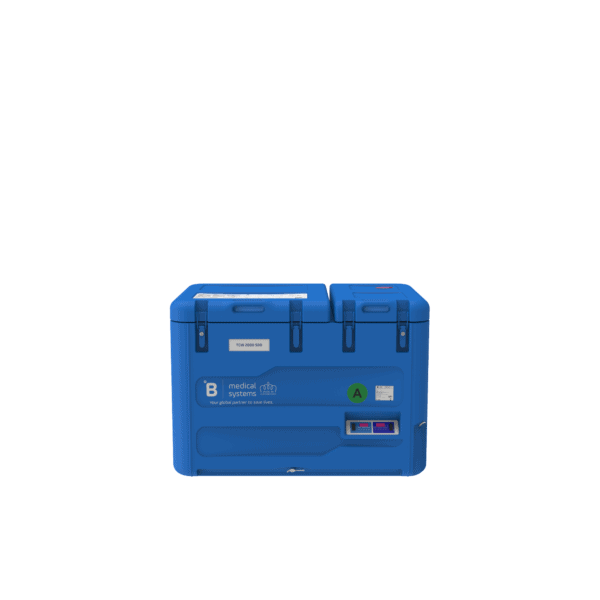

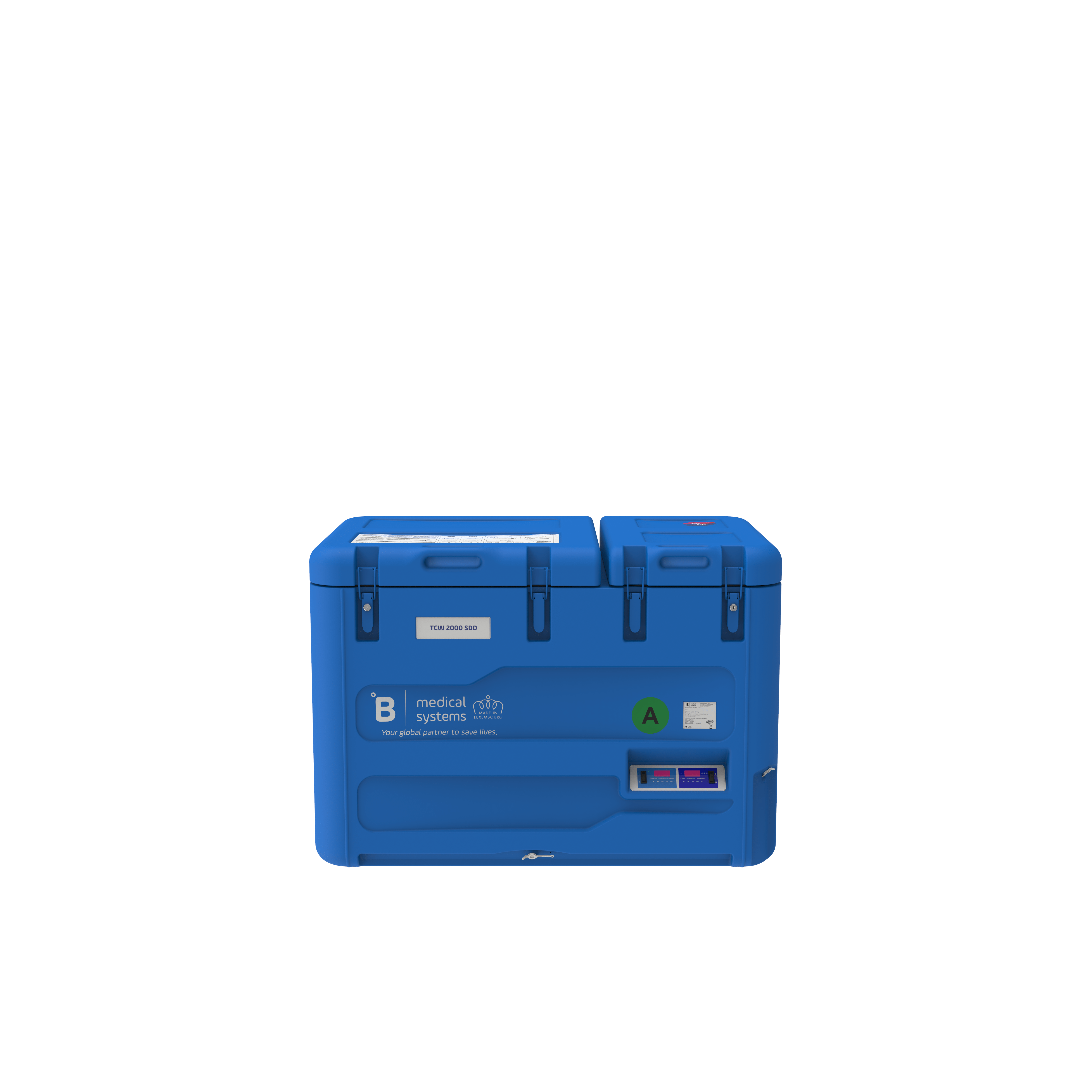

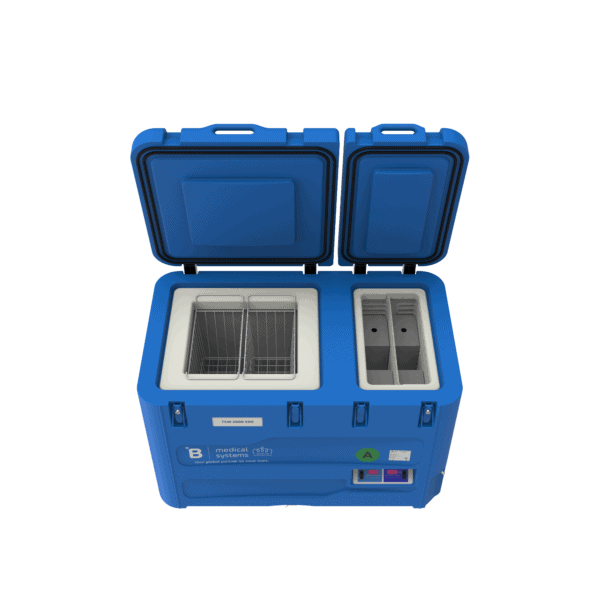

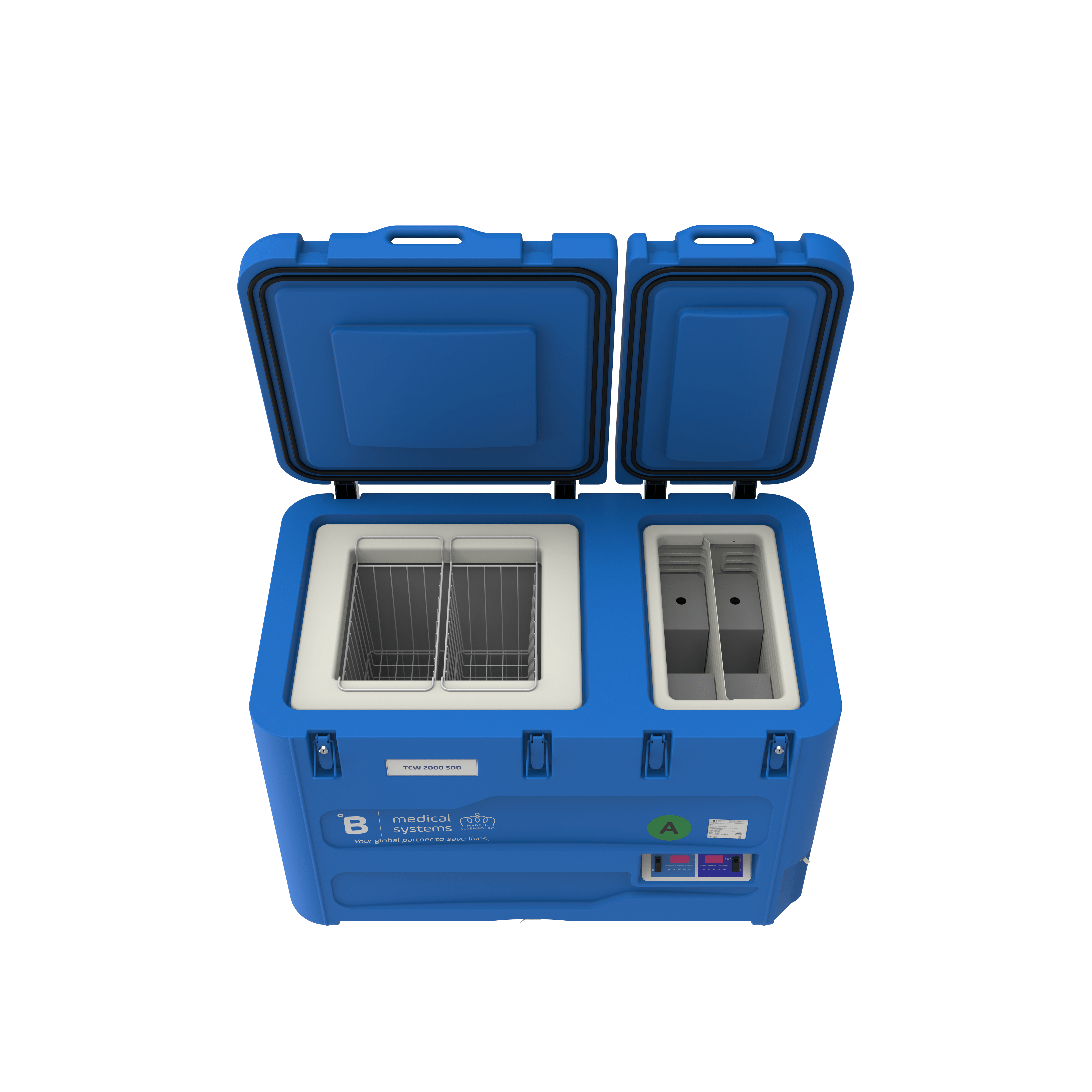

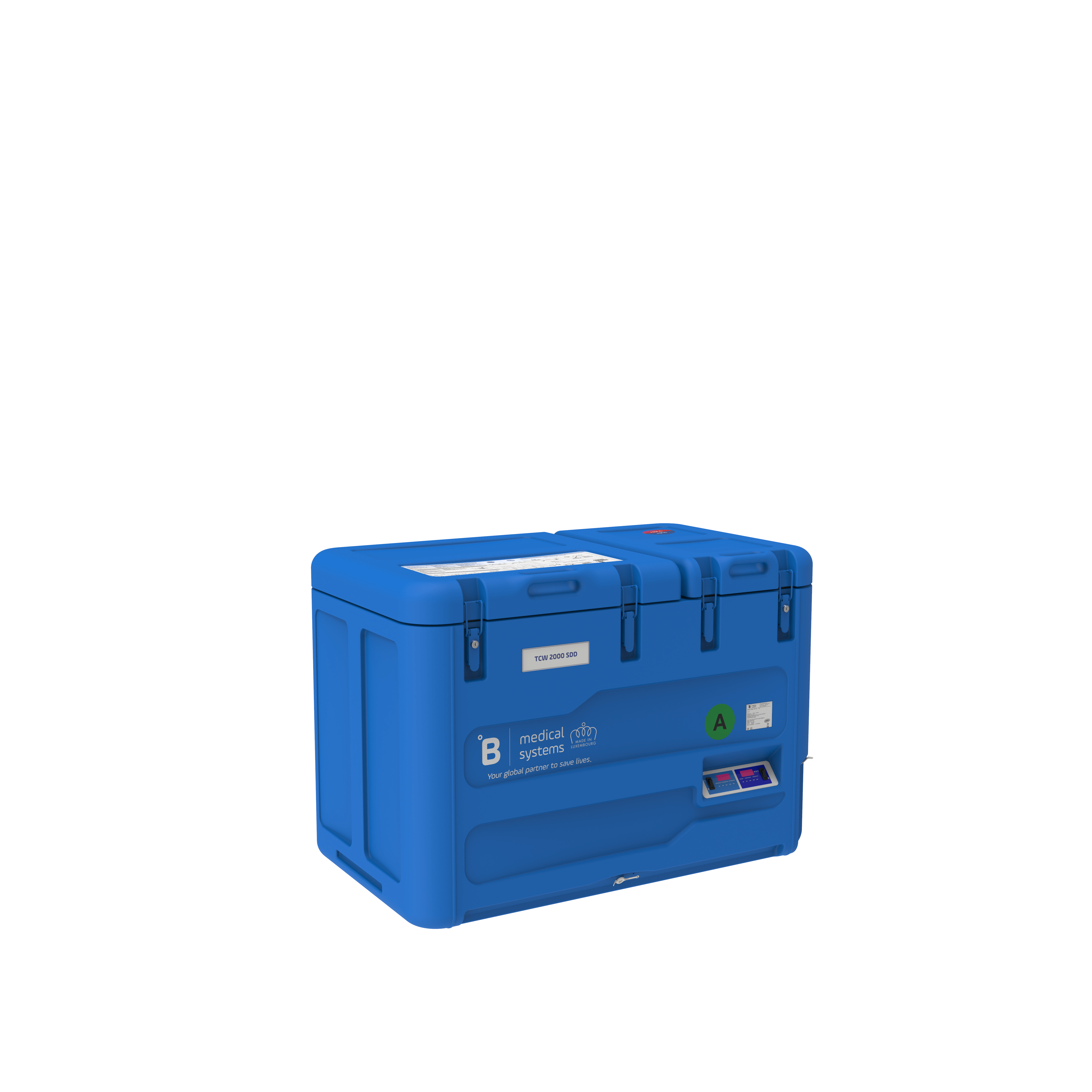

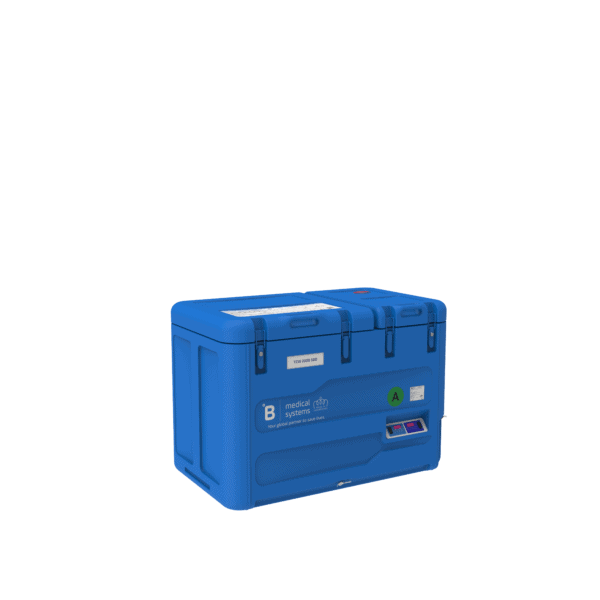

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer TCW2000SDD

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with F: 42 L | R: 118 L | F: 1.48 cu ft | R: 4.17 cu ft gross volume.

  • Set Temperature: +5°C (R) | -25°C (F)
  • Vaccine storage capacity: 99 L
  • Ice-pack storage (at 0.6 L): 14.4 kg
  • Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/035
  • Freeze protection: Grade A
  • Climate class (ambient temperature range): Temperate zone (+32°C)
  • Energy source: Solar; DC

Resistance to harsh environment

  • Designed to operate in tropical conditions (32°C to 43°C depending on the model)
  • Rotomoulded body construction: rust free and extremely robust
  • Humidity control: no condensation issues in the fridge
  • Best-in-class warranty: 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion

Ergonomic Design

  • Door gaskets are easily replaceable and washable
  • “Plug and play” installation of the solar generators
  • No battery, no regulator: easy maintenance and no hidden costs
  • External temperature display and real-time visualization on the web

Safety and traceability

  • Strong insulation: extended holdover time in the event of minimal or no sunlight
  • Silicone gaskets and lockable clasps: tight closing and restricted access
  • Audio-visual alarm system with remote transmission
  • Remote temperature monitoring solution, comprising a data logger and a digital platform
Gross volume

F: 42 L | R: 118 L | F: 1.48 cu ft | R: 4.17 cu ft

Vaccine storage capacity

99 L

Ice-pack storage (at 0.6 L)

14.4 kg

Refrigerator gross volume

118 L | 4.17 cu ft

Freezer gross volume

42 L | 1.48 cu ft

Set Temperature

+5°C (R) | -25°C (F)

Climate class (ambient temperature range)

Temperate zone (+32°C)

Certifications

EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/035

External dimensions (HxWxD)

910 x 1270 x780 mm | 35.83 x 50.00 x 30.71 in

Net weight

108 kg

Shipping weight

161 kg

Supply voltage

25V DC

Refrigerant Type

Natural R600a

Materials

Polyethylene

Remote monitoring

RTMD included

Autonomy

85h 24min

Cool down

12h

Hold over time

92h at 32°C

Energy cons. 24h stable

0.78kWh/24H at 32°C

Energy source

Solar; DC

Freeze protection

Grade A

Product Type

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer
