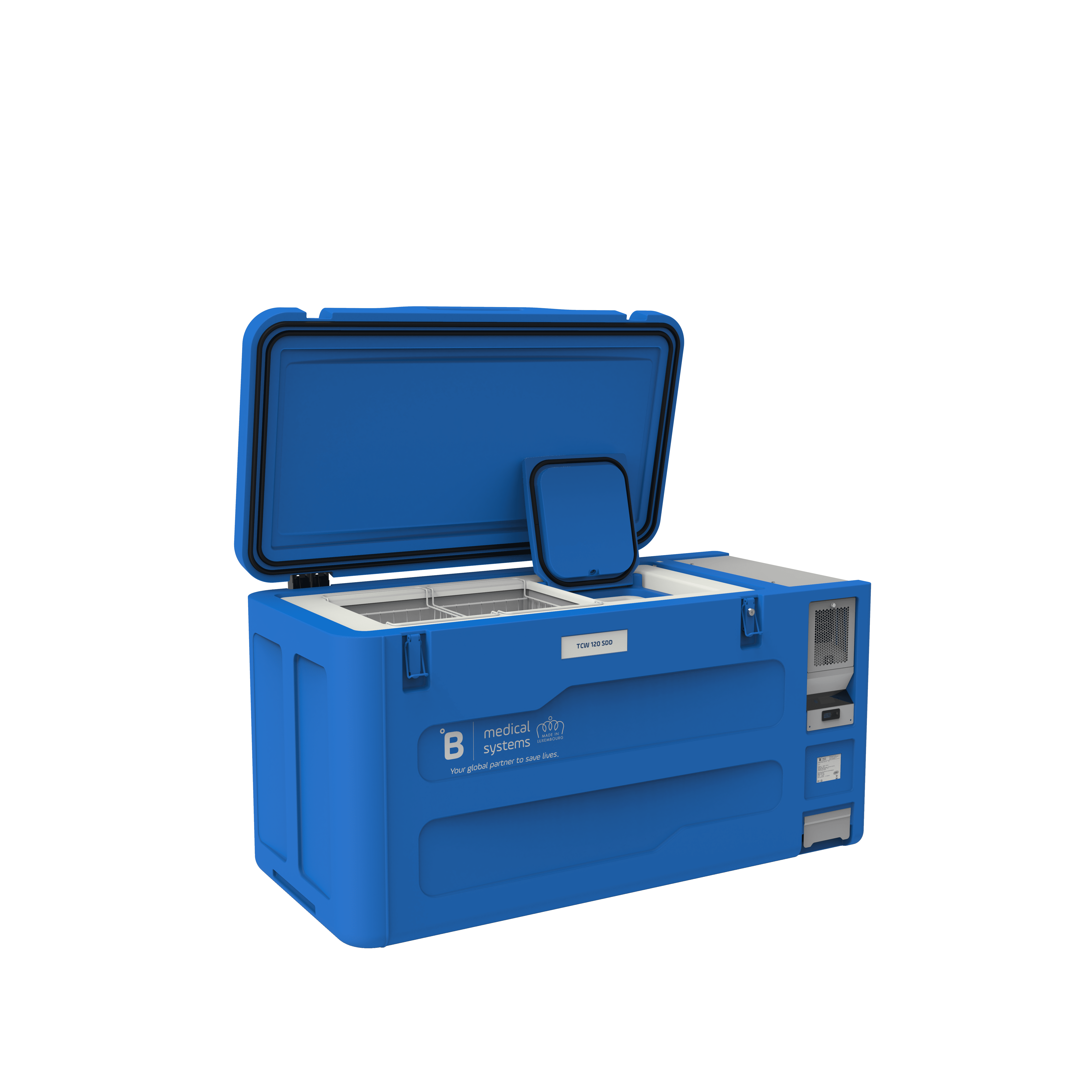

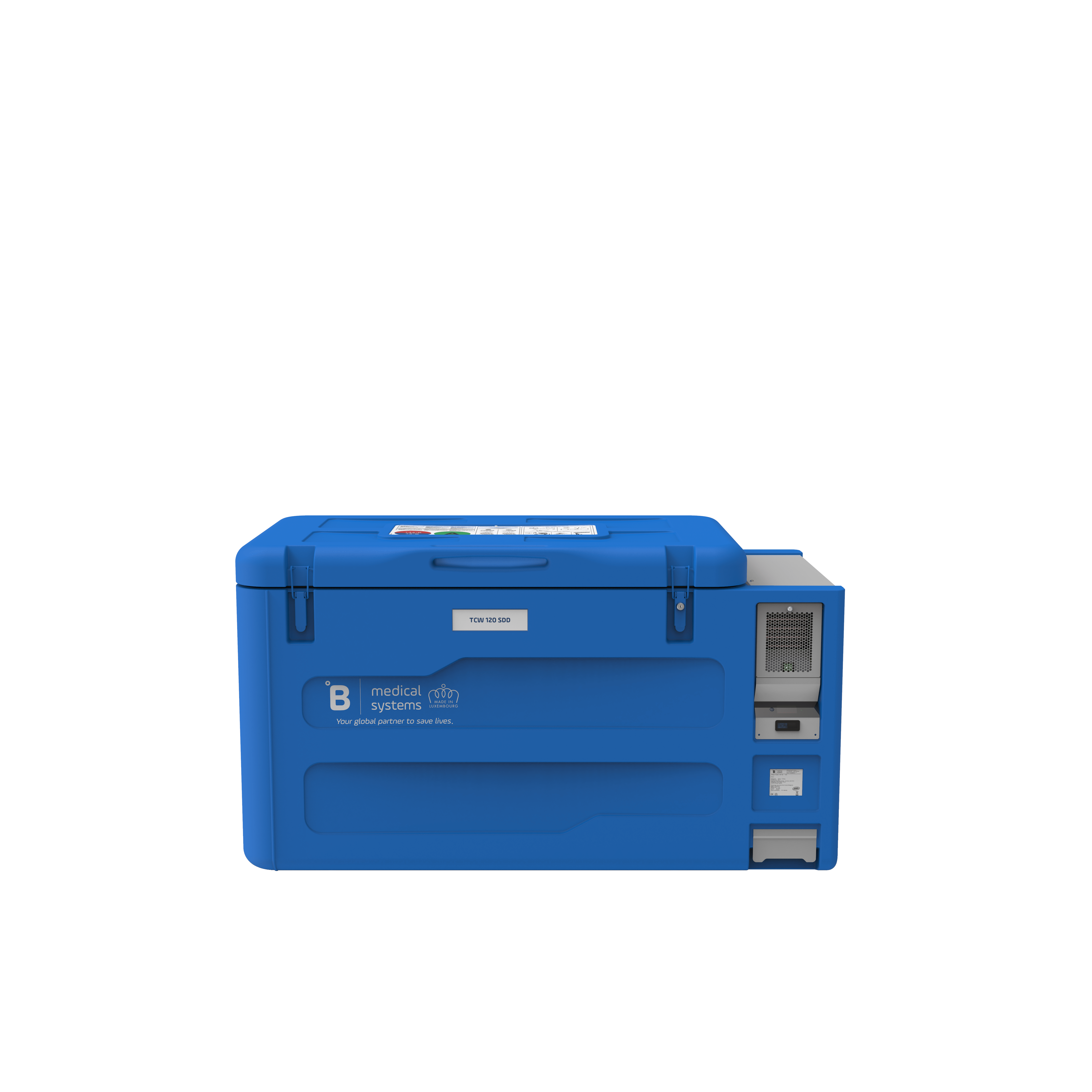

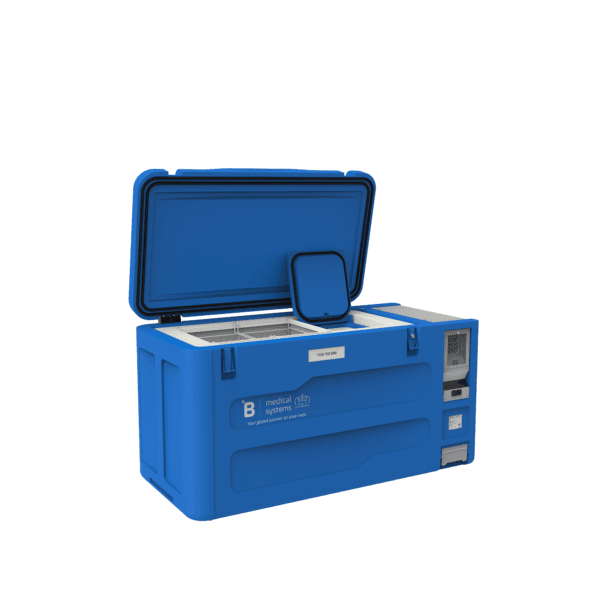

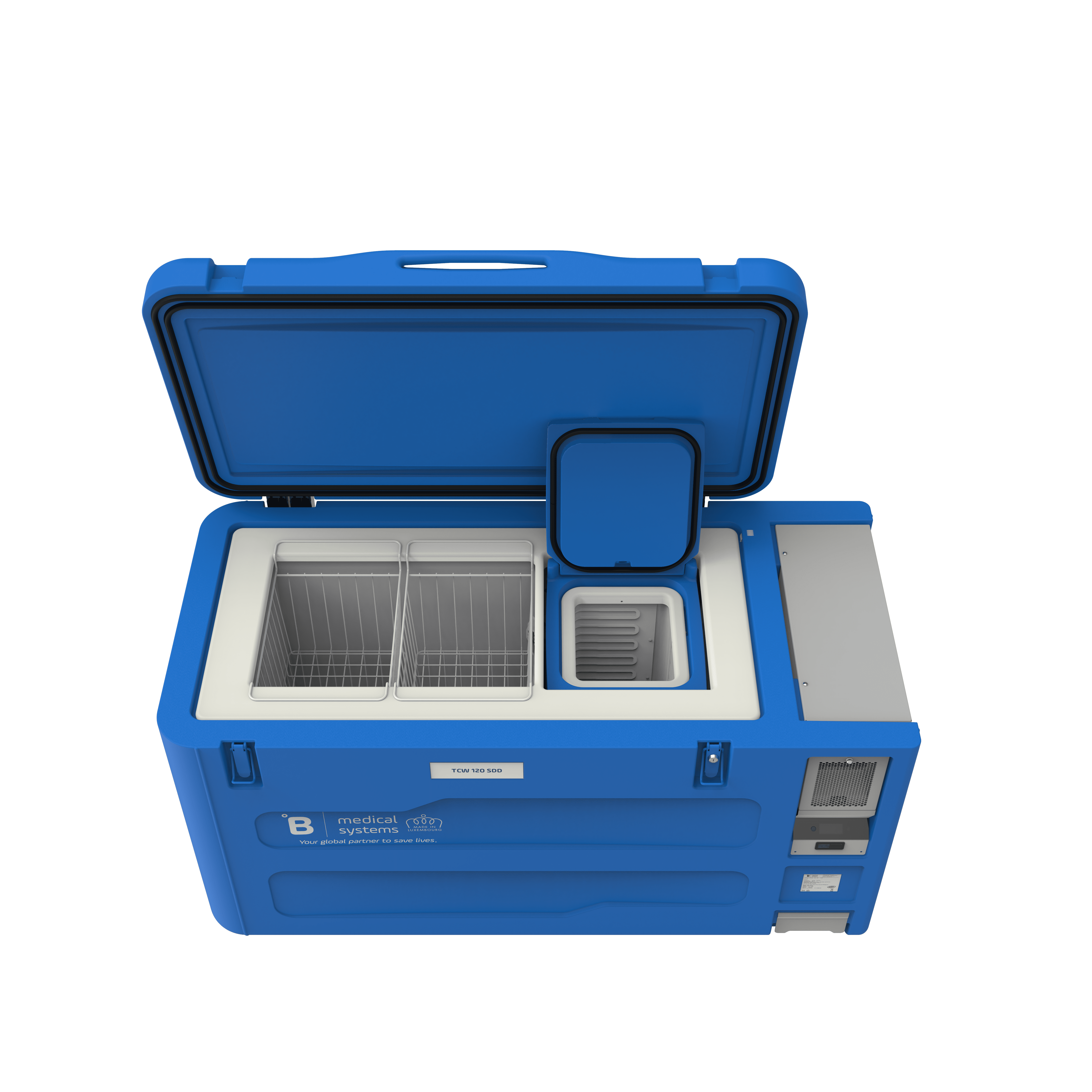

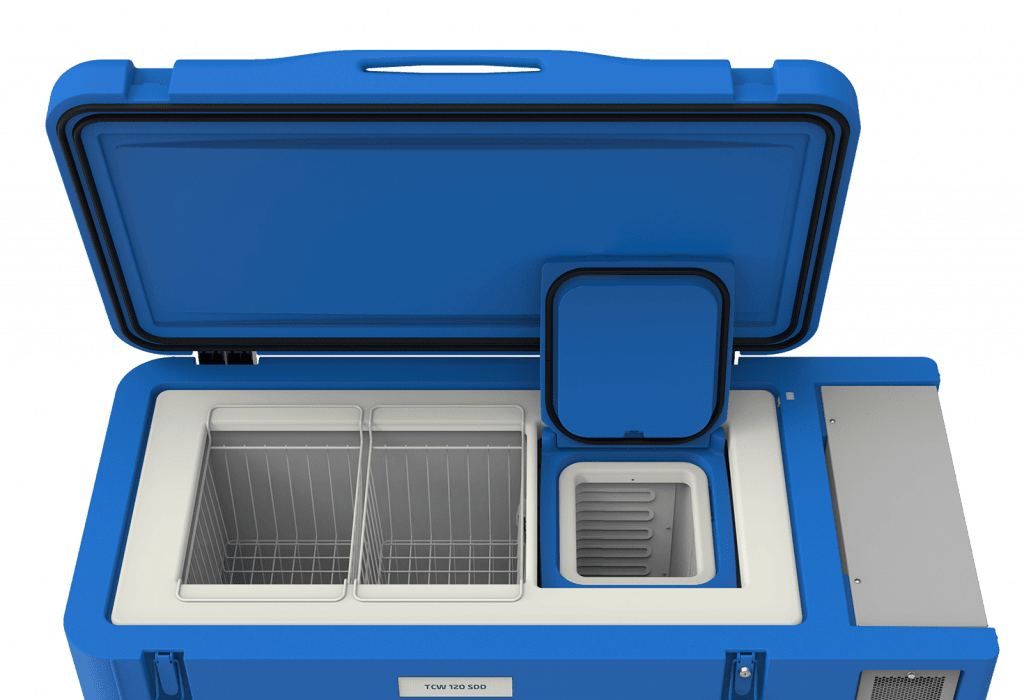

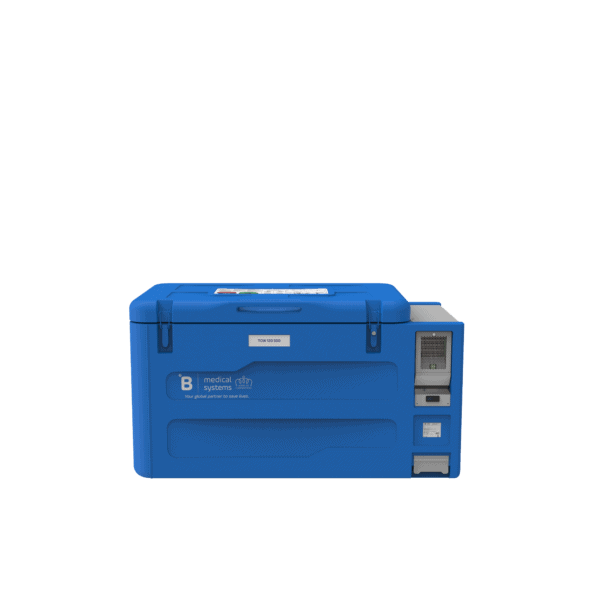

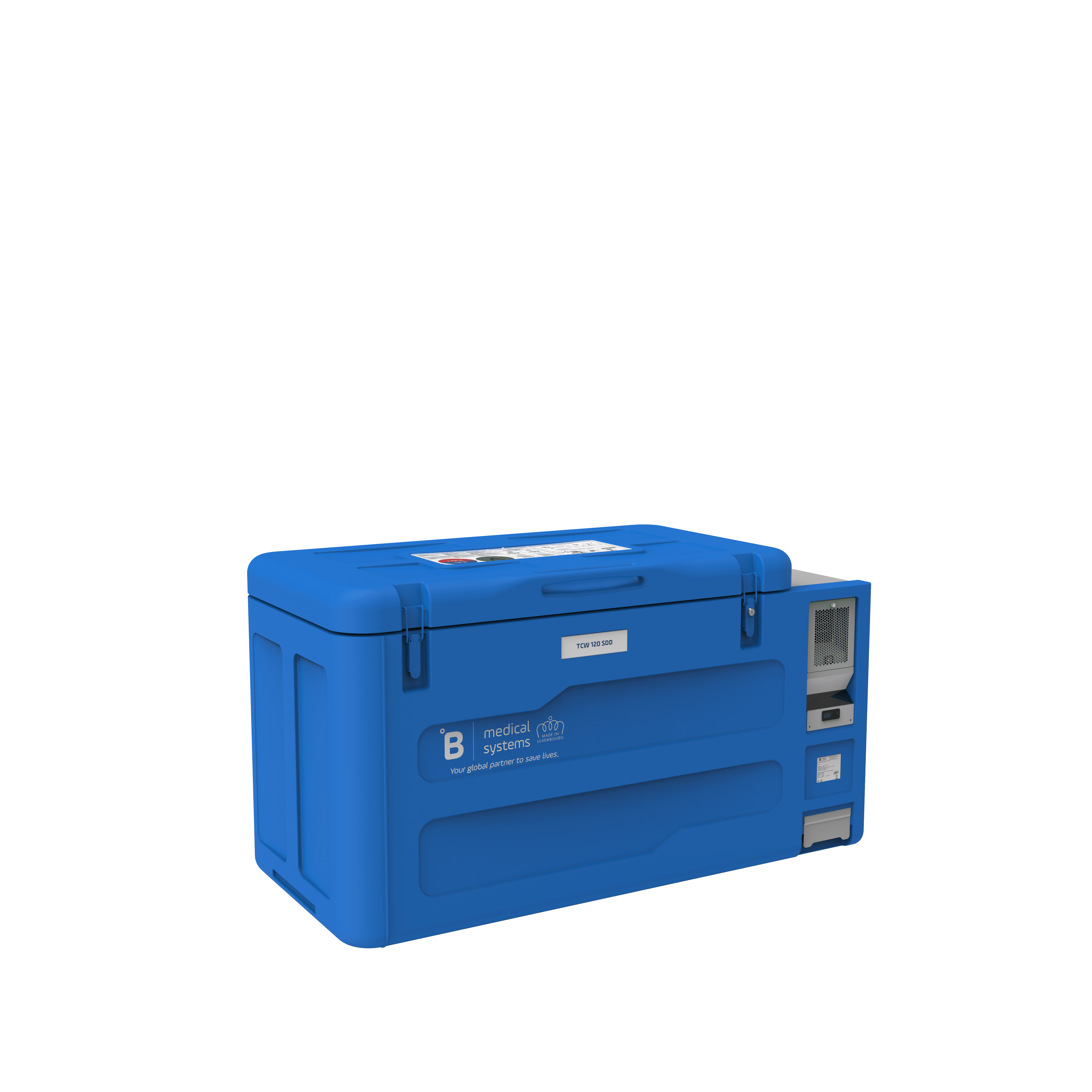

Solar Direct Drive Vaccine Refrigerator / Ice-pack Freezer TCW120SDD
Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with 153L (refrigerator) | 28L (freezer) gross volume.
- Set Temperature: +5°C (Refrigerator) | -20°C (Freezer)
- Vaccine storage capacity: 120 L
- Certifications: EMC directive 61000-3-2 / 61000-3-3 | EU MDR Class I | WHO PQS E003/124
- Freeze protection: Grade A
- Climate class (ambient temperature range): Hot zone (+43°C)
- Energy source: Solar; DC
Resistance to harsh environment
- Designed to operate in tropical conditions (32°C to 43°C depending on the model)
- Rotomoulded body construction: rust free and extremely robust
- Humidity control: no condensation issues in the fridge
- Best-in-class warranty: 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion
Ergonomic Design
- Door gaskets are easily replaceable and washable
- “Plug and play” installation of the solar generators
- No battery, no regulator: easy maintenance and no hidden costs
- External temperature display and real-time visualization on the web
Safety and traceability
- Strong insulation: extended holdover time in the event of minimal or no sunlight
- Silicone gaskets and lockable clasps: tight closing and restricted access
- Audio-visual alarm system with remote transmission
- Remote temperature monitoring solution, comprising a data logger and a digital platform
| Gross volume | 153L (refrigerator) | 28L (freezer) |
|---|---|
| Vaccine storage capacity | 120 L |
| Set Temperature | +5°C (Refrigerator) | -20°C (Freezer) |
| Climate class (ambient temperature range) | Hot zone (+43°C) |
| Certifications | EMC directive 61000-3-2 / 61000-3-3 | EU MDR Class I | WHO PQS E003/124 |
| External dimensions (HxWxD) | 910 x 1620 x 790 mm |
| Net weight | 125 Kg |
| Shipping weight | 187 Kg |
| Refrigerant Type | Natural R600a |
| Materials | Polyethylene |
| Remote monitoring | RTMD included |
| Energy source | Solar; DC |
| WHO PQS Code | E003/124 |
| Product Type | Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer |
| Hold over time | 82h 5min at +43°C |
