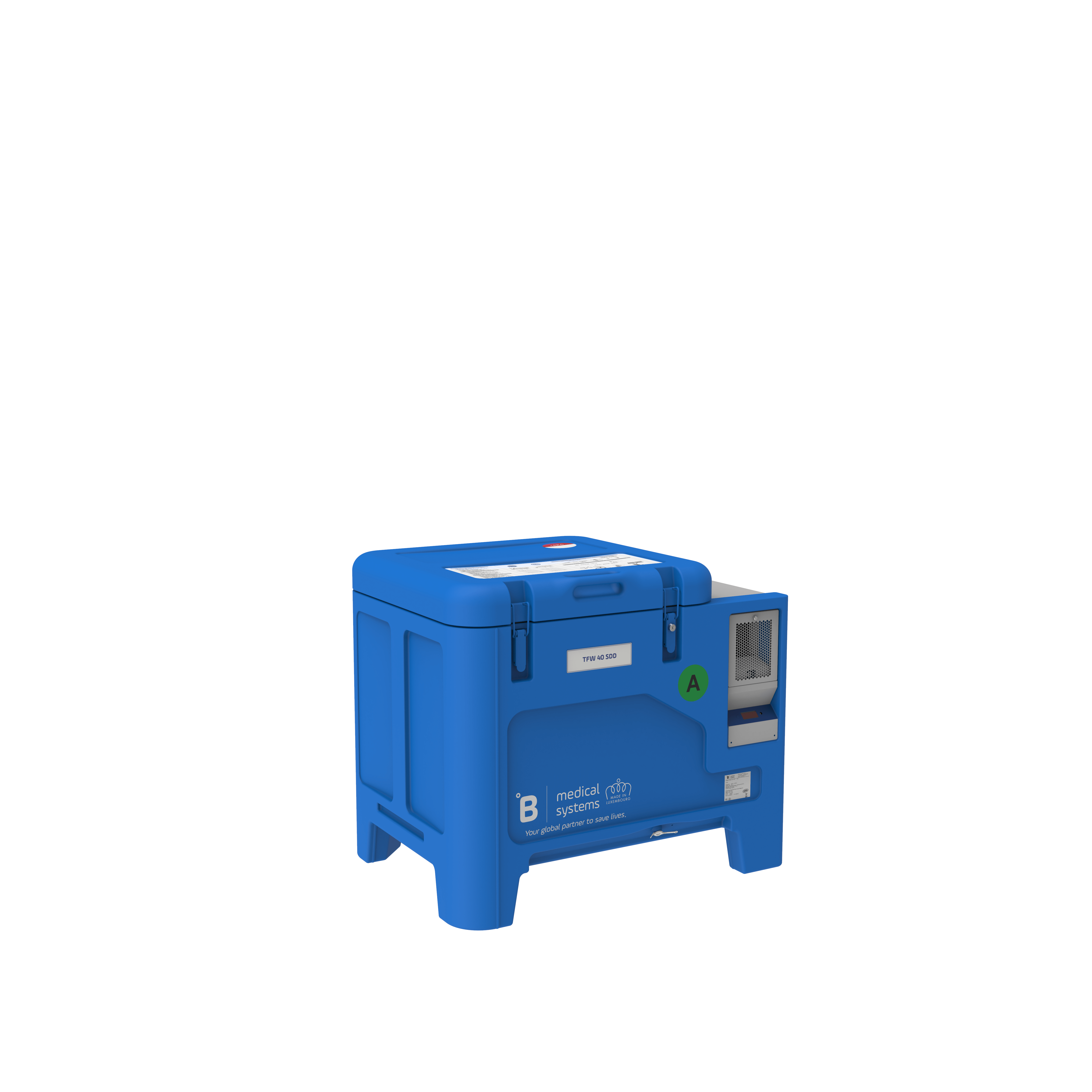

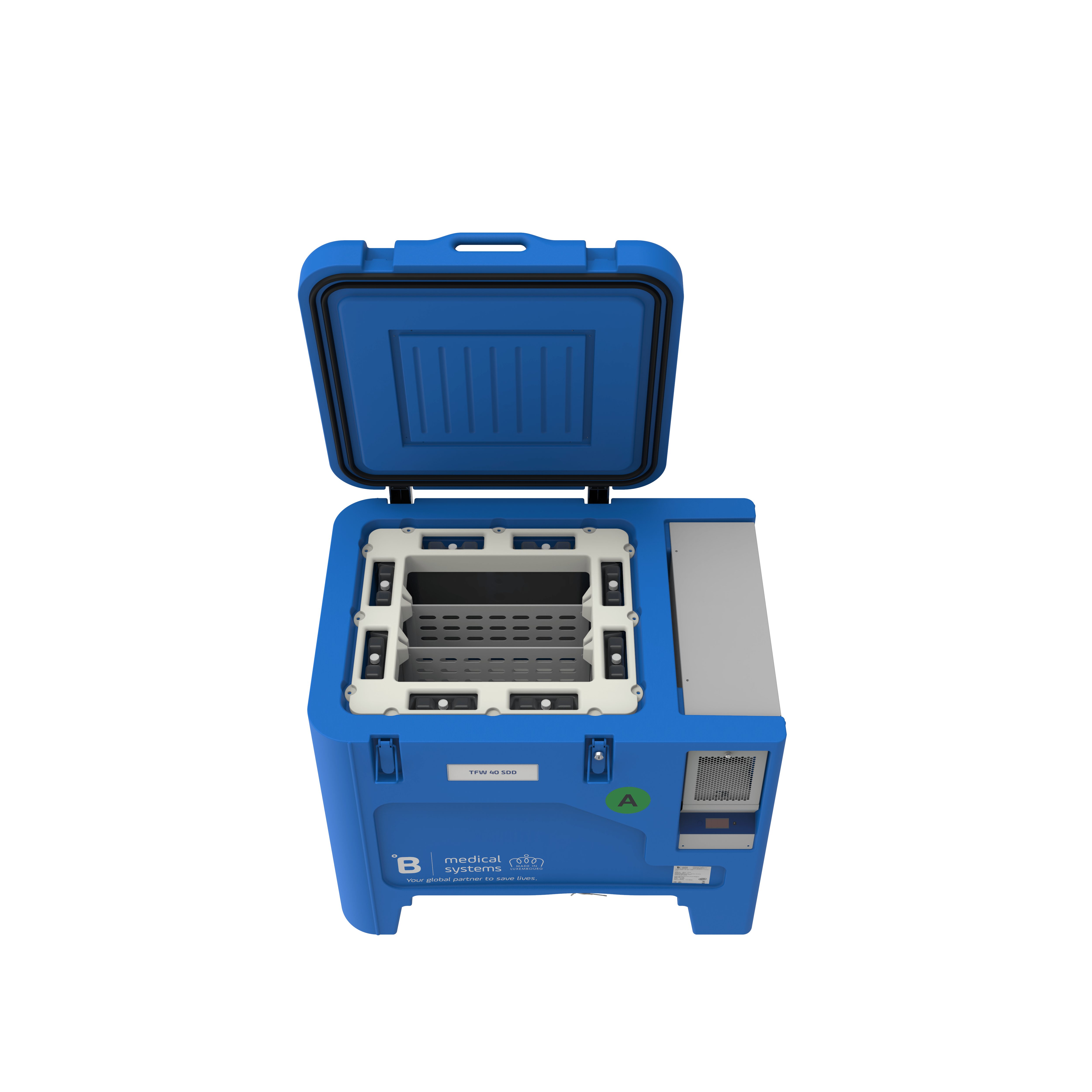

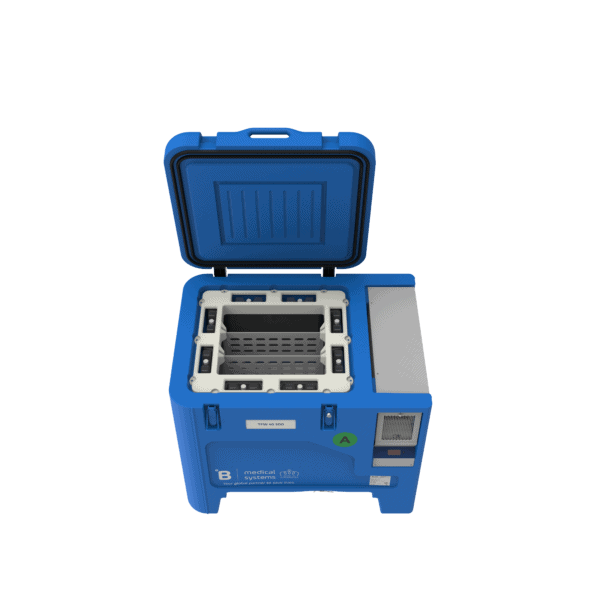

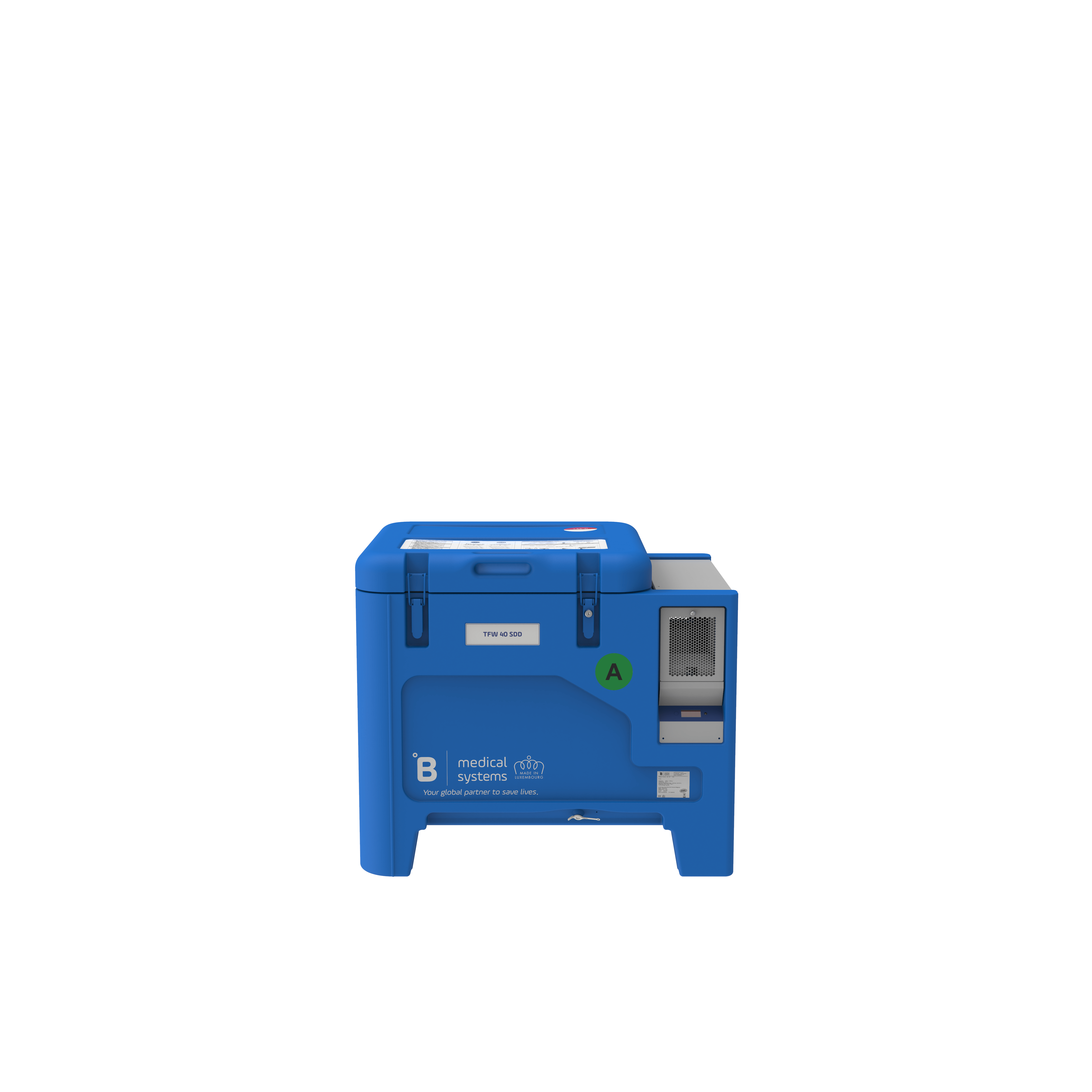

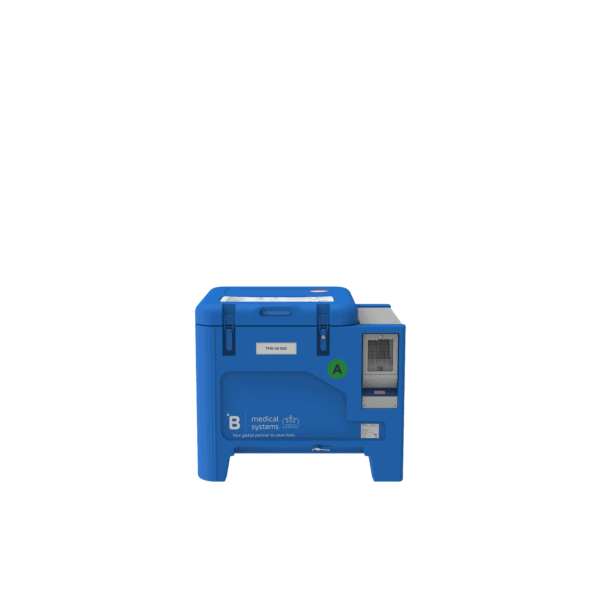

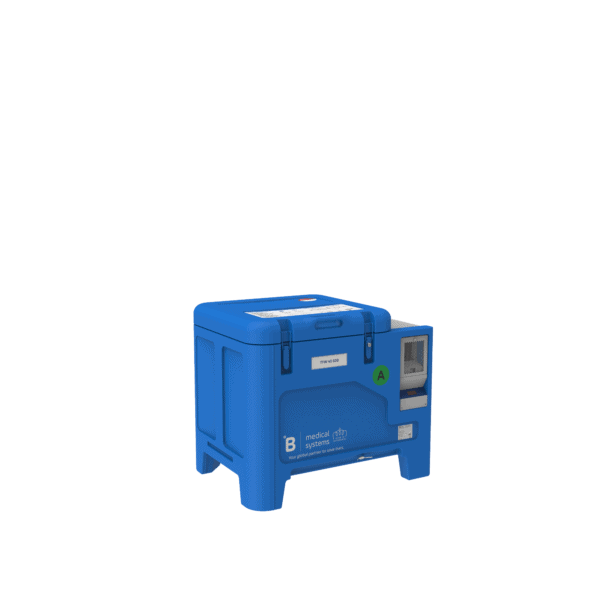

Solar Direct Drive Icepack Freezer TFW40SDD
Solar Direct Drive Icepack Freezer with 64 L | 2.26 cu ft gross volume.
- Set Temperature: -5°C
- Ice-pack storage (at 0.6 L): 20
- Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/073
- Climate class (ambient temperature range): Hot zone (+43°C)
- Energy source: Solar; DC

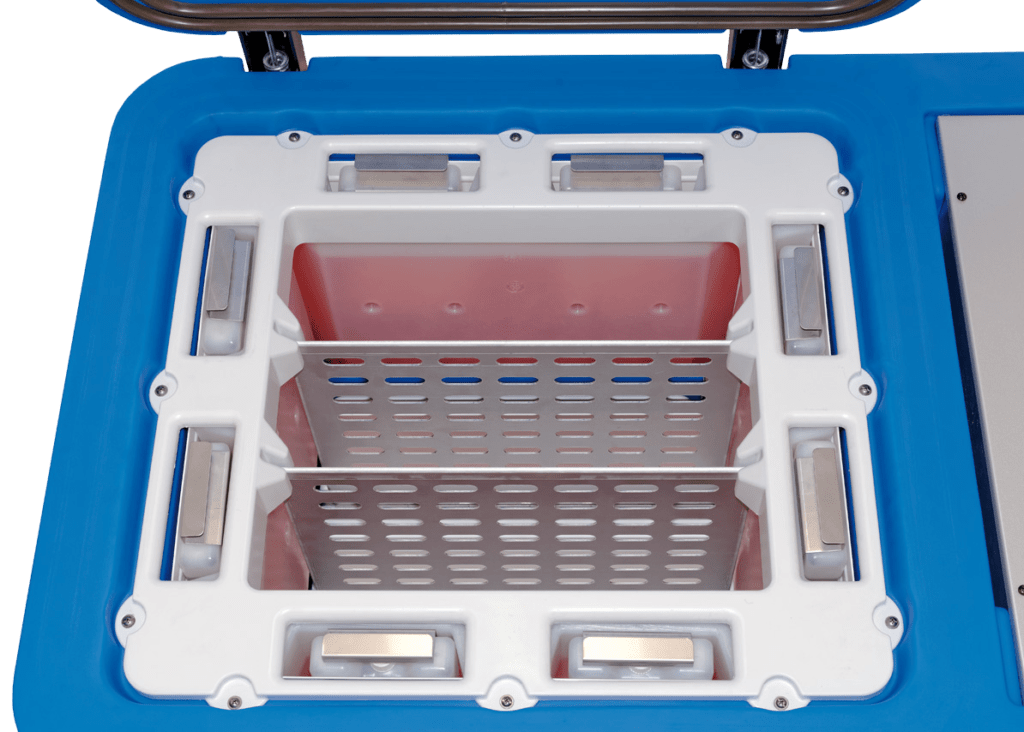

Innovative technology
- Door gasket easily replaceable and washable
- External temperature display and real-time visualization on the web
- Green technology: very low power consumption and environmentally friendly refrigerant (R290)
Resistance to harsh environment
- Designed to operate in tropical conditions
- Rotomoulded body construction: rust free and extremely robust
- Humidity control: no condensation issues in the fridge

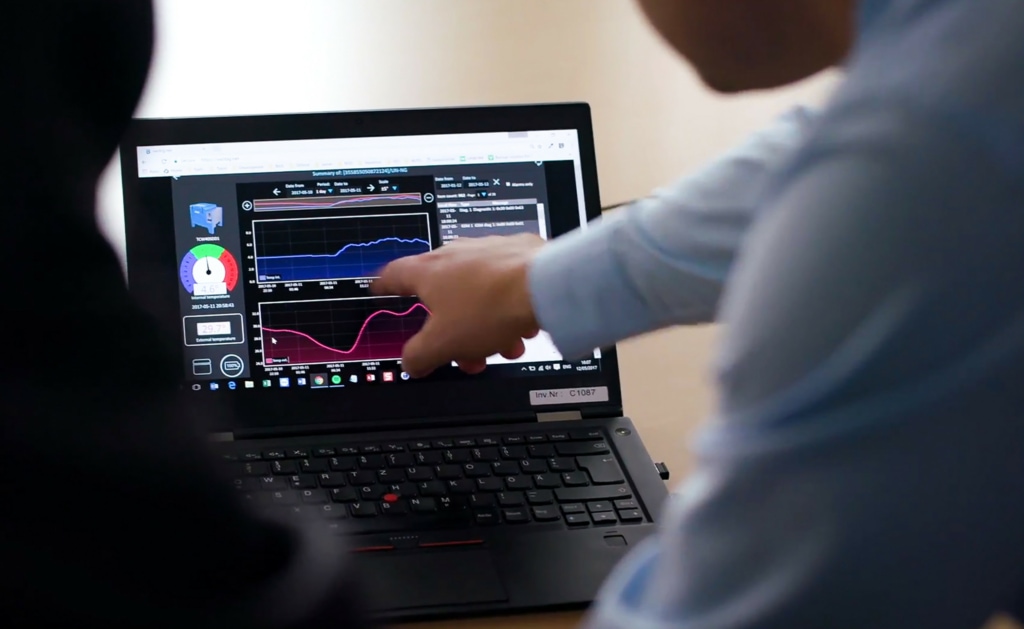

Safety and traceability
- Strong insulation
- Silicone gaskets and lockable clasps: tight closing and restricted access
- Audio-visual alarm system with remote transmission
| Gross volume | 64 L | 2.26 cu ft |
|---|---|
| Ice-pack storage (at 0.6 L) | 20 |
| Freezer gross volume | 64 L | 2.26 cu ft |
| Set Temperature | -5°C |
| Climate class (ambient temperature range) | Hot zone (+43°C) |
| Certifications | EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/073 |
| External dimensions (HxWxD) | 900 x 1030 x 780 mm | 35.43 x 40.55 x 30.71 in |
| Net weight | 91 kg | 201.28 lb |
| Shipping weight | 119 kg |
| Supply voltage | 25V DC |
| Refrigerant Type | Natural R600a |
| Materials | Polyethylene |
| Autonomy | 120h |
| Cool down | 313h |
| Energy cons. 24h stable | 0.59KwH/24h at 43°C |
| Energy source | Solar; DC |
| WHO PQS Code | E003/073 |
| Product Type | Solar Direct Drive Icepack Freezer |
