New

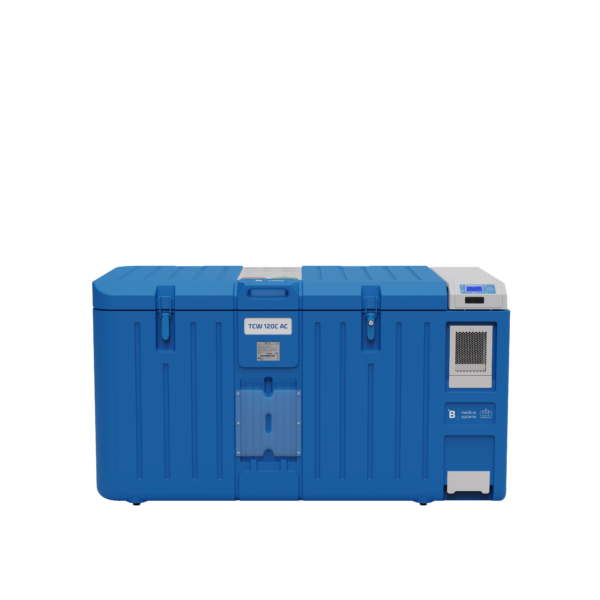

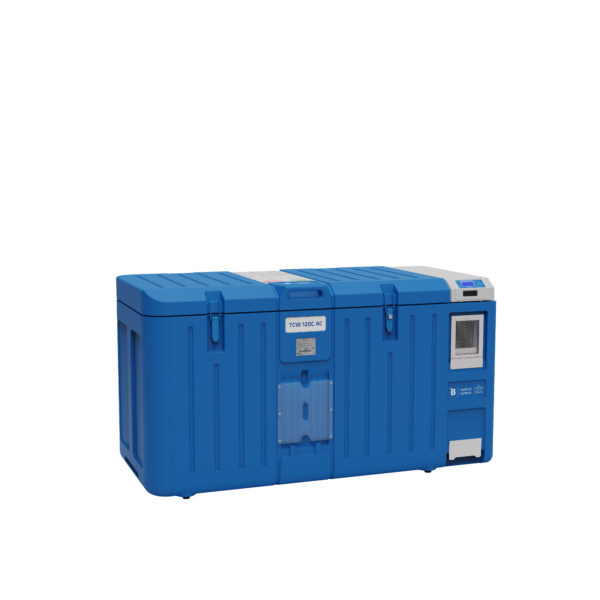

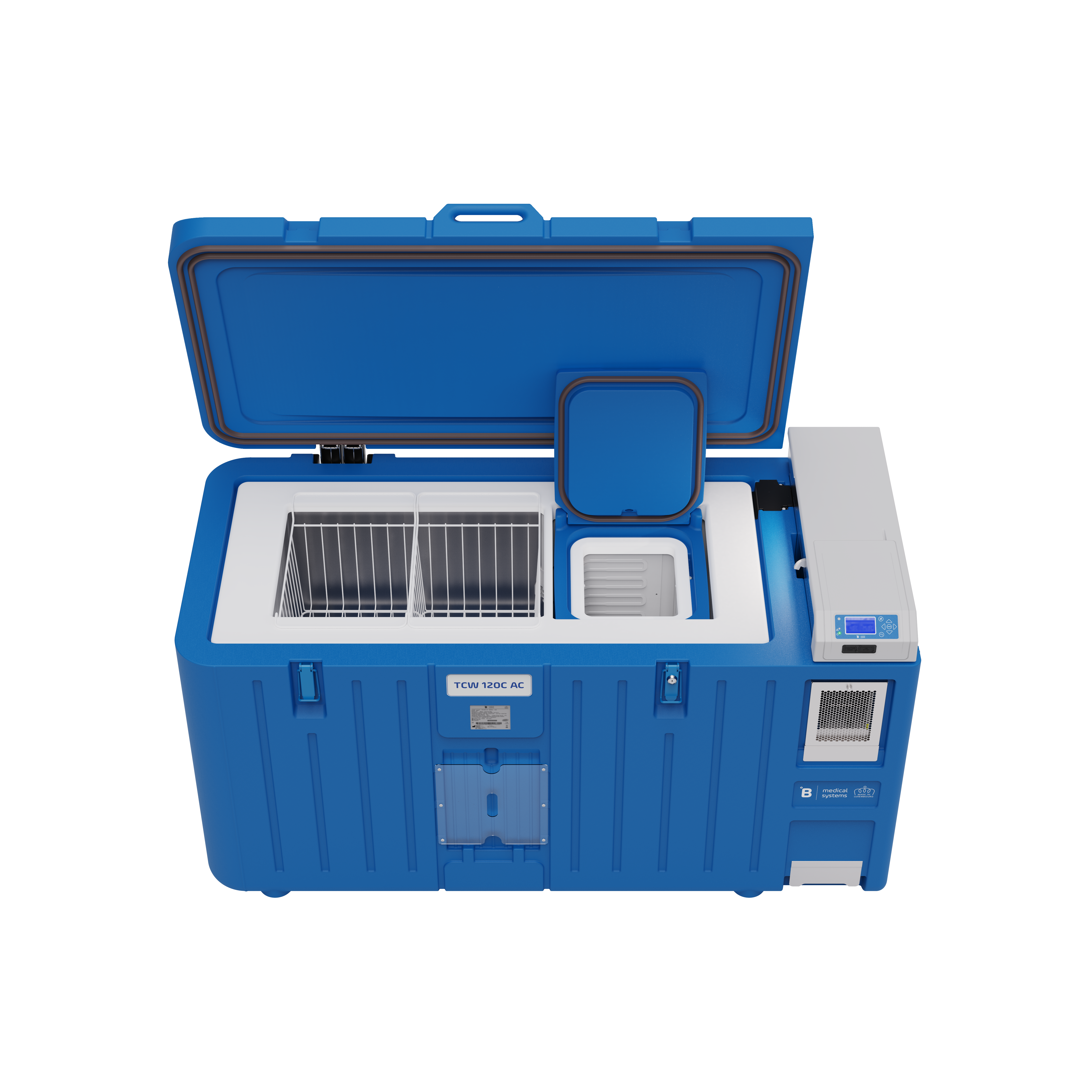

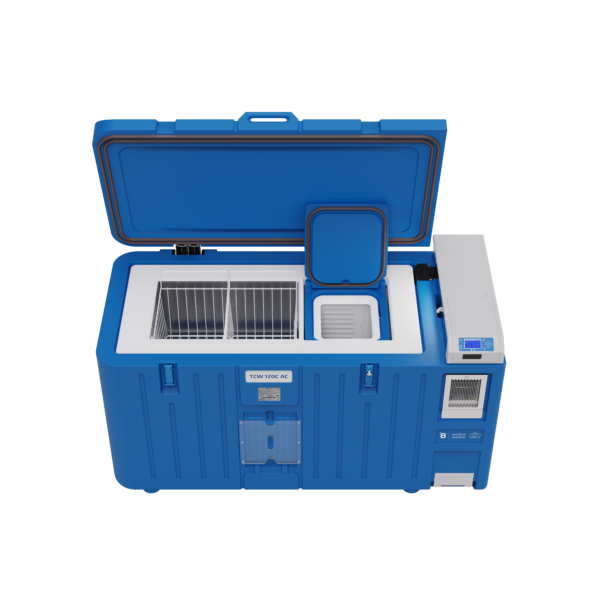

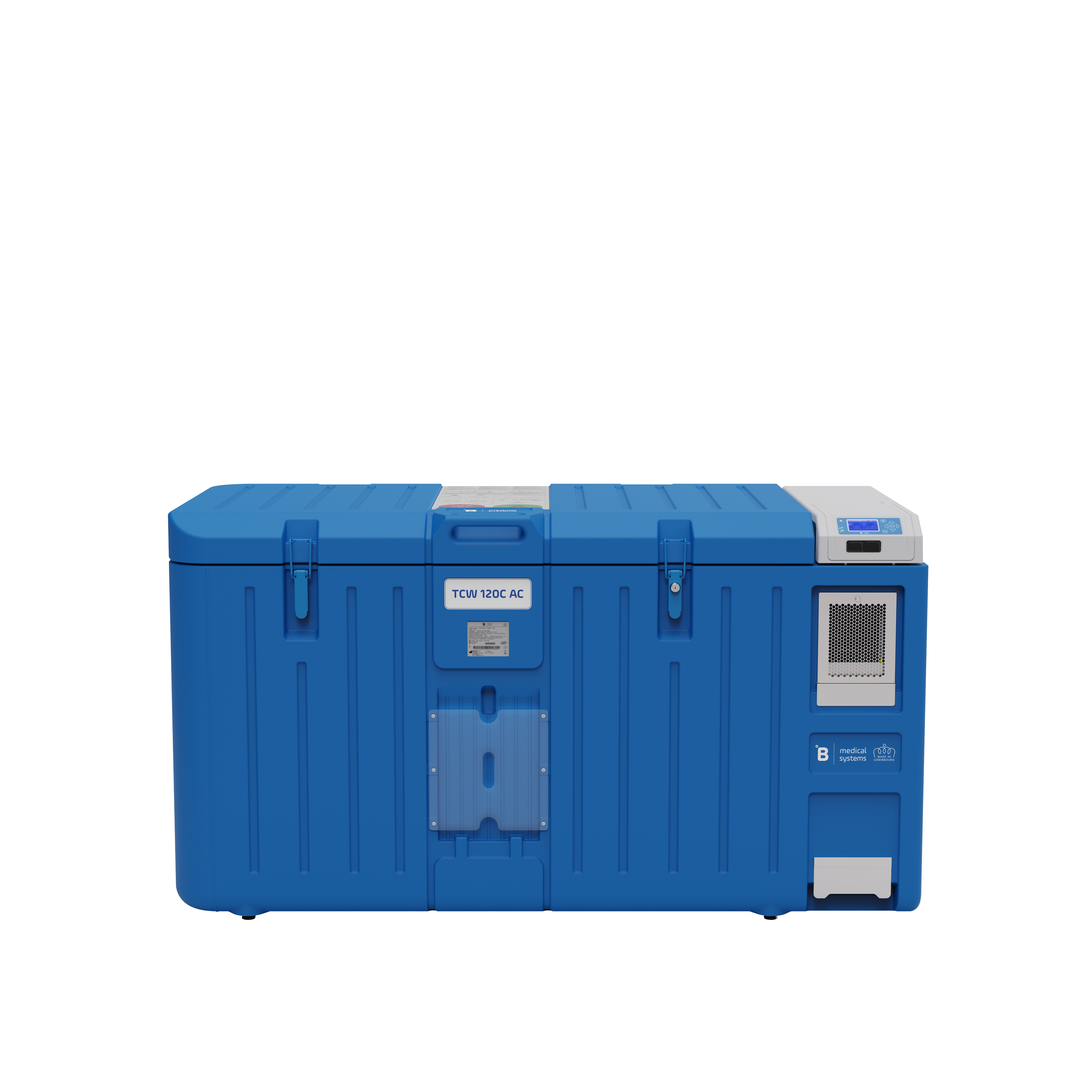

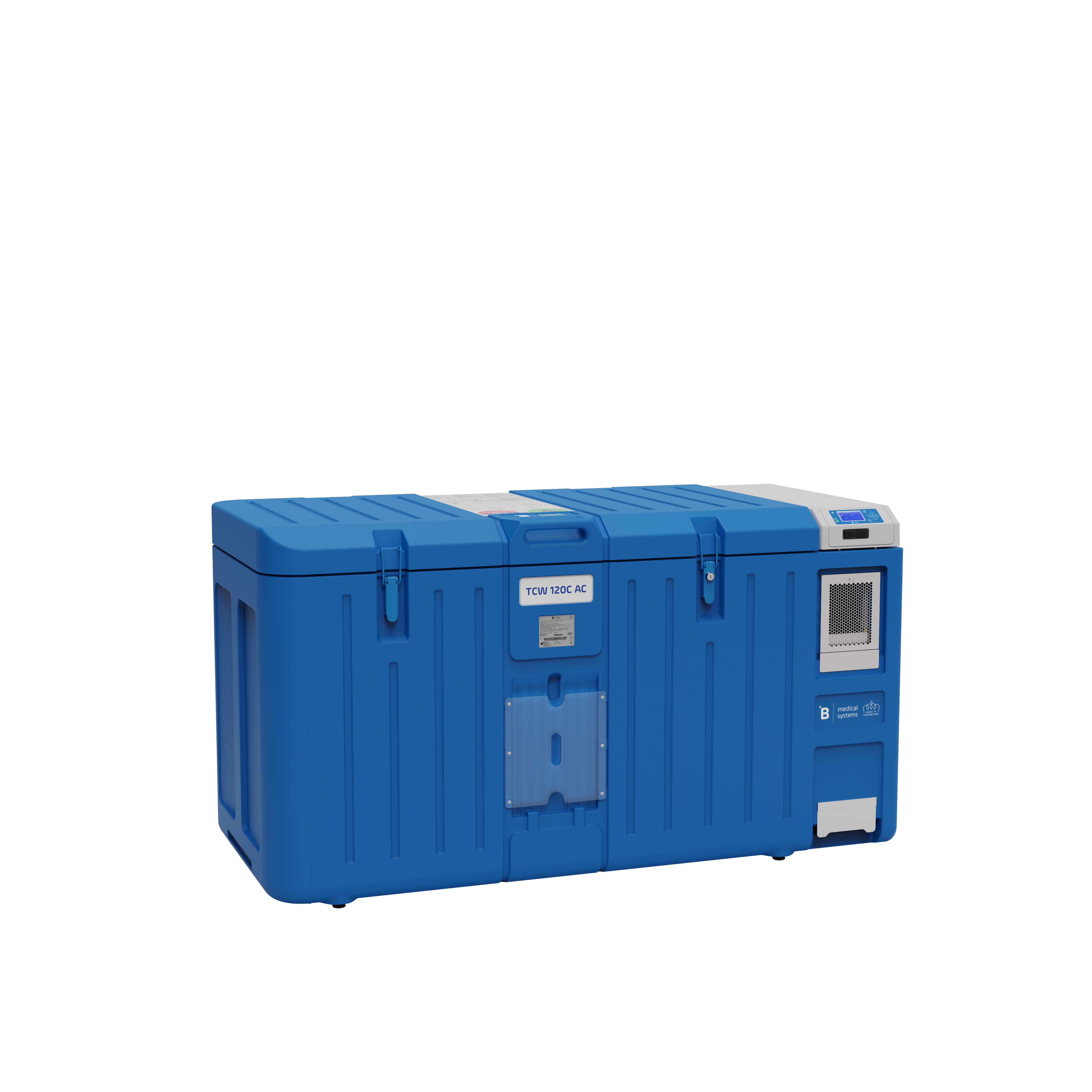

Vaccine Refrigerator & Water-pack Freezer TCW 120C AC
Vaccine Refrigerator & Water-pack Freezer with 165.9 L (refrigerator) | 14.4 L (freezer) gross volume.
- Application temperature- Refrigerator: +2°C to +8°C
- Application temperature- Freezer: -5°C
- Vaccine storage capacity: 120 L
- Water-pack storage capacity: 14.4 kg
- Freeze protection level: Grade A
- Climate class (ambient temperature range): Hot zone (+43°C)
- Energy source: AC
Reliability in Harsh Conditions
- Mains-powered vaccine refrigerator and water-pack freezer
- Rotomoulded body construction: rust free, sturdy, and durable
- Designed to operate in ambient temperatures ranging from +5°C to +43°C
- Integrated LED lighting for clear visibility inside the device
Sustainable design and advanced electronics
- Green technology using environmentally friendly refrigerant R600a
- Easily replaceable 2-layer gasket
- 64 x 36mm (3 inches) data display screen with adaptive backlighting
- Multi-language user interface and password-protected controller
- Integrated autonomy meter
Enhanced Safety and Data Monitoring
- Superior insulation offering higher autonomy
- Silicone gaskets, lockable clasps, along with robust hinges, enabling safety and durability
- Visual and audible alarms
- Offers Level 2 EMS functionality (according to WHO PQS guidelines) as a standard feature
- Enables standardized, interoperable collection of cold chain equipment (CCE) performance and system monitoring data
- Integrated basic local data logging capabilities via USB - in both a standardized raw format and as a portable document format (PDF)
| Gross volume | 165.9 L (refrigerator) | 14.4 L (freezer) |
|---|---|
| Vaccine storage capacity | 120 L |
| Water-pack storage capacity | 14.4 kg |
| Water-pack freezing capacity /24h | 4.8 kg |
| Application temperature- Refrigerator | +2°C to +8°C |
| Application temperature- Freezer | -5°C |
| Climate class (ambient temperature range) | Hot zone (+43°C) |
| Nominal external dimensions (HxWxD) | 910 x 1665 x 780 mm |
| Nominal shipping dimensions (HxWxD) | 1030 x 1700 x 805 mm |
| Nominal net weight | 177 kg |
| Nominal shipping weight | 208.3 kg |
| Frequency | 50-60 Hz |
| Supply voltage | 100-240V AC |
| Refrigerant type | Natural R600a |
| Materials | Polyethylene |
| Insulation material | PU foam |
| Energy source | AC |
| Freeze protection level | Grade A |
| Hold over time | 78 h at +43°C |
| Energy consumption /24h (stable running) | 1.38 kWh /24 h |
| Energy consumption /24h (cool down) | 1.25 kWh /24 h |
| Remote monitoring | Device is delivered with an EMS Level 2 (local monitoring with alarms; history; etc.) -upgradeable remotely to Level 3 (full remote monitoring) |
| Product type | Vaccine Refrigerator & Water-pack Freezer |
