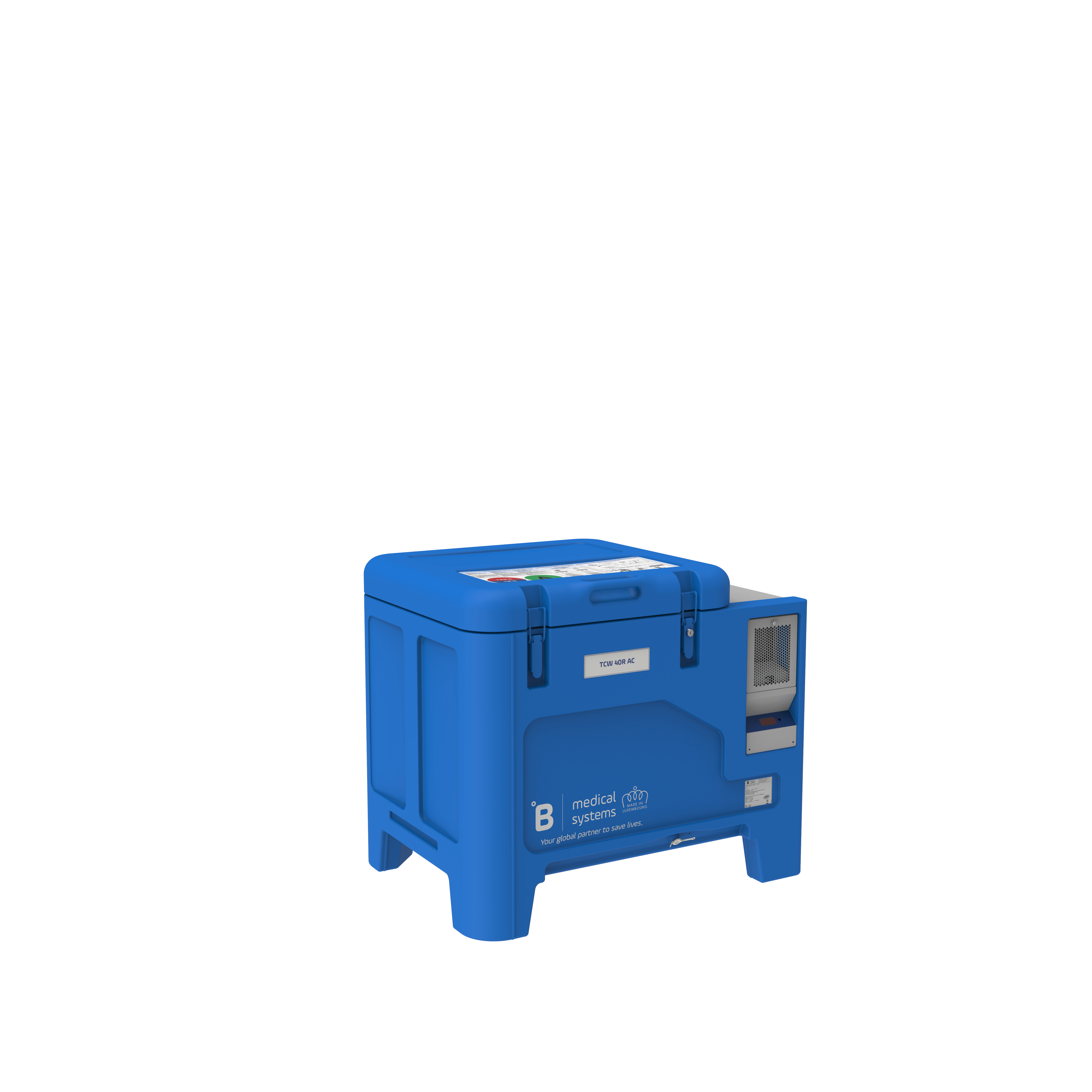

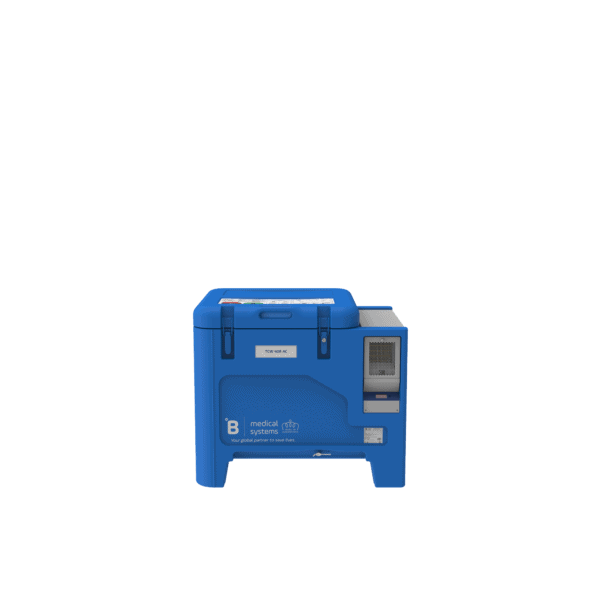

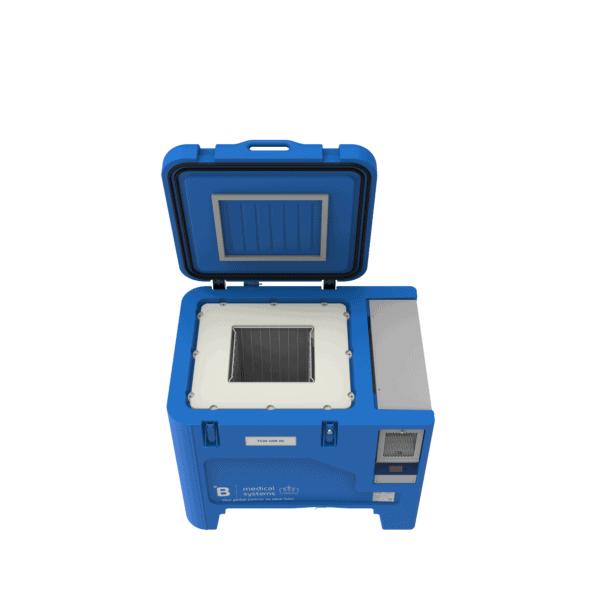

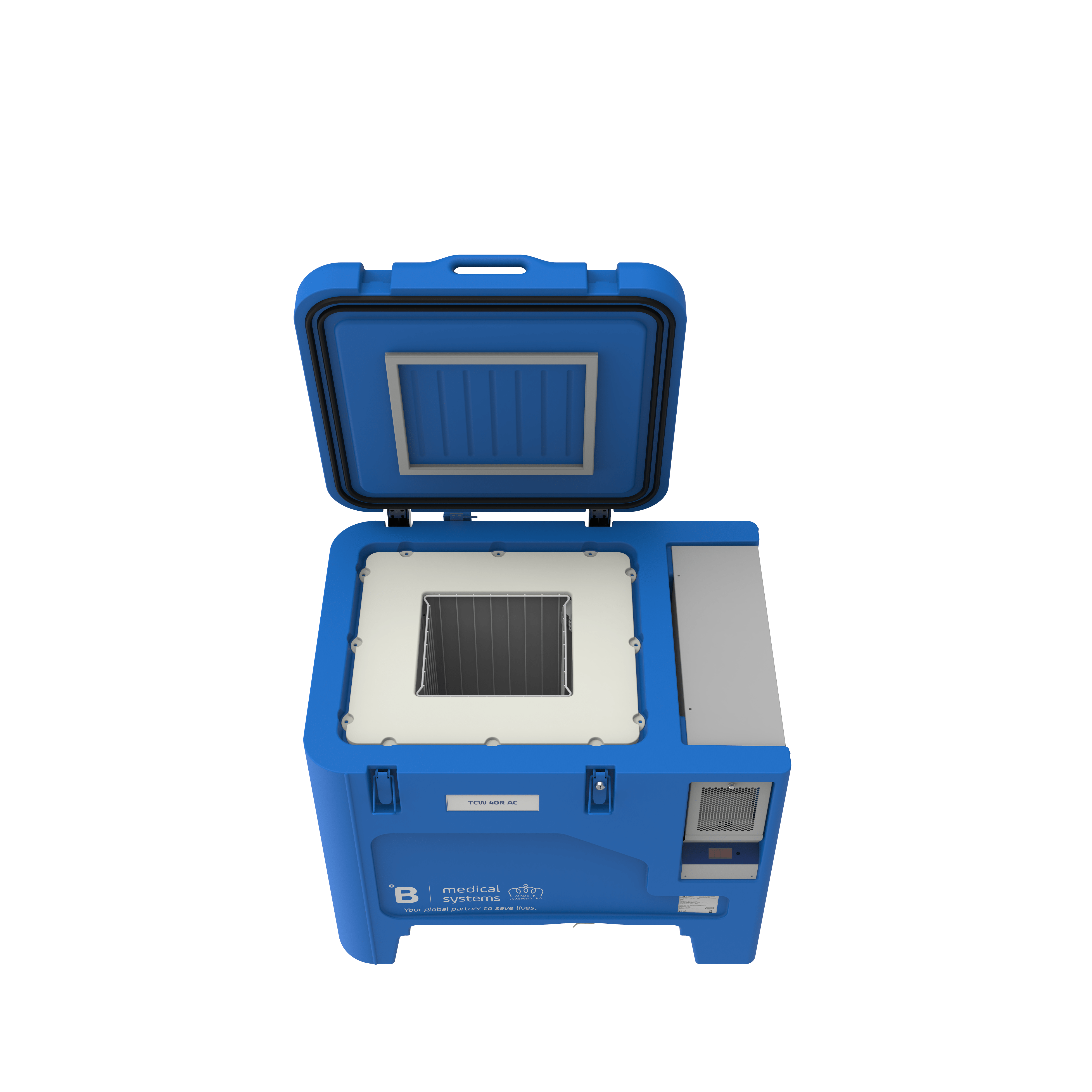

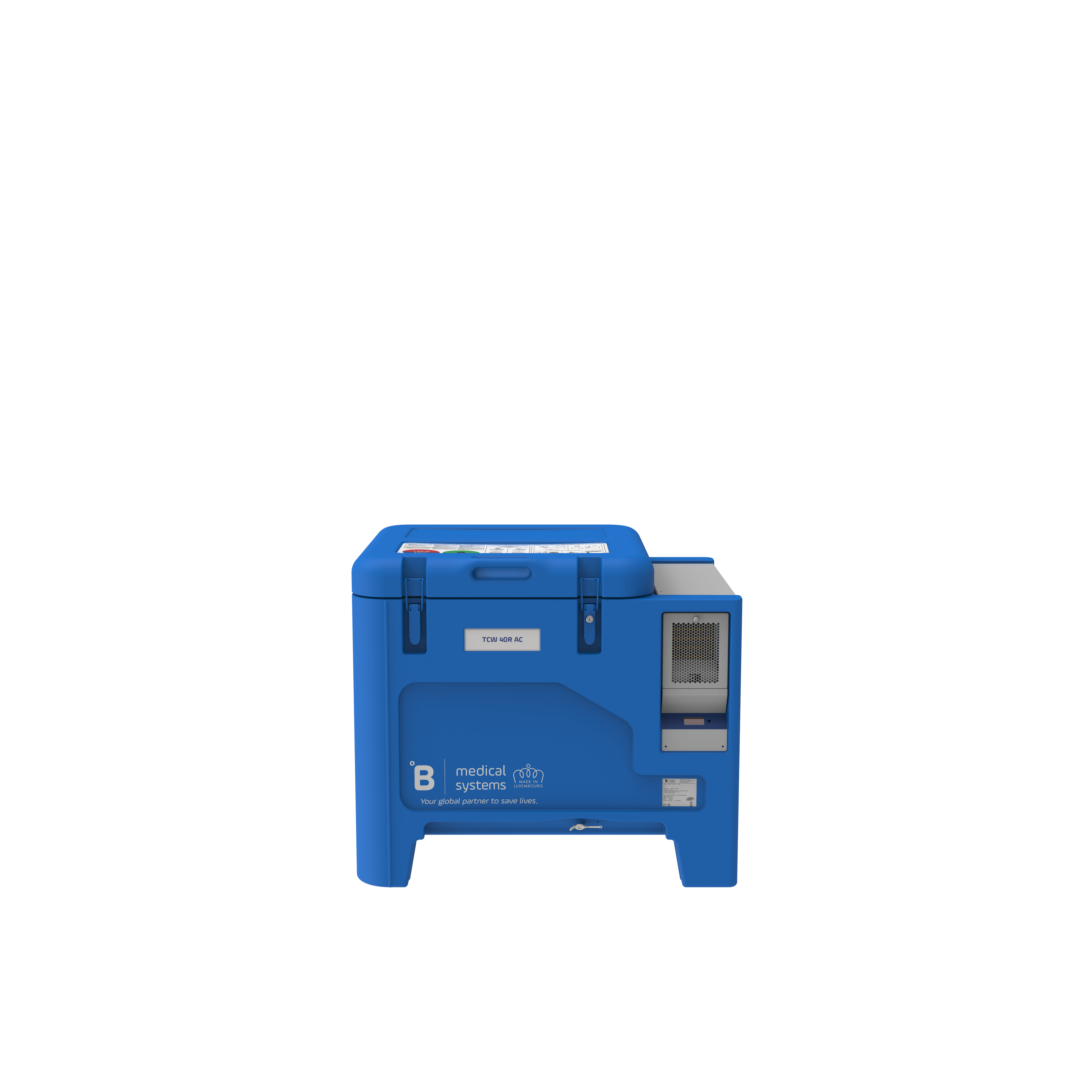

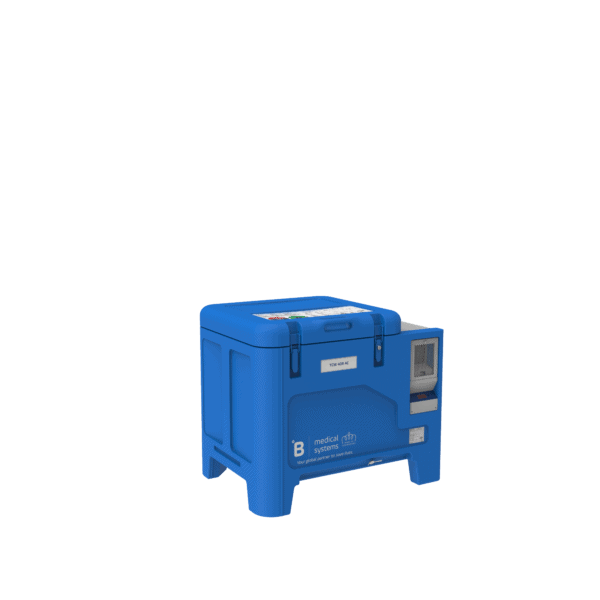

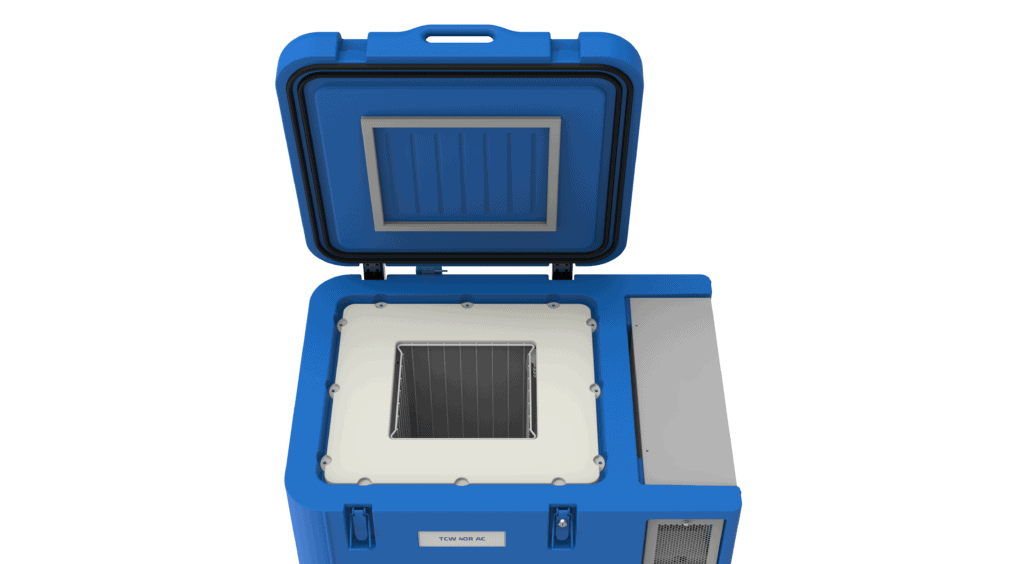

Vaccine Refrigerator TCW40RAC

Vaccine Refrigerator with 45 L | 1.59 cu ft gross volume.

  • Set Temperature: +4°C
  • Vaccine storage capacity: 36.5 L
  • Certifications: EMC directive 2014/30/EC | Low voltage 2014/35/EC | WHO PQS E003/100
  • Freeze protection: Grade A
  • Climate class (ambient temperature range): Hot zone (+43°C)
  • Energy source: AC

Innovative technology

  • Fully integrated automatic voltage stabilization solution (for any voltage in between 90-290 V) and a protective relay
  • 5 years international warranty for all parts and labour
  • Green technology: very low power consumption and environmentally friendly refrigerant (R600a)

Resistance to harsh environment

  • Designed to operate in tropical conditions
  • Rotomoulded body construction: rust free and extremely robust
  • Humidity control: no condensation issues in the fridge

Safety and traceability

  • Strong insulation
  • Silicone gaskets and lockable claps: tight closing and restricted access
  • Audio-visual alarm system with remote transmission
  • Remote temperature monitoring solution, comprising a data logger and a digital platform
  • Integrated Remote Temperature Monitoring Device (RTMD), offering real-time worldwide remote monitoring, data access over WEB and GPS position
Gross volume

45 L | 1.59 cu ft

Vaccine storage capacity

36.5 L

Set Temperature

+4°C

Climate class (ambient temperature range)

Hot zone (+43°C)

Certifications

EMC directive 2014/30/EC | Low voltage 2014/35/EC | WHO PQS E003/100

External dimensions (HxWxD)

900 x 1030 x 780 mm | 35.43 x 40.55 x 30.71 in

Net weight

109 kg | 240.30 lb

Shipping weight

128 kg

Frequency

50-60 Hz

Supply voltage

110-240V AC

Refrigerant Type

Natural R600a

Materials

Polyethylene

Remote monitoring

RTMD included

Cool down

10 days

Hold over time

121h54 min at 43°C

Energy cons. 24h stable

0.51 kWh/24h at day/night (43°C/25°C) | intermittent

Energy source

AC

Freeze protection

Grade A

WHO PQS Code

E003/100

Product Type

Vaccine Refrigerator
