Vaccine / Water-pack Freezer TVW 4000 AC
Vaccine / Water-pack Freezer with 249 L gross volume.
- Set temperature: -25°C
- Vaccine storage capacity: 240 L
- Water-pack storage capacity: 318 x 0.6 L (without baskets)
- Certifications: (EU) 2017/745: Class I | EMC directive 2014/30/EC | Low voltage 2014/35/EC | WHO PQS E003/138
- Freeze protection level: Grade A
- Climate class (ambient temperature range): Hot zone (+43°C)
- Energy source: AC
Innovative technology
- Able to be set as either a vaccine freezer or a water-pack freezer
- Green technology: very low power consumption and environmentally friendly refrigerant (R290)
- External temperature display and real-time visualization on the web
- Simple and user-friendly “1 button” operation
- Automatic drain water evaporation
Resistance to harsh environment
- Designed to operate in tropical conditions
- Rotomoulded body construction: rust free and extremely robust
- Humidity control: no condensation issues in the freezer
Safety and traceability
- Strong insulation
- Silicone gaskets and lockable clasps: tight closing and restricted access
- Audio-visual alarm system with remote transmission
- Remote temperature monitoring solution, comprising a data logger and a digital platform
| Gross volume | 249 L |
|---|---|
| Vaccine storage capacity | 240 L |
| Water-pack storage capacity | 318 x 0.6 L (without baskets) |
| Water-pack freezing capacity /24h | 36.4 kg /24h at +43°C (64 water-packs of 0.6 L) |
| Set temperature | -25°C |
| Climate class (ambient temperature range) | Hot zone (+43°C) |
| Certifications | (EU) 2017/745: Class I | EMC directive 2014/30/EC | Low voltage 2014/35/EC | WHO PQS E003/138 |
| External dimensions (HxWxD) | 915 x 1600 x 780 mm |
| Net weight | 124 kg |
| Nominal shipping dimensions (HxWxD) | 1040 x 1660 x 805 mm |
| Nominal shipping weight | 188 kg |
| Frequency | 50-60 Hz |
| Supply voltage | 220-240V |
| Refrigerant type | Natural R290 |
| Materials | Polyethylene |
| Cool down | 15 h at +43°C |
| Hold over time | 50 h 9 min at +43°C |
| Energy consumption /24h (stable running) | 4.45 kWh /24h at +43°C |
| Energy consumption /24h (cool down) | 4.06 kWh /24h at +43°C |
| Energy source | AC |
| Freeze protection level | Grade A |
| Remote monitoring | RTMD optional |
| Product type | Vaccine / Water-pack Freezer |

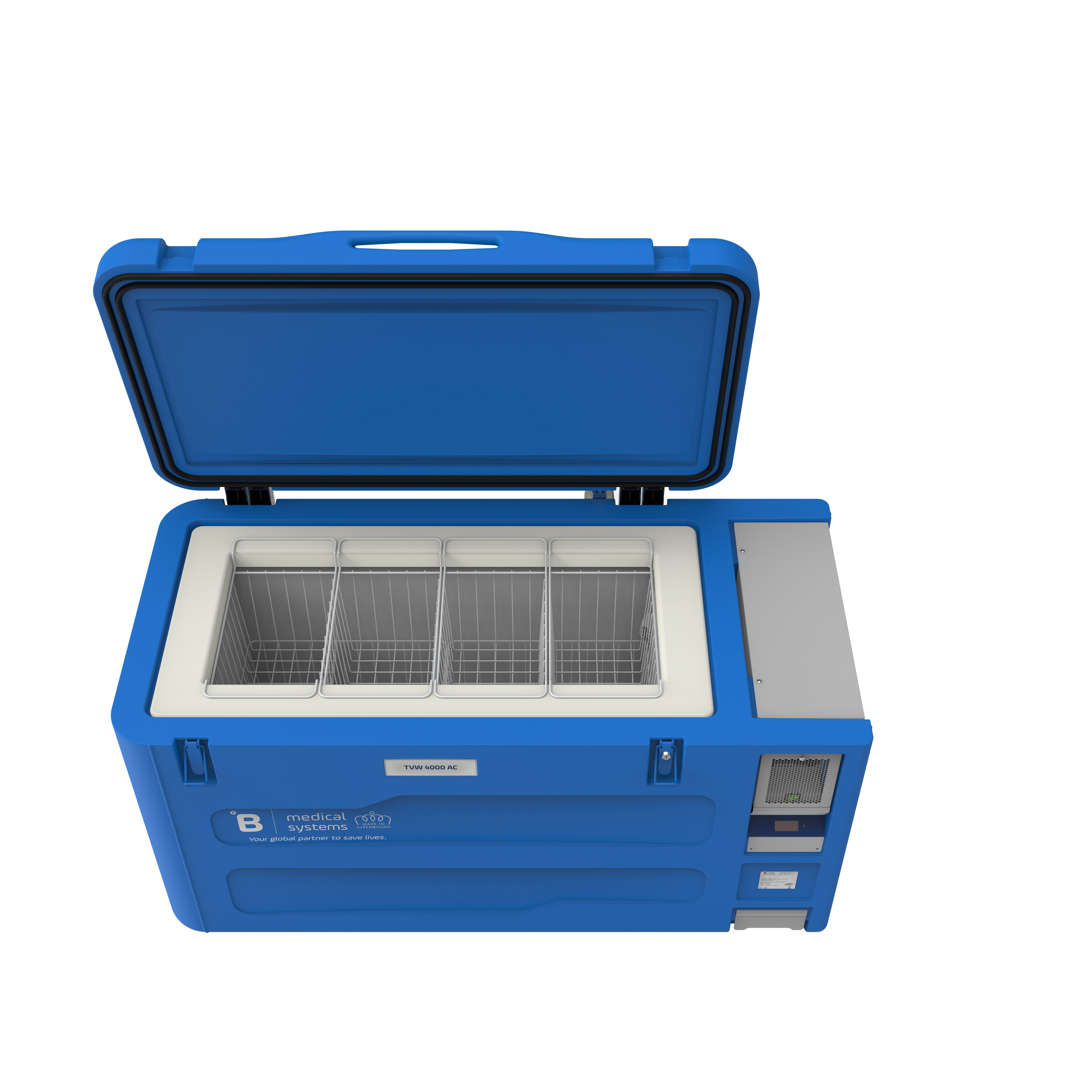

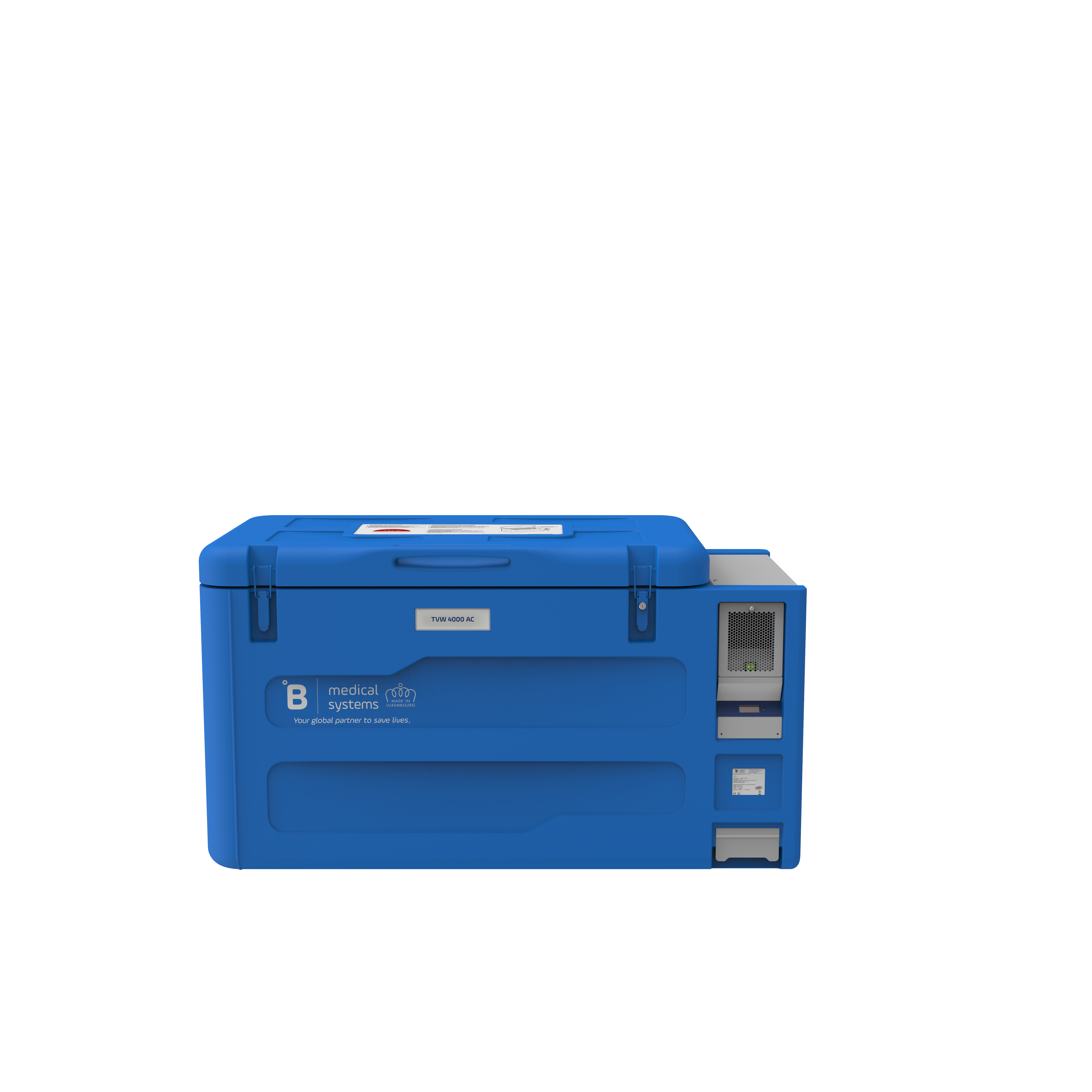

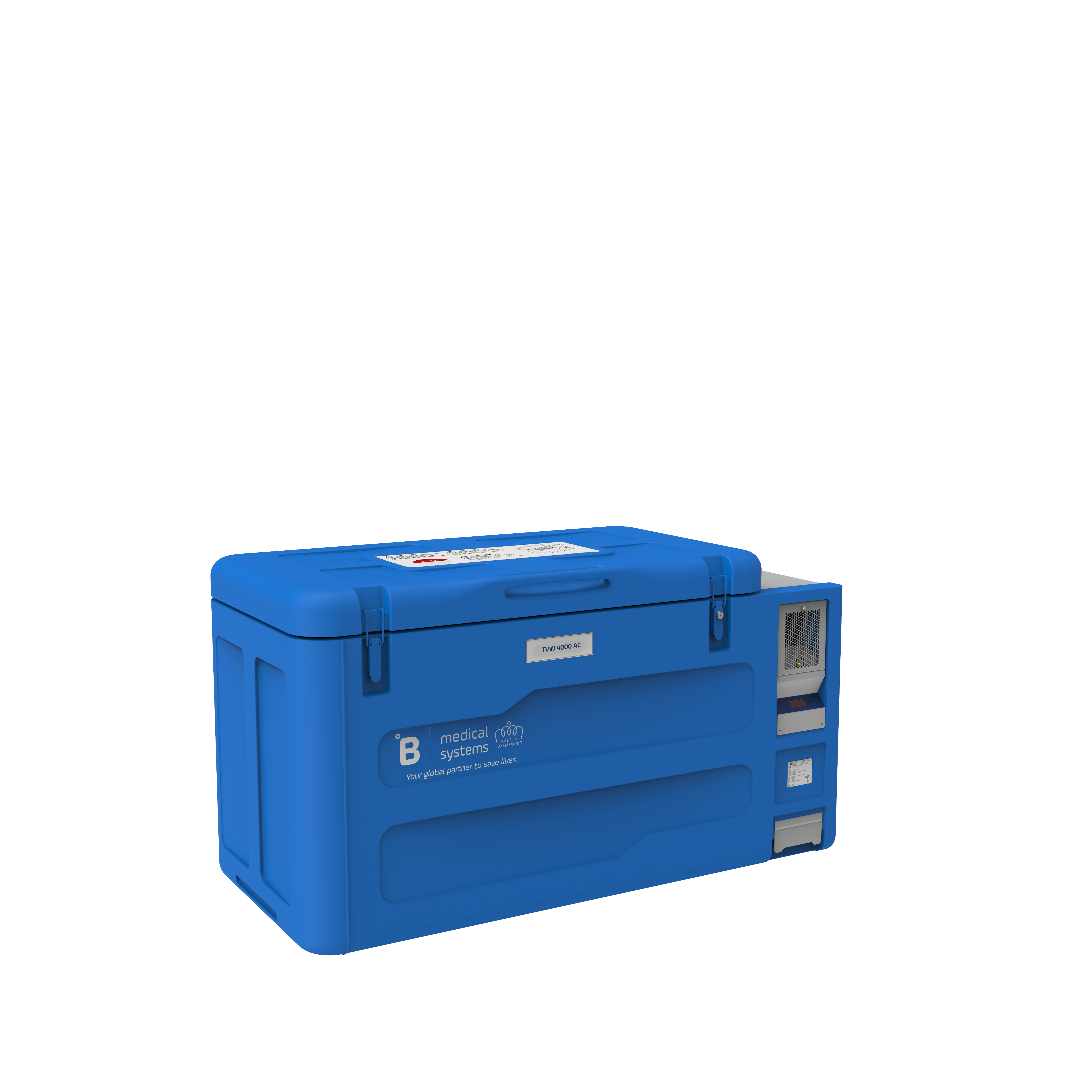

TVW 4000 AC vaccine or water-pack freezer
