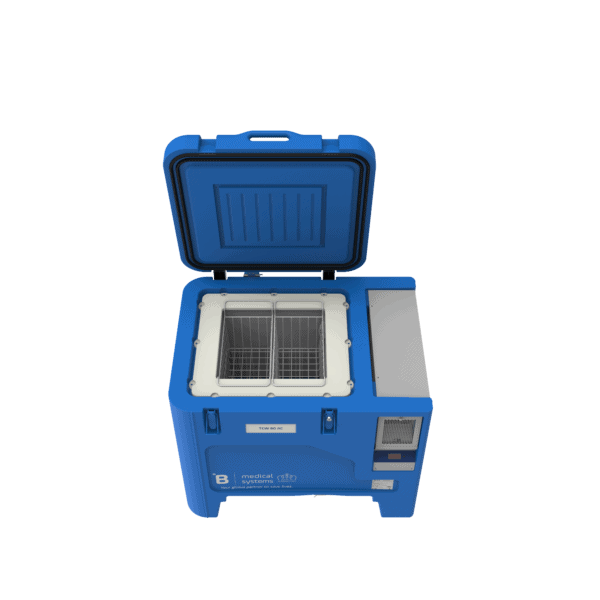

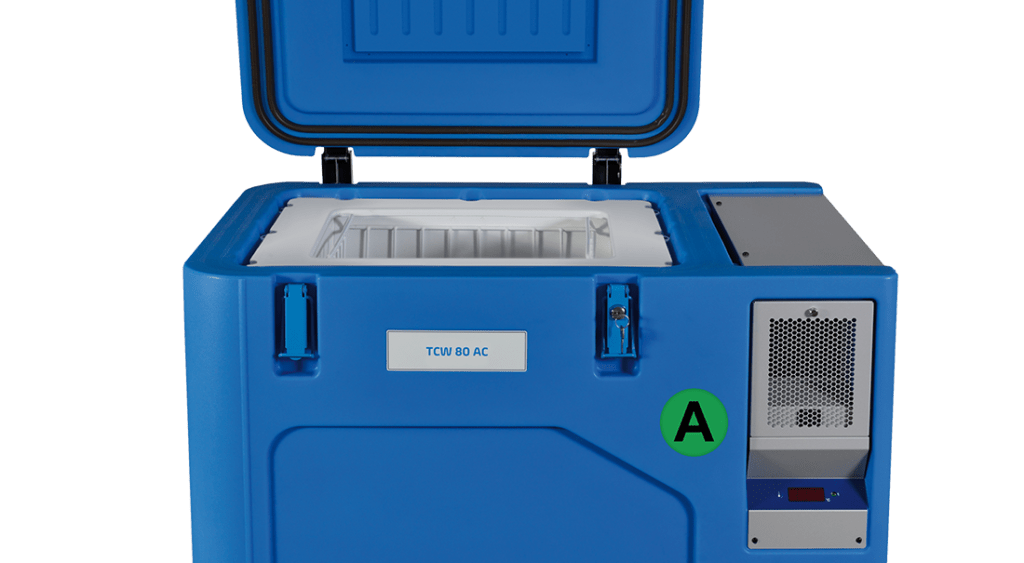

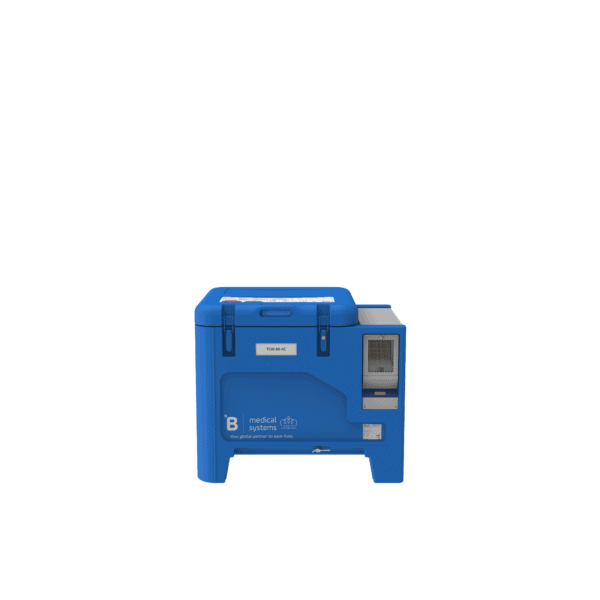

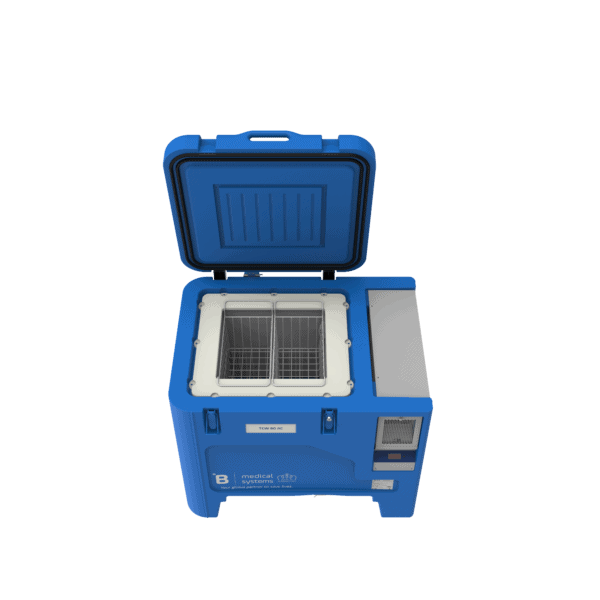

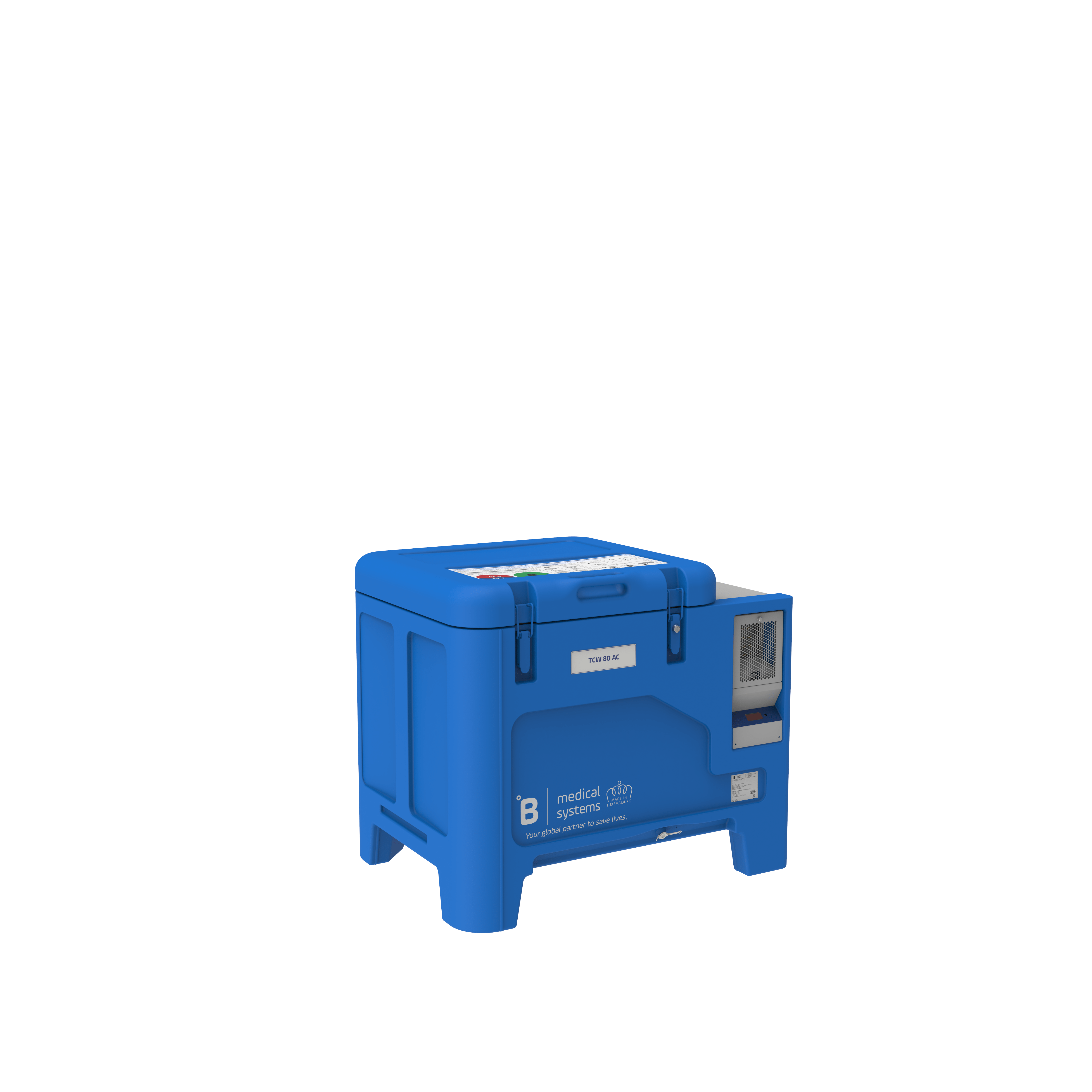

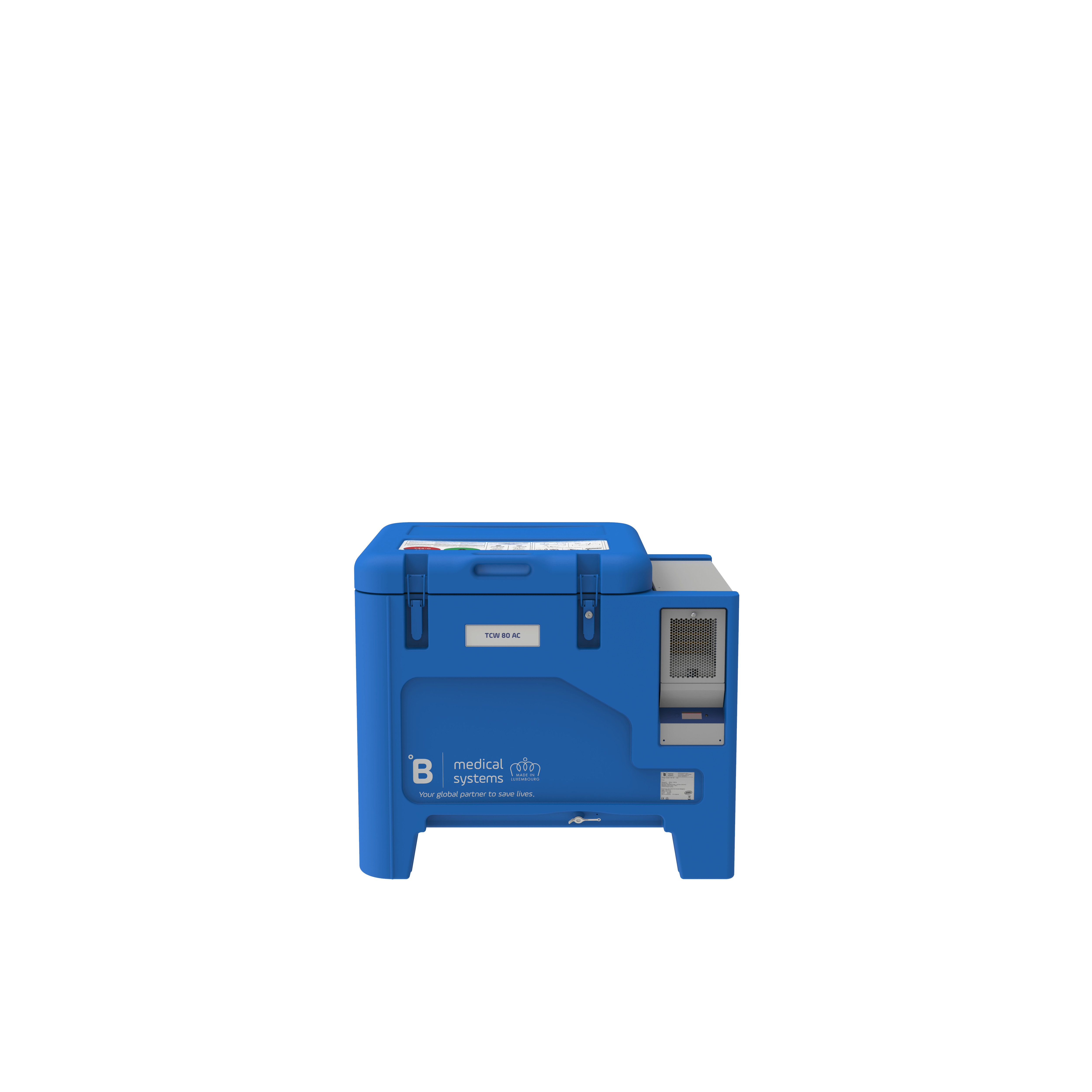

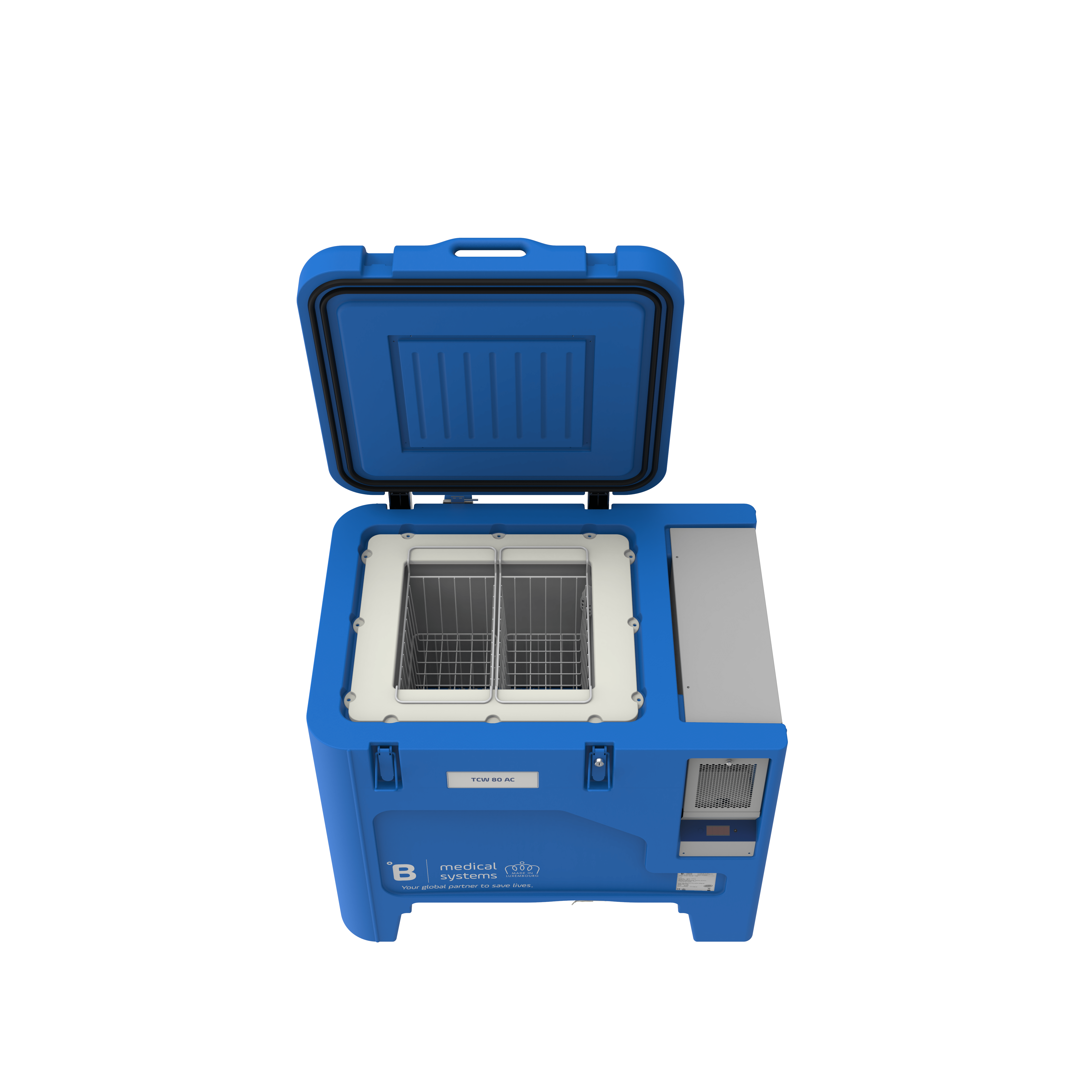

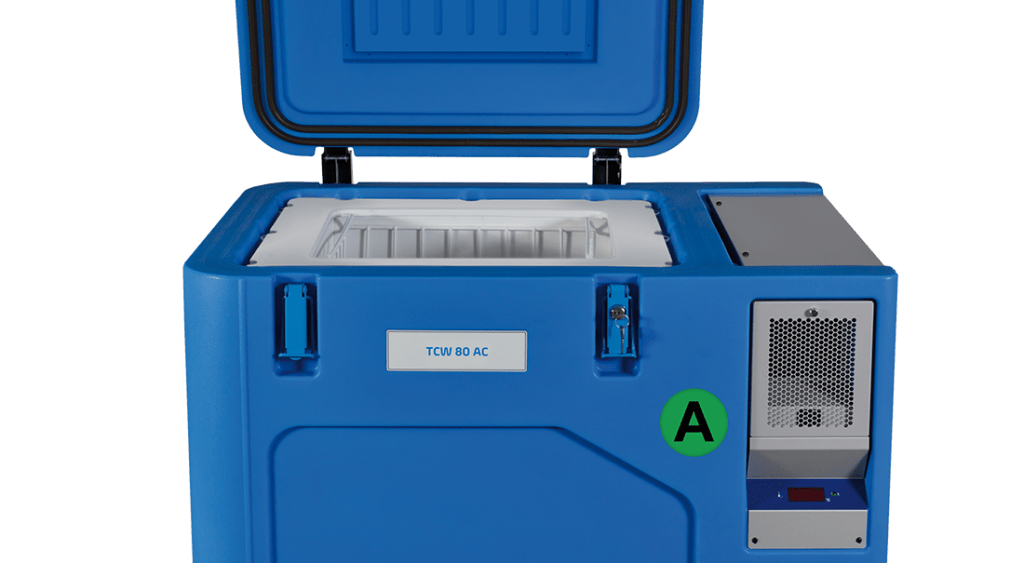

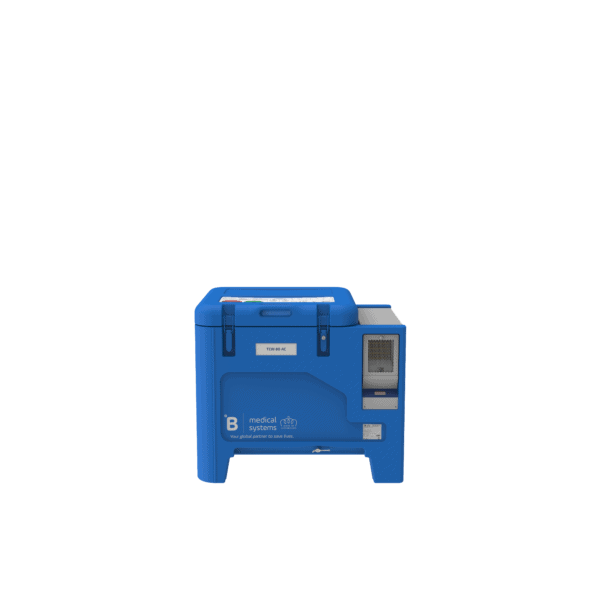

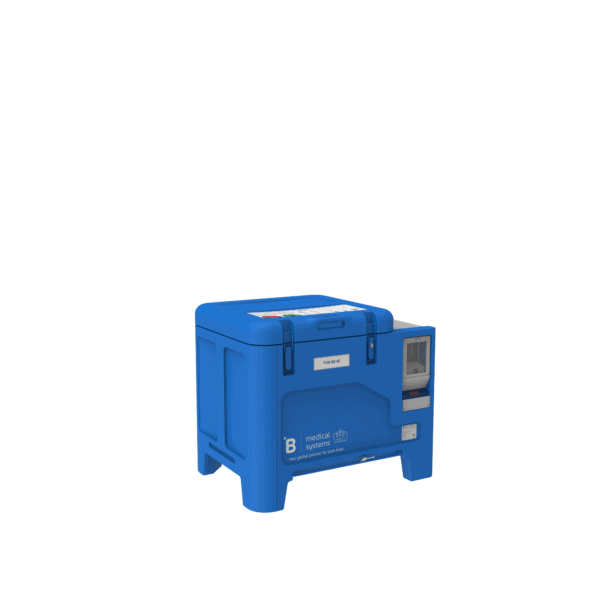

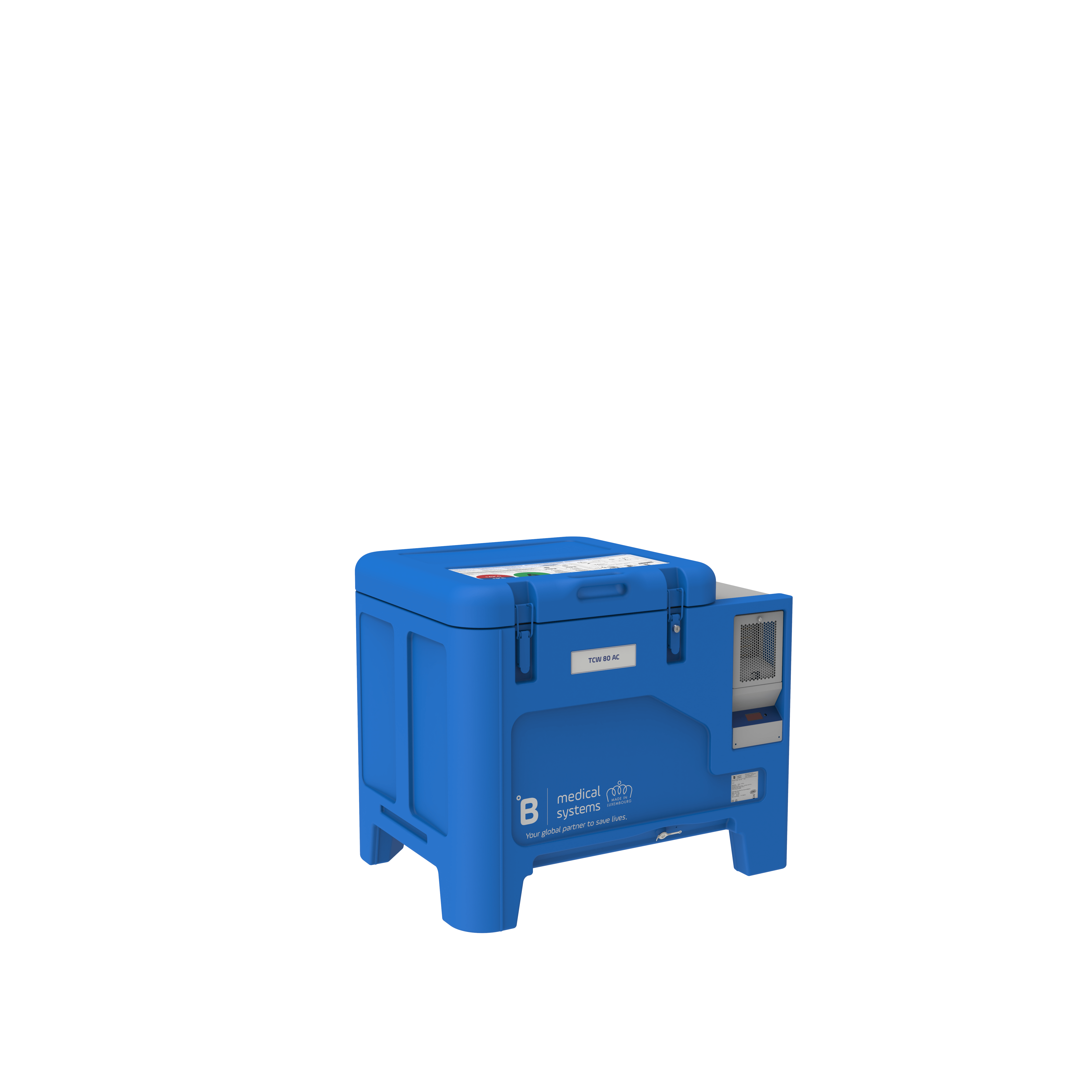

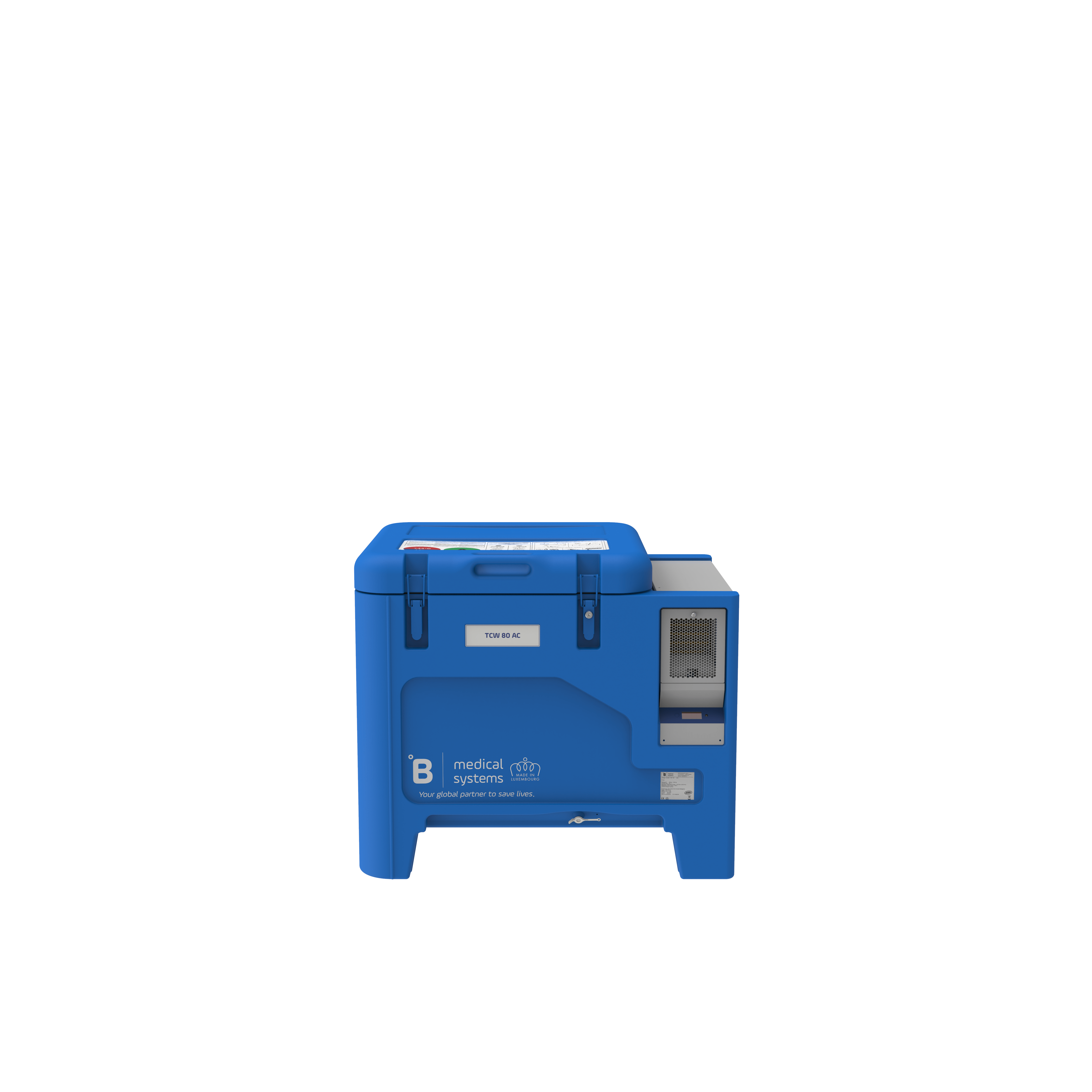

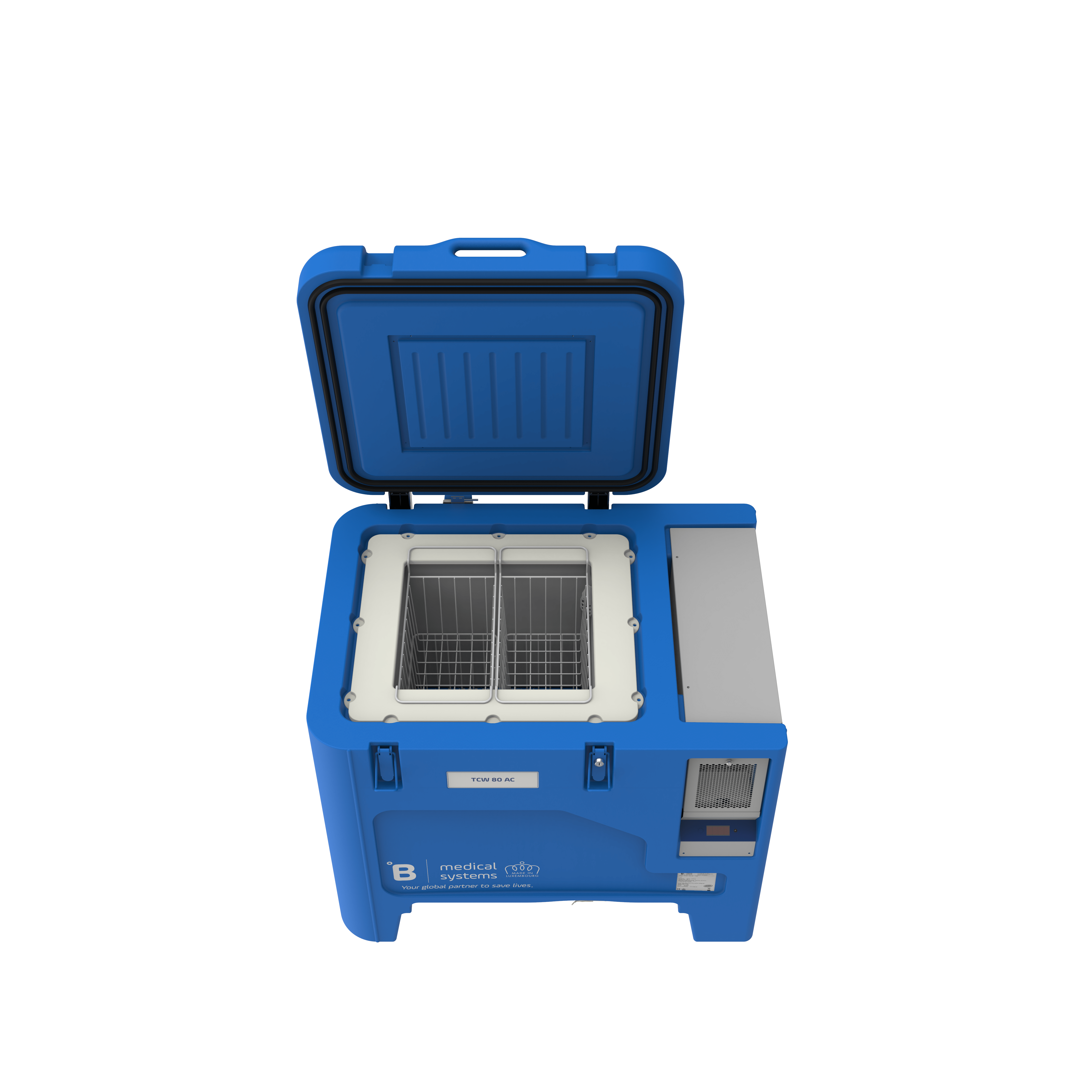

Vaccine Refrigerator TCW80AC

Vaccine Refrigerator with 82.5 L | 2.91 cu ft gross volume.

  • Set Temperature: +4°C
  • Vaccine storage capacity: 80.5 L
  • WHO PQS Code : E003/101
  • Freeze protection: Grade A
  • Climate class (ambient temperature range): Hot zone (+43°C)
  • Energy source: AC

Innovative technology

  • Fully integrated automatic voltage stabilization solution (for any voltage in between 90-290 V) and a protective relay
  • 5 years international warranty for all parts and labour
  • Green technology: very low power consumption and environmentally friendly refrigerant (R600a)

Resistance to harsh environment

  • Designed to operate in tropical conditions
  • Rotomoulded body construction: rust free and extremely robust
  • Humidity control: no condensation issues in the fridge

Safety and traceability

  • Strong insulation
  • Silicone gaskets and lockable claps: tight closing and restricted access
  • Audio-visual alarm system with remote transmission
  • Remote temperature monitoring solution, comprising a data logger and a digital platform
  • Integrated Remote Temperature Monitoring Device (RTMD), offering real-time worldwide remote monitoring, data access over WEB and GPS position
Gross volume

82.5 L | 2.91 cu ft

Vaccine storage capacity

80.5 L

Set Temperature


Climate class (ambient temperature range)

Hot zone (+43°C)


EMC directive 2014/30/EC | Low voltage 2014/35/EC | WHO PQS E003/101

External dimensions (HxWxD)

900 x 1030 x 780 mm | 35.43 x 40.55 x 30.71 in

Net weight

94 kg | 207.23 lb

Shipping weight

113 kg


50-60 Hz

Supply voltage

110-240V AC

Refrigerant Type

Natural R600a



Remote monitoring

RTMD included

Cool down

9 days

Hold over time

72h09 min at 43°C

Energy cons. 24h stable

1.16kWh/24h at 43°C

Energy source


Freeze protection

Grade A



Product Type

Vaccine Refrigerator
