NEW

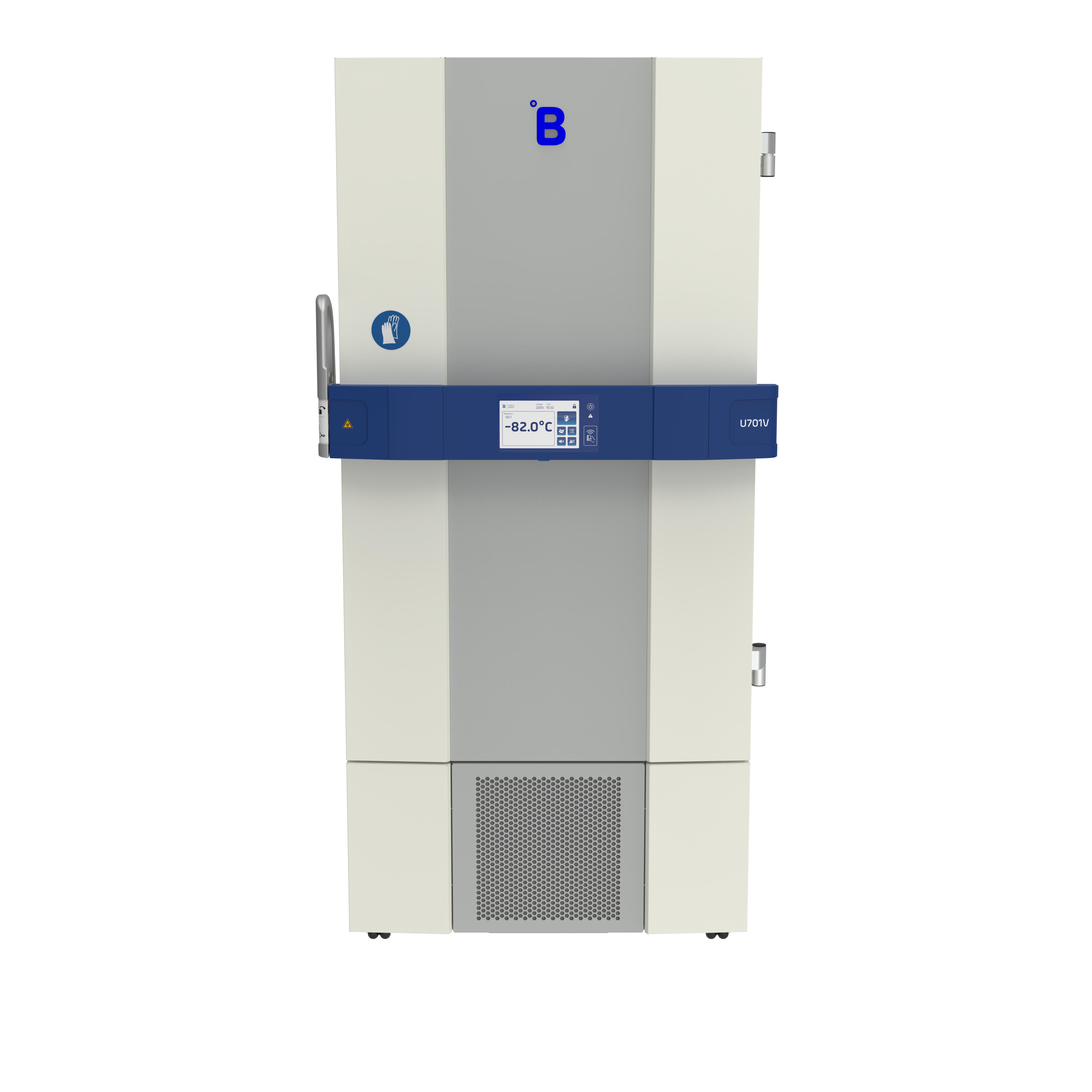

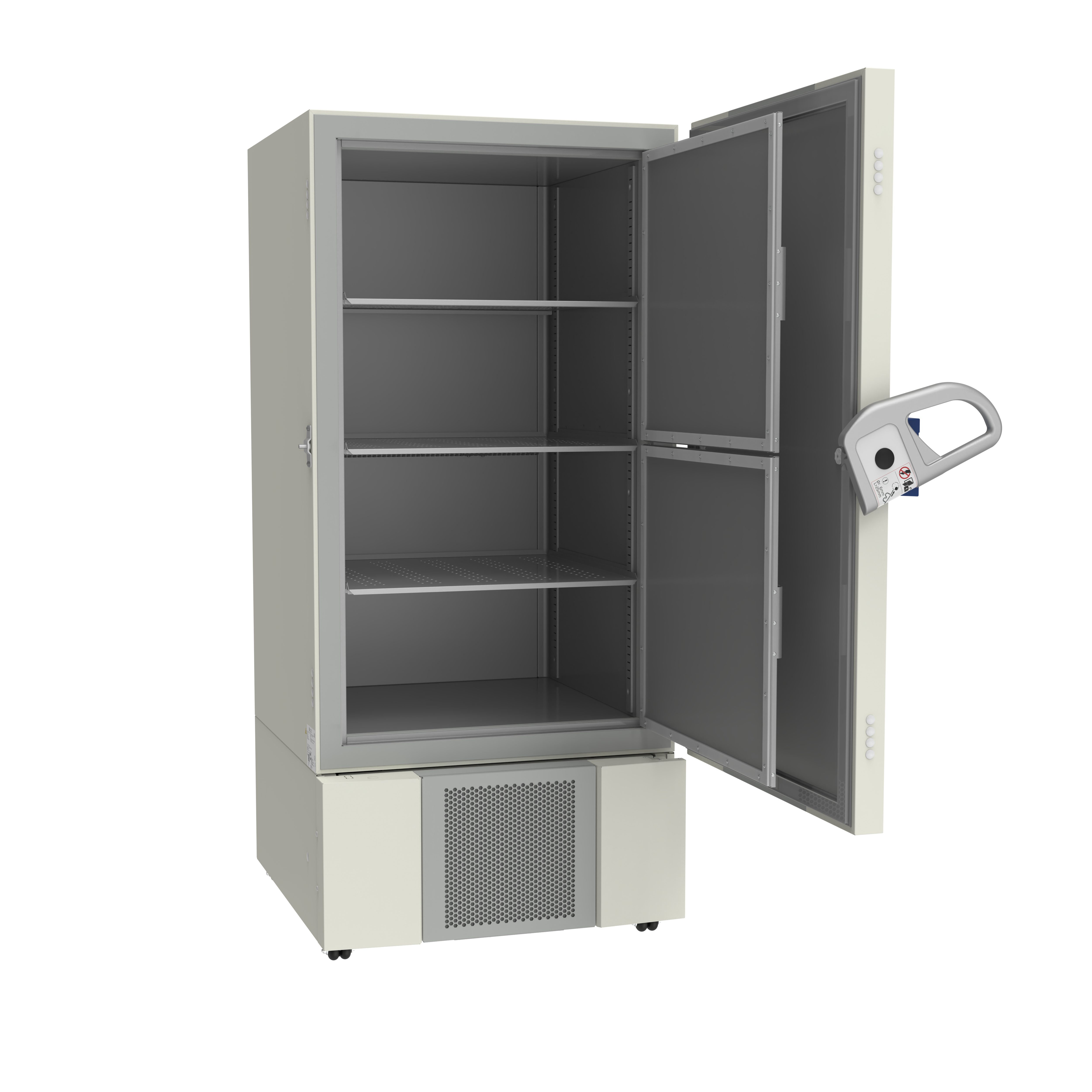

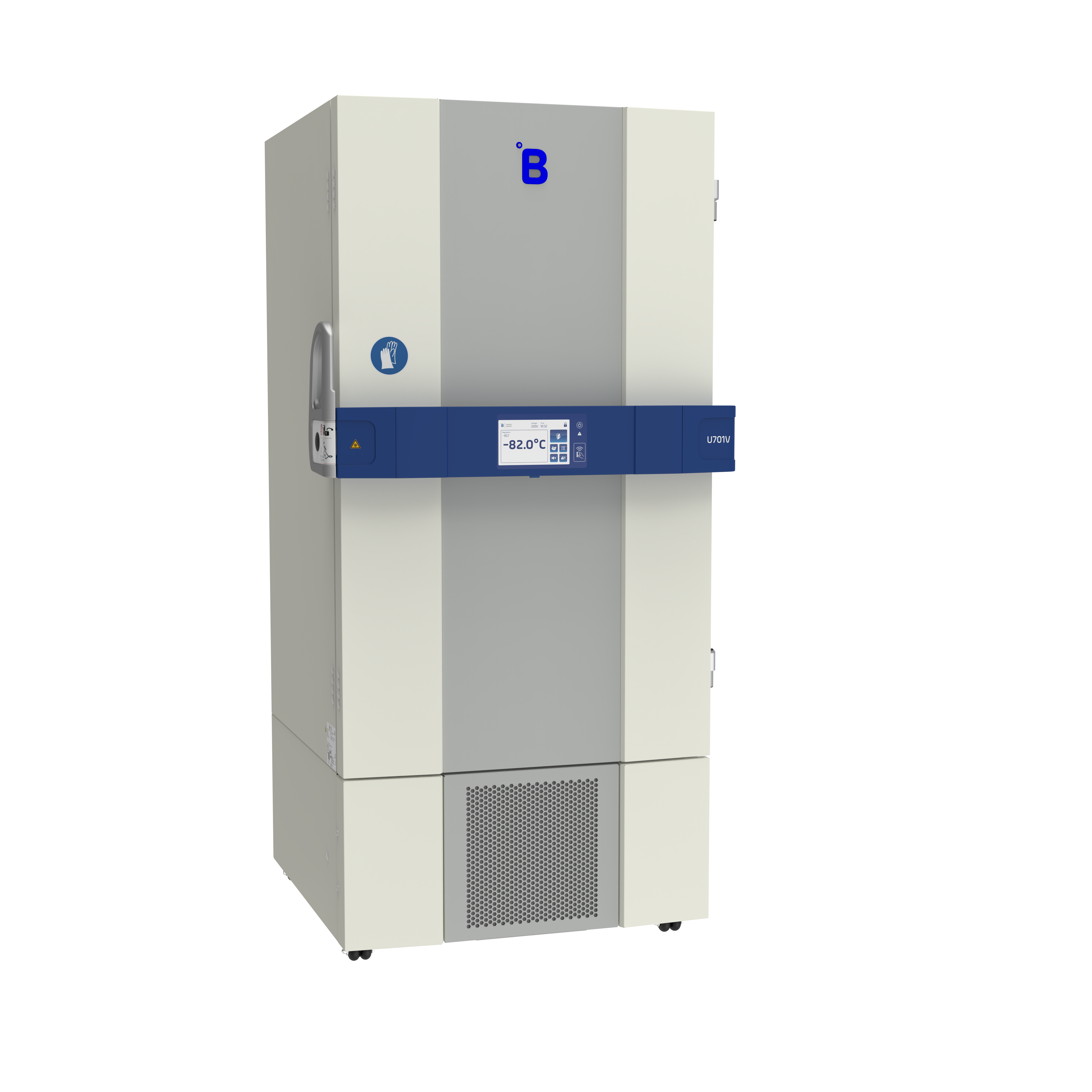

Ultra-Low Freezer U701V
✅ Intensive use ✅ Reliable ✅ Energy efficient
Ultra-Low Freezer with 751 L | 26.52 cu ft storage capacity
- Set Temperature: -80°C
- Climate class (ambient temperature range): +10°C to +43°C
- Alarm limits: -85°C | -75°C
- External dimensions (HxWxD): 1988 x 992 x 1039 mm | 78.27 x 39.06 x 40.91 in
- Refrigerant Type: Natural R290 / R170
Reliability
Efficiency
Convenience
| Gross volume | 791 L | 27.93 cu ft |
|---|---|
| Storage Capacity | 751 L | 26.52 cu ft |
| Plasma bag capacity (350 ml) | 500 |
| Cryoboxes capacity | 575 |
| 2ml Vials Storage Capacity | 57500 |
| Set Temperature | -80°C |
| Temperature range | -86°C to -20°C |
| Alarm limits | -85°C | -75°C |
| Climate class (ambient temperature range) | +10°C to +43°C |
| Certifications | EU MDR Class IIa | ISO 14644-1 | Class 4 |
| Cooling technology | Static cooling with variable speed compressors |
| External dimensions (HxWxD) | 1988 x 992 x 1039 mm | 78.27 x 39.06 x 40.91 in |
| Internal dimensions (HxWxD) | 1375 x 740 x 738 mm | 54.13 x 29.13 x 29.05 in |
| Net weight | 298 kg | 657 lb |
| Frequency | 50-60 Hz |
| Supply voltage | 220-240V |
| Energy consumption | 7.5 kWh/24h at -80°C | 6.3 kWh/24h at -70°C |
| Refrigerant Type | Natural R290 / R170 |
| Heat emission | 360 W |
| Materials | Stainless steel |
| Display | 7" touchscreen screen |
| Remote monitoring | Optional °B Connected software via data communication unit |
| Hold over time | 1.7 h (-80°C to -60°C) |
| Defrosting technique | Manual |
| Access control | Password or badge |
| Data export | SD card | USB port |
| Product Type | Ultra-Low Freezer |
Ultra-Low Freezer U701V
