Multimode: Vaccine Refrigerator or Vaccine/Water-pack Freezer TCW 3100 AC
Multimode: Vaccine Refrigerator or Vaccine/Water-pack Freezer with 204 L gross volume.
- Set temperature: -20°C (freezer) | +5°C (refrigerator)
- Vaccine storage capacity: 168 L
- Water-pack storage capacity: 168 L (without baskets)
- Certifications: (EU) 2017/745: Class I | EMC directive 2014/30/EC | Low voltage 2014/35/EC | WHO PQS E003/143 (only applicable for vaccine freezer mode)
- Freeze protection level: Grade A
- Climate class (ambient temperature range): Hot zone (+43°C)
- Energy source: AC
Innovative technology
- Able to be set as either a vaccine refrigerator, a vaccine freezer or a water-pack freezer
- Equipped with 1 voltage protector
- Door gasket easily replaceable and washable
- External temperature display and real-time visualization on the web
- 2 USB charging ports
Resistance to harsh environment
- Designed to operate in tropical conditions
- Rotomoulded body construction: rust free and extremely robust
- Humidity control: no condensation issues in the fridge
Safety and traceability
- Strong insulation
- Silicone gaskets and lockable clasps: tight closing and restricted access
- Audio-visual alarm system with remote transmission
- Remote temperature monitoring solution, comprising a data logger and a digital platform
| Gross volume | 204 L |
|---|---|
| Vaccine storage capacity | 168 L |
| Water-pack storage capacity | 168 L (without baskets) |
| Water-pack freezing capacity /24h | 18 kg at +43°C (30 water-packs of 0.6 L) |
| Set temperature | -20°C (freezer) | +5°C (refrigerator) |
| Climate class (ambient temperature range) | Hot zone (+43°C) |
| Certifications | (EU) 2017/745: Class I | EMC directive 2014/30/EC | Low voltage 2014/35/EC | WHO PQS E003/143 (only applicable for vaccine freezer mode) |
| External dimensions (HxWxD) | 910 x 1280 x 780 mm |
| Net weight | 140 kg (with filled water-packs) |
| Nominal shipping dimensions (HxWxD) | 1030 x 1300 x 800 mm |
| Nominal shipping weight | 167 kg (with filled water-packs) |
| Frequency | 50-60 Hz |
| Supply voltage | 220-240V | (also available in 115V / 60 Hz) |
| Refrigerant type | Natural R290 |
| Materials | Polyethylene |
| Hold over time | 39 h 13 min at +43°C (refrigerator) | 14 h 53 min at +43°C (freezer) |
| Energy consumption /24h (stable running) | 1.09 kWh /24 h at +43°C at Intermittent Power (refrigerator) | 1.37 kWh /24 h at +43°C at Continuous Power (refrigerator) | 3.09 kWh /24 h at +43°C (freezer) |
| Energy consumption /24h (cool down) | 1.032 kWh /24 h at +43°C (refrigerator) | 3.08 kWh /24 h at +43°C (freezer) |
| Energy source | AC |
| Freeze protection level | Grade A |
| Remote monitoring | RTMD optional |
| Product type | Multimode: Vaccine Refrigerator or Vaccine/Water-pack Freezer |

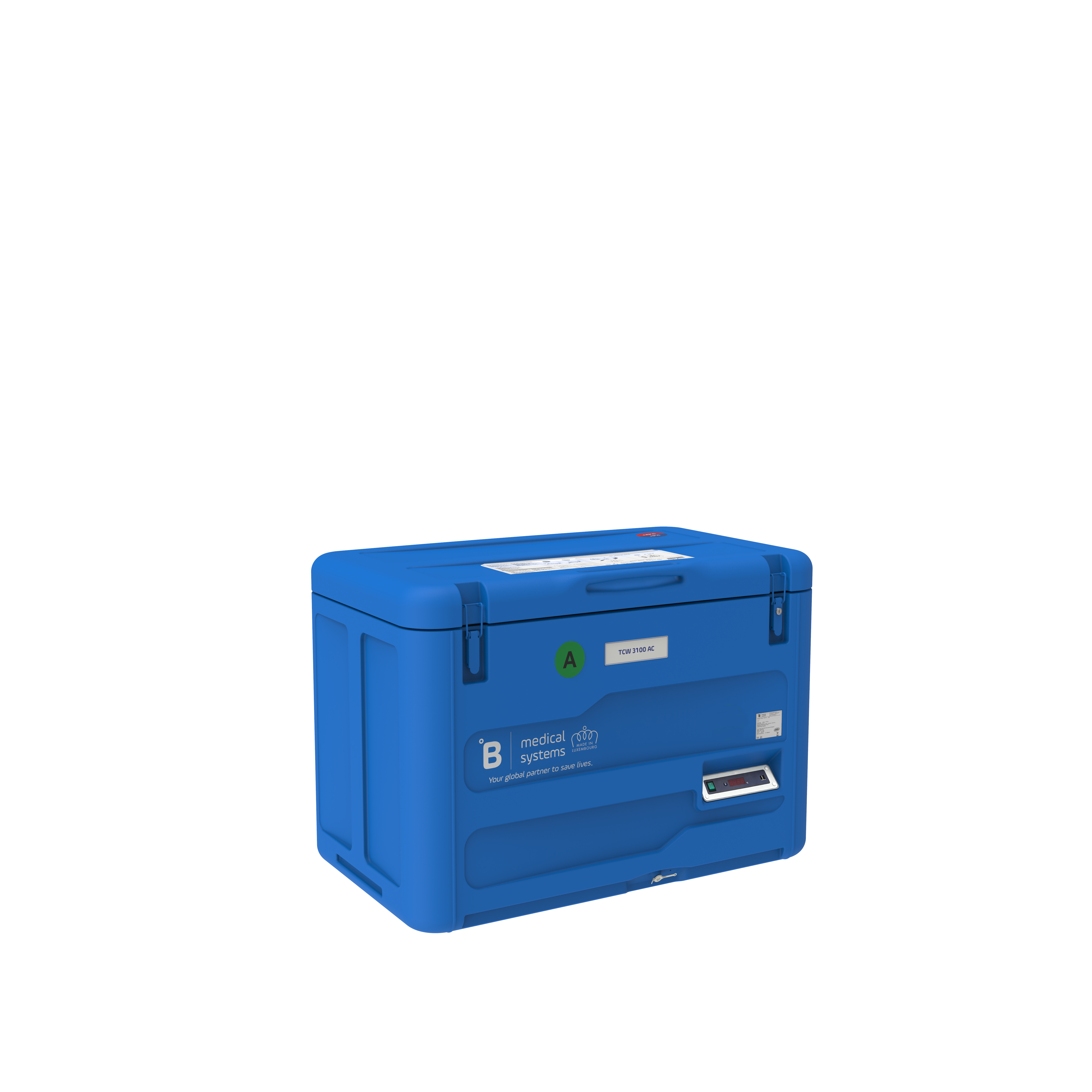

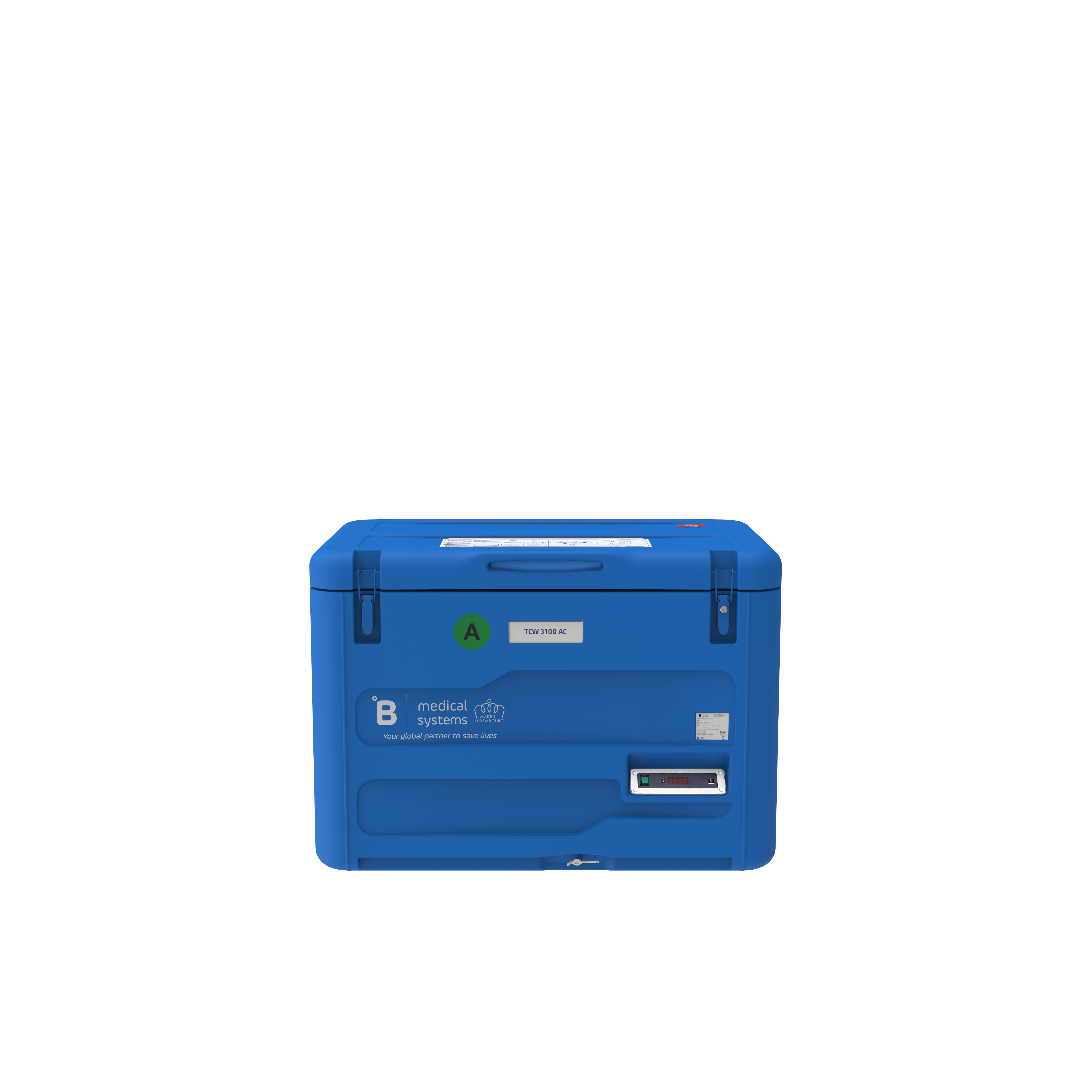

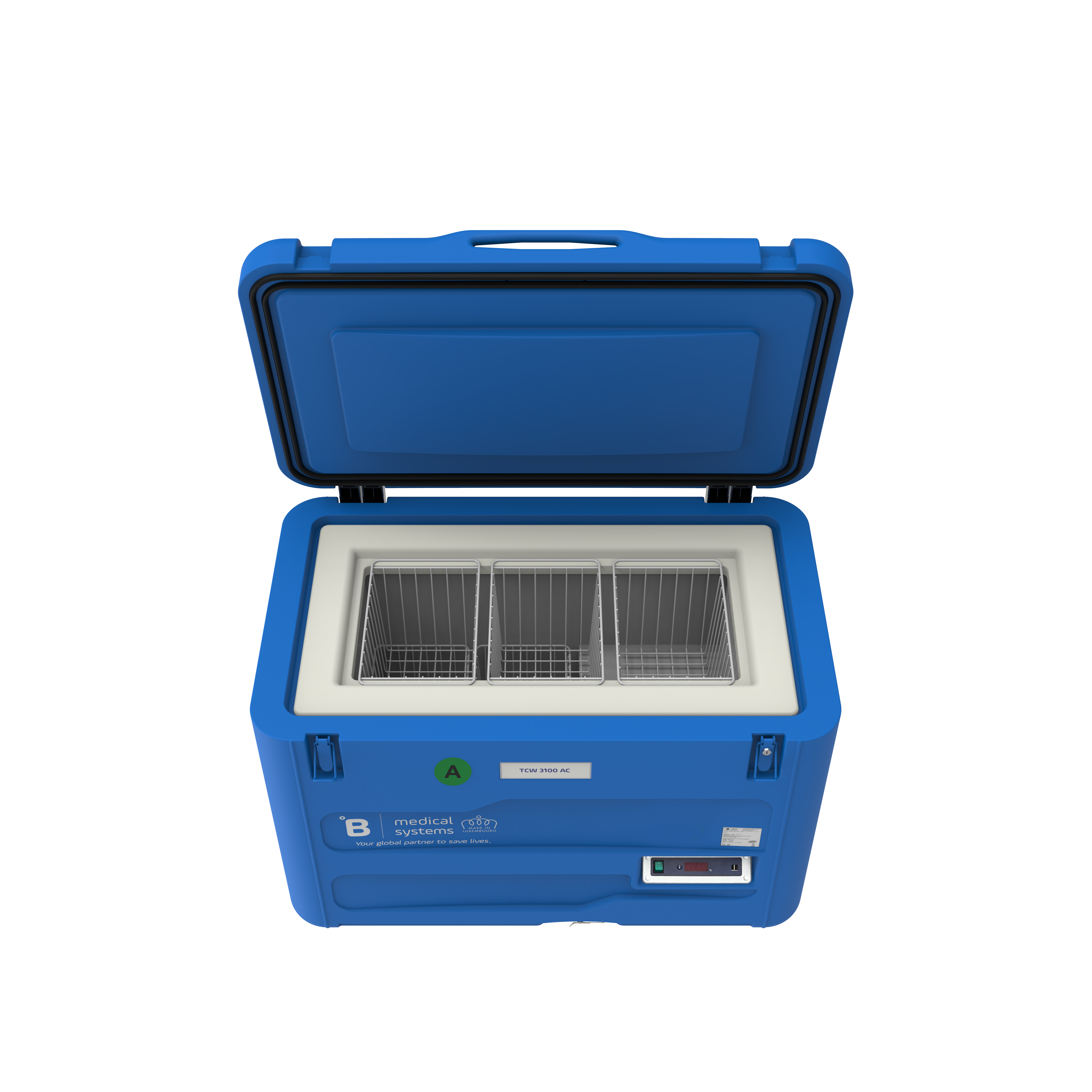

TCW 3100 AC vaccine refrigerator or vaccine/water-pack freezer
