Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer TCW40SDD

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with 46.6 L | 1.65 cu ft gross volume.

  • Set Temperature: +5°C
  • Vaccine storage capacity: 36 L
  • Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/042
  • Freeze protection: Grade A
  • Climate class (ambient temperature range): Hot zone (+43°C)
  • Energy source: Solar; DC

Resistance to harsh environment

  • Designed to operate in tropical conditions (32°C to 43°C depending on the model)
  • Rotomoulded body construction: rust free and extremely robust
  • Humidity control: no condensation issues in the fridge
  • Best-in-class warranty: 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion

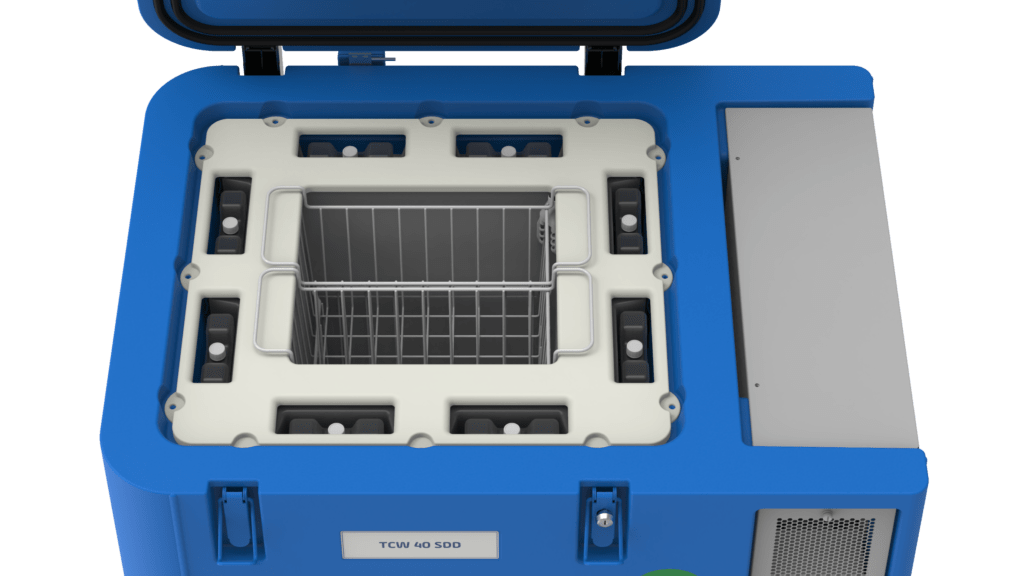

Ergonomic Design

  • Door gaskets are easily replaceable and washable
  • “Plug and play” installation of the solar generators
  • No battery, no regulator: easy maintenance and no hidden costs
  • External temperature display and real-time visualization on the web

Safety and traceability

  • Strong insulation: extended holdover time in the event of minimal or no sunlight
  • Silicone gaskets and lockable clasps: tight closing and restricted access
  • Audio-visual alarm system with remote transmission
  • Remote temperature monitoring solution, comprising a data logger and a digital platform
Gross volume

46.6 L | 1.65 cu ft

Vaccine storage capacity

36 L

Refrigerator gross volume

46.6 L | 1.65 cu ft

Freezer gross volume

4.8 L | 0.17 cu ft

Set Temperature

+5°C

Climate class (ambient temperature range)

Hot zone (+43°C)

Certifications

EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/042

External dimensions (HxWxD)

900 x 1030 x 780 mm | 35.43 x 40.55 x 30.71 in

Net weight

46.6 kg | 102.74 lb

Shipping weight

126 kg

Supply voltage

25V DC

Refrigerant Type

Natural R600a

Materials

Polyethylene

Remote monitoring

RTMD included

Autonomy

81h 54min

Cool down

36h

Hold over time

93h24 min at 43°C

Energy cons. 24h stable

0.57kWh/24H at 43°C

Energy source

Solar; DC

Freeze protection

Grade A

WHO PQS Code

E003/042

Product Type

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer
