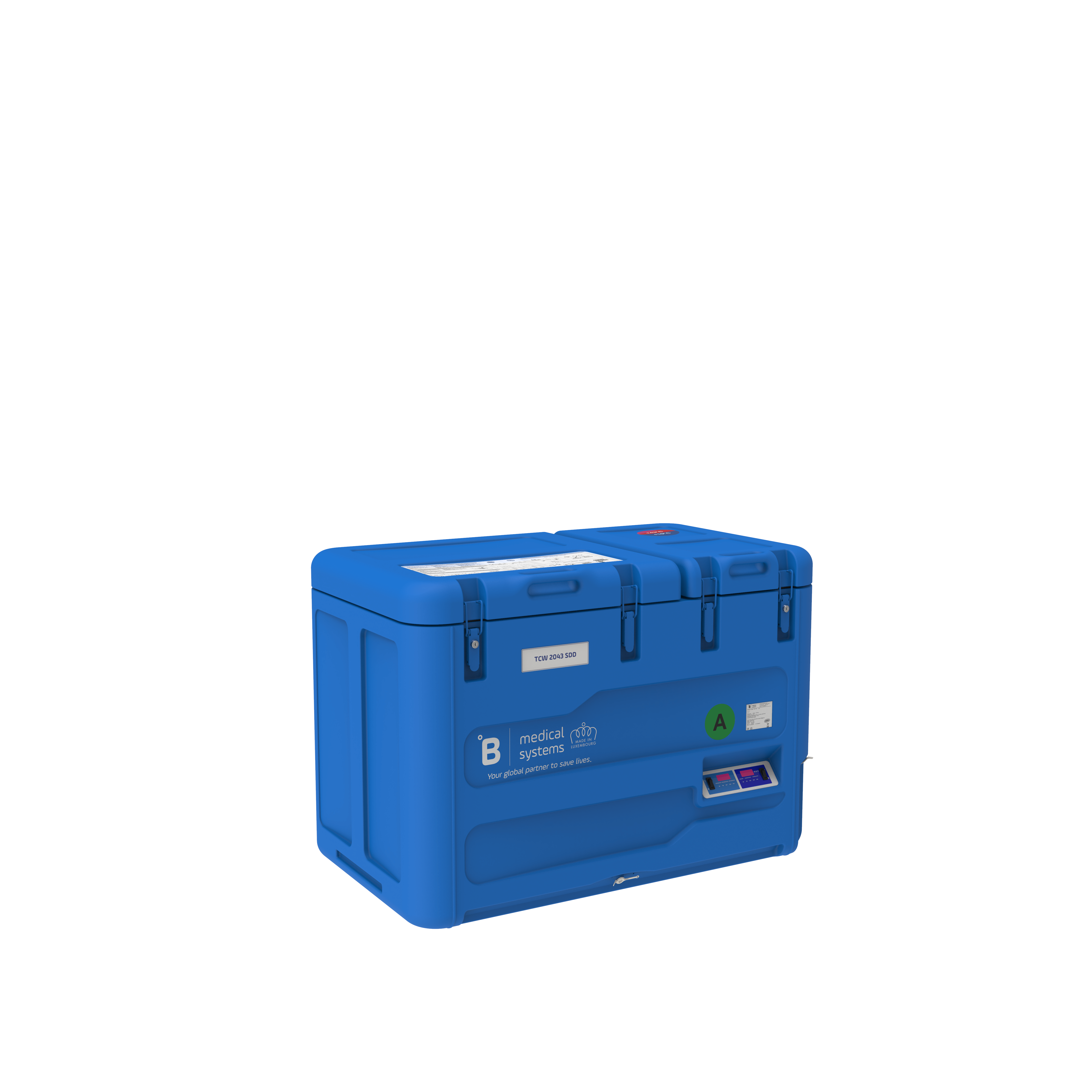

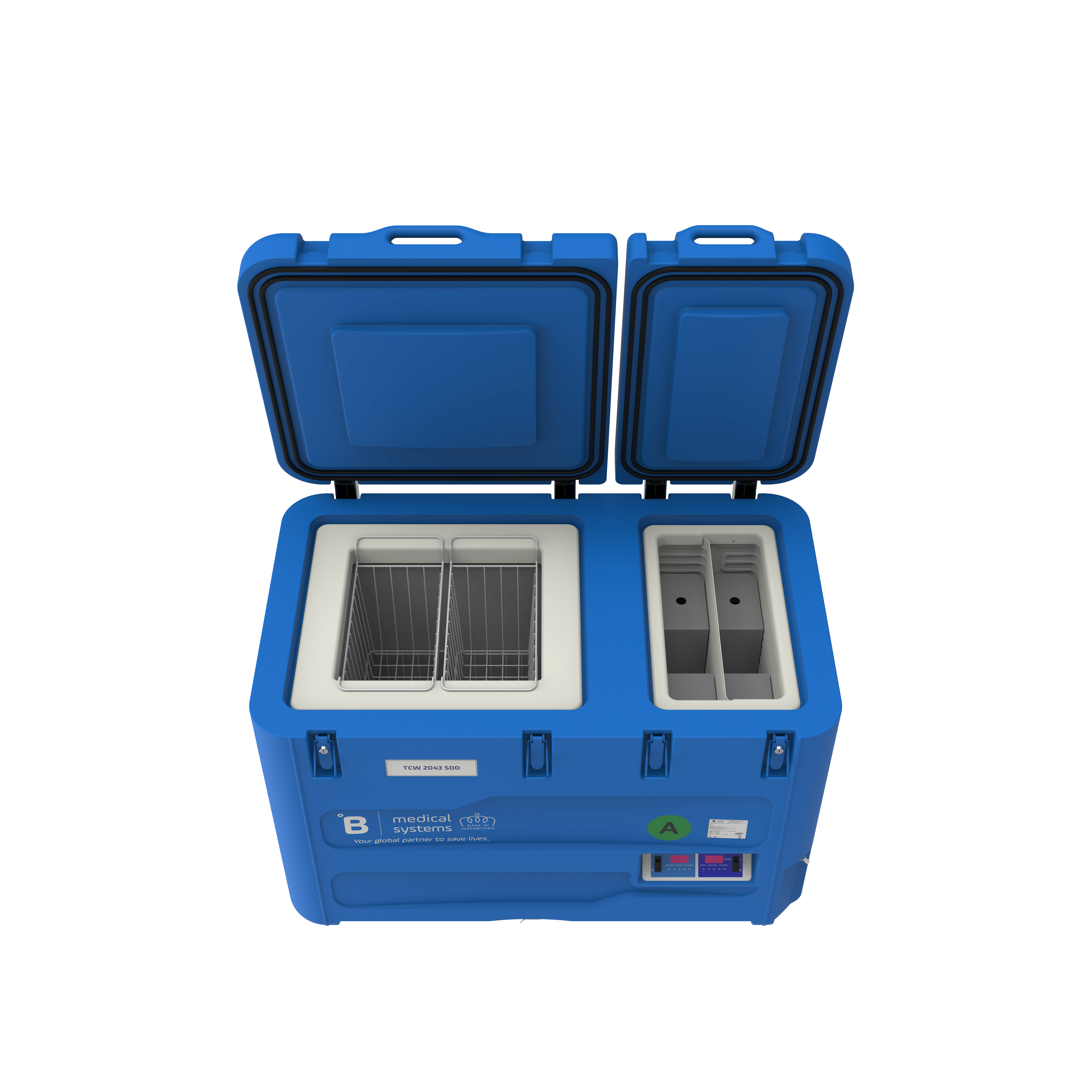

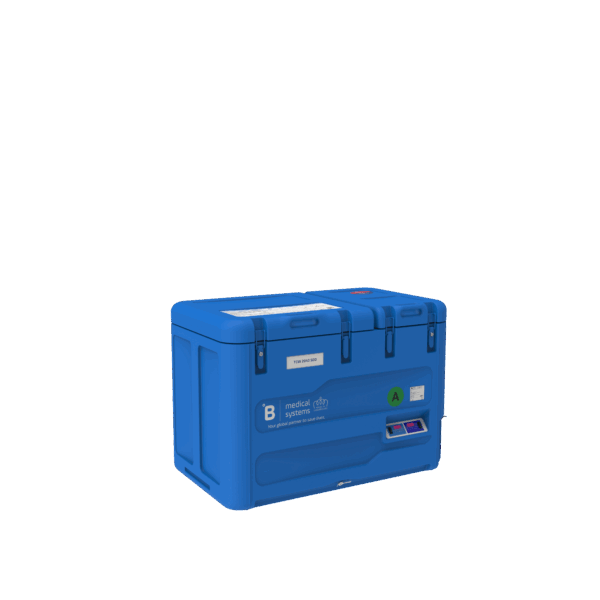

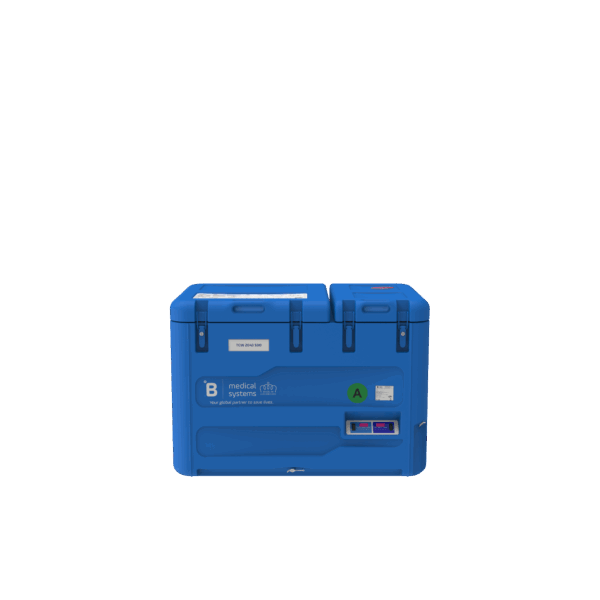

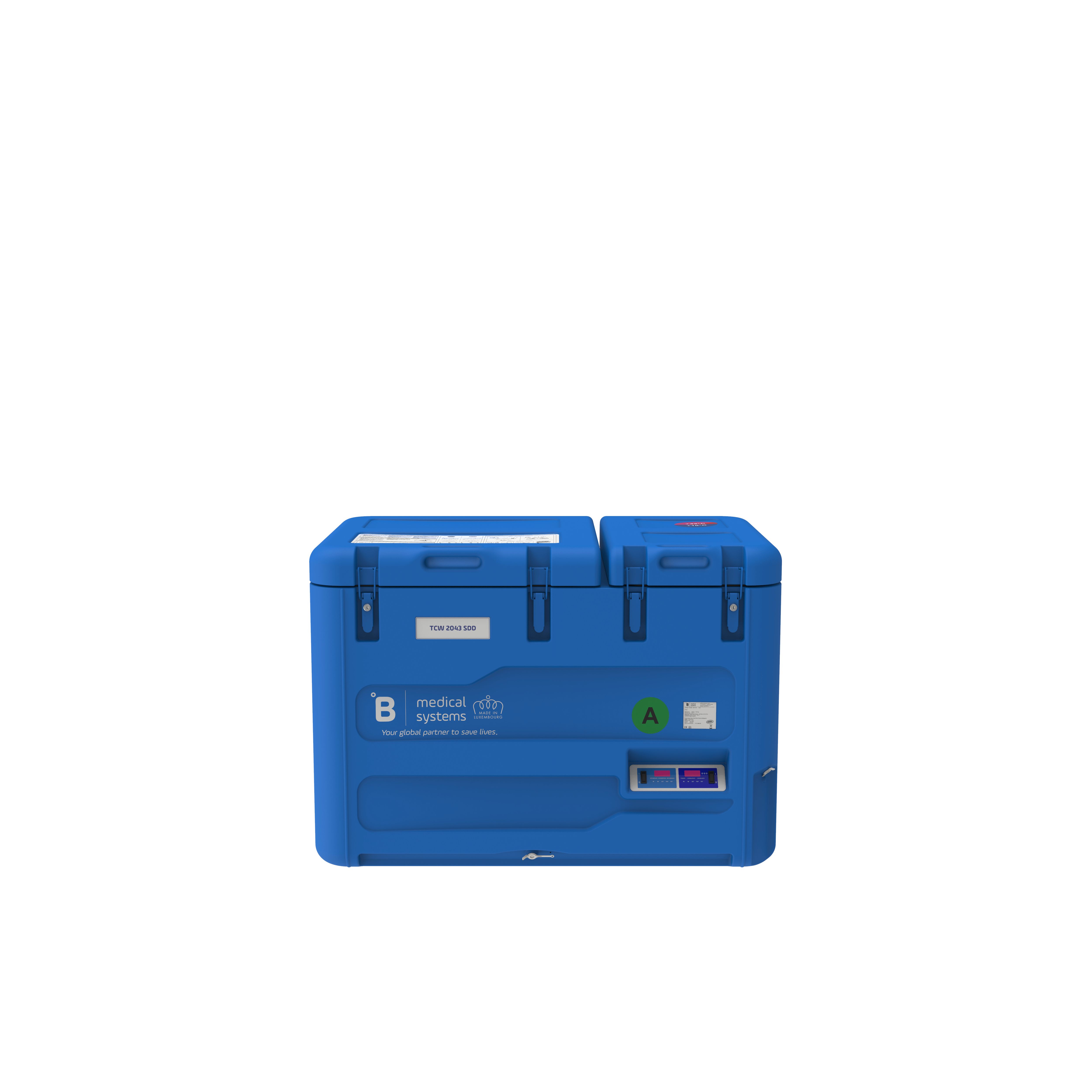

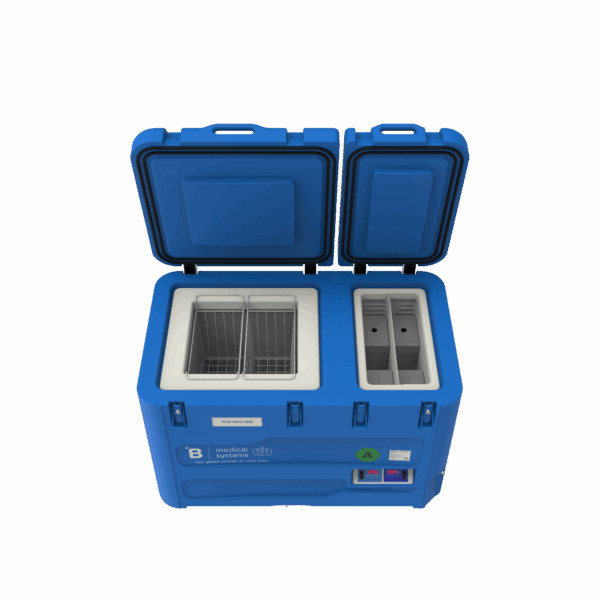

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer TCW2043SDD
Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with F: 42 L | R: 79 L | R: 2.79 cu ft | F:1.48 cu ft gross volume.
- Set Temperature: +5°C (R) | -25°C (F)
- Vaccine storage capacity: 70 L
- Ice-pack storage (at 0.6 L): 10.5 kg
- Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/043
- Freeze protection: Grade A
- Climate class (ambient temperature range): Hot zone (+43°C)
- Energy source: Solar; DC
Resistance to harsh environment
- Designed to operate in tropical conditions (32°C to 43°C depending on the model)
- Rotomoulded body construction: rust free and extremely robust
- Humidity control: no condensation issues in the fridge
- Best-in-class warranty: 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion
Ergonomic Design
- Door gaskets are easily replaceable and washable
- “Plug and play” installation of the solar generators
- No battery, no regulator: easy maintenance and no hidden costs
- External temperature display and real-time visualization on the web
Safety and traceability
- Strong insulation: extended holdover time in the event of minimal or no sunlight
- Silicone gaskets and lockable clasps: tight closing and restricted access
- Audio-visual alarm system with remote transmission
- Remote temperature monitoring solution, comprising a data logger and a digital platform
| Gross volume | F: 42 L | R: 79 L | R: 2.79 cu ft | F:1.48 cu ft |
|---|---|
| Vaccine storage capacity | 70 L |
| Ice-pack storage (at 0.6 L) | 10.5 kg |
| Refrigerator gross volume | 79 L | 2.79 cu ft |
| Freezer gross volume | 42 L | 1.48 cu ft |
| Set Temperature | +5°C (R) | -25°C (F) |
| Climate class (ambient temperature range) | Hot zone (+43°C) |
| Certifications | EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/043 |
| External dimensions (HxWxD) | 910 x 1270 x780 mm | 35.83 x 50.00 x 30.71 in |
| Net weight | 137 kg |
| Shipping weight | 166 kg |
| Supply voltage | 25V DC |
| Refrigerant Type | Natural R600a |
| Materials | Polyethylene |
| Remote monitoring | RTMD included |
| Autonomy | 73h 54min |
| Cool down | 56h |
| Hold over time | 79h at 43°C |
| Energy cons. 24h stable | 0.73kWh/24H at 43°C |
| Energy source | Solar; DC |
| Freeze protection | Grade A |
| WHO PQS Code | E003/043 |
| Product Type | Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer |
